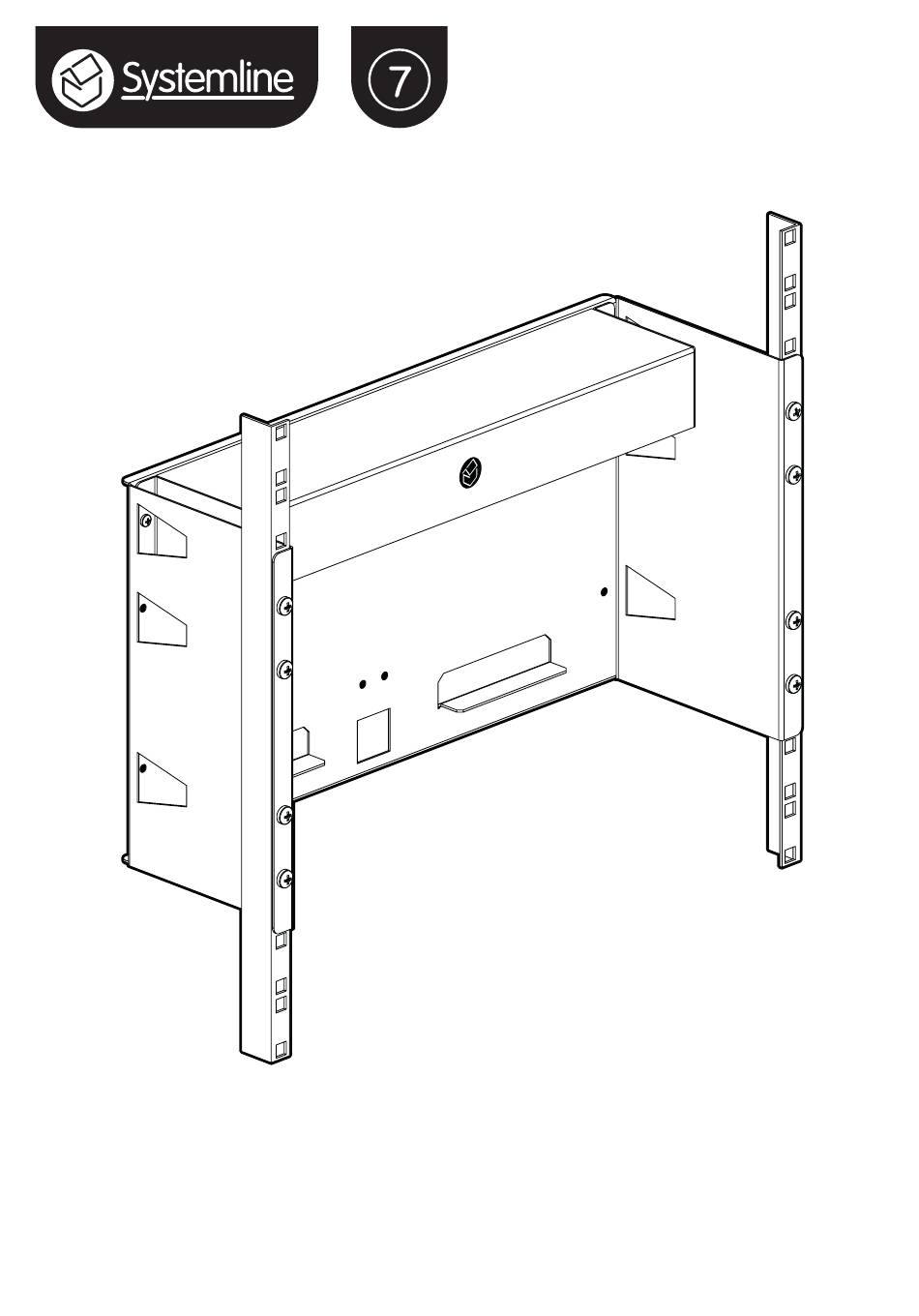

- Page 1 All manuals and user guides at all-guides.com S7 NetAmp 19” Rack Adapter 19” rack adapter used to mount up to two S7 NetAmps SN8200...
- Page 2 Installation instructions Unscrew 2 screws either side of cable cover. Detach cable cover from rack panel. C x2 Systemline® is a registered trademark of Armour Home Electronics Ltd. All other product names are trademarks or registered trademarks of their respective owners.
- Page 3 All manuals and user guides at all-guides.com Fit 2 brackets to each NetAmp as shown (all items supplied with NetAmp). Mount each NetAmp onto rack panel using screws provided (4 screws per NetAmp). C x4 C x4 Plug in mains cables (supplied with NetAmps). Feed all additional cables through provided cutouts and plug in.
- Page 4 All manuals and user guides at all-guides.com Fix cable cover onto rack panel using 2 screws provided. C x2 Fit 8 cage nuts into appropriate positions in the rack. Fix rack panel into rack using 8 screws provided. D x4 D x4 Stortford Hall Industrial Park Dunmow Road...
