Clever Little Box so.net User Manual page 5

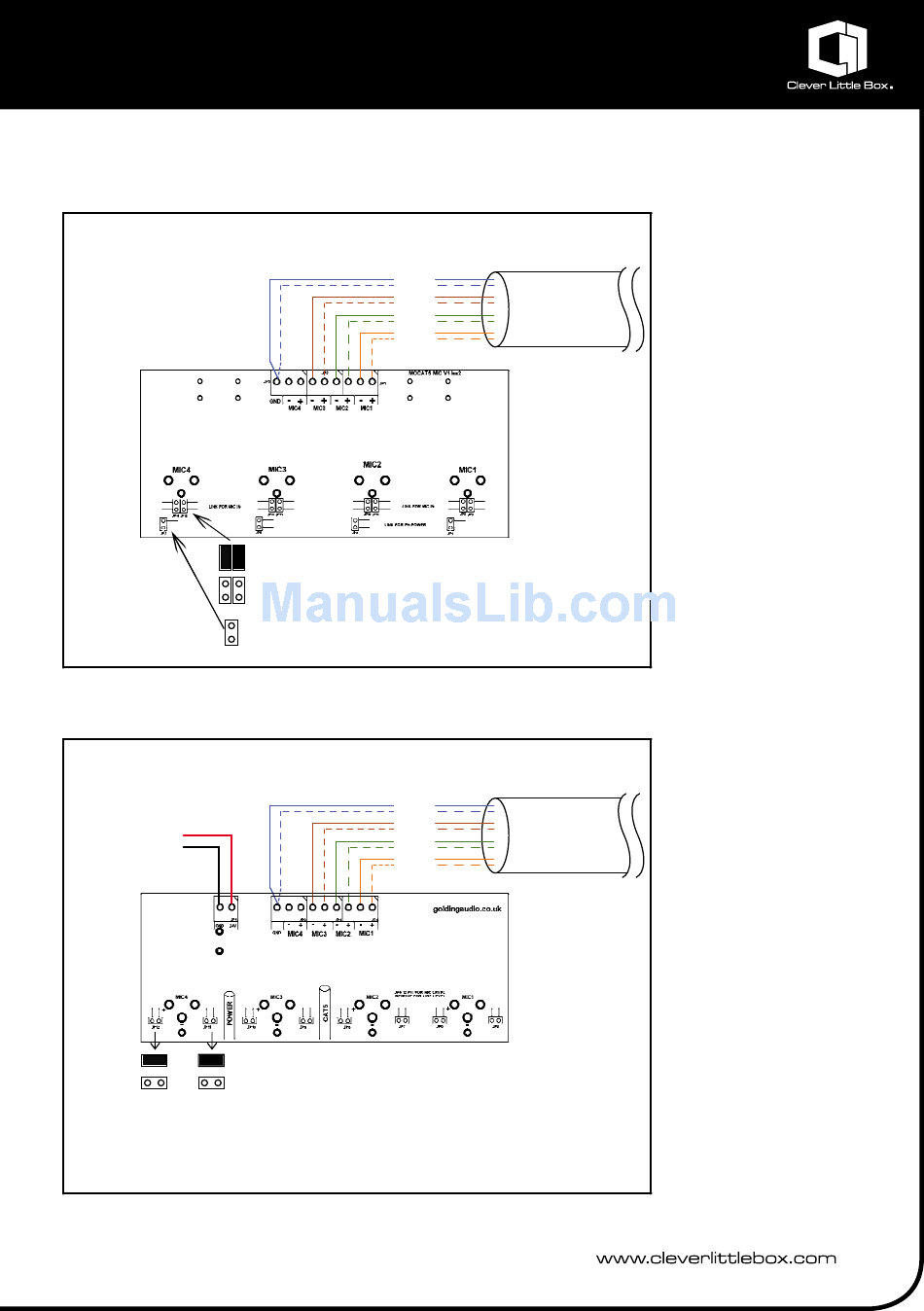

Wiring: MIC/AMP un-screened cable
Wiring for MIC end using un-screened cable
INPUT MODULE
Using UNSCREENED
cable
Wiring for AMPLIFIER end using un-screened cable
OUTPUT MODULE
Using UNSCREENED
cable
24VDC
Input
Fit links for MIC level
Remove links for LINE level
Pair 4
Pair 3
Pair 2
Pair 1
Fit links for MIC level
Remove links for LINE level
Fit link for PHANTOM power
Pair 4
Pair 3
Pair 2
Pair 1
Unscreened
UTP CAT5e
Cable
Unscreened
UTP CAT5e
Cable
