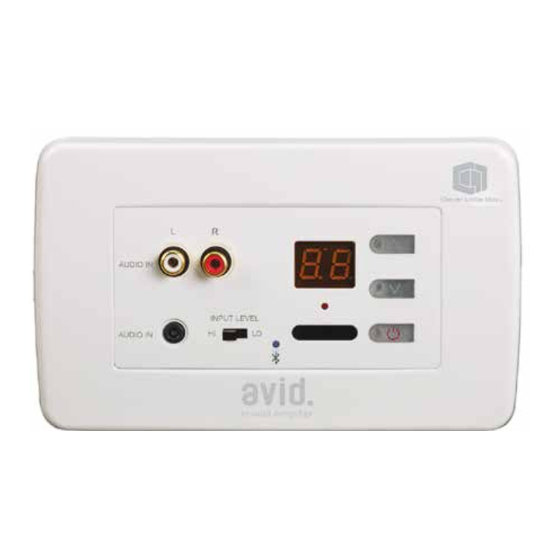

In-wall Amplifier with Bluetooth
Installation Guide
Before installation please take the time to read and understand the enclosed information.
What's included in the box?
1x AVID2 Amplifier, 1x 24v DC 1.25A PSU, 1x IR Remote Control Unit and
1 x Wallmount Bracket for Remote Control.
Specifications:
Output Power
Line Inputs
Bluetooth Input
Line Output
Frequency Response
Input Sensitivity
Power Requirements
Dimensions
Weight
2 x 12W @ 8W
Stereo Phonos (L & R)
Stereo 3.5mm Jack (priority)
Screw Terminal (Rear PCB. In parallel
with 3.5mm Jack Input)
A2DP profile
Fixed level (Unbalanced) 1v 47kW
40Hz ~ 20KHz
(Lo) 200mv / (Hi) 1v
24v DC, 1.25A
165(W) x 100(H) x 35(D) mm
0.26kg
09/12
Advertisement
Related Manuals for Clever Little Box avid2
Summary of Contents for Clever Little Box avid2
-
Page 1: Installation Guide
Before installation please take the time to read and understand the enclosed information. What’s included in the box? 1x AVID2 Amplifier, 1x 24v DC 1.25A PSU, 1x IR Remote Control Unit and 1 x Wallmount Bracket for Remote Control. Specifications:... - Page 2 Before installation please remove the Facia Trim Plate from around the front edge of the unit. This can be refitted once the installation is finished and any decorating is completed. The compact depth of the AVID2 unit will allow installation into standard UK 2-gang EO boxes, with a minimum of 35mm depth.
- Page 3 (This should be clearly explained to the user). A jumper is provided to allow the AVID2 to be used in either mono or stereo mode, the factory default is stereo. If set to mono the amplifier will provide a mixed output to each loudspeaker terminal.
- Page 4 After any changes have been made to the above, the LED display will revert to the set volume level. Please ensure that the enclosed User Instructions are left with the AVID2 unit, easily available to the end user. Registered in England No. 2761780...
