Clever Little Box so.net User Manual page 4

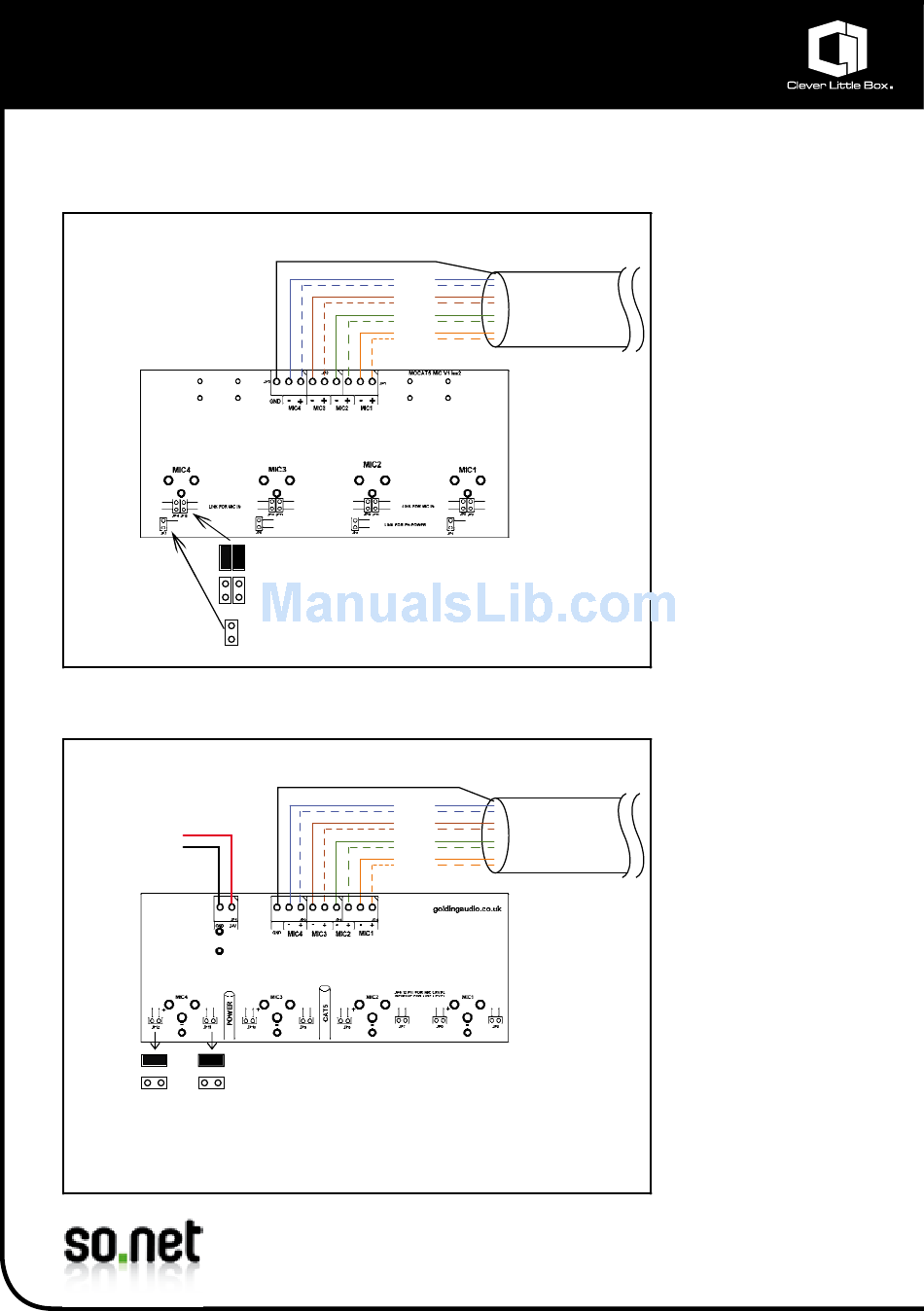

Wiring: MIC/AMP screened cable
Wiring for MIC end using screened cable
INPUT MODULE
Using SCREENED
cable
Wiring for AMPLIFIER end using screened cable
OUTPUT MODULE
Using SCREENED
cable
24VDC
Input
Fit links for MIC level
Remove links for LINE level
Sound-over-Ethernet
Screen wire
Pair 4
Pair 3
Pair 2
Pair 1
Fit links for MIC level
Remove links for LINE level
Fit link for PHANTOM power
Screen wire
Pair 4
Pair 3
Pair 2
Pair 1
Screened CAT5e
Cable
SCREENED
CAT5 Cable
