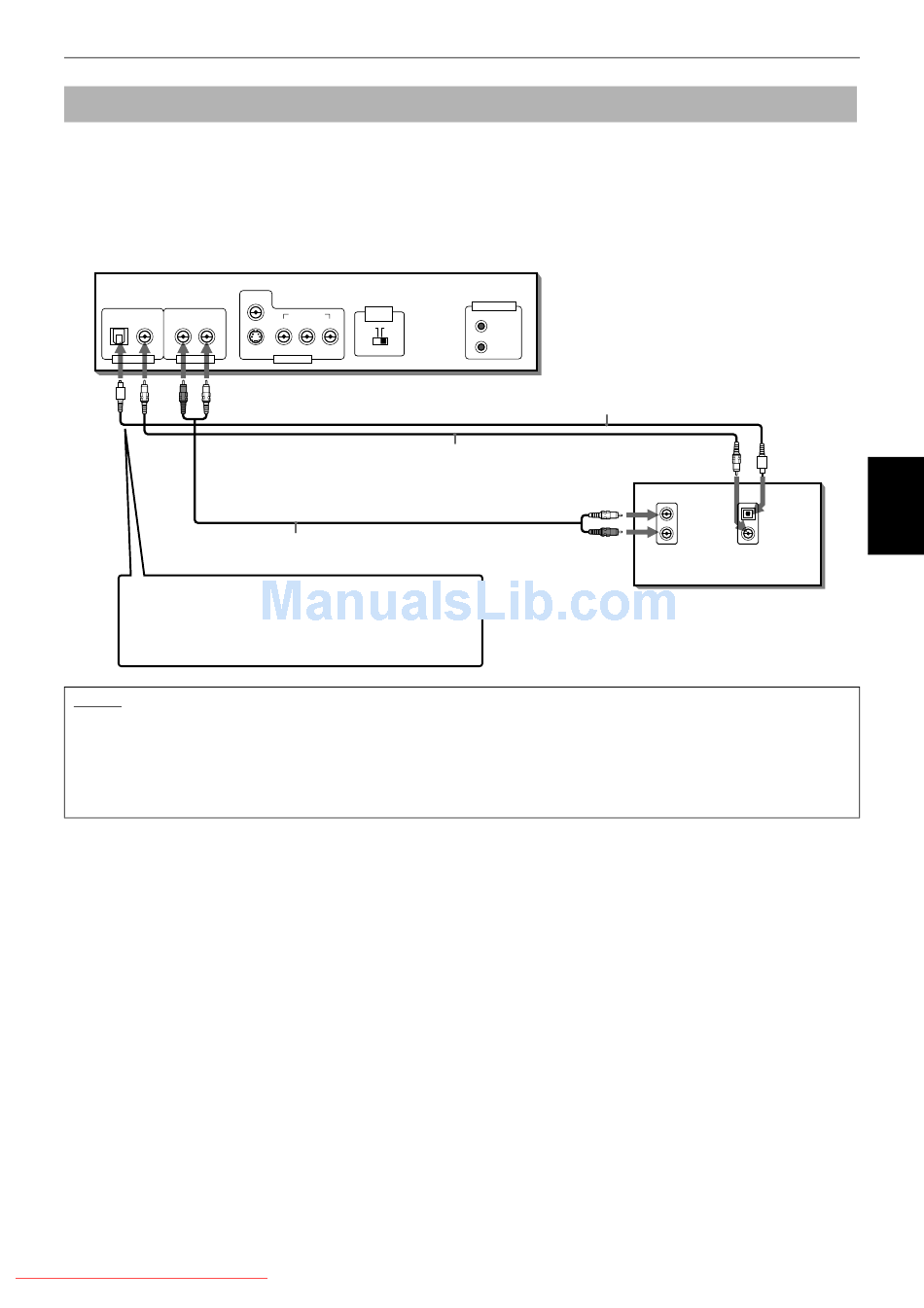

To connect to audio equipment with a digital input

You can enhance the sound quality by connecting either of the unit's DIGITAL OUT jacks to the digital input of an
amplifier, MD, etc. by using an optional digital cable (OPTICAL or COAXIAL). The digital audio signal from a disc is
directly transferred. If you connect the unit to a Dolby Digital or DTS decoder or an amplifier with a built-in decoder by
using an optional digital cable, you can enjoy high-quality surround sound.
When you make the digital connection, we recommend also to make the analog connection, because, depending on
discs, no signal may be output from the DIGITAL OUT .
The unit
PCM / STREAM
RIGHT
OPTICAL
COAXIAL
DIGITAL OUT
AUDIO OUT
Red
The OPTICAL jack is protected by the hinged cover.
To connect the optical cable to the jack, press the
cover with the plug and connect it to the jack inside
in the correct direction.
NOTES
When you connect the unit's DIGITAL OUT to digital audio equipment, before using, make the “DIGITAL AUDIO OU TPUT”
setting in the “PREFERENCE 2” on-screen display correctly according to the c onnected audio equipment. If the “DIGITAL
AUDIO OUTPUT” is not set correctly, loud noise may be generated from speakers, causing damage to them.
AUDIO OUTPUT” on page 48.
With the digital connection, the “COMPRESSION” settings in the “PREFERENCE 2” on-screen display are invalid. Settings for
these items must be made from the decoder .
Downloaded From Disc-Player.com JVC Manuals
VIDEO
VIDEO OUT
COMPONENT
SELECT
LEFT
Y
P
P
B
R
NTSC
S-VIDEO
VIDEO OUT
White
Audio cable
(not supplied)
AV COMPU LINK
PAL
Coaxial digital cable
(not supplied)
Optical digital cable
(not supplied)
Digital equipment
IN
IN
White
LEFT
AUDIO
RIGHT
Red
See “DIGITAL
Getting started
OPTICAL
DIGITAL
COAXIAL
%
