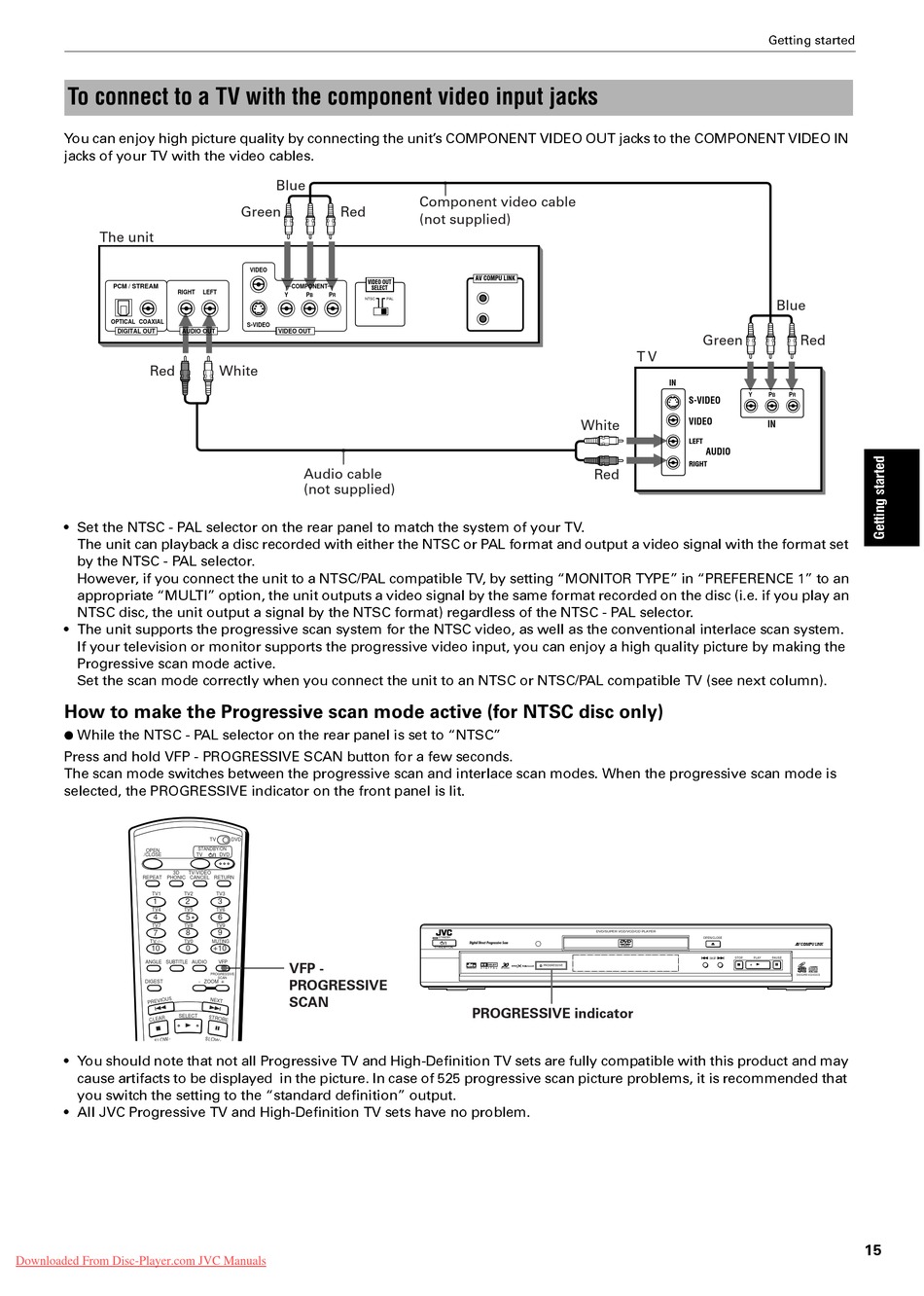

To connect to a TV with the component video input jacks

You can enjoy high picture quality by connecting the unit’s COMPONENT VIDEO OUT jacks to the COMPONENT VIDEO IN
jacks of your TV with the video cables.
The unit
PCM / STREAM
RIGHT
OPTICAL
COAXIAL
DIGITAL OUT
AUDIO OUT
Red
• Set the NTSC - PAL selector on the rear panel to match the system of your TV.
The unit can playback a disc recorded with either the NTSC or PAL format and output a video signal with the format set
by the NTSC - PAL selector.
However, if you connect the unit to a NTSC/PAL compatible TV, by setting “MONITOR TYPE” in “PREFERENCE 1” to an
appropriate “MULTI” option, the unit outputs a video signal by the same format recorded on the disc (i.e. if you play an
NTSC disc, the unit output a signal by the NTSC format) regardless of the NTSC - PAL selector.
• The unit supports the progressive scan system for the NTSC video, as well as the conventional interlace scan system.
If your television or monitor supports the progressive video input, you can enjoy a high quality picture by making the
Progressive scan mode active.
Set the scan mode correctly when you connect the unit to an NTSC or NTSC/PAL compatible TV (see next column).
How to make the Progressive scan mode active (for NTSC disc only)
¦
While the NTSC - PAL selector on the rear panel is set to “NTSC”
Press and hold VFP - PROGRESSIVE SCAN button for a few seconds.
The scan mode switches between the progressive scan and interlace scan modes. When the progressive scan mode is
selected, the PROGRESSIVE indicator on the front panel is lit.
OPEN
/CLOSE
3D
TV/VIDEO
REPEAT
PHONIC
CANCEL
TV1
TV2
1
2
TV4
TV5
4
5
TV7
TV8
7
8
TV -/--
TV0
10
0
ANGLE
SUBTITLE
DIGEST
SELECT
3
• You should note that not all Progressive TV and High-Definition TV sets are fully compatible with this product and may
cause artifacts to be displayed in the picture. In case of 525 progressive scan picture problems, it is recommended that
you switch the setting to the “standard definition” output.
• All JVC Progressive TV and High-Definition TV sets have no problem.
Downloaded From Disc-Player.com JVC Manuals
Blue
Green
Red
VIDEO
COMPONENT
LEFT
Y
P
P
B
R
NTSC
S-VIDEO
VIDEO OUT
White
Audio cable
(not supplied)
TV
DVD
STANDBY/ON
TV
DVD
RETURN
TV3
3
TV6
6
TV9
9
MUTING
+10
VFP
AUDIO
VFP -
PROGRESSIVE
SCAN
+
-
ZOOM
PROGRESSIVE
SCAN
Component video cable
(not supplied)
AV COMPU LINK
VIDEO OUT
SELECT
PAL
STANDBY
STANDBY/ON
PROGRESSIVE indicator
Green
T V
IN
S-VIDEO
VIDEO
White
LEFT
AUDIO
RIGHT
Red
DVD/SUPER VCD/VCD/CD PLAYER
OPEN/CLOSE
0
4
SKIP
PROGRESSIVE
Getting started
Blue
Red
Y
P
P
B
R
IN
¢
STOP
PLAY
PAUSE
7
3
8
DVD/SUPER VCD/VCD/CD
#
