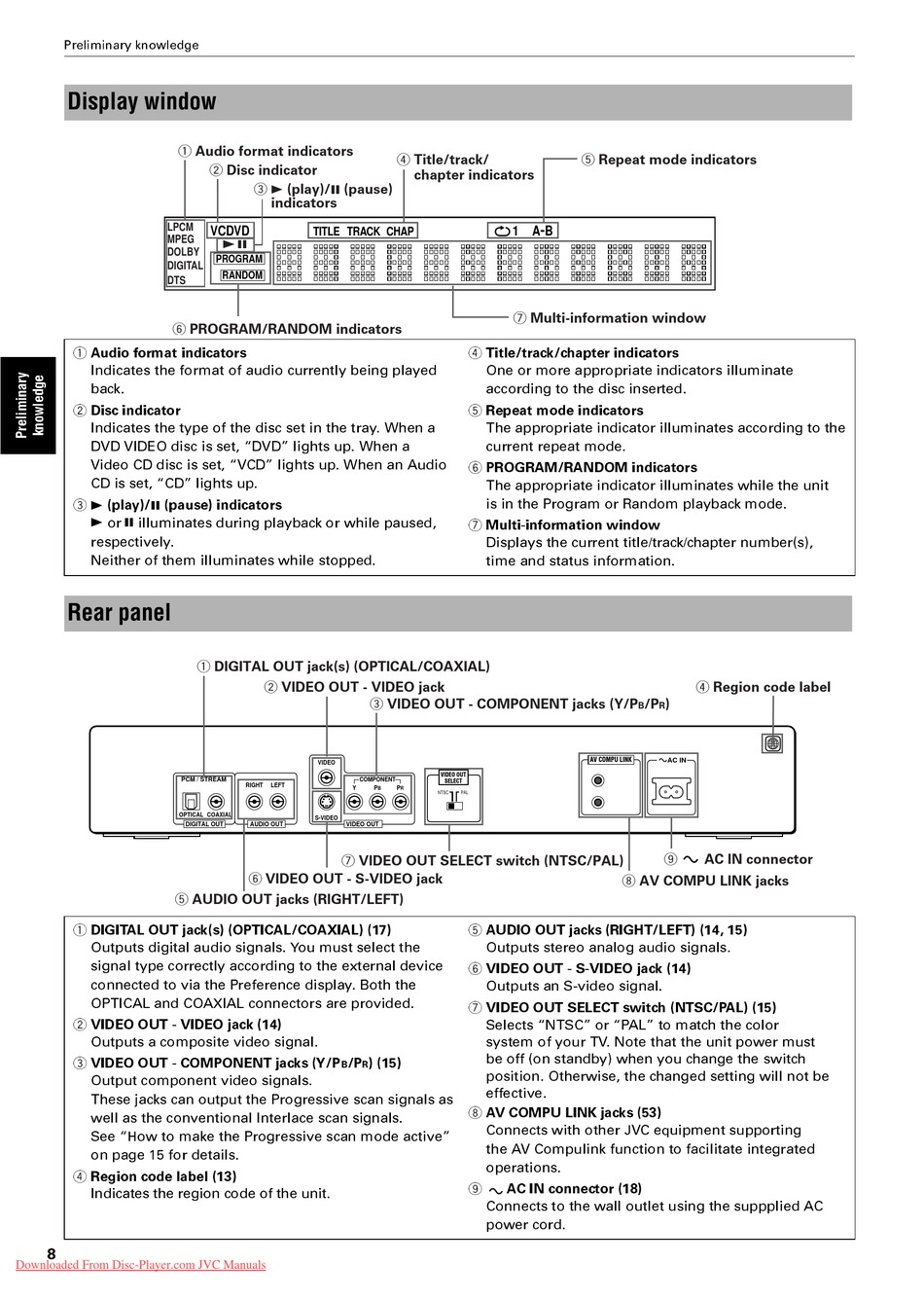

Preliminary knowledge

Display window

1 Audio format indicators
LPCM
MPEG
DOLBY
DIGITAL
DTS
6 PROGRAM/RANDOM indicators
1
Audio format indicators
Indicates the format of audio currently being played
back.
2
Disc indicator
Indicates the type of the disc set in the tray. When a
DVD VIDEO disc is set, “DVD” lights up. When a
Video CD disc is set, “VCD” lights up. When an Audio
CD is set, “CD” lights up.
3
!
&
(play)/
(pause) indicators
!
&
or
illuminates during playback or while paused,
respectively.
Neither of them illuminates while stopped.

Rear panel

PCM / STREAM
OPTICAL
DIGITAL OUT
5 AUDIO OUT jacks (RIGHT/LEFT)
1
DIGITAL OUT jack(s) (OPTICAL/COAXIAL) (17)
Outputs digital audio signals. You must select the
signal type correctly according to the external device
connected to via the Preference display. Both the
OPTICAL and COAXIAL connectors are provided.
2
VIDEO OUT - VIDEO jack (14)
Outputs a composite video signal.
3
VIDEO OUT - COMPONENT jacks (Y/P
Output component video signals.
These jacks can output the Progressive scan signals as
well as the conventional Interlace scan signals.
See “How to make the Progressive scan mode active”
on page 15 for details.
4
Region code label (13)
Indicates the region code of the unit.
&
Downloaded From Disc-Player.com JVC Manuals
2 Disc indicator
3 3 (play)/8 (pause)
indicators
VCDVD
TITLE TRACK CHAP
3
8
PROGRAM
RANDOM
1 DIGITAL OUT jack(s) (OPTICAL/COAXIAL)
2 VIDEO OUT - VIDEO jack
3 VIDEO OUT - COMPONENT jacks (Y/P
VIDEO
COMPONENT
RIGHT
LEFT
Y
COAXIAL
S-VIDEO
AUDIO OUT
VIDEO OUT
7 VIDEO OUT SELECT switch (NTSC/PAL)
6 VIDEO OUT - S-VIDEO jack
*
4
/P
) (15)
4 Title/track/
chapter indicators
A - B
1
7 Multi-information window
4
Title/track/chapter indicators
One or more appropriate indicators illuminate
according to the disc inserted.
5
Repeat mode indicators
The appropriate indicator illuminates according to the
current repeat mode.
6
PROGRAM/RANDOM indicators
The appropriate indicator illuminates while the unit
is in the Program or Random playback mode.
7
Multi-information window
Displays the current title/track/chapter number(s),
time and status information.
VIDEO OUT
SELECT
P
P
B
R
NTSC
PAL
5
AUDIO OUT jacks (RIGHT/LEFT) (14, 15)
Outputs stereo analog audio signals.
6
VIDEO OUT - S-VIDEO jack (14)
Outputs an S-video signal.
7
VIDEO OUT SELECT switch (NTSC/PAL) (15)
Selects “NTSC” or “PAL” to match the color
system of your TV. Note that the unit power must
be off (on standby) when you change the switch
position. Otherwise, the changed setting will not be
effective.
8
AV COMPU LINK jacks (53)
Connects with other JVC equipment supporting
the AV Compulink function to facilitate integrated
operations.
9
AC IN connector (18)
Connects to the wall outlet using the suppplied AC
power cord.
5 Repeat mode indicators
4 Region code label
/P
)
B
R
AV COMPU LINK
AC IN
9
AC IN connector
8 AV COMPU LINK jacks
