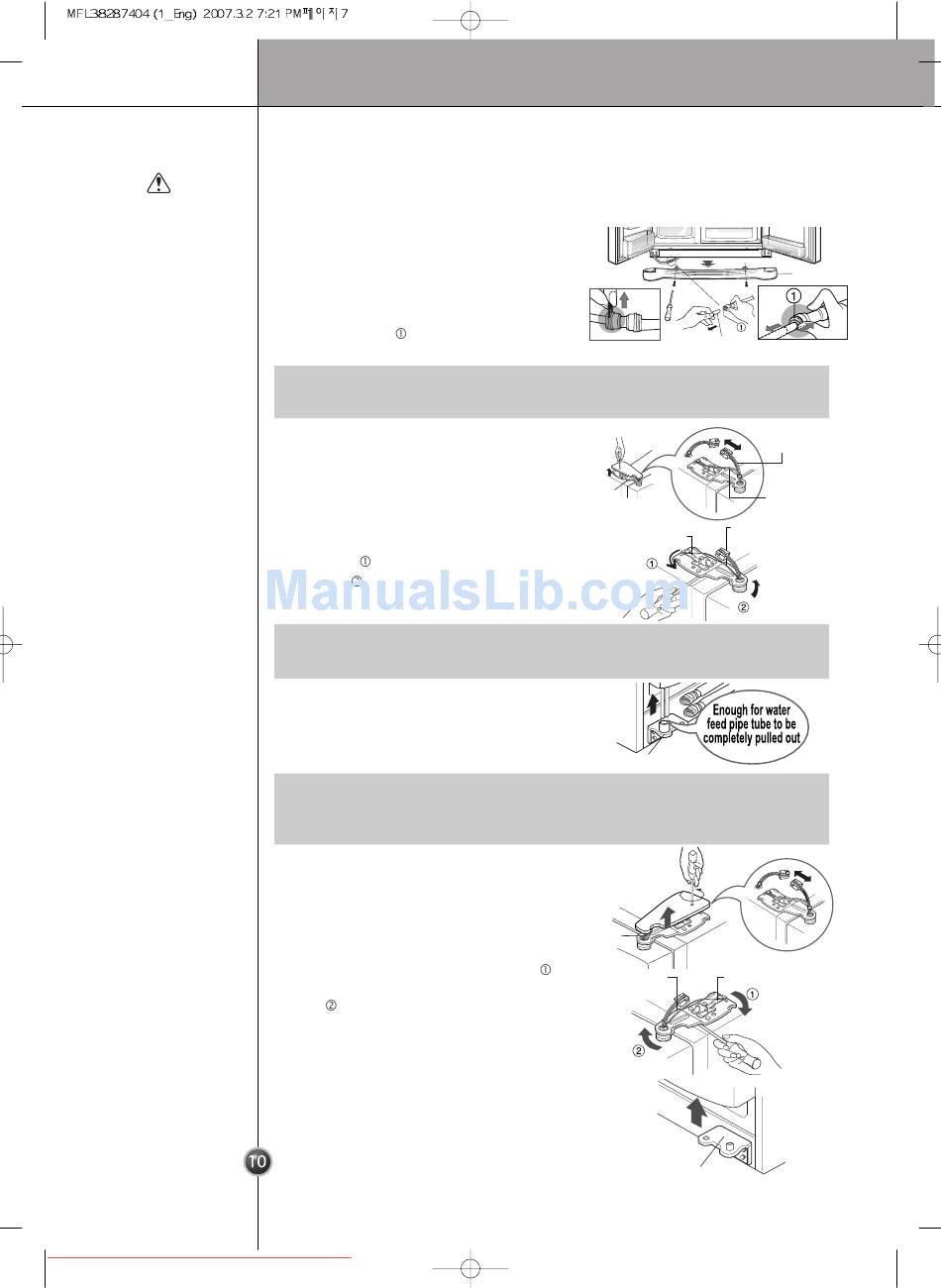

Door removal

Electric Shock Hazard
Disconnect electrical supply to refrigerator before installing.
Failure to do so could result in death or serious injury.
If your access door is too narrow for the
refrigerator to pass through, remove the
refrigerator door and pass the refrigerator laterally.
Remove the lower cover by lifting upward, and
remove clip, and then pull up the feed water tube
while pressing area
shown in the figure to the
right.
NOTE
If a tube end is deformed or abraded, cut the part away.
1) Removing the hinge cover by loosening the
screws. Separate all connection wires except
for the earth line after.
2) Remove the keeper by rotating it counter
clockwise ( ) and then lifting the upper
hinge up ( ).
NOTE
When removing the upper hinge, be careful that the door does not fall forwards .
3) Remove the freezer compartment door by
lifting it upward. This time, the door should
be lifted enough for the feed water pipe tube
to be completely pulled out.
NOTE
Move the refrigerator compartment door passing through the access door and lay
it down, but be careful not to damage the feed water pipe tube.
1) Loosen the hinge cover screws and remove
the cover. Remove connection wire, if any,
except for the earth line.
2) Remove keeper by rotating it clockwise ( )
and then remove the upper hinge by lifting
it up ( ).
3) Remove the refrigerator compartment door
by lifting it up.
7
Installation
Feed water tube
Hinge
cover
Upper hinge
Keeper
Lower hinge
Connection
wires
Upper hinge
Keeper
Lower hinge
Lower cover
Connection
wires
Earth line
Upper hinge
