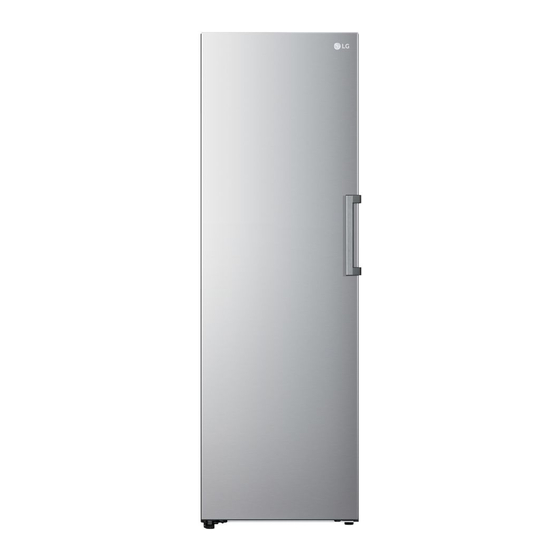

LG GP-F324PL Owner's Manual
  1. Manuals
  2. Brands
  3. LG Manuals
  4. Freezer
  5. GP-F324PL
  6. Owner's manual

LG GP-F324PL Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
FREEZER
Before beginning installation, read these instructions
carefully. This will simplify installation and ensure that the
product is installed correctly and safely. Leave these
instructions near the product after installation for future
reference.
ENGLISH
GP-F324PL / GP-F324MBL
MFL71737135
Rev.02_050924
Copyright © 2021-2024 LG Electronics Inc. All Rights Reserved.
Scan the QR code to see the manual.
www.lg.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GP-F324PL and is the answer not in the manual?

Questions and answers

Related Manuals for LG GP-F324PL

Summary of Contents for LG GP-F324PL

  • Page 1 This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference. ENGLISH GP-F324PL / GP-F324MBL www.lg.com MFL71737135 Rev.02_050924 Copyright © 2021-2024 LG Electronics Inc. All Rights Reserved.

  • Page 2: Table Of Contents

    Moving the Appliance for Relocation ............14 OPERATION Before Use ......................15 Product Features....................17 Control Panel ....................18 Door Handle .....................20 Icemaker ......................20 Shelf ........................21 Freezer Drawer....................22 SMART FUNCTIONS LG ThinQ Application ..................23 Smart Diagnosis ....................24 MAINTENANCE Cleaning ......................26 Air Filter ......................26 TROUBLESHOOTING Before Calling for Service................28...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below. Safety Messages This symbol is displayed to indicate matters and operations that can cause risk.
  • Page 4 SAFETY INSTRUCTIONS responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. • Do not damage the refrigerant circuit. • Do not use mechanical devices or other means to accelerate the defrosting process. •...
  • Page 5 • Do not clean the appliance with brushes, cloths or sponges with rough surfaces or which are made of metallic material. • Only qualified service personnel from LG Electronics service centre should disassemble, repair, or modify the appliance. Contact an LG Electronics customer information centre if you move and install the appliance in a different location.
  • Page 6 SAFETY INSTRUCTIONS amount of refrigerant used. The room must be 1 m² in size for every 8 g of R600a refrigerant inside the appliance. • Refrigerant leaking out of the pipes could ignite or cause an explosion. • The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance.
  • Page 7 SAFETY INSTRUCTIONS plug. For more details on grounding, inquire at an LG Electronics customer information centre. • This appliance is equipped with a power cord having an equipment- grounding conductor and a grounding power plug. The power plug must be plugged into an appropriate outlet socket that is installed and grounded in accordance with all local codes and ordinances.
  • Page 8 SAFETY INSTRUCTIONS • Be careful of nearby children when you open or close the appliance door. The door may bump the child and cause injury. • Avoid the danger of children getting trapped inside the appliance. A child trapped inside the appliance can cause suffocation. •...

  • Page 9: Caution

    SAFETY INSTRUCTIONS CAUTION CAUTION • To reduce the risk of minor injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following: Operation • Do not touch frozen food or the metal parts in the freezer compartment with wet or damp hands.
  • Page 10 They may shatter if exposed to sudden temperature changes. • Do not insert the shelves upside down. The shelves may fall. • To remove frost from the appliance, contact an LG Electronics customer information centre. • Dispose of the ice inside the ice bin in the freezer compartment...

  • Page 11: Installation Before Installation

    INSTALLATION INSTALLATION Before Installation changes. This may result in decrease or increase of the appliance width. Dimensions and Clearances Too small of a distance from adjacent items may Ambient Temperature result in the degradation of freezing capability and increased electricity costs. Allow over 50 mm of •...
  • Page 12 Minimum 50 hand side to suit your kitchen design. NOTE • Reversing the doors must be performed by the qualified personnel of LG Electronics. If not, the 110° doors will not be covered by the warranty. 1643 NOTE Connecting the Freezer and •...

  • Page 13: Levelling The Appliance

    INSTALLATION Levelling the Appliance Open the doors and check to make sure that they close easily. Before Beginning When the appliance doors appear to be uneven, Door Alignment follow the instructions below to align the doors. If the door of the appliance is not level, adjust the NOTE difference in the height of appliance door.

  • Page 14: Turning On The Power

    INSTALLATION Use the spanner to fasten the keeper nut by Fix the power plug. turning it to the right. • Models with a power plug hook: Pull the power plug out, insert and fix it into the power plug hook at the rear or on top of the appliance.

  • Page 15: Operation

    NOTE • Contact the LG Electronics customer information Storing Foods Effectively centre if the alarm sound continues even after closing all doors. • Food may freeze or spoil if stored at the wrong temperature.
  • Page 16 OPERATION • Place the food in the appliance immediately after CAUTION purchasing. • Store raw meat and fish in suitable containers in • To remove the drawers, first remove the food the appliance, so that it is not in contact with or from drawers and then pull out the drawers drip onto other food.

  • Page 17: Product Features

    OPERATION Product Features The appearance or components of the appliance may differ from model to model. Interior *1 This feature is only available on some models. Door Handle Pull the handle to open the door. Icemaker Stores ice produced by the manually icemaker. •...

  • Page 18: Control Panel

    OPERATION Control Panel The actual control panel may differ from model to model. Control Panel and Functions *1 This feature is only available on some models. Type 1. On the Freezer Door Type 2. Inside the Freezer Freezer...
  • Page 19 Wi-Fi The Wi-Fi button, when used with the LG ThinQ app, allows the refrigerator to connect to a home Wi- Fi network. Refer to Smart Functions for information on the initial setup of the application.

  • Page 20: Door Handle

    OPERATION Door Handle Fill the ice tray with potable water up to the water line. The appearance or components of the appliance may differ from model to model. Using Easy Open Door To easily open the door, hold the handle and softly turn it to the right.

  • Page 21: Shelf

    OPERATION • If you open and close the freezer door WARNING frequently, it may take longer for water to be frozen. • Fill with potable water only. NOTE CAUTION • If the ice tray is overfilled, the ice cubes may stick •...

  • Page 22: Freezer Drawer

    OPERATION Freezer Drawer Removing/Refitting the Freezer Drawer Remove the contents of the drawer. Hold the handle of the drawer and pull it out completely until it stops. Lift the drawer up and remove it by pulling it out. Refit the drawer in the reverse order of the removal process.

  • Page 23: Smart Functions

    Search for and install the LG ThinQ application from the Google Play Store or Apple App Store on a smartphone. Run the LG ThinQ application and sign in with your existing account or create an LG account to sign in.

  • Page 24: Smart Diagnosis

    Internet service provider or refer to your RF Radiation Exposure wireless router manual. Statement • LG ThinQ is not responsible for any network connection problems or any faults, This equipment shall be installed and used at a malfunctions, or errors caused by network minimum distance of 20 cm from the human body.
  • Page 25 Open the freezer door. LG ThinQ application. • Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow Press and hold the Freezer button for 3 the instructions provided in the LG ThinQ seconds or longer.

  • Page 26: Maintenance Cleaning

    MAINTENANCE MAINTENANCE Cleaning stainless steel doors. Always use a dedicated cloth and wipe in the same direction as the grain. This helps reduce surface staining and General Cleaning Tips tarnishing. • When cleaning the inside or outside of the appliance, do not wipe it with a rough brush, Cleaning the Interior toothpaste, or abrasive pads.
  • Page 27 MAINTENANCE Press on the hook inside the top compartment, and then take out the Air Filter. Dry it using a hair dryer or by exposing it to sunlight. The filter is reusable. • To increase deodorizing performance, a natural palm wood material is attached to the filter.

  • Page 28: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING Before Calling for Service Cooling Symptoms Possible Cause & Solution There is no Is there a power interruption? refrigeration or • Check the power of other appliances. freezing. Appliance is unplugged. • Plug the power plug in the outlet properly. A fuse in your home may be blown or the circuit breaker tripped.
  • Page 29 TROUBLESHOOTING Symptoms Possible Cause & Solution The appliance contains Did you put in food with a strong smell? a bad smell. • Store foods with strong smells in a sealed containers. Vegetables or fruit may have spoiled in the drawer? •...
  • Page 30 The inside lamp in the Lamp failure appliance does not • Close the door and re-open. If the lamp does not turn on, please contact turn on. the LG Electronics customer information centre. Do not attempt removal of the lamp.
  • Page 31 TROUBLESHOOTING Noises Symptoms Possible Cause & Solution The appliance is noisy Is the appliance installed on a weak floor or improperly levelled? and generates • Install the appliance on a solid and flat area. abnormal sounds. Does the rear of the appliance touch the wall? •...
  • Page 32 • Find the Wi-Fi network connected to your smartphone and remove it, then not connected to the register your appliance on LG ThinQ. Wi-Fi network. Mobile data for your smartphone is turned on. • Turn off the Mobile data of your smartphone and register the appliance using the Wi-Fi network.
  • Page 33 Memo...
  • Page 34 Memo...
  • Page 35 Memo...
