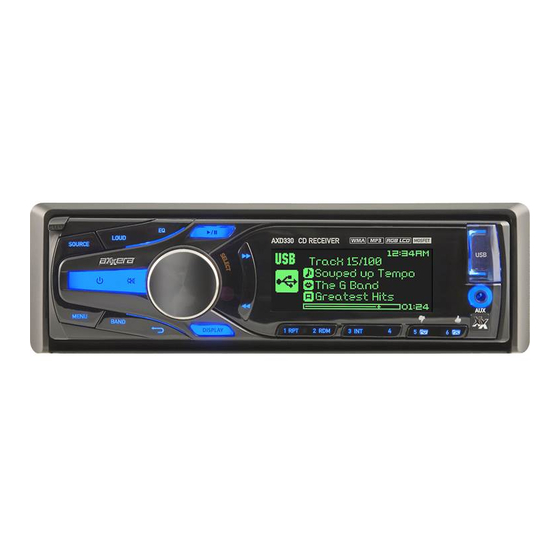

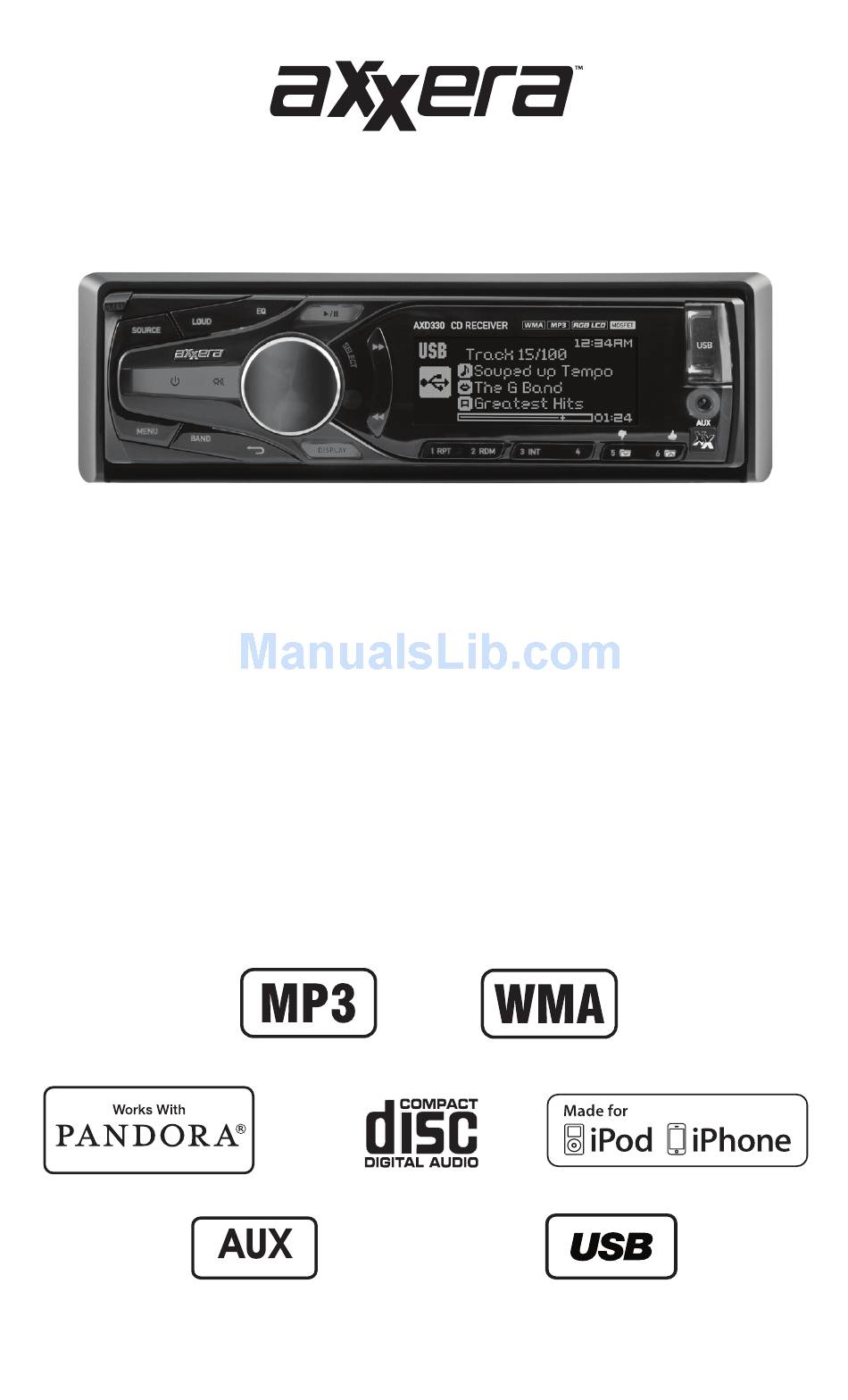

- Page 1 CD Receiver INSTALLATION/OWNER'S MANUAL AXD330 Front and Rear Inputs...
-
Page 2: Getting Started
AXD330 Preparation Please read entire manual before installation. Before You Start • D isconnect negative battery terminal. Consult a qualified technician for instructions. • A void installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. Getting Started • Remove trim ring from unit. • Remove 2 transit screws located on top of the unit. • Insert the supplied keys into the slots as shown, and slide the unit out of the mounting sleeve. • Install mounting sleeve into opening, bending tabs to secure. • Connect wiring harness and antenna. Consult a qualified technician if you are unsure. • Certain vehicles may require an installation kit and/or wiring harness adapter (sold separately). • Test for correct operation and slide into mounting sleeve to secure. • Snap trim ring into place. OPTIONAL REAR REMOVAL MOUNTING SUPPORT KEYS... -
Page 3: Wiring Diagram
AXD330 Wiring Diagram RCA Preamp Connections Steering Wheel Interface Input PAC SWI-PS connection (sold separately) Rear Auxiliary Input Rear/Subwoofer Output Front Output FRONT R/SUB L-CH R-CH Antenna Connector BLUE Remote Turn-On Connect to amplifier or power antenna. Insulate wire if not used. BLACK Ground Connect to the vehicle... -
Page 4: Control Locations - Receiver
AXD330 Control Locations - Receiver Preset 4 Open Preset 3 / Intro Source Preset 2 / Random Loudness Eqaulizer Preset 1 / Repeat Volume Knob/ Select (push) Tune / Track Down Play / Pause Display Tune / Track Up Go Back USB Port Mute Band Auxiliary Input Power Preset 6 / Folder Up / Thumbs Up Menu Preset 5 / Folder Down / Thumbs Down... -
Page 5: Control Locations - Remote
AXD330 Control Locations - Remote Source Display Volume Up Menu Power Play / Pause Select Key 5 / Folder Down Tune / Track Up Key 4 Volume Down Key 1 / Repeat Go Back Key 2 / Random Key 3 / Intro Band Key 6 / Folder Up Tune / Track Down... -
Page 6: General Operation
AXD330 General Operation Faceplate Removal Press OPEN to open the face plate, then pull away from the right side to remove. To re-install, insert right side of faceplate first then push left side to secure. Power On/Off Press or any other button to turn the unit on. Press turn the unit off. Source Press SOURCE to enter the Source Menu, then press SOURCE or rotate the volume knob to select between Tuner, Disc, Aux Front, Aux Rear, USB, iPod and Pandora modes. Modes of operation are shown in the display. Auxiliary Input The AXD330 offers both front and rear 3.5 mm auxiliary input ports for connecting an audio device, MP3 player, etc. Press SOURCE to select either the front or rear auxiliary input mode. Volume Adjust volume using volume knob (00-46). Display Press DISP to toggle between ID3 tag and file/folder name for MP3/WMA files being played from CDs or USB devices. Reset Press RESET upon initial installation or if abnormal operation occurs. Reset button is located behind the front panel. Set the Clock The unit will display the time on the LCD display. Clock settings are adjusted in the General setup menu (refer to page 8). -
Page 7: Audio Setup Menu
AXD330 General Operation Press MENU to access the setup menu, then turn the Setup Menu volume knob to cycle through menu categories: Audio, Color, Display, Tuner, and General. When desired category appears in the display, press SELECT, then rotate the volume knob left/right to cycle through the options in each category. When desired option appears in the display, press SELECT, then rotate the volume knob left/right to adjust or activate desired function. Note: Some functions are toggled by pressing SELECT and may not require turning the volume knob. Press ESC to return to the previous menu or exit the menu while the main menu is displayed. Audio Setup Menu Menu Function Options Rotate the volume knob to cycle through the following equalization curves: Flat, Equalization Pop, Jazz, Classic, Beat, Rock and User. Any manual adjustment to the Bass or Curves Treble settings are automatically saved as User. Rotate the volume knob to adjust the bass level setting Bass Level (-6 minimum / +6 maximum). -
Page 8: General Setup Menu
AXD330 General Operation General Setup Menu Menu Function Options Action Programs the unit to USA tuner spacing. (200kHz for FM and 10kHz for AM). Tuner Programs the unit to South American tuner spacing. Frequency S-America (100kHz for FM and 10kHz for AM). Spacing Programs the unit to European tuner spacing. Europe (50kHz for FM and 9kHz for AM). Auto Station Press SELECT to seek and save 6 strong stations in the AUTO STORE Store current band. Activates distance tuning. Local/Distance Tuning Activates local tuning for strong station reception only. With the unit on, press and hold DISP until the clock begins TUNE to flash, then release. Press to adjust the Set the Clock Clock TUNE hours and... -
Page 9: Color Menu
AXD330 General Operation Gain Setup Menu Menu Function Options Rotate the volume knob to adjust the tuner gain. Tuner Gain (-6 minimum / +6 maximum) Rotate the volume knob to adjust the gain for disc playback. Disc Gain (-6 minimum / +6 maximum) Rotate the volume knob to adjust the gain for the front auxiliary input. Aux Front Gain (-6 minimum / +6 maximum) Rotate the volume knob to adjust the gain for the rear auxiliary input. Aux Rear Gain (-6 minimum / +6 maximum) Rotate the volume knob to adjust the gain for USB playback. USB Gain (-6 minimum / +6 maximum) Rotate the volume knob to adjust the gain for iPod playback. iPod Gain (-6 minimum / +6 maximum) Rotate the volume knob to adjust the gain for Pandora playback. -
Page 10: Am/Fm Tuner Operation
AXD330 AM/FM Tuner Operation Manual Tuning Press TUNE or TUNE momentarily to change radio frequency up or down one step at a time. Press and hold to advance quickly. Seek Tuning Press TUNE or TUNE for more than two seconds (then release) to automatically seek and tune to the next strong station. Band Press BAND to select between FM1, FM2, FM3, AM1 and AM2 bands. Storing Station Presets Select the desired band and station. Press and hold the desired 1-6 preset button for more than two seconds. When stored, the preset number will appear in the display. Recalling Station Presets Stored stations can be recalled instantly by pressing the corresponding 1-6 preset button. - Page 11 AXD330 CD Operation Insert CD Press OPEN to fold down the front panel and expose the CD slot. With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Eject CD With the front panel open, press EJECT to eject the CD. The unit will change to previous mode of operation. If the disc is not removed within 10 seconds, the unit will reload the disc. The unit does not have to be turned on to eject CD. Track Select Press TRACK to skip to the beginning of the next track. Press TRACK to return to the beginning of the current track. Pressing TRACK again skips to the beginning of the previous track. Fast Forward/Reverse Press and hold TRACK or TRACK on the remote control to fast forward or reverse a track. / II to temporarily stop CD playback. Pause Press / II again to resume playback. Press Repeat Press RPT to continuously repeat the selected track.
-
Page 12: Playing Mp3/Wma Files
AXD330 MP3/WMA Operation Playing MP3/WMA To play MP3/WMA files, insert a data CD or USB device Files containing MP3/WMA files. “Loading" will flash in the display. Depending on the number of files and folders, this may take several seconds. Displaying Information Press DISP to cycle between track information and file/ folder information. *Song title, artist name and album name will only be displayed if included with the MP3/WMA file. When referring to MP3/WMA playback, the following terms are synonymous: • File name and track name • Folder name and directory name Repeat Press RPT to enter the Function Menu, then rotate the vol- ume knob until Repeat is highlighted. Press SELECT, then rotate the volume knob to select one of the following repeat options. • All - Plays all songs on disc or device. • Track - Continuously repeats selected song. • Folder - Continuously repeats all songs in selected folder. Press RDM to enter the Function Menu, then rotate the Random volume knob until Random is highlighted. Press SELECT, then rotate the volume knob to select one of the following options for random playback. -
Page 13: Mp3/Wma Operation
AXD330 MP3/WMA Operation File/Folder Search Begin Searching Press SELECT to enter the file/folder search mode. A list of all the folders from the disc or device will be displayed. Note: Any files located in the root directory will be located in the folder named "ROOT". Choose a Song Turn the volume knob to cycle through all the folders on the disc or device, and press SELECT to choose the desired folder. The list of files in the selected folder will be displayed. Turn the volume knob to cycle through the list of files. Menu Navigation Pressing GO BACK when viewing the contents of a folder will return to the list of folders on the disc or device. Press GO BACK again to exit the search menu. Playing a Song Once the desired song is displayed, press SELECT to begin playback of the desired song. Press SELECT to begin Press Press Folder 1 Folder 2 Folder 3 Folder 4 Folder 5 Folder 6 Folder 7 SELECT BACK... - Page 14 AXD330 MP3/WMA Operation File/Folder Compatibility and Support - CD Type Specification • CD-ROM (ISO), CD-R, CD-RW Compatible File • CD-DA (digital audio) Types • MP3 data (.mp3) • WMA data (.wma) • DRM protected files • WMA lossless • Apple lossless Incompatible File • WMA Pro Types • MP3 Pro • MP3 playlists • WAV lossless • M4A/AAC data • ISO9660 level 1 & level 2 Recording Format • Yellow book MODE 1 & MODE 2 FORM 1 Compatibility • Multi session Sampling • MP3: 8kHz - 48kHz Frequency Rate • WMA: 32kHz - 48kHz Compatibility Transfer Bit Rate • MP3: 32kbps - 320kbps...
- Page 15 AXD330 MP3/WMA Operation File/Folder Compatibility and Support - USB Type Specification Compatible File • MP3 data (.mp3) Types • WMA data (.wma) • DRM protected files • WMA lossless • Apple lossless Incompatible File • WMA Pro Types • MP3 Pro • MP3 playlists • M4A/AAC data • WAV lossless Sampling Frequency • MP3: 8kHz - 48kHz Rate Compatibility • WMA: 32kHz - 48kHz Transfer Bit Rate • MP3: 32kbps - 320kbps Compatibility • WMA: 32kbps - 192kbps • Song Title: 32 characters • Artist Name: 32 characters Character Support • Album Name: 32 characters...
-
Page 16: Ipod Operation
AXD330 iPod Operation Connect an iPod Device The AXD330 features a direct USB control system for iPod. (Not Included) To play music from an iPod device, connect the USB cable (included with your iPod device) to the USB port on the front panel. Once connected, "Loading" will flash in the display, then playback will begin automatically. If a song is playing on the iPod device before it is connected, it will continue to play. Search Mode Search Menu Functions (step 1) Press SELECT once to enter the search mode. (step 2) Rotate the volume knob to choose between playlist, songs, artists, albums and podcasts. Press SELECT to select the desired search type. (step 3) Navigate to the desired song and press SELECT to begin playback of that song. Use the table below for reference when navigating through the menu options. Note: Press GO BACK to access the previous level (up one level). Pressing GO BACK from the search main menu will exit the search. - Page 17 AXD330 iPod Operation Song Select Press to skip to the beginning of next song. Press to return to the beginning of current song. Pressing again skips to the beginning of previous song. Fast Forward and Press and hold to fast forward or reverse a Reverse song. / II to temporarily stop playback. Pause Press / II again to resume playback. Press Repeat Press RPT to enter the Repeat menu, then turn the vol- ume knob to select one of the following options: • Off - Repeats all tracks. • Current Song - Repeats selected track. Random Press RDM to enter the Random menu, then turn the vol- ume knob to select one of the following options: • Off - Cancels the RDM function. • All Songs - Plays all tracks in random order. • Current Album - Plays all tracks in the selected album in random order. Intro Press INT to enter the Intro menu, then turn the volume knob to select one of the following options:...
-
Page 18: Pandora Operation
AXD330 Pandora Operation Requirements Control for Pandora requires: • An iPhone device with a reliable data connection, or an iPod touch that is connected to wireless internet. • The Pandora App installed on the iPhone/iPod device. • An active account with Pandora. Sign up at www.pandora. com. - Page 19 AXD330 Notes...
-
Page 20: Limited One-Year Warranty
AXD330 Limited One-Year Warranty This warranty gives you specific legal rights. What to do? You may also have other rights which vary 1. Before you call for service, check the from state to state. troubleshooting guide in your owner’s manual. A slight adjustment of any Dual Electronics Corp. warrants this custom controls may save you a service product to the original purchaser to be free call. from defects in material and workmanship for a period of one year from the date of 2. If you require service during the the original purchase. warranty period, you must carefully pack the product (preferably in the Dual Electronics Corp. agrees, at our original package) and ship it by prepaid option, during the warranty period, to repair transportation with a copy of the original any defect in material or workmanship receipt from the retailer to an or to furnish an equal new, renewed authorized service center. or comparable product (whichever is deemed necessary) in exchange without 3. Please describe your problem in charges, subject to verification of the writing and include your name, a return defect or malfunction and proof of the date UPS shipping address (P.O. Box not... -
Page 21: Troubleshooting
AXD330 Troubleshooting Problem Cause Action Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or Unit will not turn on voltage (11-16VDC) incorrect voltage (no power) Black wire not connected Check connection to ground Fuse blown Replace fuse Speaker wires not connected Check connections at speakers Unit has power Insulate all bare speaker wires One or more speaker wires touching (but no sound) from each other and chassis each other or touching chassis ground ground Yellow or red wire touching chassis Check for pinched wire ground Unit blows fuses Speaker wires touching chassis ground Check for pinched wire Incorrect fuse rating... -
Page 22: Specifications
AXD330 Specifications CD Player Frequency response: 20Hz-20kHz Channel separation @ 1kHz: >65dB D/A converter: 1 Bit FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 10dBf Stereo separation @ 1kHz: >30dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: 22uV Frequency response: 30Hz-2.2kHz General Speaker output impedance: 4-8 ohms Line output voltage: 4 Volts RMS Dimensions: 7" x 7" x 2" (178 x 178 x 50 mm) Design and specifications subject to change without notice. -
Page 23: Fcc Compliance
AXD330 FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. - Page 24 Dual Electronics Corp. Toll Free: 1-866-382-5476 Monday-Friday, 9AM-5PM, EST www.axxeraaudio.com ©2013 Dual Electronics Corp. All rights reserved. iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance. Pandora, the Pandora logo, and the Pandora trade dress are trademarks of Pandora Media, Inc., used with permission. Other trademarks and trade names are those of their respective owners. NSA0613-V01...
