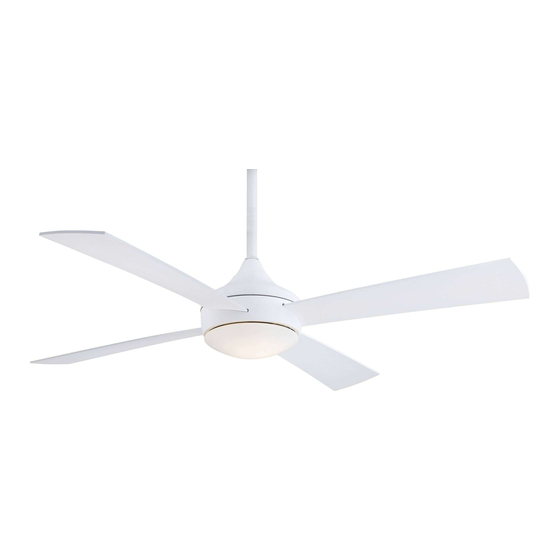

ALUMA WET
BY
INSTRUCTION MANUAL WARRANTY CERTIFICATE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the aluma wet and is the answer not in the manual?

Questions and answers

Related Manuals for minkaAire aluma wet

Summary of Contents for minkaAire aluma wet

  • Page 1 ALUMA WET INSTRUCTION MANUAL WARRANTY CERTIFICATE...
  • Page 2 Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.
  • Page 3 The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer. This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs excluded) for one (1) full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling fan (excluding wall controls and electrical components), to the original purchaser or user.
  • Page 4 Warranty Service Information To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty claim.

  • Page 5: Table Of Contents

    CONTENTS SAFETY RULES..................INSTALLING THE LIGHT KIT MOUNTING PLATE...... PACKAGE CONTENTS..............INSTALLING THE LIGHT PLATE ............INSTALLING THE FAN..............INSTALLING THE LIGHT BULB & GLASS SHADE ...... BLADE INSTALLATION ..............OPERATING THE REMOTE CONTROL..........HANGING THE FAN................. CARE OF YOUR FAN................ELECTRICAL CONNECTIONS............

  • Page 6: Safety Rules

    SAFETY RULES 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
  • Page 7 ATTENTION: ATTENTION: The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device. If lamping exceeds 190 watts, the ceiling fan's light kit will shut off automatically. NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur.

  • Page 8: Package Contents

    PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: 1. Fan blades (4) 15. Balancing kit 2. Blade support plates (4) 16. 100w Mini-Can halogen bulb 3. Hanger bracket 4. Canopy A. Mounting hardware: 5.

  • Page 9: Installing The Fan

    INSTALLING THE FAN Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape. PARALLEL WOOD BRACE CEILING (MIN. 2" THICK) MOUNTING OPTIONS JOIST OUTLET CROSS BRACE If there isn't an existing mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers.

  • Page 10: Blade Installation

    BLADE INSTALLATION Step 1. (Fig. 5) Remove the metal plate and upper cover by remove the screws from the SCREWS SCREWS SCREWS WITH motor. METAL METAL LOCK WASHERS PLATE PLATE Step 2. (Fig. 6) Insert the blade through the UPPER UPPER COVER access window from the blade holder.

  • Page 11: Hanging The Fan

    HANGING THE FAN WARNING: All of the parts, hardware and components such as the hanger Step 4. Carefully feed fan wires up through the downrod. (Fig. 11) bracket and hanger ball have been provided for your safety and the Thread Downrod into the Coupling until the holes are lined up and proper installation of your new ceiling fan.
  • Page 12 DOWNROD RUBBER COVER DOWNROD OUTLET BOX COUPLING DOWNROD CROSS PIN CANOPY *OMIT COUPLING SET SCREWS COVER WHEN THE MINIMUM-LENGTH HITCH CANOPY COVER LOCK DOWNROD HANGER REGISTRATION BALL SET SCREW SUPPLY SLOT SET SCREWS WIRES DOWNROD HANGER BRACKET Fig. 13 Fig. 8 Fig.

  • Page 13: Electrical Connections

    ELECTRICAL CONNECTIONS WARNING: : To avoid possible electrical shock be sure electricity is turned Step 2. Motor to Receiver Electrical Connections: Connect the WHITE off at the main fuse or breaker box before wiring. wire from the fan to the WHITE wire marked "TO MOTOR N" from the Receiver.
  • Page 14 Step 3. Receiver to House Supply Wires Electrical Connections: Connect the WHITE wire (Neutral) from the outlet box to the WHITE wire marked "AC in N" from the receiver. Connect the BLACK wire (Hot) from the outlet box to the BLACK wire marked "AC in L" from the receiver.
  • Page 15 OUTLET BOX WHITE (NEUTRAL) BLACK (HOT) GREEN OR BARE COPPER (GROUND) BLACK ("AC IN L") WHITE ("AC IN N") RECEIVER BLACK ("TO MOTOR L") WHITE ("TO MOTOR N") ORANGE (CONNECT TO GROUND- GROUND WIRE ON (FOR UPPER LIGHT) (GREEN) HANGER BRACKE IF NO HOUSE BLUE (FOR LIGHT) GROUND WIRE...

  • Page 16: Finishing The Installation

    FINISHING THE INSTALLATION OUTLET BOX Step 1. Remove 1 of the 2 screws from the bottom of the hanger bracket and loosen the other one half a turn from the screw head. HANGER BRACKET Step 2. Slide the canopy up towards the hanger bracket and place the key hole on the canopy over the screw on the hanger bracket, turn canopy until it locks in place at the narrow section of the key holes.

  • Page 17: Installing The Light Kit Mounting Plate

    INSTALLING THE LIGHT KIT MOUNTING PLATE Step 1. Remove 1 of 3 screws from the mounting ring and loosen the other 2 screws. (Do not remove) Step 2. Place the key holes from the light kit mounting plate over the 2 screws previously loosened from the mounting ring, turn Light kit mounting plate until it locks in place at the narrow section of the key holes.

  • Page 18: Installing The Light Plate

    INSTALLING THE LIGHT PLATE NOTE: Before starting installation, make sure power is turned off at the circuit breaker. 1. Remove 1 of 3 screws from the light kit mounting plate and loosen the other 2 screws. (Do not remove) 2. Raise and hold the light plate close to the light kit mounting plate and proceed to do the wire connections.

  • Page 19: Installing The Light Bulb & Glass Shade

    INSTALLING THE LIGHT BULB & GLASS SHADE WARNING: Shut of the power supply before removing or replacing lamp. In handling of halogen bulb, care should be taken not to touch it with your bare hands. Oil residue will shorten the life of the halogen bulb. If you accidentally come into contact, wipe thoroughly with a clean, lint-free, cotton cloth.
  • Page 20 BULB MOUNTING MOUNTING PLATE PLATE ALUMINUM COVER GLASS SHADE Fig 20 Fig 21...

  • Page 21: Operating The Remote Control

    OPERATING THE REMOTE CONTROL/WALL CONTROL Remote Control only: Install a A23 12 volt battery (included). To prevent damage to transmitter remove the battery if not used for long periods of time. Restore Power to Ceiling Fan. instructions apply to ceiling fans that feature a DOWN D.
  • Page 22 Speed settings for warm or cold weather depend on factors such as room size, ceiling height and number of fans. NOTE: Wait for the fan to stop before reversing the direction of the blade rotation. Warm Weather (forward) A DOWNWARD airflow creates a cooling effect as shown in Figure 22.

  • Page 23: Care Of Your Fan

    CARE OF YOUR FAN Here are some suggestions to help maintain your fan. 4. Use a lint free lightly damp cloth or duster to remove dust from the blades. 1. Because of the fan's natural movement some connections may become loose.

  • Page 24: Troubleshooting

    TROUBLESHOOTING SYMPTOM SYMPTOM Fan Sounds Noisy Fan will not start SOLUTION SOLUTION Check to make sure the wall switch is turned on. Allow a 24-hour "break in" period. Most noises associated with a new fan will go away during this time. Check circuit fuses or breakers.
  • Page 25 SYMPTOM SYMPTOM Fan Wobble Lights shut off and will not come back on. SOLUTION SOLUTION This unit is equipped with a wattage limiting device. Lamping in NOTE: All blade sets are grouped by weight. Because wood and plastic blades vary in density, the fan may wobble even though excess of 190 watts will disable your ceiling fan’s light kit.
  • Page 26 SYMPTOM Frequency Interference SOLUTION Turn the power off to your ceiling fan. Please use a small size tool to change the frequency settings on the control system. Return power to the unit. Note: After the AC power is on, do not press any other button on the transmitter before pressing the "Stop" button, doing so will cause the procedure to fail.

  • Page 27: Specifications

    SPECIFICATIONS These are typical readings. Your actual fan may vary. Fan Size Speed Volts Amps Watts RPM CFM N.W. G.W. C.F. They do not include amps and wattage used by the 0.28 12.8 2,037 light(s). 52" 8.30 9.42 1.691' Medium 0.37 25.8 3,042...
