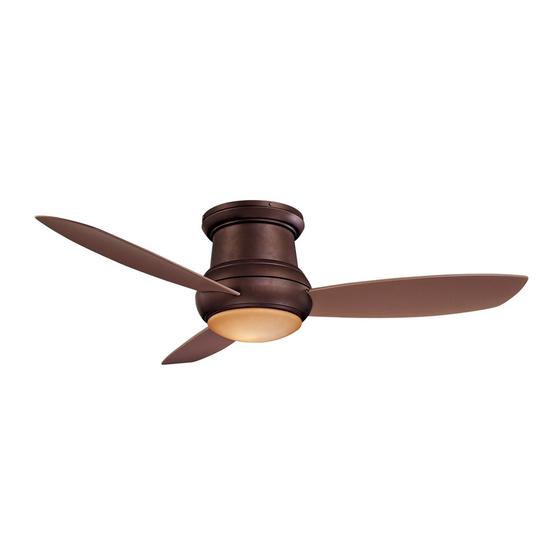

- Page 1 CONCEPT II WET U.S. Patent: 7,008,192 INSTRUCTION MANUAL WARRANTY CERTIFICATE...
- Page 2 This product is protected by United States Federal and/or State Law including Patents, Trademark, and/or Copyright Laws. ©2017 Minka Lighting Inc. Manual design and all elements of manual design are protected by United States Federal and/or State Law including Patents, Trademark, and/or Copyright Laws.
- Page 3 The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer. This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs excluded) for one (1) full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling fan (excluding wall controls and electrical components), to the original purchaser or user.
- Page 4 Warranty Service Information To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty claim.
-
Page 5: Table Of Contents
CONTENTS SAFETY RULES..................BLADE INSTALLATION................PACKAGE CONTENTS..............INSTALLING THE LED LIGHT KIT & GLASS SHADE ....INSTALLING THE MOUNTING BRACKET......OPERATING THE REMOTE CONTROL/WALL CONTROL..ELECTRICAL CONNECTIONS............CARE OF YOUR FAN................INSTALLING THE WALL TRANSMITTER........ TROUBLESHOOTING................FINISHING THE INSTALLATION..........SPECIFICATIONS..................1151 W. -
Page 6: Safety Rules
SAFETY RULES 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring. - Page 7 NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be supplied by the person (s) installing, caring for and operating the unit.
-
Page 8: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: A. Mounting hardware: 1. Fan Blades (3) 2. Mounting bracket #10 x 1.5" Wood screws (2 PCs.) 3. Fan motor/housing ass'y #8 x 3/4" Machine screws (2 PCs.) 4. -
Page 9: Installing The Mounting Bracket
INSTALLING THE MOUNTING BRACKET Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape. WARNING: All of the parts, hardware and components have been provided for your safety and the proper installation of your new ceiling fan. The use of other parts, OUTLET BOX SAFETY CABLE ®... -
Page 10: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: To avoid possible electrical shock be sure electricity is Step 1 Connect the fan supply (black) wire to the black household supply turned off at the main fuse or breaker box before wiring. wire as shown in Figure 3 & 4. ®... - Page 11 INPUT AC120V OUTLET BOX WHITE WHITE (NEUTRAL) BLACK (HOT) AC SUPPLY GREEN OR BARE BLACK COPPER (GROUND) BLACK ("AC IN L") WHITE ("AC IN N") RECEIVER GROUND BLACK BLACK Fig. 2 Fig. 3 Fig. 4...
-
Page 12: Installing The Wall Transmitter
INSTALLING THE WALL TRANSMITTER WARNING! HOOK UP "IN SERIES" ONLY. DO NOT CONNECT NEUTRAL SUPPLY WIRE OF ELECTRIC CIRCUIT TO THE TRANSMITTER WALL SWITCH, DAMAGE TO THE TRANSMITTER WALL SWITCH AND POSSIBLE FIRE COULD OCCUR. Step 1. Remove the existing wall plate and switch from the wall outlet box. Step 2. -
Page 13: Finishing The Installation
FINISHING THE INSTALLATION Step 1. Remove the four plastic plugs from top of the fan body. PLASTIC PLUGS Step 2. Loosen two of the four screws from the mounting bracket and remove the other two. Step 3. Install the motor assembly to the mounting SCREWS bracket and engage the key holes to the two screws previously loosened. -
Page 14: Blade Installation
BLADE INSTALLATION Step 1. Insert the blades into the motor housing blade slots, push blade until it stops. You should be able to hear the inside safety pin drop into the blade hole to secure the blade in place. (Fig. 7) CAUTION: Re-check each blade to make sure all blades are secured to the locking mechanism by holding the blade from the tip and gently pulling it outwards. - Page 15 SCREWS REMOVAL TOOL RUBBER COVER REMOVAL TOOL BLADE Fig 8...
-
Page 16: Installing The Led Light Kit & Glass Shade
INSTALLING THE LED LIGHT KIT & GLASS SHADE CAUTION: Before starting installation, make sure power is turned off at the circuit breaker. If you do not plan to install the light kit with your fan at this time, skip step 1, 2 & 3. 1. -
Page 17: Operating The Remote Control/Wall Control
OPERATING THE REMOTE CONTROL/WALL CONTROL Remote Control only: Install a A23 12 volt battery (included). To prevent damage to transmitter remove the battery if not used for long periods of time. Restore Power to Ceiling Fan. instructions apply to ceiling fans that feature a DOWN D. - Page 18 Speed settings for warm or cold weather depend on factors such as room size, ceiling height and number of fans. NOTE: To change the direction of the rotation of the blades the fan must be in operation mode. Warm Weather (forward) A DOWNWARD airflow creates a cooling effect as shown in Figure 10.
-
Page 19: Care Of Your Fan
CARE OF YOUR FAN Here are some suggestions to help maintain your fan. 1. Because of the fan's natural movement some connections may become 4. There is no need to oil your fan. The motor has permanently lubricated loose. Check the support connections, brackets and blade attachments bearings. -
Page 20: Troubleshooting
TROUBLESHOOTING SYMPTOM SYMPTOM SYMPTOM SYMPTOM Fan will not start Fan Wobble Fan Sounds Noisy Fans/Light Turn On and Off Unexpectedly SOLUTION SOLUTION SOLUTION Check to make sure the wall switch is Allow a 24-hour "break in" period. NOTE: All blade sets are grouped by SOLUTION turned on. - Page 21 SYMPTOM Frequency Interference SOLUTION Turn the power off to your ceiling fan. Please use a small size tool to change the frequency settings on the control system. Return power to the unit. Note: After the AC power is on, do not press any other button on the transmitter before pressing the "Stop" button, doing so will cause the procedure to fail.
-
Page 22: Specifications
SPECIFICATIONS These are typical readings. Your actual fan may vary. Fan Size Speed Volts Amps Watts N.W. G.W. C.F. They do not include amps and wattage used by the light(s). 0.244 16.29 52" 13.55 15.10 2.453’ High 0.449 53.70... - Page 23 PERFORMANCE AND ENERGY INFORMATION FAN SPEED AIRFLOW POWER USE AIRFLOW EFFICIENCY (CFM)* (Watts) (CFM/Watt) 2394 16.29 High 5363 53.70 Ceiling fan airflow is measured in cubic feet per minute (CFM). Estimated Airflow Power use is measured in watts. To maximize energy savings: 3,990 Yearly Energy Cost •...
