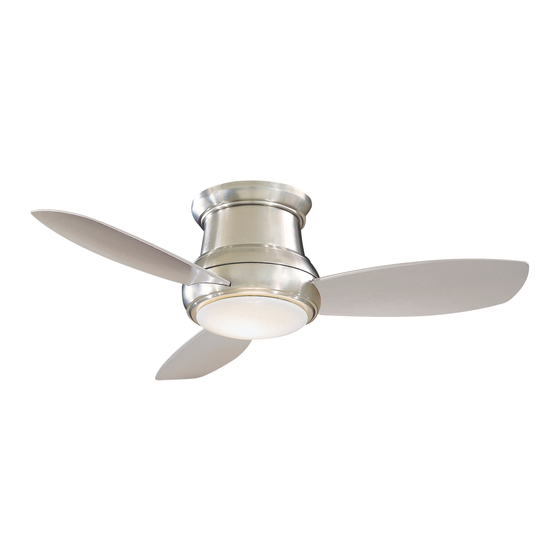

CONCEPT II
BY
U.S. Patents: D478,654; D478,974; D478,980; 6,059,531; 7,008,192
INSTRUCTION MANUAL WARRANTY CERTIFICATE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Concept II and is the answer not in the manual?

Questions and answers

Summary of Contents for minkaAire Concept II

  • Page 1 CONCEPT II U.S. Patents: D478,654; D478,974; D478,980; 6,059,531; 7,008,192 INSTRUCTION MANUAL WARRANTY CERTIFICATE...
  • Page 2 This product is protected by United States Federal and/or State Law, including Patent, Trademark and/or Copyright laws. Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.
  • Page 3 Minka-Aire warrants to the original owner that this fan will be free from defects in material and workmanship for one year from the date of purchase, excluding the motor. Minka-Aire warrants to the original owner that the motor in this fan shall be free from defects in material and workmanship for as long as the original purchaser owns the fan, and it remains in the original installation.
  • Page 4 This warranty shall not apply to fans which have been damaged in any way, including improper installation, damage as a result of the removal of the fan from the origial installation, or damage in shipping. This warranty shall not apply to fans which have been subjected to use for which the fan was not designed.
  • Page 5: Table Of Contents

    CONTENTS SAFETY RULES..................INSTALLING THE LIGHT BULB & GLASS SHADE ....... PACKAGE CONTENTS..............OPERATING THE REMOTE CONTROL..........INSTALLING THE MOUNTING BRACKET......CARE OF YOUR FAN................ELECTRICAL CONNECTIONS............TROUBLESHOOTING................FINISHING THE INSTALLATION..........SPECIFICATIONS..................BLADE INSTALLATION..............LISTED 1151 W. Bradford Court, Corona, CA 92882 For Customer Assistance Call: 1-800-307-3267 E75795...
  • Page 6: Safety Rules

    SAFETY RULES 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
  • Page 7 NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be supplied by the person (s) installing, caring for and operating the unit.
  • Page 8: Package Contents

    PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: 1. Fan Blades (3) A. Mounting hardware: 2. Mounting bracket #8 x 3/4" Machine screws (2) 3. Fan motor/housing ass'y #10 x 1.5" Wood screws (4) 4.
  • Page 9: Installing The Mounting Bracket

    INSTALLING THE MOUNTING BRACKET Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape. WARNING: All of the parts, hardware and components such as the hanger bracket and hanger ball have been provided for your safety and the proper installation of your new ceiling fan. The use of other parts, hardware or components not supplied by Minka Aire ®...
  • Page 10: Electrical Connections

    ELECTRICAL CONNECTIONS WARNING: : To avoid possible electrical shock be sure electricity is Note: The receiver has been attached the motor housing and Note: The receiver has been attached the motor housing and turned off at the main fuse or breaker box before wiring. wired for ease of installation.
  • Page 11 Step 1. Receiver to House Supply Wires Electrical Connections: Connect the WHITE wire (Neutral) from the outlet box to the WHITE wire marked "AC in N" from the receiver. Connect the BLACK wire (Hot) from the outlet box to the BLACK wire marked "AC in L" from the receiver.
  • Page 12 OUTLET BOX WHITE (NEUTRAL) BLACK (HOT) GREEN OR BARE COPPER (GROUND) BLACK ("AC IN L") WHITE ("AC IN N") RECEIVER BLACK ("TO MOTOR L") WHITE ("TO MOTOR N") ORANGE (CONNECT TO GROUND- (FOR UPPER LIGHT) GROUND WIRE ON (GREEN) HANGER BRACKET IF NO HOUSE BLUE (FOR LIGHT) GROUND WIRE...
  • Page 13: Finishing The Installation

    FINISHING THE INSTALLATION Step 1. Loosen two of the four screws from the mounting bracket and remove the other two. Step 2. Remove the motor assembly from the mounting bracket hook and engage the key holes to the two screws previously loosened.
  • Page 14: Blade Installation

    BLADE INSTALLATION THE FOLLOWING OPERATION MUST BE ACCOMPLISHED BEFORE INSTALLING THE GLASS SHADE. Step 1. Insert the blades into the motor housing blade slots, push blade until it stops. You should be able to hear the inside safety pin drop into the blade hole to secure the blade in place. (Fig. 6) CAUTION: Re-check each blade to make sure all blades are secured to the motor by holding the blade from the tip and gently pulling it outwards.
  • Page 15 Fig 7...
  • Page 16: Installing The Light Bulb & Glass Shade

    INSTALLING THE LIGHT BULB & GLASS SHADE WARNING: Shut off the power supply before removing or replacing lamp. In handling of halogen bulb, care should be taken not to touch it with your bare hands. Oil residue will shorten the life of the halogen bulb.
  • Page 17: Operating The Remote Control

    OPERATING THE REMOTE CONTROL/WALL CONTROL Remote Control only: Install a A23 12 volt battery (included). To prevent damage to transmitter remove the battery if not used for long periods of time. Restore Power to Ceiling Fan. instructions apply to ceiling fans that feature a DOWN D.
  • Page 18 Speed settings for warm or cold weather depend on factors such as room size, ceiling height and number of fans. NOTE: wait for fan to stop before changing the setting of the slide switch. Warm Weather (forward) A DOWNWARD airflow creates a cooling effect as shown in Figure 9.
  • Page 19: Care Of Your Fan

    CARE OF YOUR FAN Here are some suggestions to help maintain your fan. 1. Because of the fan's natural movement some connections may become 4. There is no need to oil your fan. The motor has permanently lubricated loose. Check the support connections, brackets and blade attachments bearings.
  • Page 20: Troubleshooting

    TROUBLESHOOTING SYMPTOM SYMPTOM SYMPTOM SYMPTOM Fan will not start Fan Wobble Fan Sounds Noisy Fans/Light Turn On and Off Unexpectedly SOLUTION SOLUTION SOLUTION Check to make sure the wall switch is Allow a 24-hour "break in" period. NOTE: All blade sets are grouped by SOLUTION turned on.
  • Page 21 SYMPTOM Frequency Interference SOLUTION Turn the power off to your ceiling fan. Please use a small size tool to change the frequency settings on the control system. Return power to the unit. Note: After the AC power is on, do not press any other button on the transmitter before pressing the "Stop" button, doing so will cause the procedure to fail.
  • Page 22: Specifications

    SPECIFICATIONS These are typical readings. Your actual fan may vary. Fan Size Speed Volts Amps Watts RPM CFM N.W. G.W. C.F. They do not include amps and wattage used by the light(s). 0.26 1050 10.9 12.44 2.55' 44" Medium 0.33 3000 High 0.37...
