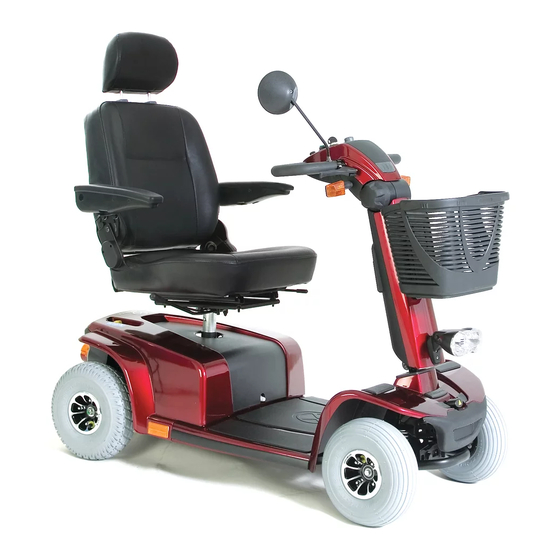

Summary of Contents for Pride CELEBRITY DX SPORT

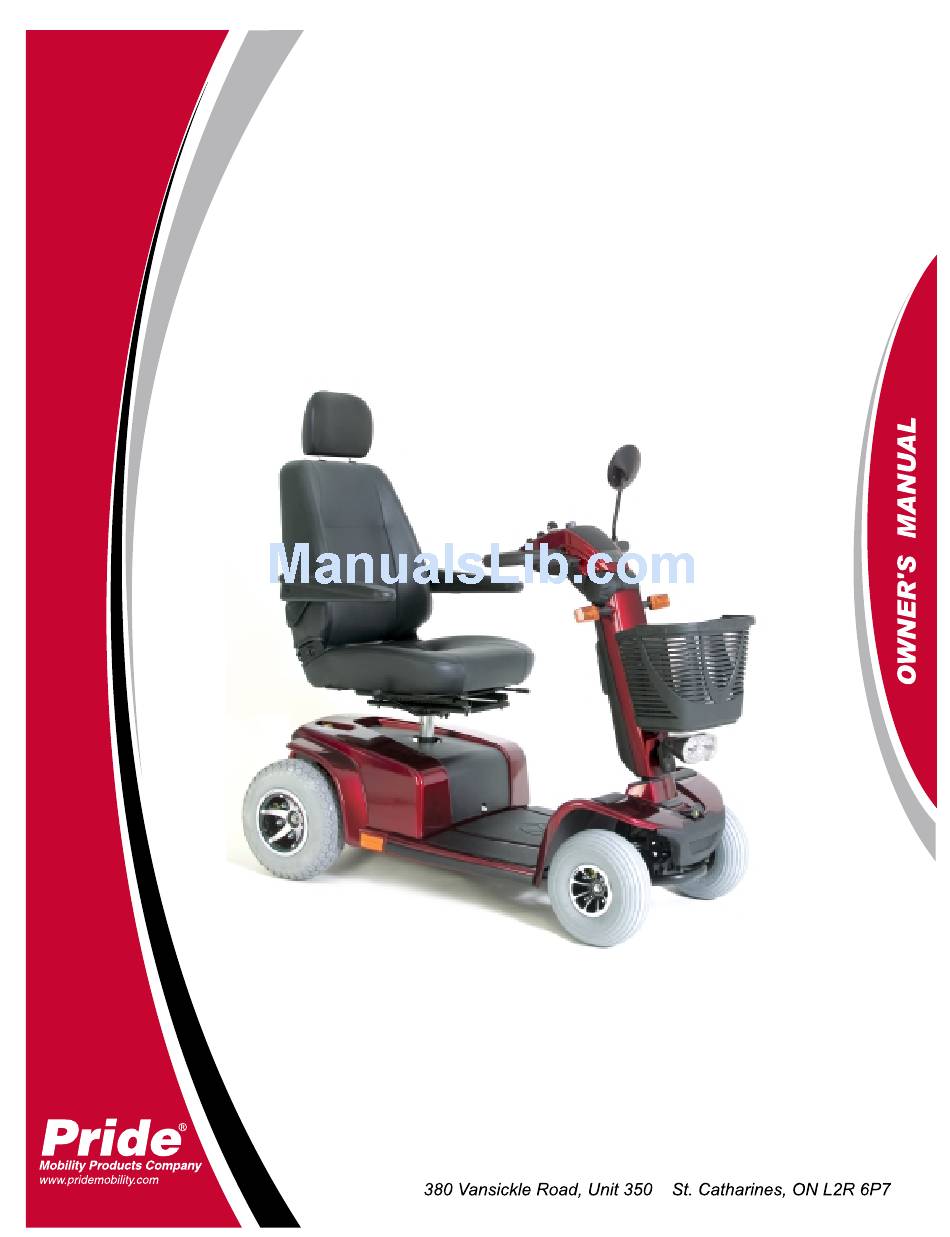

  • Page 1 CELEBRITY DX SPORT...
  • Page 2 INTENDED USE The intended use of the Pride Mobility Products device is to provide mobility to persons limited to a seated position that have the capability of operating a scooter. Please fill out the following information for quick reference:...

  • Page 3: Table Of Contents

    IV. BATTERIES AND CHARGING .................... 24 OPERATION ..........................29 VI. COMFORT ADJUSTMENTS....................31 VII. DISASSEMBLY AND ASSEMBLY ..................34 VIII. BASIC TROUBLESHOOTING ..................... 36 IX. CARE AND MAINTENANCE ....................38 APPENDIX I - SPECIFICATIONS ....................41 Celebrity DX Sport www.pridemobility.com...

  • Page 4: Introduction

    Pride to enhance or preserve the safe use of this product.

  • Page 5: Safety

    EMI-RFI- This product has been tested and passed at an immunity level of 20 V/m. Do not lift the mobility vehicle while seated in it. Do not lift the mobility vehicle while seated in it. Explosive conditions exist! Read and follow the information in the owner’s manual. Celebrity DX Sport www.pridemobility.com...

  • Page 6: Ii. Safety

    Locked and in drive mode. Front-to-rear plug orientation. Wear safety goggles. Do not mistake the tiller adjustment lever for a brake. Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions. www.pridemobility.com Celebrity DX Sport...
  • Page 7 Do not connect an extension cord to the AC/DC converter or the battery charger. Contact with tools can cause electrical shock. Do not allow unsupervised children to play near the scooter while the batteries are charging. Celebrity DX Sport www.pridemobility.com...
  • Page 8 Keep your hands away from the tires when driving. Be aware that loose fitting clothing can become caught in drive tires. Battery charger for indoor use only. Disposal and recycling - Contact your authorized Pride Provider for information on proper disposal and recycling of your Pride product and its packaging. Contains Lead.
  • Page 9 PRE-RIDE SAFETY CHECK Get to know the feel of your scooter and its capabilities. Pride recommends that you perform a safety check before each use to make sure your scooter operates smoothly and safely.

  • Page 10: Your Scooter

    Your scooter is rated for a maximum weight capacity. Refer to the specifications table for information. MANDATORY! Stay within the specified weight capacity for your scooter. Exceeding the weight capacity voids your warranty. Pride will not be held responsible for injuries and/or property damage resulting from failure to observe weight limitations.
  • Page 11 If you encounter a damaged or cracked battery, immediately enclose it in a plastic bag and contact your local waste disposal agency or authorized Pride Provider for instructions on disposal and battery recycling which is our recommended course of action.
  • Page 12 ! Regenerative: Uses electricity to rapidly slow the vehicle when the throttle control lever returns to the center/ stop position. ! Disc Park Brake: Activates mechanically after regenerative braking slows the vehicle to near stop or when power is removed from the system for any reason. www.pridemobility.com Celebrity DX Sport...
  • Page 13 Your scooter is designed to provide optimum stability under normal driving conditions—dry, level surfaces com- posed of concrete or asphalt. However, Pride recognizes that there will be times when you will encounter other surface types. For this reason, your scooter is designed to perform admirably on packed soil, grass, and gravel.
  • Page 14 ! Use your hand to turn the knob or push the handle or push-bar. ! Drive your scooter gently and slowly forward to push the door open. Or drive your scooter gently and slowly rearwards to pull the door open. www.pridemobility.com Celebrity DX Sport...
  • Page 15 If you encounter a damaged or cracked battery, immediately enclose it in a plastic bag and contact your local waste disposal agency or authorized Pride Provider for instructions on disposal and battery recycling which is our recom- mended course of action.
  • Page 16 MOTOR VEHICLE TRANSPORT Pride recommends that you do not remain seated in your scooter while traveling in a motor vehicle. The scooter should be stowed in the trunk of a car or in the back of a truck or van with batteries removed and properly secured.
  • Page 17 S A F E T Y POSITIONING BELTS Your authorized Pride Provider, therapist(s), and other healthcare professionals are responsible for determining your requirement for a positioning belt in order to operate your scooter safely. WARNING! If you require a positioning belt to safely operate your scooter, make sure it is fastened securely in order to reduce the possibility of a fall from the scooter.
  • Page 18 NOTE: For further information on EMI/RFI, go to the Resource Center on www.pridemobility.com. If unintended motion or brake release occurs, turn the scooter off as soon as it is safe to do so. Call Pride at 800-424-8205 to report the incident.
  • Page 19 Battery Condition Meter When the key is fully inserted and turned clockwise to power up your scooter, this meter indicates the approximate battery voltage strength. For further information on battery charging, see IV. “Batteries and Charging.” Celebrity DX Sport www.pridemobility.com...
  • Page 20 ! The image of the hare represents the fastest speed setting. Off-board Charger Port The off-board charger power cord plugs into this port when charg- ing the batteries. See figure 5. Figure 5. Off-board Charger Port www.pridemobility.com Celebrity DX Sport...
  • Page 21 PROHIBITED! Do not remove the anti-tip wheels or modify your scooter in any way that is not authorized by Pride. Batteries The batteries store the electrical energy that powers your scooter. See IV. “Batteries and Charging ” for informa- tion on how to charge your scooter batteries.
  • Page 22 ! Push in the reset button to reset the breaker. ! If the breaker trips frequently, you may need to charge the batteries more often or have your authorized Pride Provider perform a load test on the batteries. Manual Freewheel Lever Whenever you need or want to push your scooter for short distances, you can put it in freewheel mode.
  • Page 23 See figures 10 and 10A. These should only be used with an unoccupied scooter and secured by an approved securement system in accordance with the manufacturer’s instructions. Pride makes no representation of suitability for use with specific securement systems nor can we anticipate the various situations that might arise in use of public transportation systems.

  • Page 24: Batteries And Charging

    PROHIBITED! Do not allow unsupervised children to play near the scooter while the batteries are charging. Pride recommends that you do not charge the batteries while the scooter is occupied. MANDATORY! Read the battery charging instructions in this manual and in the manual supplied with the battery charger before charging the batteries.
  • Page 25 For the safest and most efficient charging of your scooter’s batteries, we recommend use of the charger supplied as original equipment with your Pride product only. Any charging method resulting in batteries being charged individually is especially prohibited.
  • Page 26 Do not use wet-cell batteries, which have removable caps. WARNING! Corrosive chemicals are contained in batteries. Use only AGM or Gel- Cell batteries to reduce the risk of leakage or explosive conditions. NOTE: Sealed batteries are not serviceable. Do not remove the caps. www.pridemobility.com Celebrity DX Sport...
  • Page 27 WARNING! Do not mix old and new batteries. Always replace both batteries at the same time. WARNING! Contact your authorized Pride Provider if you have any questions regarding the batteries in your scooter.
  • Page 28 What about public transportation? If you intend to use public transportation with your scooter, you must contact the transportation provider in ad- vance to determine their specific requirements. www.pridemobility.com Celebrity DX Sport...

  • Page 29: Operation

    ! The electromechanical disc park brake automatically disengages and the scooter accelerates smoothly to the speed you preselected with the speed adjustment dial. ! Pull on the left handgrip to steer your scooter to the left. Celebrity DX Sport www.pridemobility.com...

  • Page 30: V. Operation

    If the power down timer feature takes effect, perform the following steps to resume normal operation. 1. Remove the key from the key switch. 2. Reinsert the key and power up your scooter. www.pridemobility.com Celebrity DX Sport...
  • Page 31 SEATBACK ADJUSTMENT WARNING! Do not operate your scooter with the seatback in a reclined position. SEATBACK ADJUSTMENT WARNING! Always keep your back LEVER pressed firmly against the seatback while adjusting the angle. Figure 16. Seatback Adjustment Celebrity DX Sport www.pridemobility.com...

  • Page 32: Comfort Adjustments

    6. Insert the seat height adjustment bolt through the lo- cating holes of both the upper and lower seat posts. 7. Install the nut onto the bolt and tighten. 8. Tighten the clamp-action bolt. 9. Reinstall the rear shroud and the seat. www.pridemobility.com Celebrity DX Sport...
  • Page 33 MANDATORY! Make sure the positioning belt is properly secured to the scooter and is adjusted for operator comfort. MANDATORY! Inspect the positioning belt for loose or damaged parts before each use of the scooter. If you discover a problem, contact your authorized Pride Provider for maintenance and repair. Celebrity DX Sport...
  • Page 34 6. Unplug both battery harnesses. Pull each harness straight up. See figure 22. 7. Unfasten the battery tie-down straps and remove the batteries from the battery wells. LOCKED POSITION UNLOCKED POSITION Figure 21. Tiller Lock Knob (Locked) Figure 21A. Tiller Lock Knob (Unlocked) www.pridemobility.com Celebrity DX Sport...

  • Page 35: Disassembly And Assembly

    9. Unlock the front wheel by turning the tiller lock knob 90° counterclockwise. See figure 21A. FRAME HOOK WARNING! After assembly, make LOWER FRAME TUBE absolutely certain the tiller lock knob is in the unlocked position Figure 24. Frame Separation before riding your scooter. Celebrity DX Sport www.pridemobility.com...
  • Page 36 ! !!!! (1,4) Battery charge is low. Charge batteries as soon as possible. !!! (3,3) ! !! (1,2) Throttle pot fault Contact your authorized Pride Provider for assistance. ! !!! (1,3) Speed pot fault Contact your authorized Pride Provider for assistance.

  • Page 37: Basic Troubleshooting

    ! Charge the scooter’s batteries more frequently. See IV. “Batteries and Charging.” ! If the problem continues, have both of your scooter’s batteries load tested by your authorized Pride Provider. ! If the main circuit breaker trips repeatedly, contact your authorized Pride Provider for service.

  • Page 38: Care And Maintenance

    Your scooter requires a minimal amount of care and maintenance. If you do not feel confident in your ability to perform the maintenance listed below, you may schedule inspection and maintenance at your authorized Pride Provider. The following areas require periodic inspection and/or care and maintenance.
  • Page 39 ! Regularly check all wiring connections. ! Regularly check all wiring insulation, including the charger power cord, for wear or damage. ! Have your authorized Pride Provider repair or replace any damaged connector, connection, or insulation that you find before using your scooter again.
  • Page 40 DISPOSAL OF YOUR SCOOTER Your scooter must be disposed of according to applicable local and national statutory regulations. Contact your local waste disposal agency or authorized Pride Provider for information on proper disposal of packaging, metal frame components, plastic components, electronics, and batteries.
  • Page 41 AGM or Gel-Cell type required. See IV. “Batteries and Charging.” Battery weight may vary based on battery manufacturer. NOTE: This product conforms to all applicable ANSI-RESNA testing requirements and ISO 7176 series EN12184 standards. All specifications subject to change without notice. Celebrity DX Sport www.pridemobility.com...

  • Page 42: Appendix I - Specifications

    (51.25") 45.72 cm 16" (18") 45.72 cm (18") 168.275 cm (66.25") 64.135 cm (25.25") Figure 26. Scooter Dimensions 10.16 cm 10.16 cm (4”) (4”) 25.4 cm 32.5 cm (10”) (12.8”) REAR FRONT Figure 27. Tire Dimensions www.pridemobility.com Celebrity DX Sport...
  • Page 43 N O T E S Celebrity DX Sport www.pridemobility.com...
  • Page 45 *INFMANU3719*...
