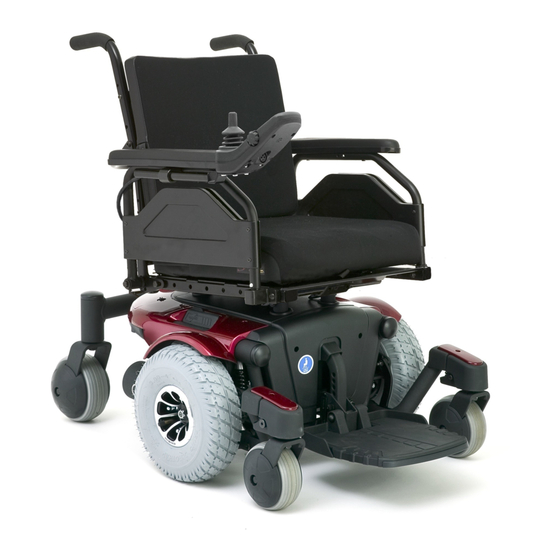

Pride Quantum 610 Owner's Manual

Quantum 610
Hide thumbs Also See for Quantum 610:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
QUANTUM
610
1-800-800-8586 (US) 1-888-570-1113 (Canada)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Quantum 610 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pride Quantum 610

Summary of Contents for Pride Quantum 610

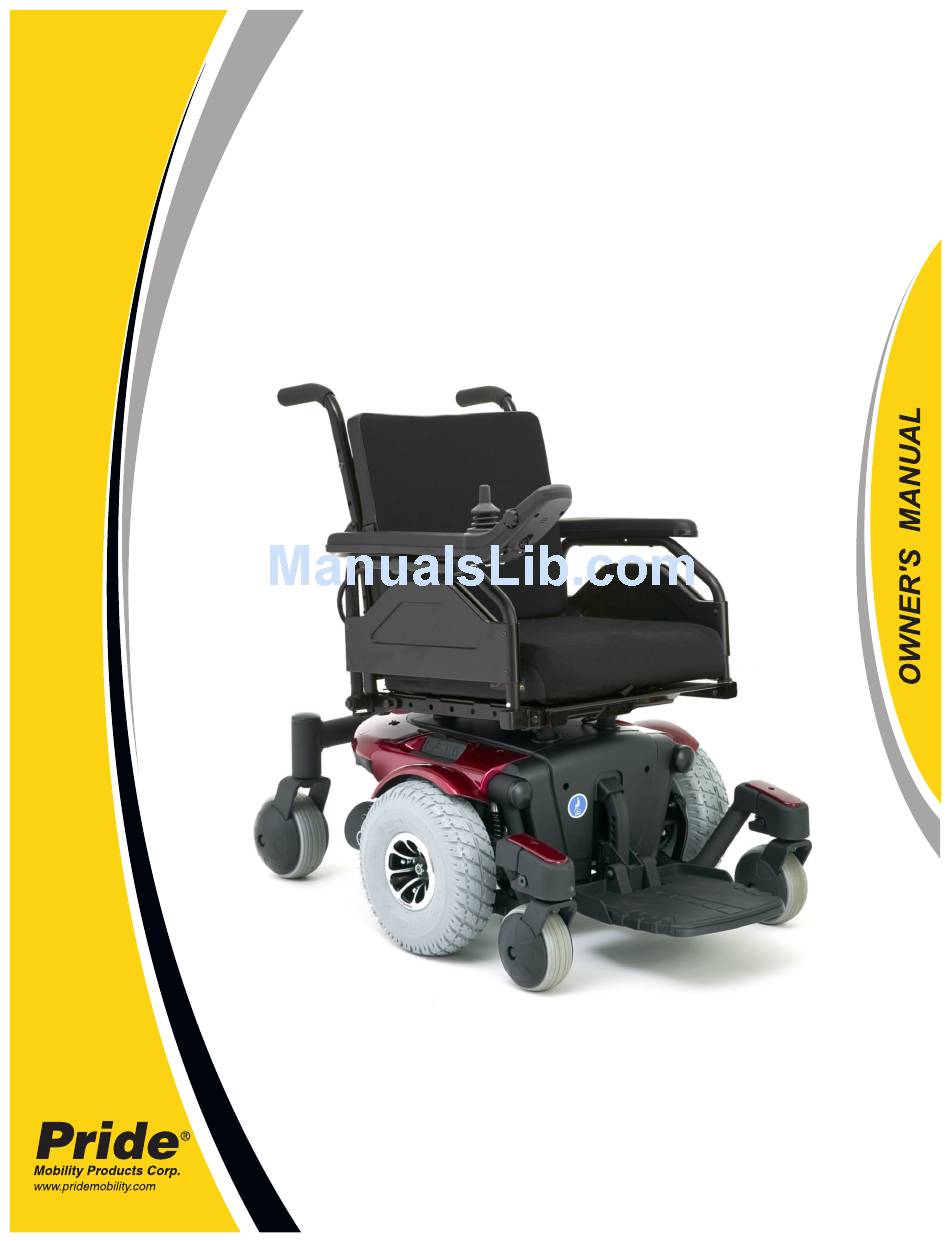

  • Page 1 QUANTUM 1-800-800-8586 (US) 1-888-570-1113 (Canada)

  • Page 2: Consignes De Securite

    The latest/current version of this manual is available on our website. Copyright © 2011 Pride Mobility Products Corporation INFMANU2924/Rev E/August 2011...

  • Page 3: Purchaser's Agreement

    I . I N T R O D U C T I O N SAFETY INTRODUCTION ..........................4 WELCOME to Quantum Rehab, a division of Pride Mobility Products (Pride). The power chair you have pur- chased combines state-of-the-art components with safety, comfort, and styling in mind. We are confident that SAFETY ..............................5 these design features will provide you with the conveniences you expect during your daily activities.

  • Page 4: I I . S A F E T Y

    Do not connect an extension cord to the AC/DC converter or the battery charger. Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and new batteries. Always replace both batteries at the same time. www.pridemobility.com Quantum 610 Series Quantum 610 Series www.pridemobility.com...
  • Page 5 Unlocked and in freewheel mode. Indicates flammable material. Do not expose to heat sources such as open flame or sparks. Do not transport batteries with flammable or combustible items. Contains Lead. www.pridemobility.com Quantum 610 Series Quantum 610 Series www.pridemobility.com...

  • Page 6: General Guidelines

    WARNING! Never travel down an incline backward. Doing so may cause the power chair to tip. Always exercise extreme caution when negotiating an incline. www.pridemobility.com Quantum 610 Series Quantum 610 Series www.pridemobility.com...
  • Page 7 (5 cm). Doing so could cause instability in your power chair. WARNING! Do not attempt to have your power chair proceed backward down any step, curb, or other obstacle. This may cause the power chair to tip. www.pridemobility.com Quantum 610 Series Quantum 610 Series www.pridemobility.com...
  • Page 8 This may cause your power chair to tip. WARNING! Keep your hands away from the tires when driving. Be aware that loose fitting clothing can become caught in drive tires. www.pridemobility.com Quantum 610 Series Quantum 610 Series www.pridemobility.com...
  • Page 9 You must adhere to the following safety guidelines if you decide to smoke cigarettes while seated in your power chair. Do not leave lit cigarettes unattended. Keep ashtrays a safe distance from the seat cushions. Always make sure cigarettes are completely extinguished before disposal. www.pridemobility.com Quantum 610 Series Quantum 610 Series www.pridemobility.com...

  • Page 10: I I I . Y O U R P O W E R C H A I R

    I I I . Y O U R P O W E R C H A I R THE QUANTUM 610 The Quantum 610 has two main assemblies: the seat assembly and the power base assembly. See figure 5. Typi- REAR SHROUD FASTENER cally, the seat assembly includes the armrests, seatback, and seat base.
  • Page 11 WARNING! Do not use the freewheel lever handles as tie-down points to secure this product. MAIN CIRCUIT BREAKER Figure 8. Drive Mode (Drive Engaged) Figure 9. Freewheel Mode (Drive Disengaged) Figure 7. Quantum 610 Series Electrical Components www.pridemobility.com Quantum 610 Series Quantum 610 Series...

  • Page 12: I V . A S S E M B L Y

    9. Secure the controller harness to the armrest Figure 10. Quantum 610 Series Assembly View (Universal Mounting System Shown) receiver with wire ties. See figure 13. Figure 12. Controller Routed on a Synergy Seat www.pridemobility.com...
  • Page 13 Do not l. Align the post on the bottom of the power seat base change your seating configuration without first contacting Pride Mobility Products or your over the hole in the power seat actuator.

  • Page 14: Comfort Adjustments

    You can change each armrest’s width independently of the other. System, refer to the information provided in supplemental manuals provided with your seating system. NOTE: Changing the armrest width may increase the overall width of your power chair. www.pridemobility.com Quantum 610 Series Quantum 610 Series www.pridemobility.com...
  • Page 15 1. Flip up the foot platform and locate the screw. See SCREW figure 22. 2. Turn the screw to raise or lower the front of the foot Figure 22. Underside of Foot Platform platform. www.pridemobility.com Quantum 610 Series Quantum 610 Series www.pridemobility.com...
  • Page 16 WARNING! The power elevating seat option is intended for use on a level surface only. Never raise the seat from its lowest position on an inclined surface. Failure to heed this warning can The Quantum 610 uses two long-lasting, 12-volt, deep-cycle batteries. These batteries are sealed and maintenance result in the power chair tipping over.

  • Page 17: Batteries And Charging

    More importantly, it will take a few “charging cycles” (a partial drain—then a full recharge) to establish the critical chemical balance that is essential to the battery’s peak performance and long life. It will be well worth it to take the time to break in your battery properly. www.pridemobility.com Quantum 610 Series Quantum 610 Series www.pridemobility.com...
  • Page 18 A fully charged deep-cycle battery will provide reliable performance and extended battery life. Keep your power Your Quantum 610 is a sophisticated power chair. Like any motorized vehicle, it requires routine maintenance chair’s batteries fully charged whenever possible. Batteries that are regularly and deeply discharged, infrequently checks.

  • Page 19: Care And Maintenance

    Take your power chair to your Quantum Rehab Provider for yearly maintenance, especially if you use your power chair on a daily basis. This helps ensure that your power chair is functioning properly and helps prevent future complications. www.pridemobility.com Quantum 610 Series Quantum 610 Series www.pridemobility.com...
  • Page 20 9. Unfasten the hook and loop straps from both batteries. 10. Remove the batteries. Figure 26. Quantum 610 Drive Wheel Figure 27. Quantum 610 Drive Wheel Disassembled 11. Install new batteries. 12. Fasten the hook and loop straps around both batteries.
  • Page 21 V I I . C A R E A N D M A I N T E N A N C E REAR SHROUD FASTENERS REAR SHROUD BATTERY WIRING DIAGRAM FRONT BATTERY REAR BATTERY Figure 28. Battery Installation www.pridemobility.com Quantum 610 Series Quantum 610 Series www.pridemobility.com...
  • Page 22 N O T E S N O T E S www.pridemobility.com Quantum 610 Series Quantum 610 Series www.pridemobility.com...
  • Page 24 Quality Control - Quantum 610 Inclusion of all Parts Joystick Serial Number Controller Serial Number Left Motor Serial Number Right Motor Serial Number Fit and Finish Performance Pride keeps a more detailed report on file at the factory. Date Inspected...
