El sitio Web de Pioneer indicado más arriba tiene una sección con las preguntas más frecuentes, y además ofrece información del software y varios tipos de información y servicios para que usted pueda usar su producto con la mayor comodidad.
Page 2
Thank you for buying this Pioneer product. Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference.
Synchronizing the playing speed with other decks (beat sync) ....22 Inputting the sound of a microphone or external device .......23 Changing the TRAKTOR Preferences List of TRAKTOR Pioneer DDJ-T1 EDITION setting items ......24 Assigning the desired functions to the [NEEDLE SEARCH] pad ..24 Additional information Troubleshooting ..................25...
HIGH SOUND QUALITY This product inherits the sound quality technology developed over the years for Pioneer DJ hardware to achieve the top level of sound quality in its class. System setup example A DJ system like the one on the diagram below can be created by combining this unit with a computer and peripherals.
If there are irregularities with the AC adapter or power plug, ask your To ensure your personal safety and to maximize the full operating poten- nearest Pioneer authorized service center or your dealer to carry out tial of your unit, read and follow these safety instructions.
Type 1 (for Japan and North America) left and right feet (2 screws each). DJ CONTROLLER DDJ-T1 Type 2 (for Europe) ! The screws you have removed will be needed when mounting the feet. Be careful not to lose them. The feet cannot be properly mounted using other screws.
About the TRAKTOR software Installing the TRAKTOR software TRAKTOR Pioneer DDJ-T1 EDITION is a special version of TRAKTOR designed exclusively for the DDJ-T1. For a comparison of the functions About the installation procedure between TRAKTOR Pioneer DDJ-T1 EDITION and other versions of TRAKTOR, see the website below.
Page 8
If you do not agree to the contents of the usage agreement, click [Disagree] to cancel installation. About the installation procedure (Macintosh) Insert the included TRAKTOR Pioneer DDJ-T1 EDITION software CD-ROM into the computer’s CD drive. The [Traktor] icon appears on the screen. Double-click the [Traktor] icon.
Online activation Performing product activation Launch the SERVICE CENTER. To use TRAKTOR Pioneer DDJ-T1 EDITION, first perform product activa- The log-in screen is displayed. tion (referred to simply as “activation” below) using Native Instruments SERVICE CENTER (referred to simply as “SERVICE CENTER” below).
TRAKTOR Pioneer DDJ-T1 EDITION is to be Offline activation installed. To activate TRAKTOR Pioneer DDJ-T1 EDITION installed on a computer 12 Click [Offline] at that is not connected to the Internet, use SERVICE CENTER in the offline [Continue without connecting to the internet].
In addition to damages and any other remedies to which beforehand. Pioneer may be entitled, You agree that Pioneer may seek injunctive relief ! There is no need to install the driver software when using Mac OS X. to prevent the actual, threatened or continued breach of this Agreement.
Page 12
Click the Windows [Start] menu> [All Programs] > by the administrator of your computer. Log on as the administrator of [Pioneer] > [DDJ] > [DDJ ASIO Settings Utility]. your computer before proceeding with the installation. ! If you connect this unit to your computer without installing the driver software first, an error may occur on your computer depending on the system environment.
Connections Be sure to turn off the power and unplug the AC adapter from the power outlet before making or changing connections between devices. Wait until all connections between devices have been completed before connecting the AC adapter. Only use the AC adapter included with this unit. Refer to the operating instructions for the component to be connected.
Front panel 2 3 4 INPUT SELECT PHONES — [AUX]: The external device connected to the [AUX] terminals is 1 PHONES terminal selected. Connect headphones here. — [MIC]: The microphone connected to the [MIC] terminal is Both stereo phone plugs (Ø 6.3 mm) and stereo mini phone plugs (Ø selected.

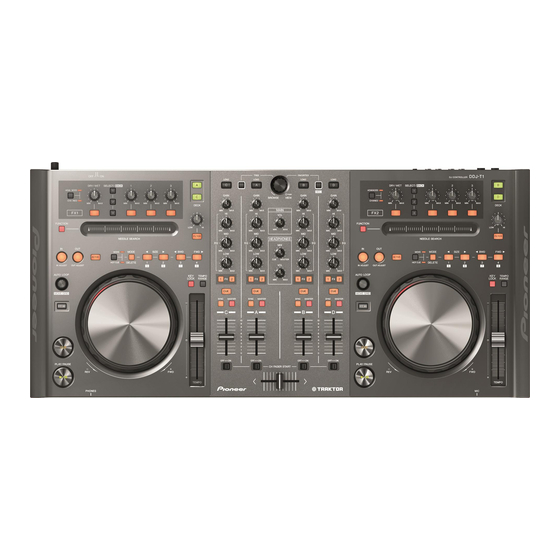

Part names and functions Control panel TREE FAVORITES LOAD LOAD LOAD LOAD DRY/ WET SELECT/ BACK DRY/ WET SELECT/ BACK ADVANCED ADVANCED PUSH GAIN GAIN GAIN GAIN BROWSE VIEW CHAINED CHAINED DECK DECK MAIN FUNCTION FUNCTION FILTER FILTER NEEDLE SEARCH HEADPHONES NEEDLE SEARCH MODE...
1 Browser TREE FAVORITES LOAD LOAD LOAD LOAD PUSH GAIN GAIN GAIN GAIN BROWSE VIEW 1 TREE button 3 FAVORITES (REC) button ! Turn the rotary selector while pressing the [TREE] button: Moves ! Turn the rotary selector while pressing the [FAVORITES (REC)] the cursor in the [TREE] area.
2 Deck DRY/ WET SELECT/ BACK ADVANCED CHAINED DECK DECK FUNCTION FILTER NEEDLE SEARCH MODE SIZE MOVE ACTIVE [MOVE PANEL] HOT CUE DELETE IN ADJUST OUT ADJUST AUTO LOOP TEMPO LOCK RANGE [HOT CUE PANEL] MOVE GRID SHIFT [GRID PANEL] PLAY/PAUSE TEMPO PHONES...
For instructions on assigning functions, see Changing the TRAKTOR Preferences on page 24. 8 DECK button Switches the deck to be operated. ! Deck on left side of this unit: Deck [A] or [C] ! Deck on right side of this unit: Deck [B] or [D] 9 Filter control ! Turn counterclockwise while filter function is on: Low pass filter.
3 Mixer PUSH GAIN GAIN GAIN GAIN BROWSE VIEW MAIN HEADPHONES MASTER SYNC MASTER SYNC MASTER SYNC MASTER SYNC MASTER CH FADER START 1 MAIN VOL control When the [CH FADER START] switch is set to [ON], the fader start and back cue functions can be used according to the movement of Adjusts the sound level output from the master.
LOCK RANGE ! The [Advanced] mode cannot be selected with TRAKTOR Pioneer DDJ-T1 EDITION. ! The effect panel can be switched to the [Advanced] mode when you upgrade to TRAKTOR PRO or TRAKTOR SCRATCH PRO. 1 ADVANCED/ CHAINED selector button ! [Chained] mode: Up to 3 effects can be selected on the effect panels and operated simultaneously.
Importing tracks to TRAKTOR with iTunes ! The iTunes library and playlists cannot be edited with the TRAKTOR This function is operated not on the DDJ-T1 but on the computer. browser. ! When played from the TRAKTOR browser, iTunes music files are From Explorer or Finder, drag &...
Press the [CUE] button. Adjusting the sound quality Cue point [a] is set at the position at which playback was paused. The [PLAY/PAUSE f] indicator flashes and the [CUE] indicator lights. No sound is output at this time. Turn the [EQ (HI, MID, LOW)] controls for the various ! When a new Cue Point is set, the previously set Cue Point is deleted.
The sound of an external device connected to the [AUX IN] or [MIC] terminals can be input to any of the decks and mixed. By default on TRAKTOR Pioneer DDJ-T1 EDITION, the sound of external devices connected to the [AUX IN] and [MIC] terminals is input to deck [D].
Click the TRAKTOR [ (Preferences Button)] button. Open the TRAKTOR settings menu. Click [Controller Manager]. Click [Device] under [Device Setup]. From the pull-down menu, select [Pioneer. DDJ-T1]. Click [Add In...] under [Assignment Table]. From the pull-down menu, select the function to be assigned.
Sometimes the trouble may lie in another component. Inspect the other components and electrical appliances being used. If the trouble cannot be rectified after checking the items below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.
Using as a controller for other DJ software The DDJ-T1 also outputs the operating data for the buttons and dials in MIDI format. If you connect a computer with a built-in MIDI-compatible DJ software via a USB cable, you can operate the DJ software on this unit. The sound of music files being played on the computer can also be output from the DDJ-T1.
List of MIDI Messages On this unit, the browser, deck, mixer and effect sections are connected with the MIDI channels shown below. Deck A MIDI channel 0 Deck B MIDI channel 1 Deck C MIDI channel 2 Deck D MIDI channel 3 Effect 1 MIDI channel 4 Effect 2...
Page 28
MIDI message (this unit to computer) SW Name Notes When SHIFT button is off When SHIFT button is on Difference count value from when previously operated Turn clockwise: 1 Jog dial (turn) Turn counterclockwise: 16383 The cumulative difference count when the jog dial is turned 1 rotation is 2430.
Page 29
MIDI message (this unit to SW Name Notes computer) Deck A OFF=0, ON=127 Deck B OFF=0, ON=127 1 button Deck C OFF=0, ON=127 Effect Deck D OFF=0, ON=127 assign Deck A OFF=0, ON=127 buttons Deck B OFF=0, ON=127 2 button Deck C OFF=0, ON=127 Deck D...
Effect assign button 1 is 4, effect assign button 2 is 5. When operated while pressing the [SHIFT] button, the code is the code for when the [SHIFT] button is on. Disclaimer Specifications ! Pioneer is a registered trademark of Pioneer Corporation. AC adapter ® ®...
Page 32
Le damos las gracias por la adquisición de este producto Pioneer. Lea a fondo estas instrucciones de utilización para que aprenda a utilizar correcta- mente su modelo. Después de haber terminado de leer estas instrucciones, guárdelas en un lugar seguro para, en caso de ser necesario, consultarlas en el futuro.
Page 33
(sincronización de tiempo de compás) ...........23 Introducción del sonido de un micrófono o de un aparato externo ..23 Cambio de las preferencias de TRAKTOR Lista de los elementos de configuración TRAKTOR Pioneer DDJ-T1 EDITION ..................24 Asignación de las funciones deseadas al pad [NEEDLE SEARCH] ..24 Información adicional...
HIGH SOUND QUALITY Este producto hereda la tecnología de calidad de sonido desarrollada a lo largo de los años para el hardware DJ de Pioneer, para lograr una calidad de sonido máxima en su clase. Ejemplo de configuración del sistema Combinando esta unidad con un ordenador y periféricos se puede crear un sistema DJ como el mostrado en el diagrama de abajo.
Si hay irregularidades con el adaptador de CA o la clavija de alimenta- Limpieza ción, pida a su centro de servicio autorizado por Pioneer más cercano o a Use un paño húmedo para limpiar la caja exterior. Evite usar cualquier su concesionario que realice el trabajo de reparación.
(2 tornillos en cada una). Tipo 2 (para Europa) DJ CONTROLLER DDJ-T1 ! Los tornillos que ha quitado los necesitará para montar las patas. Tenga cuidado para no perderlos. Las patas no se pueden montar...
TRAKTOR Pioneer DDJ-T1 EDITION y otras versiones de TRAKTOR, vea el sitio Web de abajo. (Windows) http://www.prodjnet.com/support/ ! El DDJ-T1 es compatible con TRAKTOR PRO y TRAKTOR SCRATCH PRO. Inserte el CD-ROM del software TRAKTOR Pioneer Si tiene un TRAKTOR PRO y un TRAKTOR SCRATCH PRO, actualice DDJ-T1 EDITION incluido en la unidad de CD del a la versión más reciente del software antes de usarlo.
Page 38
Con esto termina el procedimiento de instalación. Acerca del procedimiento de instalación (Macintosh) Inserte el CD-ROM del software TRAKTOR Pioneer DDJ-T1 EDITION incluido en la unidad de CD del ordenador. El icono [Traktor] aparece en la pantalla. Haga doble clic en el icono [Traktor].
Activación en línea Activación del producto Inicie el SERVICE CENTER. Para usar TRAKTOR Pioneer DDJ-T1 EDITION, active primero el Se visualiza la pantalla de inicio de sesión. producto (llamado simplemente “activación” más abajo) usando Native Instruments SERVICE CENTER (llamado simplemente “SERVICE CENTER”...
Activación fuera de línea USB, etc. Para activar TRAKTOR Pioneer DDJ-T1 EDITION instalado en un ordena- 11 Inicie el SERVICE CENTER en el ordenador en el que dor que no está conectado a Internet, use SERVICE CENTER en el modo está...
Programa y Documentación que estén en su posesión, y lo O DESINSTALACIÓN, SEGÚN CORRESPONDA. confirmará a Pioneer por escrito. Los apartados 2.2, 2.3, 2.4, 3, 4, 5 y 6 seguirán vigentes tras la rescisión del presente Contrato. Definiciones 1 “Documentación”...
Page 42
Conexión del DDJ-T1 y un ordenador ! Puede verificar la versión del firmware de esta unidad en la pantalla. ! La versión de firmware no se visualiza cuando el DDJ-T1 no está conectado al ordenador o cuando el DDJ-T1 y el ordenador no se Conecte esta unidad a su ordenador con un cable comunican bien.
Conexiones Asegúrese de desconectar la alimentación y desenchufar el adaptador de CA de la toma de corriente antes de hacer o cambiar conexiones entre aparatos. Espere hasta que todas las conexiones entre los aparatos estén terminadas antes de conectar el adaptador de CA. Use sólo el adaptador de CA incluido con esta unidad.
Panel frontal 2 3 4 INPUT SELECT PHONES — [AUX]: Selecciona el reproductor analógico conectado a los 1 Terminal PHONES terminales [AUX]. Conecte aquí los auriculares. — [MIC]: Se selecciona el micrófono conectado al terminal [MIC]. Se pueden usar clavijas de auriculares estéreo (Ø 6,3 mm) y minicla- vijas de auriculares estéreo (Ø...
Nombres y funciones de los controles Panel de control TREE FAVORITES LOAD LOAD LOAD LOAD DRY/ WET SELECT/ BACK DRY/ WET SELECT/ BACK ADVANCED ADVANCED PUSH GAIN GAIN GAIN GAIN BROWSE VIEW CHAINED CHAINED DECK DECK MAIN FUNCTION FUNCTION FILTER FILTER NEEDLE SEARCH HEADPHONES...
1 Explorador TREE FAVORITES LOAD LOAD LOAD LOAD PUSH GAIN GAIN GAIN GAIN BROWSE VIEW 1 Botón TREE 3 Botón FAVORITES (REC) ! Gire el selector giratorio mientras pulsa el botón [TREE]: Mueve ! Gire el selector giratorio mientras pulsa el botón [FAVORITES el cursor en el área [TREE].
2 Deck DRY/ WET SELECT/ BACK ADVANCED CHAINED DECK DECK FUNCTION FILTER NEEDLE SEARCH MODE SIZE MOVE ACTIVE [MOVE PANEL] HOT CUE DELETE IN ADJUST OUT ADJUST AUTO LOOP TEMPO LOCK RANGE [HOT CUE PANEL] MOVE GRID SHIFT [GRID PANEL] PLAY/PAUSE TEMPO PHONES...
Page 48
— El sonido en la posición en la que se toca el pad ! Muévala hacia el lado – (detrás): La velocidad de reproducción [NEEDLE SEARCH] se puede reproducir fácilmente. disminuye. ! Cuando la [FUNCTION] está encendida: g Dial jog La función deseada se puede asignar.
3 Mezclador PUSH GAIN GAIN GAIN GAIN BROWSE VIEW MAIN HEADPHONES MASTER SYNC MASTER SYNC MASTER SYNC MASTER SYNC MASTER CH FADER START 1 Control MAIN VOL Cuando el interruptor [CH FADER START] se pone en [ON], las fun- ciones fader start y back cue se pueden usar según el movimiento de Ajusta la salida del nivel de sonido desde el maestro.
LOCK RANGE ! El modo [Advanced] no se puede seleccionar con TRAKTOR Pioneer DDJ-T1 EDITION. ! El panel de efectos se puede cambiar al modo [Advanced] cuando usted hace la mejora a TRAKTOR PRO o TRAKTOR SCRATCH PRO. 1 Botón selector ADVANCED/ CHAINED ! Modo [Chained]: En los paneles de efectos se pueden seleccio- nar hasta 3 efectos que se pueden usar simultáneamente.
Gire el selector giratorio mientras pulsa el botón Importación de pistas a TRAKTOR [TREE] para seleccionar iTunes. Esta función no se realiza en el DDJ-T1, sino en el ordenador. Exploración de la librería y listas de reproducción de igual forma que con iTunes Desde Explorer o Finder, arrastre y coloque archivos o ! Las listas de reproducción y la librería iTunes no se pueden editar...
En el modo de bloqueo de tonalidad, el tono no cambia aunque cambie Gire el control [GAIN]. la velocidad de reproducción. Ajusta la entrada de nivel de audio a varios decks. Ponga el fader de canal en la posición interior Establezca el cue Ajusta la salida de nivel de sonido desde varios decks.
[AUX IN]. Sincronización de la velocidad — Reproductor DJ de Pioneer: Ajuste cerca de la posición central. de reproducción con otros decks — Reproductor de audio portátil u otro aparato con volumen bajo: Ajuste a la derecha de la posición central.
/ www.prodjnet.com/ support/ Haga clic en [Device] bajo [Device Setup]. Haga clic en el botón TRAKTOR [ Seleccione [Pioneer. DDJ-T1] desde el menú desplegable. (Preferences Button)]. Abra el menú de configuración TRAKTOR. Haga clic en [Add In...] bajo [Assignment Table].
Si no se puede corregir el problema después de comprobar los elementos de abajo, pida al servicio de Pioneer autorizado más cercano o a su concesionario que realice el trabajo de reparación. ! Esta unidad puede no funcionar bien debido a la electricidad estática o a otras influencias externas. En este caso, el funcionamiento apropiado se puede restaurar desconectando la alimentación, esperando 1 minuto y volviendo a conectar la alimentación.
Uso como controlador para otro software DJ El DDJ-T1 envía también los datos de operación para los botones y diales en el formato MIDI. Si conecta un ordenador con un software DJ compatible con MIDI incorporado a través de un cable USB, usted podrá utilizar el software DJ en esta unidad. El sonido de los archivos de música que se reprodu- cen en el ordenador también puede salir del DDJ-T1.
Lista de mensajes MIDI En esta unidad, las secciones del explorador, el deck, el mezclador y los efectos se conectan con los canales MIDI mostrados abajo. Deck A Canal MIDI 0 Deck B Canal MIDI 1 Deck C Canal MIDI 2 Deck D Canal MIDI 3 Efecto 1...
Page 58
Mensaje MIDI (esta unidad al ordenador) Nombre de interruptor Notas Cuando el botón SHIFT está Cuando el botón SHIFT está apagado encendido Diferencia del valor de cuenta de cuando se usó previamente Giro hacia la derecha: 1 Dial del jog (giro) Gire hacia la izquierda: 16383 La cuenta de diferencia acumulativa cuando se gira 1 vuelta el dial del jog es 2430.
Page 59
Mensaje MIDI (esta unidad al Nombre de interruptor Notas ordenador) Deck A OFF=0, ON=127 Deck B OFF=0, ON=127 Botón 1 Deck C OFF=0, ON=127 Botones de Deck D OFF=0, ON=127 asignación Deck A OFF=0, ON=127 de efectos Deck B OFF=0, ON=127 Botón 2 Deck C OFF=0, ON=127...
ésta se use legalmente. ! Cuando maneje música descargada de Internet, etc., la persona que ! Pioneer es una marca registrada de Pioneer Corporation. la haya descargado será la responsable de asegurar que ésta se use ®...
連接 在裝置間連接或變更連線前,請確定關閉電源並從插座上拔下 AC 變壓器插頭。 在連接 AC 變壓器前,請等候至完成裝置間的所有連線為止。 只能使用本機隨附的 AC 變壓器。 有關已連接元件,請參閱操作手冊。 本機供電裝置為 AC 變壓器或 USB 匯流排電源。 本機可透過以 USB 纜線連接本機與電腦使用,無 AC 變壓器亦可。 使用隨附的 USB 纜線可直接連接本機與電腦。 無法使用 USB 集線器。 使用 USB 匯流排電源時,請使用連接 AC 電源供應器的電腦。 在類似以下情形時,供電可能會不足,且本機無法倚賴 USB 匯流排電源操作。 — 電腦的 USB 電源供應器電容不足時。 — 其他 USB 裝置連接至電腦時。 若本機無法使用...
零件名稱與功能 控制面板 TREE FAVORITES LOAD LOAD LOAD LOAD DRY/ WET SELECT/ BACK DRY/ WET SELECT/ BACK ADVANCED ADVANCED PUSH GAIN GAIN GAIN GAIN BROWSE VIEW CHAINED CHAINED DECK DECK MAIN FUNCTION FUNCTION FILTER FILTER NEEDLE SEARCH HEADPHONES NEEDLE SEARCH MOVE MODE SIZE MOVE...
2 唱盤 DRY/ WET SELECT/ BACK ADVANCED CHAINED DECK DECK FUNCTION FILTER NEEDLE SEARCH MODE SIZE MOVE ACTIVE [MOVE PANEL] DELETE HOT CUE IN ADJUST OUT ADJUST AUTO LOOP TEMPO LOCK RANGE [HOT CUE PANEL] MOVE GRID SHIFT [GRID PANEL] PLAY/PAUSE TEMPO PHONES...
3 混音器 PUSH GAIN GAIN GAIN GAIN BROWSE VIEW MAIN HEADPHONES MASTER SYNC MASTER SYNC MASTER SYNC MASTER SYNC MASTER CH FADER START 1 MAIN VOL控制鍵 a 頻道音量滑鈕 調整主要輸出聲音位準。 調整不同唱盤的輸出聲音位準。 2 HEADPHONES MIX控制鍵 b CH FADER START開關 調整按下 [CUE] 按鍵後的唱盤聲音與 [MASTER OUT 1] 開啟/關閉...
音效 橘色 熄滅 = 0,亮起 = 127 n 是通道號碼。 音效指定按鍵 1為 4,音效指定按鍵 2為 5。 按下 [SHIFT] 按鍵同時操作時,代碼即為 [SHIFT] 按鍵開啟時的代碼。 來自 CD 的復製音樂受到各個國家或國際條約的保護。錄 免責聲明 製音樂的人自己要對所錄製內容是否合法負全部責任。 處理從互聯網上下載的音樂時,下載音樂的人自己要對 Pioneer為 Pioneer Corporation的註冊商標。 下載內容是否按照下載站點的契約使用負全部責任。 ® ® ® Microsoft 、Windows Vista 、Windows 及 Internet ® Explorer 皆為...
Page 91
MASTER OUT 2 .......20 Hz 至 20 kHz 訊噪比(在電腦上播放時) MASTER OUT 1 ....103 dB 以上(以額定輸出時) MASTER OUT 2 ....103 dB 以上(以額定輸出時) 輸入阻抗 AUX ..........24 kW MIC ..........10 kW 輸出阻抗 MASTER OUT 1 ........1 kW以下 MASTER OUT 2 ........1 kW以下 PHONES ..........
Page 92
