TX POWER AMPLIFIERS
The transmit signal from the TX VCO is amplified to the
transmit output level by the transmit amplifi ers.
The TX VCO output signal from buffer amplifier (Q29) is
applied to the YGR amplifier (Q30) via the TX/RX switch
(D24). The amplified TX signal is passed through the LPF
(L29, L30, C269−C271, C290), and applied to the RF power
module (IC15, pin 1) and power-amplified to obtain 50 W/25
W (max.) of TX output power.
The power-amplified TX signal is passed through the LPF as
a harmonic filter (L33, C305−C308), the antenna switching
circuit (D38, D39) and LPF (L38, L39, C343, C345, C356,
C357).
The TX signal is also gone through the power detector (D47,
D49, D51) and LPF (L40, C369, C370) before being applied
to the antenna connector.

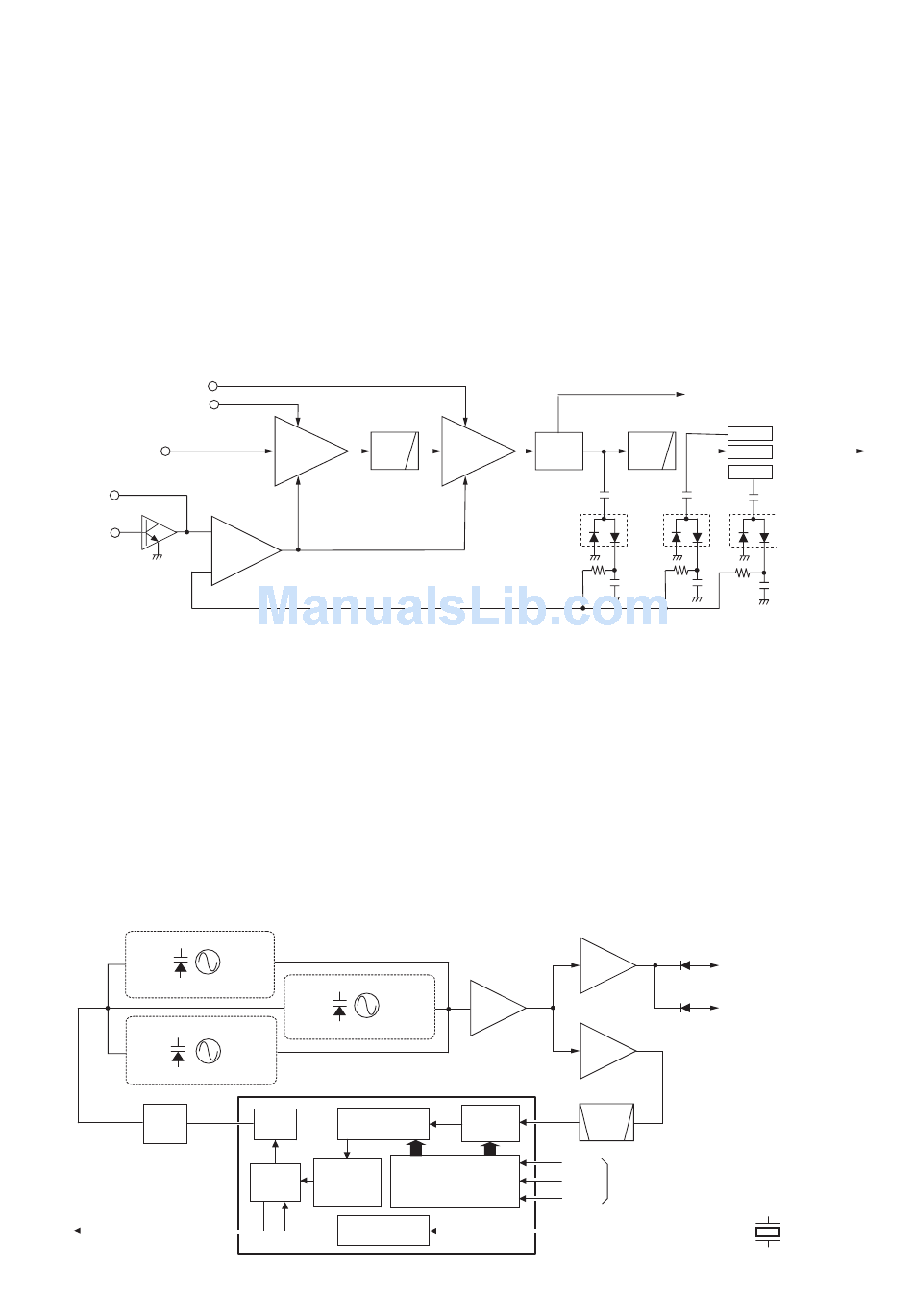

• APC CIRCUIT
HV
T8V
Transmit signal
from TX/RX switch (D24)
"T2"
Q53
+
"TMUT"
–

5-3 FREQUENCY SYNTHESIZER CIRCUITS

VCO
VCO is a oscillator whose oscillating frequency is controlled
by adding voltage (lock voltage).
• RX VCO1 (Q18, D10, D13)
RX VCO1 generates the 1st LO signal for receiving 155−174
MHz signals.
• RX VCO2 (Q17, D8, D9)
RX VCO2 generates the 1st LO signal for receiving 136−155
MHz signals.
• PLL CIRCUITS
RX VCO1 (155–174 MHz)
Q18, D10, D13
RX VCO2 (136–155 MHz)
Q17, D8, D9
Loop
filter
PLL unlock signal
to the CPU (IC14, pin 73)
Q30
YGR
LPF
amp.
IC17
OP.
amp.
TX VCO
Q19, D14, D17, D18, D20
4
Charge
Programmable
pump divider
Divide
Phase
ratio
detector
adjustment
11
Reference
divider
APC CIRCUIT
The APC (Automatic Power Control) circuit prevents the
transition of the transmit output power level which is caused
by load mismatching or heat effect, etc. At the power
detector, a portion of the transmit signal is rectified to
produce DC voltage which is in proportion of the transmit
power level.
The rectified voltage is applied to the inverted input terminal
of the operational amplifier (IC17, pin 3). The TX power
setting voltage "T2" from the D/A converter (IC12, pin 2) is
applied to the non-inverted input terminal as the reference.
The operational amplifier compares the rectified voltage and
reference voltage "T2," and the difference of the voltage is
output from the operational amplifier pin 4, and the output
voltage controls the bias of YGR (Q30) amplifier and power
module (IC15) for stable transmit output power.
to the 1st mixer (IC10)
IC15
Power
ANT
amp.
SW
D47
Each output signals are amplified by the buffer amplifiers
(Q22, Q29), and applied to the 1st mixer (IC10, pins 4, 5) via
TX/RX switch (D25 is ON, D24 is OFF) and LPF (L22, L23,
C215, C216, C236, C237), to be mixed with the received
signals to produce the 46.35 MHz 1st IF signal.
• TX VCO (Q19, D14, D17, D18, D20)
The output signal is applied to the transmit amplifi ers via the
buffer amplifi ers (Q22, Q29) and TX/RX switch (D24 is ON,
D25 is OFF).
A portion of the buffer-amplified VCO output signals from the
buffer amplifier (Q22) are applied to the PLL IC (IC4, pin 6)
via doubler (Q25) and BPF (Q5, D4, D5, L4, R77, C84−C90).
Buffer
Q29
Buffer
Q22
PLL IC (IC4)
6
Prescaler
14
SCK
15
Shift register
SSO
16
PLST
10
15.3 MHz
reference frequency signal
5 - 3
LPF
D49
D51
D14
to transmitter circuit
D15
to 1st mixer circuit
×3
Q25
BPF
PLL control signals from the CPU (IC14)
to the antenna
X1
15.3 MHz
