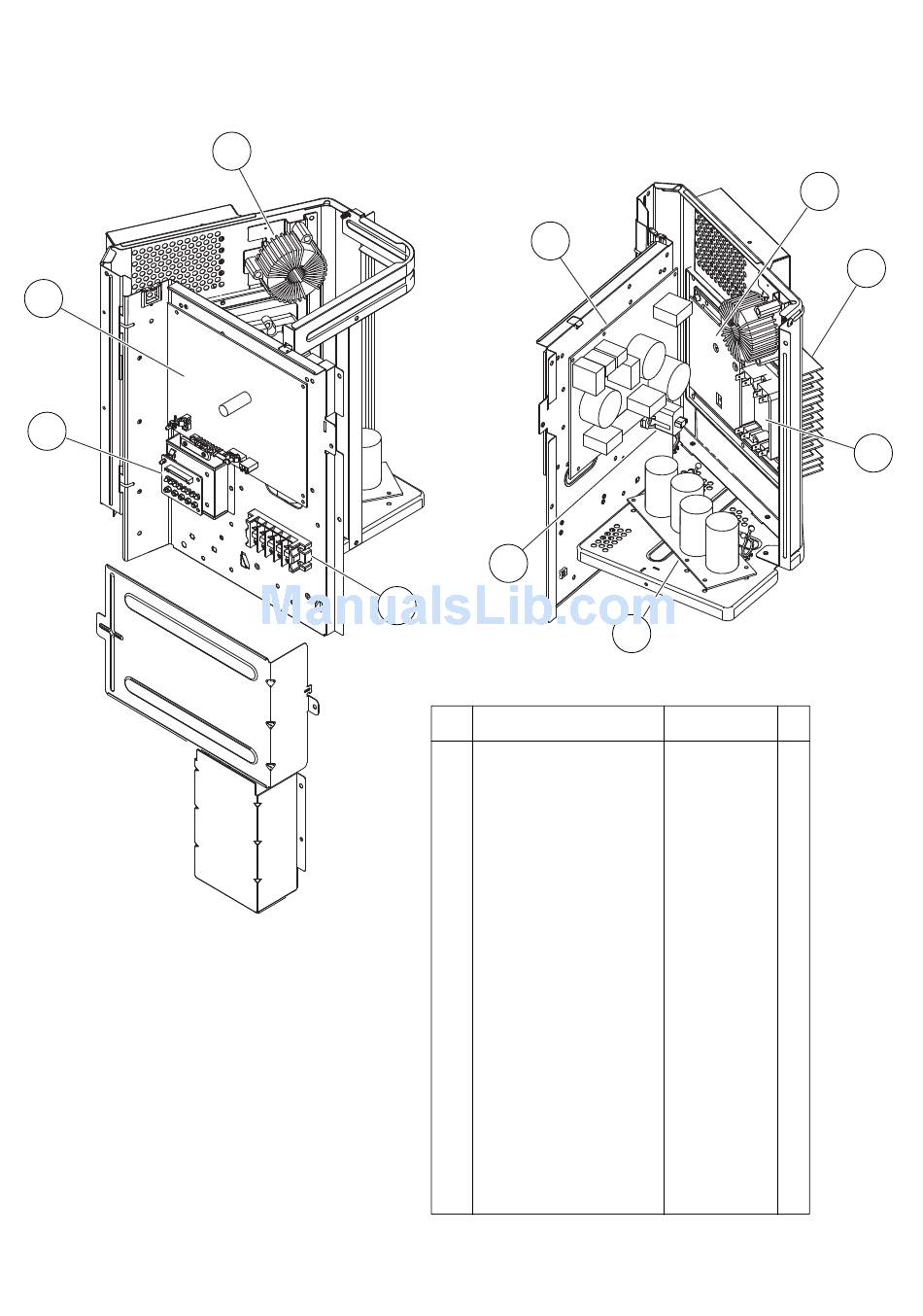

OUTDOOR UNIT
Control box
21
22
2013.02.18
27
23
24
25
Ref.
Description
21
Main PCB
22
Indicator PCB
23
Terminal
24
Filter PCB
25
Thermistor
26
Capacitor PCB
27
Choke Coil
28
ACTPM
29
Transistor PCB
30
Heat Sink
--
Outdoor Thermistor
--
Thermistor Assy (CN63)
--
Thermistor Assy (CN62)
22
26
Parts number
9708690148
9708678016
9900203023
9708688015
9704265012
9707257083
9900624019
9707592016
9708647043
9380358008
9900210069
9900599027
9900598013
29
30
28
