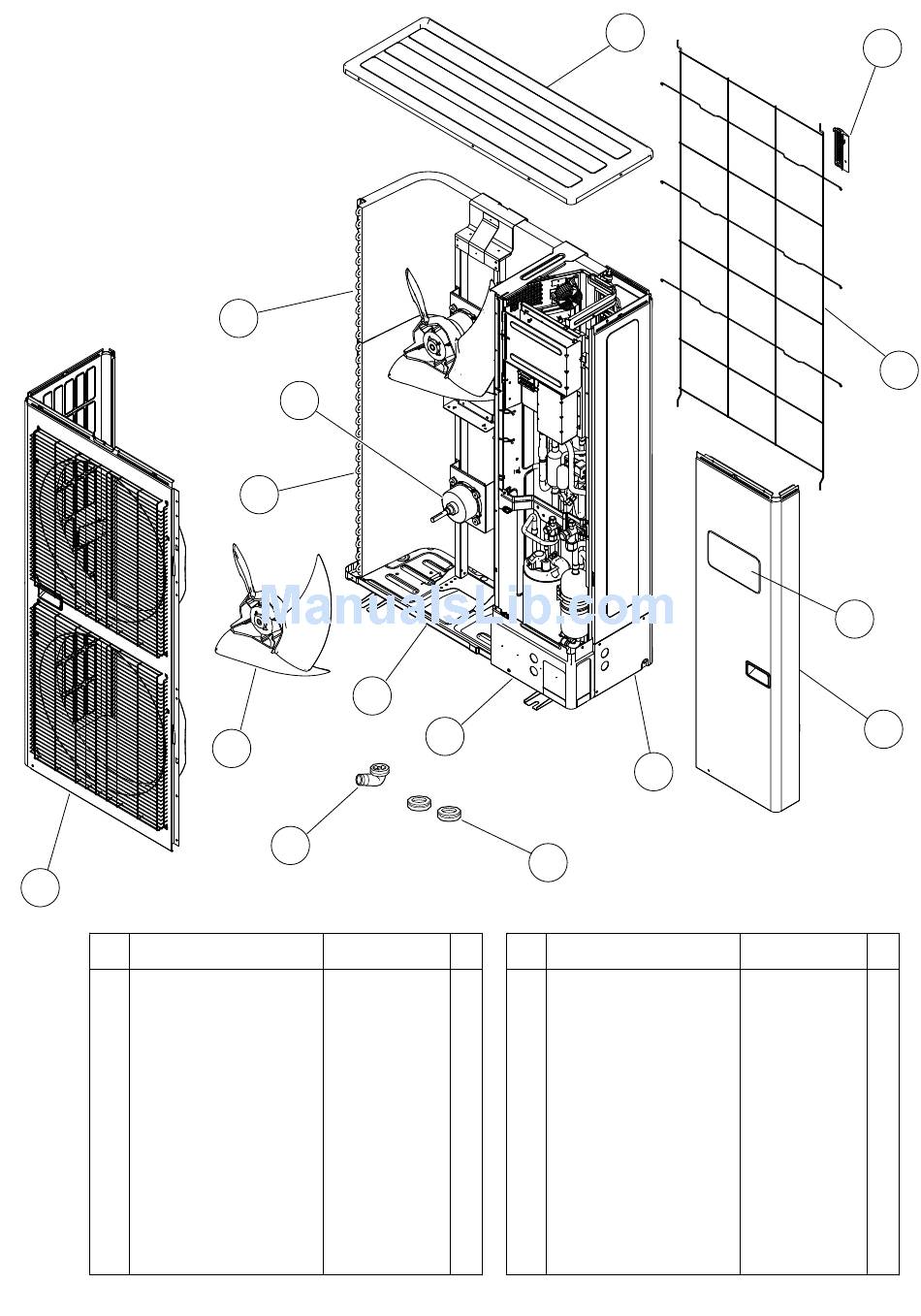

PARTS
OUTDOOR UNIT
2
Ref. Description
1 Top Panel Sub Assy
2 Front Panel Sub Assy
3 Sevice Panel Sub Assy
4 Emblem Rear
5 Pipe Cover Front
6 Right Panel Sub Assy
7 Protective Net
8 Thermo Holder
2013.02.18
12
9
11
13
10
14
Parts number
9374417056
9374414109
9374415090
9351355005
9378861015
9374416189
9375381042
9375211011
5
15
Ref. Description
9 Motor DC Brushless
10 Propeller Fan Assy
11 Condenser A Sub Assy
12 Condenser B Sub Assy
13 Base Assy
14 Drain Assy
15 Drain Cap
21
1
6
Parts number
9602843039
9366378020
9374420261
9374422081
9374166220
9303029015
313166024302
8
7
4
3
