PARTS

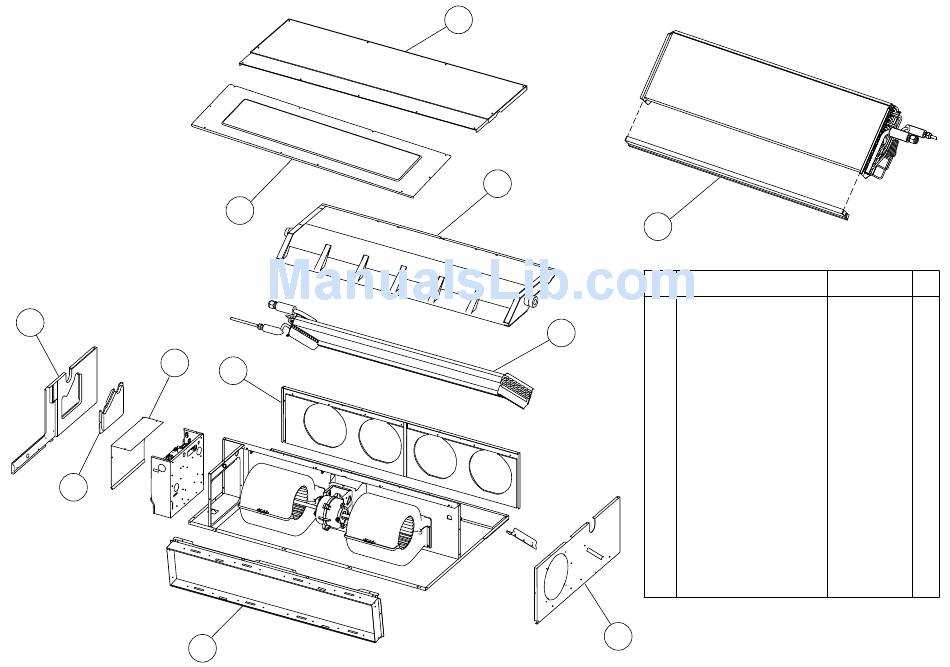

INDOOR UNIT
9
11
10
2012.04.11
1
6
7
2
3
4
8
18
5
Ref. Description
1 Intake Cover Sub Assy
2 Main Panel Sub Assy
3 Drain Pan Sub Assy
4 Evaporator Total Assy
5 Seal Panel Sub Assy
6 Outlet Panel Sub Assy
7 Intake Frame Assy
8 Cabinet L Sub Assy
9 Cabinet R Sub Assy
10 Bracket Pipe Sub Assy
11 Control Cover A Sub Assy
Part number
9374512010
9374511013
9374513017
9374517251
9374515011
9374510016
9374216017
9374509010
9374508020
9374514014
9374516025
