Fujitsu ARYG45LMLA Service Manual page 21
Duct type (50hz)
Hide thumbs
Also See for ARYG45LMLA:
- Service manual (28 pages) ,
- Design & technical manual (343 pages) ,
- Service manual (85 pages)
Table of Contents
Advertisement
INDOOR UNIT

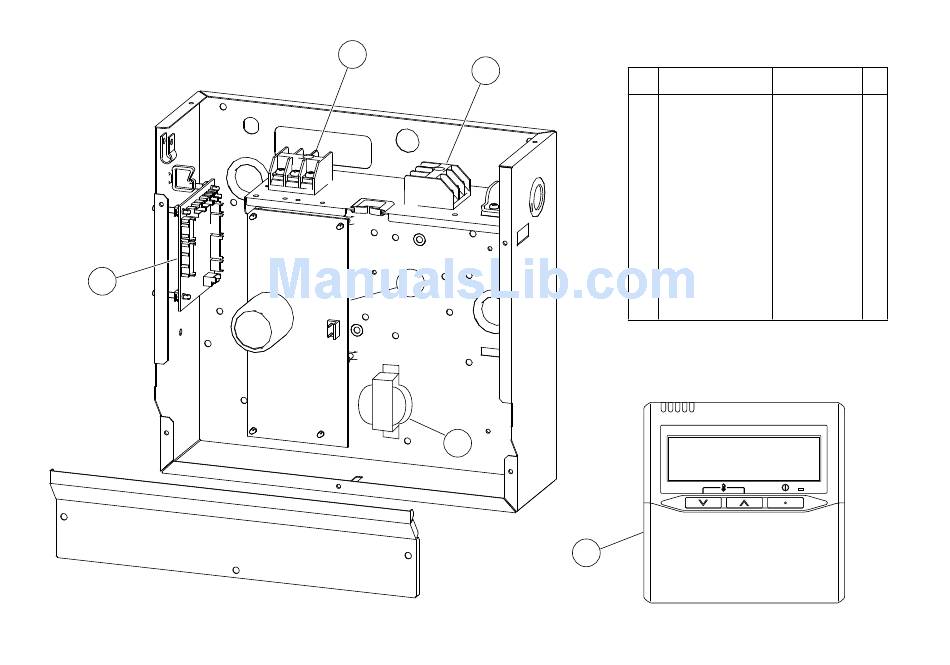

Control unit
31
2012.04.11
34
33
32
35
20
Ref. Description
31
Main PCB
32
Power Supply PCB
33
Terminal 3P
34
Terminal 3P
35
Reactor Assy
36
Remote Control
--
Room Thermistor
--
Pipe Thermistor
36
Part number
9709245040
9707398359
9703345012
9306489045
9707457018
9318593013
9703299025
9703297021
