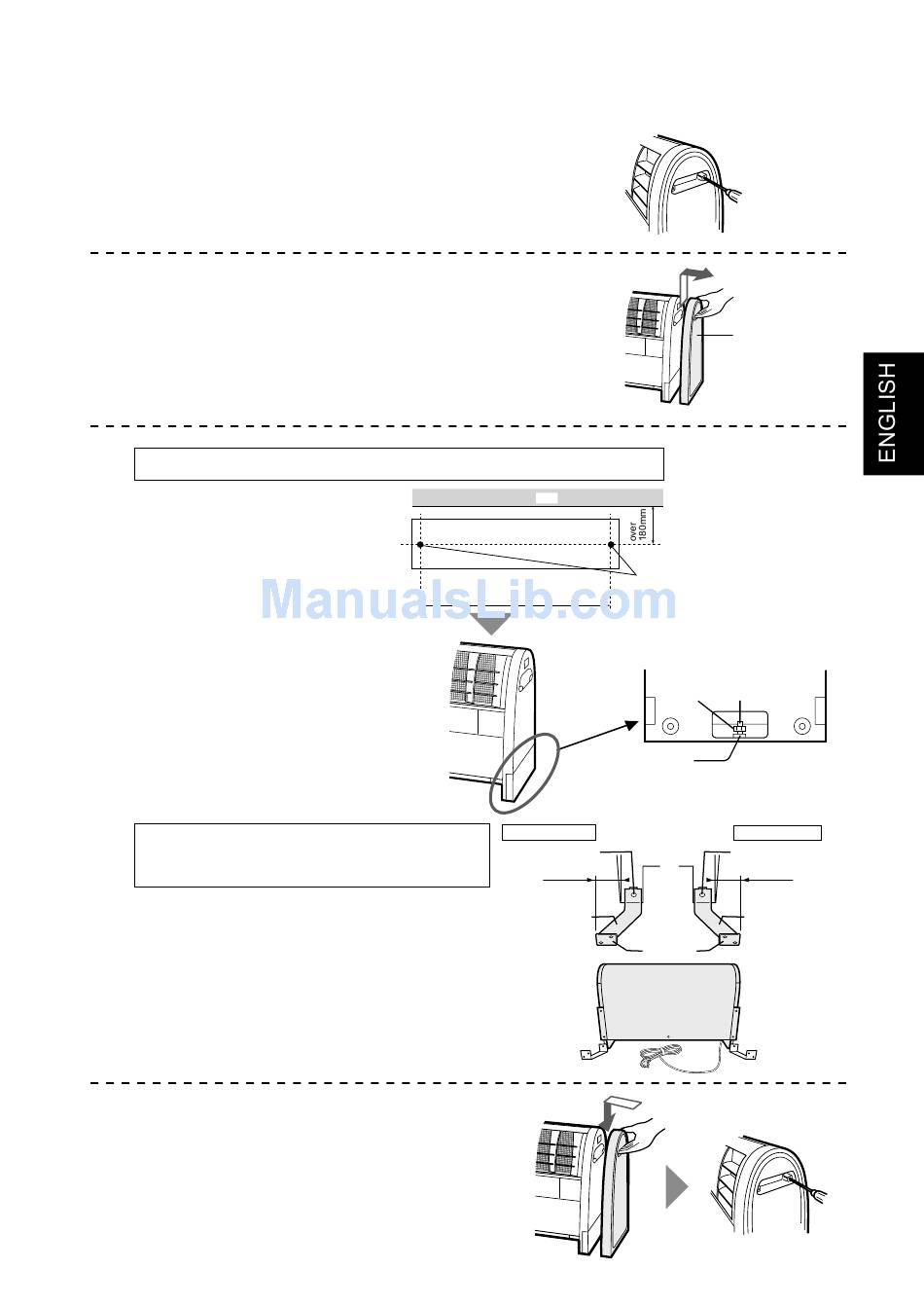

HOW TO INSTALL THE UNIT

Unscrew the painted screws
1
(2 pcs on each side ).
Lift up the Side Panel and remove
2
it outward.
3
In case of fi xing the main unit to the fl oor by anchor bolts.
Measure the position of the anchor
bolts and fi x them to the fl oor.
Put the main unit on the anchor
bolts and tighten surely with washer
and nut.
In case of fixing the main unit to the
wall with the mounting parts.
Fix the mounting parts to the main unit
by screws.(Right and left side)
The mounting parts and screws are
accessary parts.(Each 2 pcs)
Screws are to be surely tightened.
*Depending on the material of the wall, it may
not be able to tighten.
Attach the Side Panel and screw
4
the painted screws on both sides.
wall
552mm(IG-A20A)
898mm(IG-A40A)
right side of rear
screw
28mm
mounting part(right)
E-5
Side Panel
*The height of the anchor
bolt is 25mm or less.
* S i z e o f a n c h o r b o l t
diameter is 8mm or less.
anchor bolts
anchor bolt
nut
washer
left side of rear
screw
28mm
mounting part(left)
wall side
