See also: Instruction Manual
KV600SP, KV650SPH, TKV650SPH, KV600SPFB, KV650SPHFB, TKV650SPHFB
ON BOARD
OPTIONAL
VACUUM HOSE
FELT/MESH
KIT
DEBRIS BAG
4" x 7.5' (102mm
For use in
x 2.13m)
leaves and
For vacuuming in
grass in dusty
hard to reach
conditions.
areas.
P/N 891126
FELT BAG
P/N 891132
MESH BAG
P/N 891125
IMPORTANT- READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE.
Part No 891204
KVSP Owner's Manual

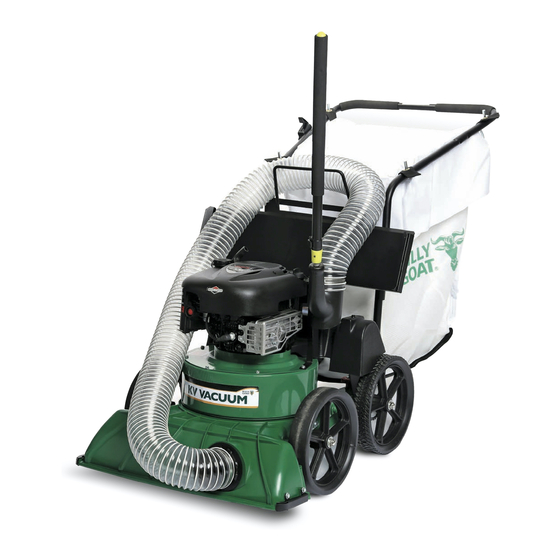

Image shown with optional accessories
KV VACUUM Owner's Manual
Beginning Serial #: 102515001
NOZZLE
WEAR
GUARD KIT
For use in
increasing the
life of your
nozzle by
protecting it
from damage
P/N 891127
Original Instructions
Accessories
SHREDDER
CASTER KIT
KIT
To allow for
Shreds leaves,
easy rolling and
reducing total
maneuverability
volume.
on smooth
surfaces.
P/N 891128
P/N 891153
1
PROTECTIVE
KV LINER KIT
COVER
Increases the
Protects the
life of the
machine from
housing by
the environment
protecting it from
when not in use.
damage.
P/N 891134
P/N 891137
Form No F102315B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KV600SP and is the answer not in the manual?

Questions and answers

Related Manuals for Billy Goat KV600SP

Summary of Contents for Billy Goat KV600SP

  • Page 1 KVSP Owner’s Manual Image shown with optional accessories KV VACUUM Owner's Manual KV600SP, KV650SPH, TKV650SPH, KV600SPFB, KV650SPHFB, TKV650SPHFB Beginning Serial #: 102515001 Accessories ON BOARD OPTIONAL NOZZLE SHREDDER PROTECTIVE CASTER KIT KV LINER KIT VACUUM HOSE FELT/MESH WEAR COVER DEBRIS BAG GUARD KIT 4"...

  • Page 2: Table Of Contents

    KVSP Owner’s Manual CONTENTS SPECIFICATIONS AND SOUND/VIBRATION INSTRUCTION LABELS PACKING CHECKLIST & ASSEMBLY ASSEMBLY OPERATION MAINTENANCE 9-11 TROUBLESHOOTING ILLUSTRATED PARTS & PART LISTS 13-15 DECLARATION OF CONFORMITY 16-18 Go to http://www.billygoat.com for French-Canadian translations of the product manuals. Visitez http://www.billygoat.com pour la version canadienne-française des manuels de produits.

  • Page 3: Specifications And Sound/Vibration

    KVSP Owner’s Manual SPECIFICATIONS KV600SP KV650SPH TKV650SPH KV600SPFB KV650SPHFB TKV650SPHFB Engine HP 6.0 (4.47kW) 6.5 (4.85kW) 6.5 (4.85kW) 6.0 (4.47kW) 6.5 (4.85kW) 6.5 (4.85kW) Engine type B&S Quantum HONDA HONDA B&S Quantum HONDA HONDA Engine model 112K020124E1 GSV190AN1L GSV190AN1L 112K020124E1...

  • Page 4: Instruction Labels

    INSTRUCTION LABELS ® The labels shown below were installed on your BILLY GOAT KV Vacuum. If any labels are damaged or missing, replace them before operating this equipment. For your convenience in ordering replacement labels, part numbers are included in the Illustrated Parts List.

  • Page 5: Packing Checklist & Assembly

    KVSP Owner’s Manual PACKING CHECKLIST Your Billy Goat KV Vacuum is shipped from the factory in one carton, completely assembled except for the upper handle, debris bag, and bag quick disconnect. READ all safety instructions before assembling unit. TAKE CAUTION when removing the unit from the box, the Handle Assembly is attached by cables and folded over.

  • Page 6: Assembly

    KVSP Owner’s Manual ASSEMBLY NOTE: Items in ( ) can be referenced in the Parts Illustration and Parts List on pages 13-15. 1. ASSEMBLE the upper handle (item 11), with the hardware from the parts bag (items 50, 49, and 51) to the lower handle (item 10).

  • Page 7: Operation

    KVSP Owner’s Manual OPERATION VACUUMING OPERATION VACUUM NOZZLE HEIGHT ADJUSTMENT: Nozzle height is raised and lowered by rotating the red knob near the left rear wheel. Nozzle height should be adjusted based on the task being performed (see Fig. 4). FOR MAXIMUM PICKUP: Adjust nozzle close to debris, but without blocking airflow into the nozzle.

  • Page 8: Operation

    KVSP Owner’s Manual MULCH Wood chips made from branches in your own yard make excellent mulch. A thick blanket of wood chips around plants and flowers to keeps weeds out and moisture in. CHIPPER OPERATION (TKV only) Your TKV chipper is designed to process tree branches and limbs up to 2" (50.8mm) diameter (see Fig.

  • Page 9: Maintenance

    8. Lift impeller upward. If impeller slides freely, proceed to step 10. 9. If the impeller does not loosen, obtain a 3/4-16x3” (Billy Goat P/N 440192) or longer bolt. Thread bolt by hand into nut until bolt rests against the shaft. Tighten the bolt slowly, which will pull the impeller away from the shaft, remove impeller from shaft.
  • Page 10 8. Lift impeller upward. If impeller slides freely, proceed to (step 10.) 9. If the impeller does not loosen, obtain a 3/4-16x3” (Billy Goat P/N 440192) or longer bolt. Thread bolt by hand into nut until the bolt rests against the shaft. Tighten the bolt slowly, which will pull the impeller away from the shaft. Remove the impeller from the shaft.
  • Page 11 ® required. If reassembly requires a different quantity of shim washers, a Billy Goat shim washer must be used (P/N 890130 or P/N 890131, whichever is required).

  • Page 12: Troubleshooting

    KVSP Owner’s Manual TROUBLESHOOTING Problem Possible Cause Solution Abnormal vibration Loose or out of balance impeller or loose Check impeller and replace if required. engine. Check engine. Will not vacuum or has poor Dirty debris bag. Hose kit cap missing. Clean debris bag.

  • Page 13: Illustrated Parts & Part Lists

    KVSP Owner’s Manual KVSP/TKVSP PARTS DRAWING Part No 891204 Form No F102315B...
  • Page 14 KVSP Owner’s Manual KVSP/TKVSP PARTS LIST ITEM KV600SP/KV600SPF KV650SPH/KV650SPHFB TKV650SPH/TKV650SPHF Description B PART NUMBER PART NUMBER B PART NUMBER MAIN FRAME HOUSING KV 891100-S 891100-S 891100-S NOZZLE ASSEMBLY TKV 891110-S 891110-S 891110-S AXLE WA KV MICRO 891138 891138 891138 PLATE TOP WA KVSP...
  • Page 15 KVSP Owner’s Manual KV600SP/KV600SPFB KV650SPH/KV650SPHFB TKV650SPH/TKV650SPHFB PART NUMBER PART NUMBER PART NUMBER SCREWCAP 1/4 - 20 x 5/8 HWH 890359 890359 890359 BOLT IDLER 3/8-16 X 1 1/2 800888 800888 800888 WASHER 1/4" SAE ZP 8172007 8172007 8172007 WASHER 5/16 FLATWASHER Z/P...

  • Page 16: Declaration Of Conformity

    KVSP Owner’s Manual Руccкий Latviešu English Suomi Slovenščina български език Français Nederlands Čeština Slovák Ελληνικά Norsk Svenska Dansk Hrvatski Polski Türkçe Deutsch Magyar Português Română Español Italiano eesti keel Lietuvių Δήλωση συμμόρφωσης ΕΚ Deklaracja zgodności UE EC Declaration of Conformity Декларация...
  • Page 17 89 dB(A) 4.85 kW 4.95 m/s 51.3 kg KV650HFB 110 dB(A) 109 dB(A) 89 dB(A) 4.47 kW 58.5 m/s 58.5 kg KV600SP 110 dB(A) 109 dB(A) 89 dB(A) 4.47 kW 3.29 m/s 58.5 kg KV600SPFB 110 dB(A) 109 dB(A) 89 dB(A) 4.85 kW...
  • Page 18 KVSP Owner’s Manual (1) ISO 5395-1:2013 F.7 (EN 4871:1996) (2) ISO 5395-1:2013 G.8 (EN 12096:1997, D.1) Miejsce produkcji / Osoba odpowiedzialna za Manufacturing Place / Keeper of Documentation Τόπος κατασκευής / Υπεύθυνος τήρησης αρχείων Място на производство / Архивар przechowywanie dokumentów τεκμηρίωσης...
