Owner's Manual
KV HOSE KIT P/N 891125

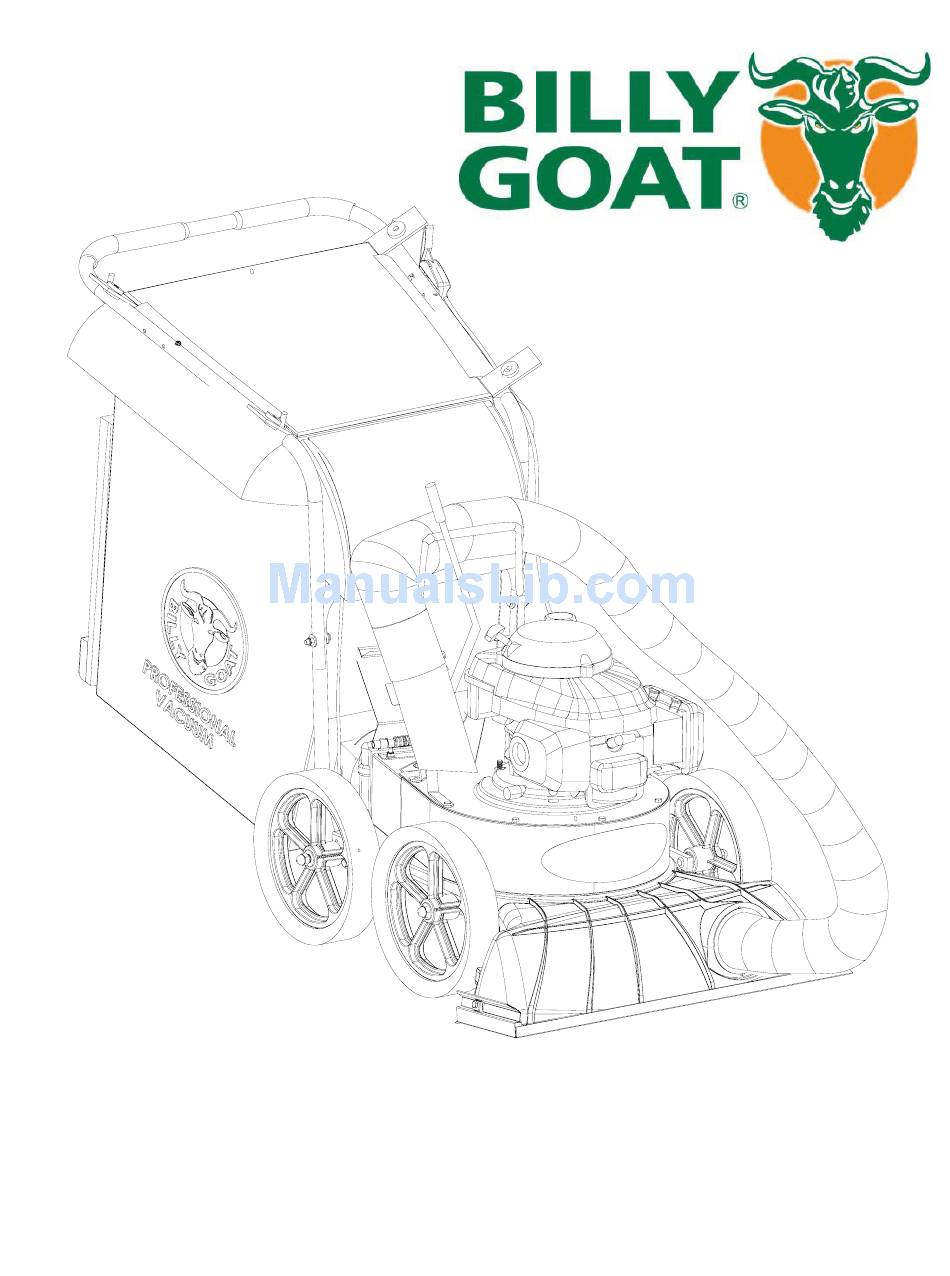

BILLY GOAT KV HOSE KIT
(P/N 891125)

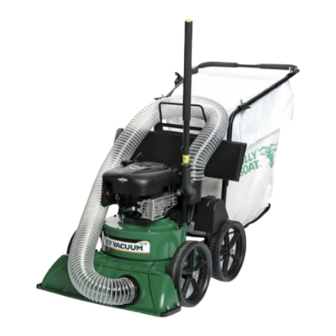

PURPOSE: To allow for vacuuming in hard to reach places.
Part No 891061
- 1 -
Form No F052209A
Advertisement
Related Manuals for Billy Goat KV600SP
Summary of Contents for Billy Goat KV600SP
- Page 1 KV HOSE KIT P/N 891125 BILLY GOAT KV HOSE KIT (P/N 891125) PURPOSE: To allow for vacuuming in hard to reach places. Part No 891061 - 1 - Form No F052209A...
-
Page 2: Installation
KV HOSE KIT P/N 891125 INSTALLATION: Step 1. Attach nozzle wear guards. 1. Disconnect spark plug wire. 2. Raise the nozzle height to its highest position and secure the unit from moving. 3. Remove the two bolts, nuts and washers on the sides of the nozzle that hold the reinforcement bracket on the interior of the nozzle. - Page 3 KV HOSE KIT P/N 891125 INSTALLATION: continued Step 3. Attach coupler (item 8) and nozzle to hose. 1. Slide the two hose clamps over both ends of the hose and at one end attach the coupler to the hose using a 5/16” nut driver. Note: the hose is attached to the end of the coupler without the pin.
-
Page 4: Operation
KV HOSE KIT P/N 891125 Operation Simply slide the plate (item 10) onto the wear guards till the front is flush with the front edge of the nozzle. To remove simply apply pressure to the outside edges at the wear brackets and slide forward. This will allow suction through the hose when attached rather than the nozzle. - Page 5 KV HOSE KIT P/N 891125 HOSE CARE & SHIPPING INFORMATION SHIPPING TAG IMPORTANT NOTICE This merchandise was in perfect condition when packed and shipped. Unpack immediately and check for damage. Place any damage claim with delivering carrier and have inspection made at once. Our warranty covers manufacturing defects only.
