Add/Remove Camera, Camera Groups - Microseven Systems M7B15 User Manual

M7 Stationary HD Megapixel IP Camera Series
User Manual

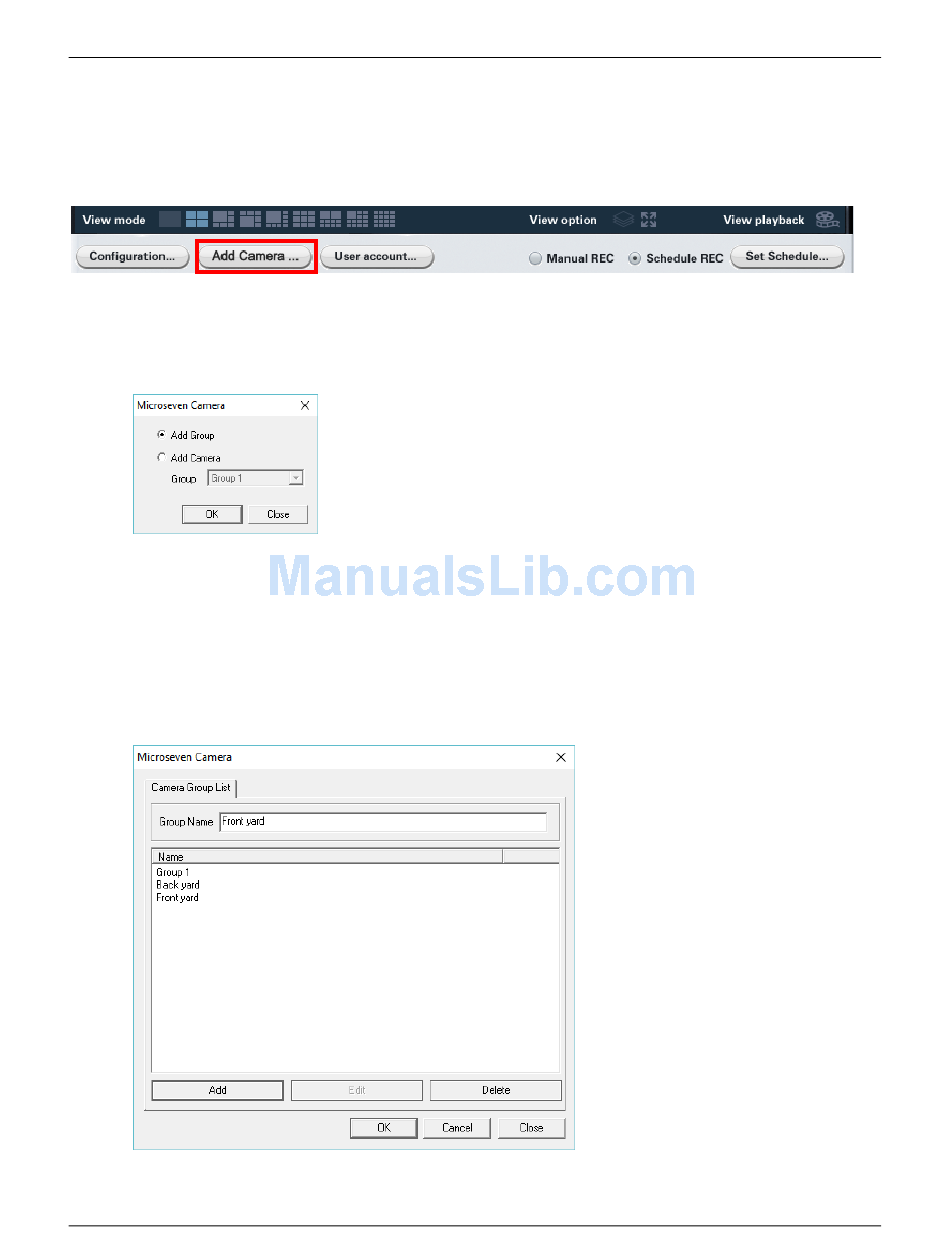

3.1.5 Add/Remove Camera, Camera Groups

Adding new camera groups, deleting camera groups, adding cameras into camera groups, and deleting
cameras from a camera group is accomplished from the 'Add Camera' button located on the bottom of
the M7CMS window.
To add a camera group, perform the following steps:
1. Click the 'Add Camera' button found on the bottom of the M7CMS window.
2. The Microseven Camera popup menu is displayed.
3. Click the 'Add Group' radio button.
4. Click 'OK'.
5. A new window with a 'Camera Group List' tab is displayed.
6. Type a name in the 'Group Name' field.
7. Click 'Add'.
8. The new camera group will now be displayed in the 'Name' list.
9. Click 'OK' to save the changes and click 'Close' to close the window.
© 2001 - 2016 Microseven Systems, LLC Page | 13
