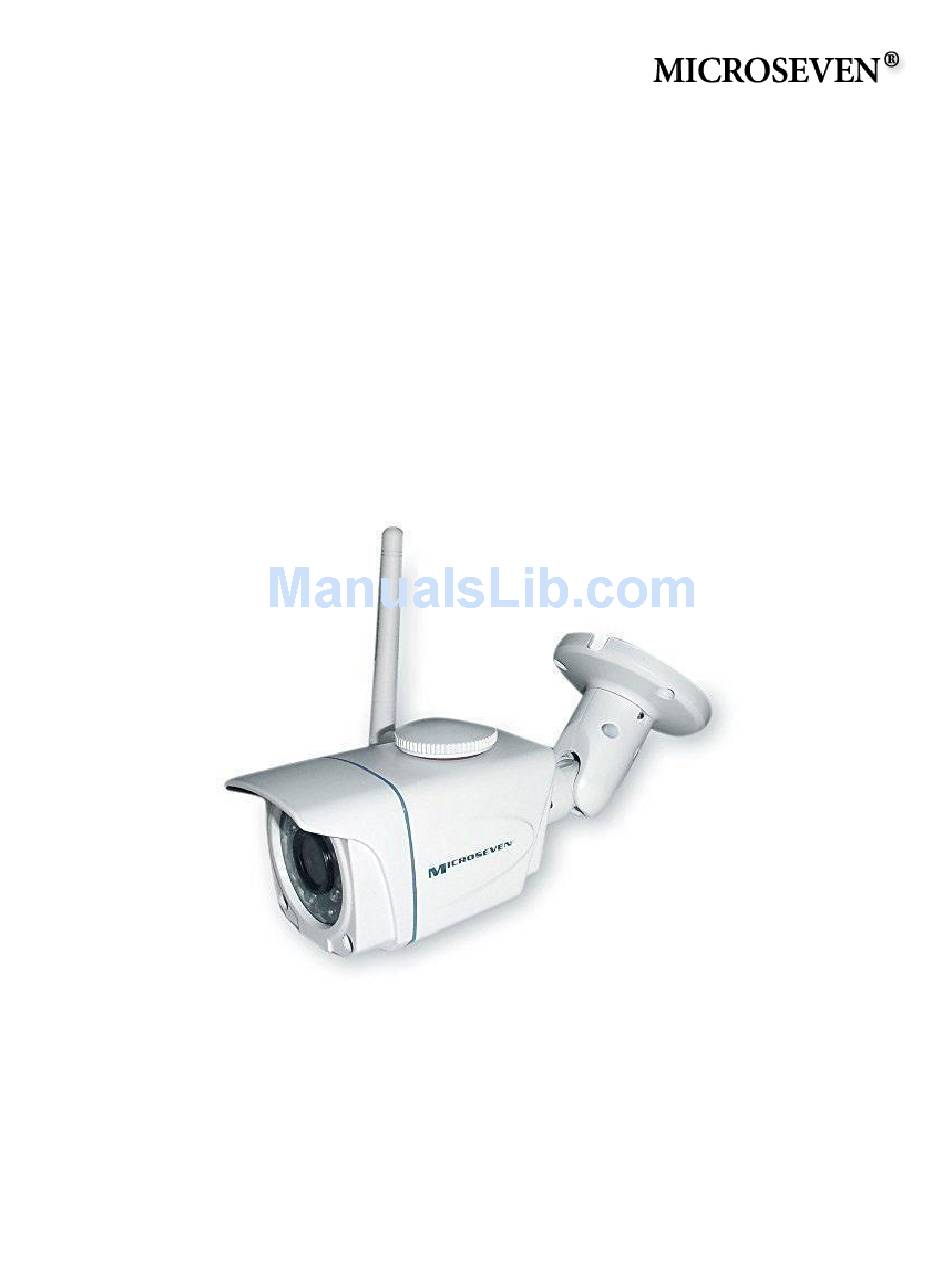

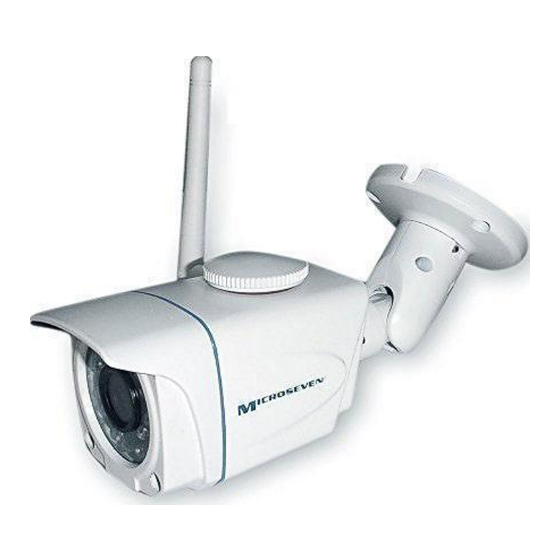

    User Guide M7B15/M7D12 M7B37-W M7B57-WPS M7B77-WPS ® Microseven Stationary HD Megapixel IP Camera Series Microseven Systems, LLC Walnut, California, USA...
  • Page 2 ©2016 Microseven Systems, LLC All Rights Reserved. Microseven Systems, LLC provides this user’s guide “as is” without warranty of any kind, either express or implied, including, but not limited to the implied warranties of merchantability and fitness for a particular purchase. Microseven Systems, LLC may make improvements and/or changes in the product(s) and/or the program(s) described in this manual at any time and without notice.

  • Page 3: Table Of Contents

    Detection Tab ........................21 3.1.12 Capture & Snapshot Tab ..................... 22 3.1.13 Recording Tab ........................23 3.1.14 User Accounts Tab ......................25 3.1.15 System Tab .......................... 25 Local Video Playback ........................26 © 2001 - 2016 Microseven Systems, LLC Page | i...

  • Page 4: System Installation

    Important: Installing an incompatible version of firmware may render your camera inoperable. If you have any questions regarding the firmware version or your camera’s device type, please contact Microseven support at support@microseven.com prior to installing the firmware. © 2001 - 2016 Microseven Systems, LLC Page | 1...

  • Page 5: Installing Or Upgrading Microseven Software

    *.dmg file (Mac)). Double-click the setup file to open the Setup Wizard. Click the ‘Next’ button to continue. 3. Accept the default location or choose another location for the installation of Microseven software. Click ‘Next’ to continue. © 2001 - 2016 Microseven Systems, LLC Page | 2...
  • Page 6 Accept the default location or choose another location for the storage of record and snapshot files. Click ‘Next’ to continue. By default, both software components are selected. Click ‘Next’ to continue. Choose the display resolution. Click ‘Next’ to continue. © 2001 - 2016 Microseven Systems, LLC Page | 3...
  • Page 7 Uncheck any icon you don’t want installed on your desktop. Click ‘Next’ to continue. Click ‘Install’ to continue with the installation. Once the installation has completed, click ‘Finish’ to exit Setup and launch the Microseven Cam Locator. © 2001 - 2016 Microseven Systems, LLC Page | 4...

  • Page 8: Upgrading The Camera Firmware

    Select the camera you wish to configure and click the ‘Network Setup’ button to open the Camera Setup window. On the Camera Setup window, click ‘Browse’ to open a browse menu and select the appropriate “*.pkg” file. © 2001 - 2016 Microseven Systems, LLC Page | 5...
  • Page 9 Click ‘Open’ to transfer the “*.pkg” file name to the “Firmware” field of the Camera Setup dialog window. Click the ‘Upgrade’ button on the Camera Setup dialog. After the firmware is successfully upgraded, a confirmation window appears. Click ‘OK’ to close the window. © 2001 - 2016 Microseven Systems, LLC Page | 6...

  • Page 10: Initial Camera Setup

    Username, Password The Login Info section at the top of the Camera Setup window displays Username and Password fields. The default username is “admin” and the default password is “password”. © 2001 - 2016 Microseven Systems, LLC Page | 7...
  • Page 11 ‘Test Video’ button found on the bottom of the Camera Setup window. Troubleshooting tip: If the video test fails with the error message “Fail to connect to camera. Check network and firewall settings”, check your © 2001 - 2016 Microseven Systems, LLC Page | 8...
  • Page 12 Click the ‘Search’ button next to the SSID field to bring up a Wireless Device window. Click the ‘Search’ button next to the SSID field to see a list of available devices broadcasting their SSID. Select the device of your choice and click ‘Add’. © 2001 - 2016 Microseven Systems, LLC Page | 9...
  • Page 13 Wi-Fi connection was successfully established. Click ‘Apply’ to save all settings. Test your camera’s Wi-Fi network connection by disconnecting the Ethernet cable. Wait for about 60 seconds, use cam locator to find the camera with Wi-Fi connection. © 2001 - 2016 Microseven Systems, LLC Page | 10...

  • Page 14: Camera Management And Operations

    Main viewer displays live video Dynamic side panels (shown in 4 window view mode) View bar with clickable icons Button bar with access to camera configuration, user account, and recording features © 2001 - 2016 Microseven Systems, LLC Page | 11...

  • Page 15: Monitoring Control

    Set User ID and Password  Establish User ID/Password persistence  Set the startup screen mode  Manage program exit validation requirements  Establish M7CMS startup parameters  Set record file lengths © 2001 - 2016 Microseven Systems, LLC Page | 12...

  • Page 16: Add/Remove Camera, Camera Groups

    7. Click ‘Add’. 8. The new camera group will now be displayed in the ‘Name’ list. 9. Click ‘OK’ to save the changes and click ‘Close’ to close the window. © 2001 - 2016 Microseven Systems, LLC Page | 13...
  • Page 17 IP address. Port forwarding is required for cameras added to the system via IP address. If CamID and PIN information is available, port forwarding is not required. © 2001 - 2016 Microseven Systems, LLC Page | 14...

  • Page 18: User Account

    Click the ‘record’ button on the Online Cameras pane. A red record button indicates the camera is actively recording video. Clicking the ‘record’ button again stops the recording (indicated by a grey record button © 2001 - 2016 Microseven Systems, LLC Page | 15...
  • Page 19 The color of the cell indicates the recording methods (Light blue) Motion detection trigger (Pink) I/O alerts detection trigger (Dark blue) Motion detection trigger + I/O alerts detection trigger (Yellow) Continuous © 2001 - 2016 Microseven Systems, LLC Page | 16...

  • Page 20: Establishing Advanced Camera Properties

    3) Click on the IP address hyperlink in the Online Cameras pane The Camera Properties window contains two rows of main tabs that, when clicked, present one or more sub-menus from which numerous camera and network configuration properties can be established. © 2001 - 2016 Microseven Systems, LLC Page | 17...

  • Page 21: Camera Tab

    Make sure to check the ‘Time’ checkbox in the OSD Setting if you want the camera time to appear on the screen. Select the date format of your choice (MM/DD/YYYY, YYYY-MM-DD, or MM/DD/YYYY). © 2001 - 2016 Microseven Systems, LLC Page | 18...
  • Page 22 M7CMS supports three event detection types including motion detection, video lost detection and I/O alerts. When the event is detected, M7CMS will send an alert message and a captured snapshot to your email box. © 2001 - 2016 Microseven Systems, LLC Page | 19...

  • Page 23: Video Tab

    Video Setup establishes live camera video parameters and live image qualities. Default settings are shown under the Camera Setup properties dialog and Video > Video Setup tab. The video format is set to ‘NTSC’ by default. © 2001 - 2016 Microseven Systems, LLC Page | 20...

  • Page 24: Detection Tab

    5. Check the ‘Apply to everyday’ box if you wish to copy the current setting to all days of the week. Click the ‘Set motion detection area’ button to display a Motion Detection Area Setting window. © 2001 - 2016 Microseven Systems, LLC Page | 21...

  • Page 25: Capture & Snapshot Tab

    5. Check the ‘Apply to everyday’ box if you wish to copy the current setting to all days of the week. 6. Click Apply button to save and apply the current settings. © 2001 - 2016 Microseven Systems, LLC Page | 22...

  • Page 26: Recording Tab

    2. Click the ‘Query’ button to search the MicroSD card for files matching your query. A list of all matching files is displayed in the Record Query window. 3. Double-click on any file in the list to play the selected video in a separate window. © 2001 - 2016 Microseven Systems, LLC Page | 23...
  • Page 27 3. Click the ‘Download’ button to download the selected files from the camera’s on-board MicroSD card to your local system. 4. The files are saved in the .jpg format. © 2001 - 2016 Microseven Systems, LLC Page | 24...

  • Page 28: User Accounts Tab

    Refer to Section 1.2 for detailed instructions on performing a firmware upgrade. 3.1.15.3 System Log User actions and warning messages are displayed on the System Log tab. Click ‘Reset’ to clear the log records. © 2001 - 2016 Microseven Systems, LLC Page | 25...

  • Page 29: Local Video Playback

    4. Choose the camera from the ‘Camera’ dropdown menu and the playback date and time from the ‘Set Time’ dropdown menu. A list of files available for playback will be listed in the Recording File window. © 2001 - 2016 Microseven Systems, LLC Page | 26...
  • Page 30 Click the save file icon to open a Save As dialog window and save the record file in *.mp4 or *.avi format. You can play the output files with M7CMS or other media player. © 2001 - 2016 Microseven Systems, LLC Page | 27...
