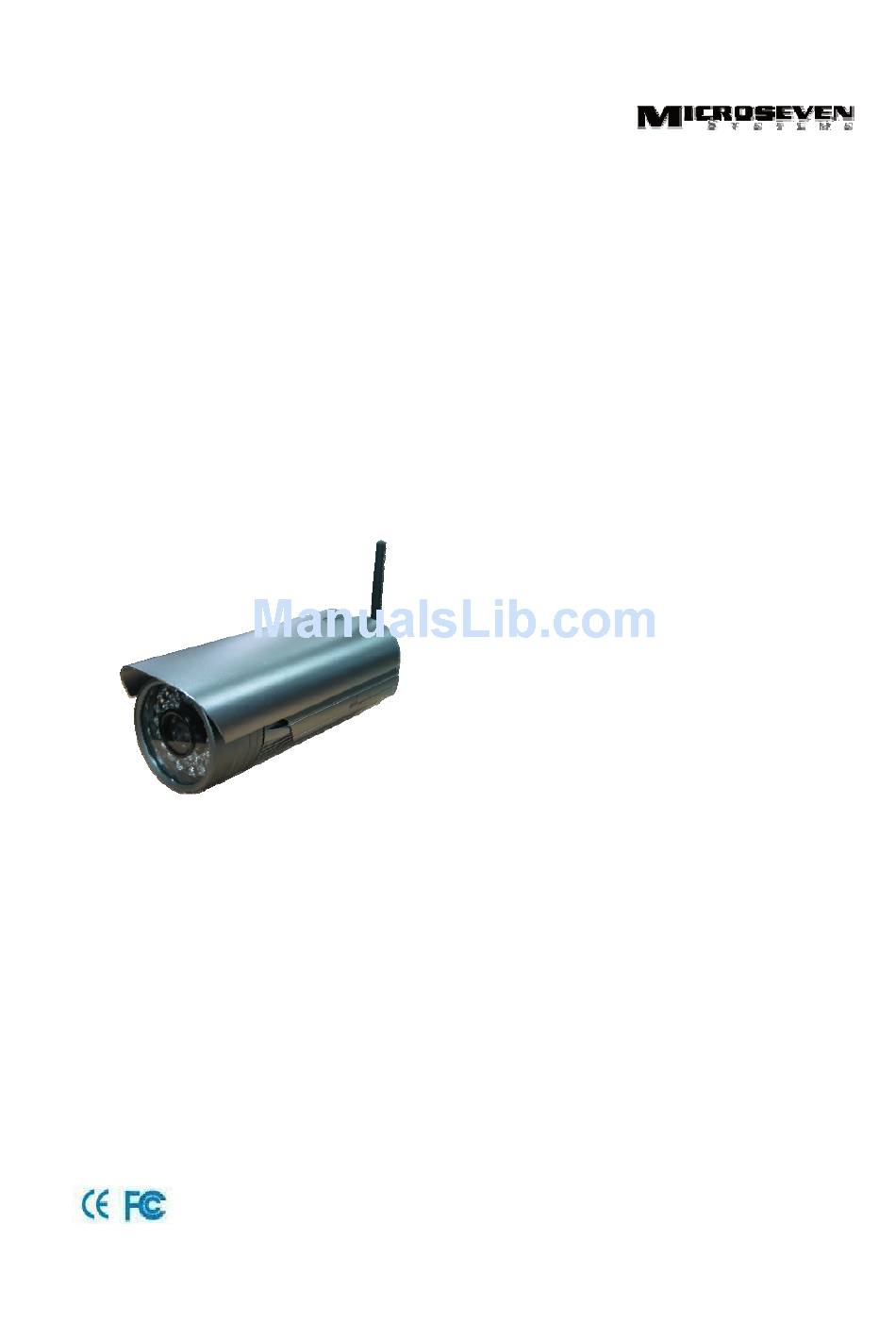

- Page 1 Product Operation Manual MSHRC080W Network IP Camera Microseven Systems, Inc. Walnut, California 91789, USA...
-
Page 2: Copyright Notice
Copyright © 2002-2008 Microseven Systems, Inc. All Rights Reserved. Microseven Systems, Inc. provides this operation manual “as is” without warranty of any kind, either express or implied, including, but not limited to the implied warranties of merchantability and fitness for a particular purchase. Microseven Systems, Inc. may make improvements and/or changes in the product(s) and/or the program(s) described in this manual at any time and without notice. - Page 3 Model: Product №: © 2002-2008 Microseven Systems, Inc. All Rights Reserved.
-
Page 4: Table Of Contents
4. Instructions of Main Parts ………………………………………………………….…… 7 5. Connections …………………………………………………………………………………. 6. Installation …………………………………………………………………………………………… 9 7. Basic System Diagram and Operating Circumstance ………………….……………… 8. Specification …………………………………………………………………..……………… 11 9. Frequently Asked Questions ……………………………………………….……………… 13 10. Accessories …………………………………………………………………..……………… 13 © 2002-2008 Microseven Systems, Inc. All Rights Reserved. -
Page 5: Preface
- 5 - 1. Preface MSHRC080W Network IP cameras adopts SONY CCD, with bright and exquisite images. As video & audio multi-media equipment that based on network transmission, which adopts built-in and multi-media communication technology, the camera is a multi-media network terminal that can directly connect to the network. -
Page 6: Notes
Use the camera under conditions where temperature is between -10° + 50° and humidity is below 90%. G. The power supply for MSHRC080W is DC12V. The adapter with electric current of over 2A is recommended. © 2002-2008 Microseven Systems, Inc. All Rights Reserved. -
Page 7: Instructions Of Main Parts
③ Alarm input/output cable ④ Audio input terminal (black) ⑤ Power supply terminal ⑥ RS485 port ⑦ Shell ⑧ Shield ⑨ LED panel ⑩ Lens 5. Connections 5.1 Power Supply Connection 5.2 Video Output Connection © 2002-2008 Microseven Systems, Inc. All Rights Reserved. - Page 8 Green cable: passive alarm input A Brown cable: passive alarm input B Red cable: passive alarm output A Purple cable: passive alarm output B 5.5 Network Port Connection 5.6 RS485 Communication Port Connection © 2002-2008 Microseven Systems, Inc. All Rights Reserved.
-
Page 9: Installation
● Select proper installing position with enough bearing, such as surface of concrete wall or metal bracket. 6.2 Outdoor Wall Installation 6.3 Installation Steps: Step 1. Preparation Select wall or hang installing brackets. a. Selection of installation surface © 2002-2008 Microseven Systems, Inc. All Rights Reserved. - Page 10 As the following figure shows, the camera can be installed from the bottom. Size of install hole should be fit for standard camera bolt size. < Bracket above camera > Junction box ① Junction box ① < Bracket under camera > ② © 2002-2008 Microseven Systems, Inc. All Rights Reserved.
-
Page 11: Basic System Diagram And Operating Circumstance
525 Lines/60 Fields/30 Frame(NTSC) Horizontal 15.625KHz (PAL), 15.750KHz (NTSC) Vertical 50Hz(PAL), 60Hz(NTSC) Video Output 1 channel PAL/NTSC, 1.0V[p-p] 75Ω (BNC) Image Compression Video H.264 Standard Resolution QCIF: 176 * 144 (PAL), 176*120 (NTSC) © 2002-2008 Microseven Systems, Inc. All Rights Reserved. -
Page 12: Frequently Asked Questions
Power Supply DC12V 2A Others Consumption Working Temperature -10℃ ~ +50℃ Working Humidity ≤95 Size/Weight (with lens) 9.1 in X 4 in X 4 in / 3.10 lb 9. Frequently Asked Questions © 2002-2008 Microseven Systems, Inc. All Rights Reserved. -
Page 13: Accessories
Note: Please contact us at support@microseven.com if above problems still cannot be solved by following this manual. 10. Accessories Body cover..........................1 pcs ALC lens connector (YFE4191J100)..................1 pcs Network cable ..........................1 pcs © 2002-2008 Microseven Systems, Inc. All Rights Reserved.
