Chapter 7. Locations

This chapter introduces the locations of the hardware components on your computer.

Locating computer controls, connectors, and indicators

This topic introduces the locations of the computer controls, connectors, and indicators.

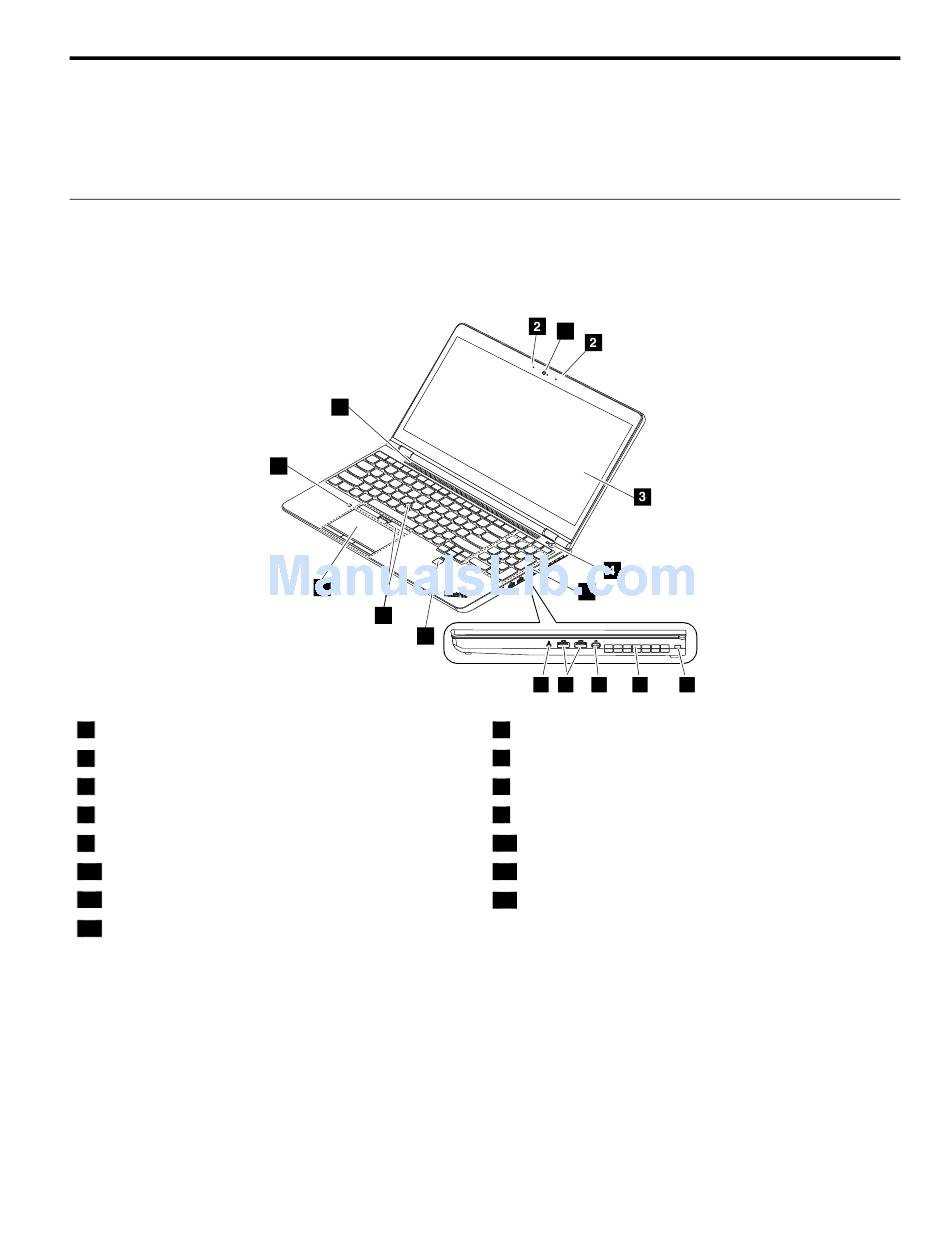

Front view

1
Camera (available on some models)
3
Screen (multi-touch on some models)
5
Numeric keypad
7
Fan louvers
9
USB 3.0 connectors
11
Fingerprint reader
13
Trackpad with buttons
15
Speakers
© Copyright Lenovo 2015
15
14
13
12
11
1
5
10 9 8 7
2
Microphones (available on some models)
4
Power button
6
Security-lock slot
8 ®
Mini DisplayPort connector
10
Audio connector
12
®
TrackPoint device
14
Color sensor (available on some models)
6
