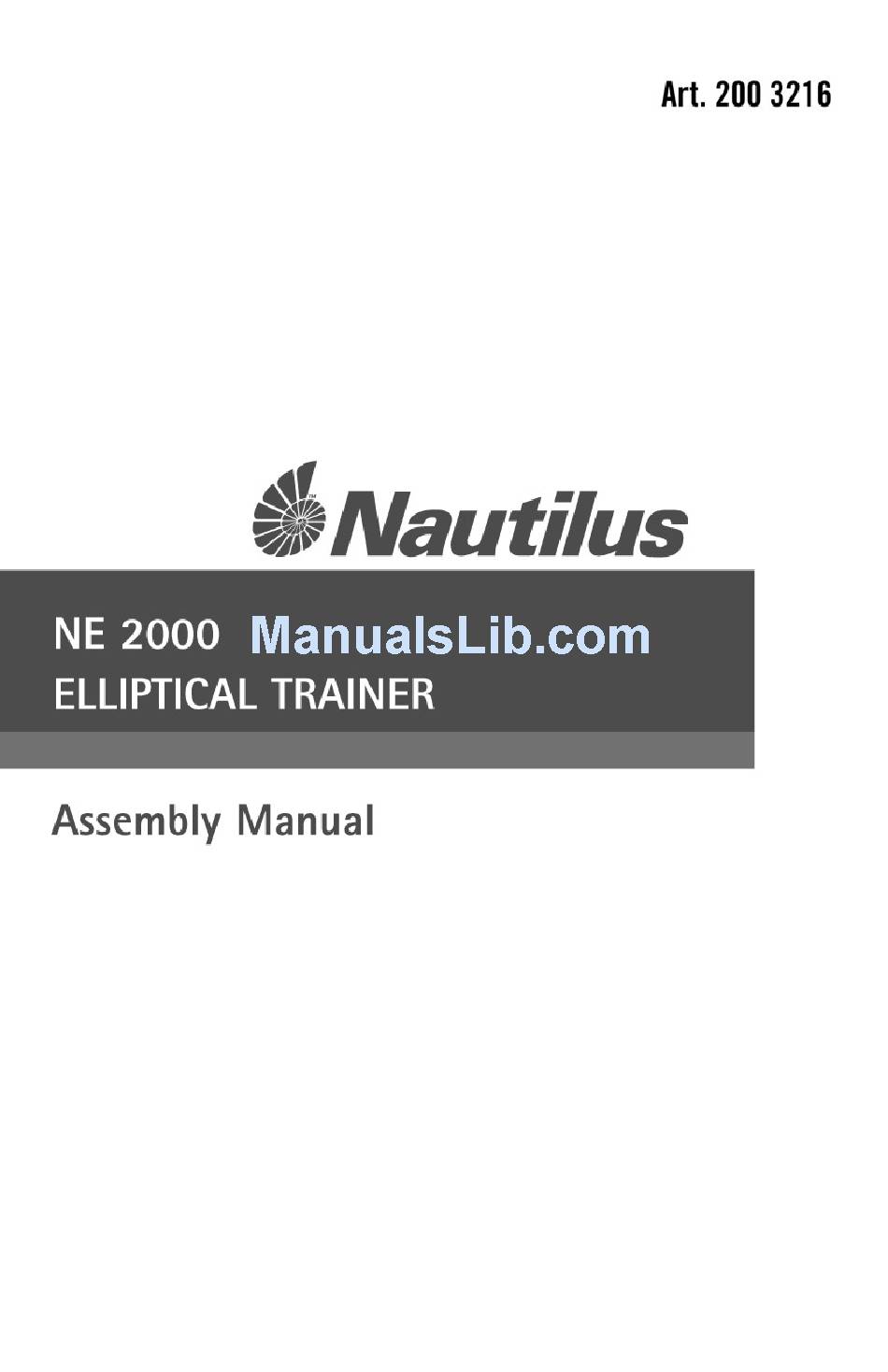

Art. 200 3216
'Nautilus
Assembly
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NE 2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nautilus NE 2000

Summary of Contents for Nautilus NE 2000

  • Page 2: Fasteners And Assembly Tools

    TOOLS AND HARDWARE FASTENERS AND ASSEMBLY TOOLS REFERENCE SKETCH DESCRIPTION QUANTITY PAN HEAD SCREW(M4x15L) NYLON NUT(M10x1.5P) FLAT WASHER SOCKET HEAD CAP SCREW(M10x85L) CURVE WASHER SPRING WASHER SOCKET HEAD CAP SCREW(M8x50L) PAN HEAD SCREW(M5x15L) PAN HEAD SCREW (M10x25L) PAN HEAD SCREW (M5x10L) PAN HEAD SCREW (M5x25L) CARRIAGE BOLT(M8x100L) NYLON NUT...

  • Page 3: Assembly Instructions

    ASSEMBLY INSTRUCTIONS NE 2000 ELLIPTICAL TRAINER STEP 1: Attaching the Front/ Rear Stabilizer STEP 2: Attaching Console Mast End Caps REFERENCE Connect the two ends of the console cable (#28). Attach the end caps (#1) to the rear stabilizer. Attach the console mast to the base unit and fasten with six M8 nylon nuts (#34), six Attach the left end cap (#2) &...
  • Page 4 ASSEMBLY INSTRUCTIONS NE 2000 ELLIPTICAL TRAINER STEP 3: Attaching Pedal Arms STEP 4: Attaching Upper Body Arms REFE Attach the left pedal arm (#8) and right pedal arm (#10) to the sub pedal arms (#9) Connect the left and right touch heart rate wires (#29,#31). Do not allow the upper and fasten them with two M10 nylon nuts (#5), four flat washer (#6) and two 85mm body arms (#13, 14) to hang freely from wires.
  • Page 5 NYLON ASSEMBLY INSTRUCTIONS NE 2000 ELLIPTICAL TRAINER FLAT W SOCKE STEP 5: Attaching Handlebar STEP 6: Installing Computer Console CURVE SPRING SOCKE PAN HE PAN HE PAN HE PAN HE CARRIA Attach the handlebar (#20) to the console mast bracket and fasten with two 25mm Connect the console cable (#28) and touch heart rate wire (#29) into back of computer pan head screws (#21).

  • Page 6: Final Check

    NE 2000 ELLIPTICAL TRAINER Final Check Assembly of your Nautilus elliptical is now complete. Check again to insure that all parts are properly installed and that all nuts and bolts are completely secured. Get on the unit and check to see that the computer console and resistance system are working properly.
