Installation and Connection

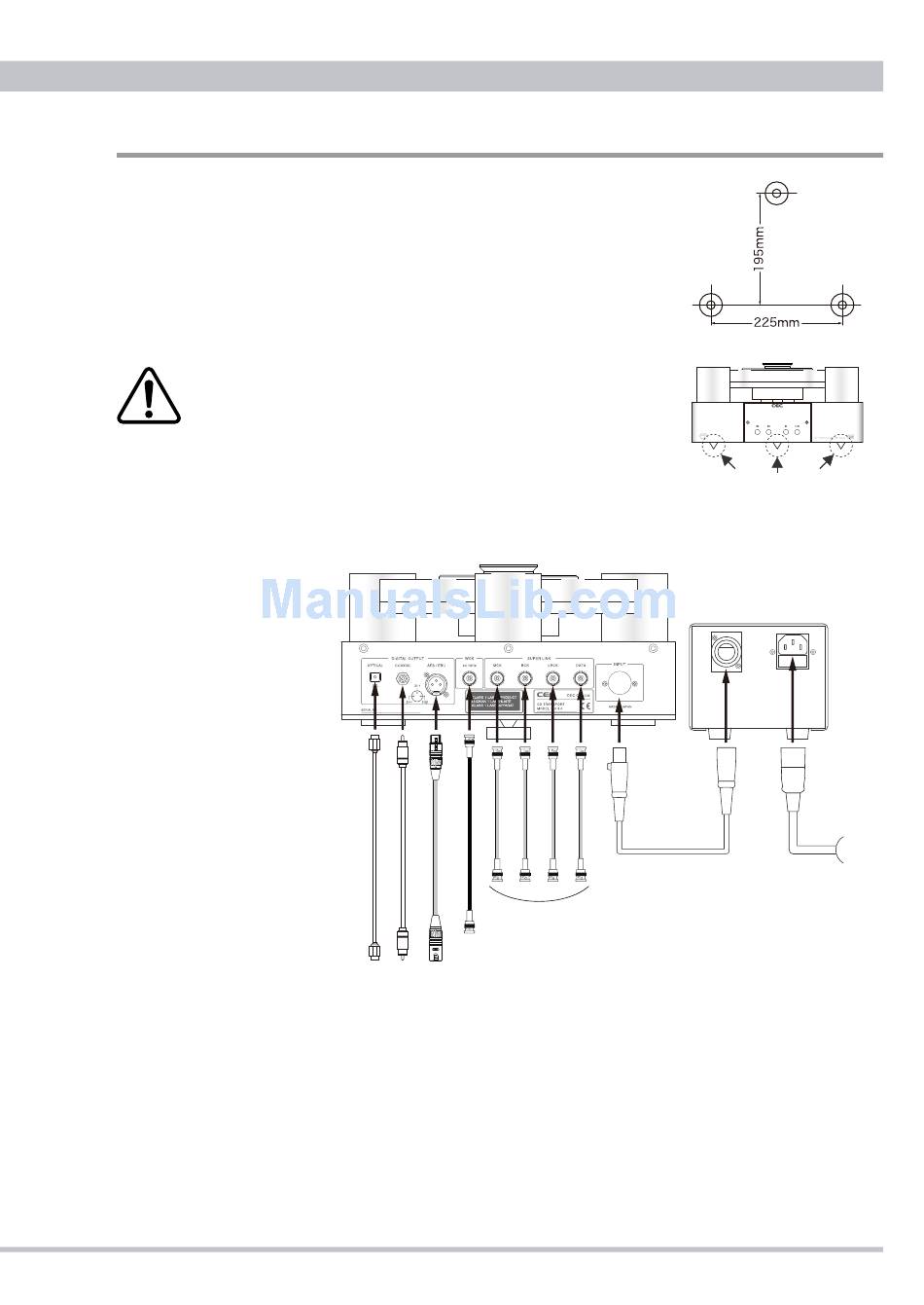

Installation
TL0 3.0 is equipped with the floating suspension supported by the
three tiptoe legs. Install the supplied three spike saucers as shown
at the right side drawing, and put the spikes of the main unit onto
the saucers.
■ Touching the spike end or catching your fingers between
the spike end and the floor may cause a serious injury. Handle
with care!
■ Like for a temporary installation, if the TL0 3.0 is not put
onto the spike saucers the distance between the bottom plate
and the installation surface will be much smaller. Be careful
not to catch your fingers between them, or not to damage the
installation surface by the spike end.
To D/A converter
❶ TOS LINK
Connect with an
optical cable with the
squared TOS LINK
plug.
❷ COAXIAL
Connect with a 75Ω
coaxial cable.
❸ AES/EBU
Connect with a 110Ω
XLR cable.
To Clock Generator
❹ Connect with a 75Ω
BNC cable.
To SUPERLINK on a
D/A converter
❺ Connect with four 75Ω BNC cables to the corresponding terminals on a D/A converter like
CEC DA1N and DA3N.
Power Supply
❻ ❼ Connect the supplied 7-pin power cord between the main unit and the power supply
unit.
❽ Connect the supplied 3-pin AC power cord to the AC LINE inlet and the wall outlet.
〔Main unit〕
to SUPERLINK terminals
❺
to Clock Generator
❹
to D/A Converter inputs
❶ ❷ ❸
TL0 3.0 User's Manual
Be careful of spikes!
〔Power Supply unit〕
❻ ❼ ❽
7-pin Power cord 3-pin AC Power cord
to the AC wall outlet
rear side
