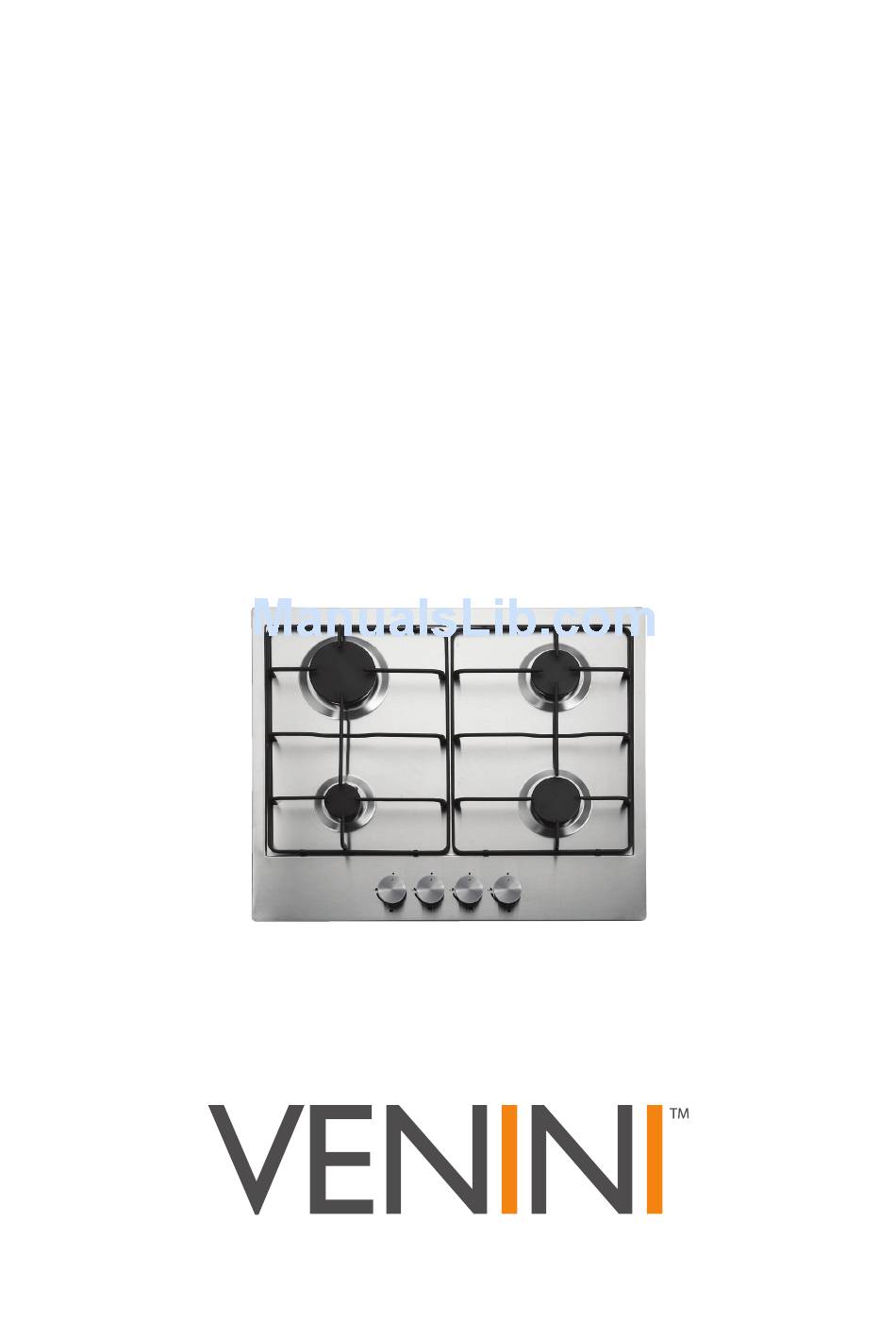

- Page 1 COOKTOP VCG60S...
- Page 2 Customer Care team 1800 444 357 or email service@hapl.com.au and one of our Customer Care Team will get back to you. Venini is a division of Home Appliances PTY LTD 20 Carlotta Street Artarmon 2064 Sales 1800 805 300 Service...
-
Page 3: Table Of Contents
Contents Enviro nmental note Important safety information 5 – 7 Specifications 8 – 9 Electrical details Gas details Gas hob surface layout Using the gas hob 10 - 11 Before first use Switching the hob on Energy saving tips Cleaning 12 - 13 Cleaning the hob top After each use... -
Page 4: Environmental Note
Environmental note o The packaging materials that the manufacturer uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
Important safety information Your safety is of the utmost importance to the manufacturer. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Retailer where you purchased your unit from. - Page 6 Child Safety o The manufacturer strongly recommends that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time. During and after use, all surfaces will be hot. o If it is necessary for younger family members to be in the kitchen, please ensure that they are kept under close supervision at all times.
- Page 7 Cleaning o Cleaning of the hob should be carried out on a regular basis. o IMPORTANT: Before attempting to clean the appliance, it should be disconnected from the mains and cool. o Great care should be taken whilst using this appliance and when following the cleaning procedure.
-
Page 8: Specifications
Specifications Product dimensions: Aperture dimensions: Depth: 510 mm Depth: 480 mm Width: 600 mm Width: 560 mm Height: 40 mm Product specifications: o 1 x 10.8 MJ/h rapid burner o 2 x 6.3 MJ/h semi-rapid burners o 1 x 3.6 MJ/h auxiliary burner o Front control operation o Automatic ignition o Enamelled pan stands... -
Page 9: Electrical Details

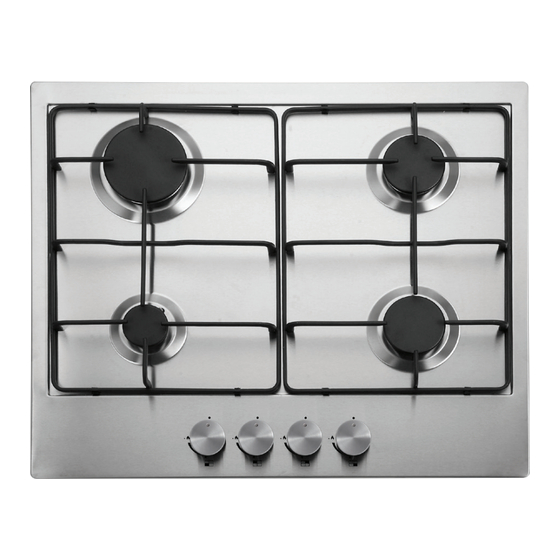

Gas hob surface layout ACG6S A = 10.8 MJ/h rapid burner B = 6.3 MJ/h semi-rapid burners C = 3.6 MJ/h auxiliary burner D = Control panel Electrical details Rated Voltage: 220 - 240 Vac 50 / 60 Hz Supply Connection: Max Rated Inputs: 0.0008 kW Mains Supply Lead:... -
Page 10: Using The Gas Hob
Using the gas hob Before first use IMPORTANT: You should clean the hob surface (see “Cleaning and maintenance” section). Switching the hob on The following symbols will appear on the control panel, next to each control knob: = gas off Large flame: maximum setting Small flame: minimum setting o The minimum setting is at the end of the anti-clockwise rotation of... -
Page 11: Energy Saving Tips
o In case of power failure, the burners can be lit by carefully using a match. Energy saving tips BURNERS PANS Minimum Maximum diameter diameter 220 mm 260 mm Rapid 180 mm 220 mm Semi-rapid 120 mm 200 mm Auxiliary 80 mm 160 mm o The diameter of the bottom of the pan should correspond to that... -
Page 12: Cleaning
Cleaning Cleaning operations must only be carried out when the hob is cool. The appliance should be disconnected from your mains supply before commencing any cleaning process. Cleaning the hob top Any residues that are left on the hob top surface from cleaning agents will damage it. -
Page 13: Maintaining The Enamelled Pan Stands
o After cleaning and washing them, wipe and dry them carefully. o Before placing the burners back on the hob top, make sure that the gas jet is not blocked. o IMPORTANT: Make sure that you reassemble the burners in the original way. -
Page 14: Positioning
Positioning The adjacent furniture must be able to withstand a minimum temperature rise of 85°C above the ambient temperature of the room it is located in, during periods of use. * 600 mm o This appliance can be located in a kitchen, a kitchen diner or a bed sitting room. -
Page 15: Unpacking The Appliance
Unpacking the appliance When unpacking the appliance please check that the following items are contained within the packaging: 1 x Cooktop Pan stands Burner assemblies Instruction manual Warranty card Fixing screws Clamps Sealing strip LPG conversion jets Self-adhesive label for amending the gas category on the appliance’s rating plate (required if the LPG conversion jets are used). - Page 16 o Carefully turn the hob upside down and place it on a cushioned mat. o Apply the sealing strip (A) provided around the edge of the appliance. o The protective covering must be removed from both sides. o Do not leave a gap in the sealing agent or overlap the thickness. o IMPORTANT: Do not use a silicon sealant to seal the appliance against the aperture.
-
Page 17: Gas Connection
Gas connection This appliance must be installed by a competent person in accordance with the current standards. Important information o This hob is supplied to run on natural gas only and cannot be used on any other type of gas without modification. o Conversion for use on LPG and other gases must only be undertaken by a qualified person. -
Page 18: Ventilation Requirements
Ventilation requirements o The room containing the hob should have an air supply in accordance with the current edition of BS 5440: Part 2: o The room must have opening windows or equivalent; some rooms may also require a permanent vent. o If the room has a volume between 5 and 10m³, it will require an air vent of 50cm²... -
Page 19: Gas Safety (Installation And Use) Regulations
Gas Safety (Installation and Use) Regulations IMPORTANT: The appliance MUST be connected to the gas supply by use of a 15 mm x ½” female coupler, seal, copper pipe and an isolation tap fitted in an easily accessible position. o It is the law that all gas appliances are installed by competent persons in accordance with the current edition of the Gas Safety and Measurement Regulations 2010. -
Page 20: Gas Adjustment (Conversion To Lpg)
Gas adjustment (Conversion to LPG) All work must be carried out by a registered gas fitter. IMPORTANT: Always isolate the hob from the electricity supply before changing the injectors and/or adjusting the minimum flow of the burners. o Remove the pan-stands, burners and flame spreaders (A). -
Page 21: Minimum Flow Adjustment For Hob Gas Taps
Minimum flow adjustment for hob gas taps. All work must be carried out by a registered gas fitter. IMPORTANT: Always isolate the hob from the electricity supply before changing the injectors and/or adjusting the minimum flow of the burners. o Switch the burner on and set the knob at the minimum position. -
Page 22: Gas Tap Maintenance
Gas tap maintenance These maintenance operations MUST ONLY be carried out by a registered gas fitter. . IMPORTANT: Before carrying out any maintenance operations, disconnect the appliance from the gas and electricity supplies. If a gas tap becomes stiff to operate, then you should proceed as follows: o Remove the control knobs, pan supports, burners, hob fixing screws and clamps. -
Page 23: Safety Warnings
Safety Warnings... -
Page 24: Electrical Connection
Electrical connection This appliance must be installed by a qualified person in accordance with the latest edition of the AS/NZS 3000 Wiring Regulations and in compliance with the manufacturer’s instructions. ： ： ： ： WARNING 240 VOLTS. DISCONNECT POWER BEFORE SERVICING UNIT Before connecting the appliance, make sure that the supply voltage marked on the rating plate corresponds with your mains supply... -
Page 26: My Appliance Isn't Working Correctly
My appliance isn’t working correctly IMPORTANT: If your appliance appears not to be operating correctly, then you should disconnect it from your mains supply and then contact the Customer Care Department via the contact details on the back page. DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF. - Page 28 Think Appliances Pty Ltd. 416-424 Barry Rd Coolaroo VIC 3048 Sales Telephone 1300 132 824 Service Telephone 1800 444 357 Website www.thinkappliances.com Applico Ltd. Private Bag 92900 Onehunga, Auckland 1061, New Zealand Website www.baumatic.co.nz United Kingdom Baumatic Ltd., Baumatic Buildings, 6 Bennet Road, Reading, Berkshire RG2 0QX...
