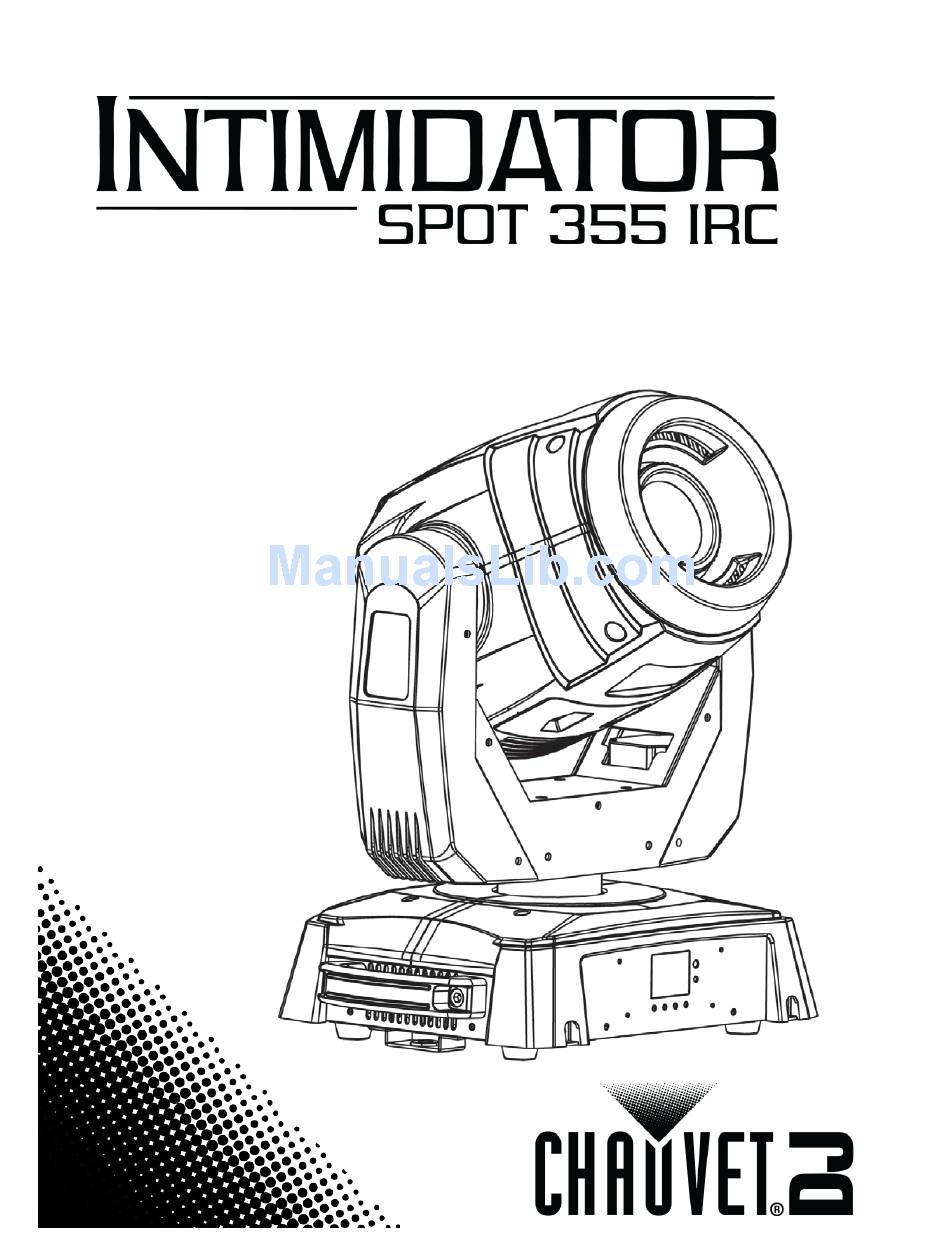

- Page 1 User Manual...
-
Page 2: Table Of Contents
Reset Options ....................17 System Information ..................17 Master/Slave Mode ....................18 IR Mode ........................19 IRC-6 Operation ....................... 19 Zero Adjust Mode .................... 20 Changing Gobos ..................... 21 Page 2 of 25 Intimidator Spot 355 IRC User Manual Rev. 1... - Page 3 6. Technical Information ..............22 Product Maintenance ..................22 7. Technical Specifications ..............23 Returns ......................24 Contact Us ....................25 Intimidator Spot 355 IRC User Manual Rev. 1 Page 3 of 25...
-
Page 4: Before You Begin
Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. -

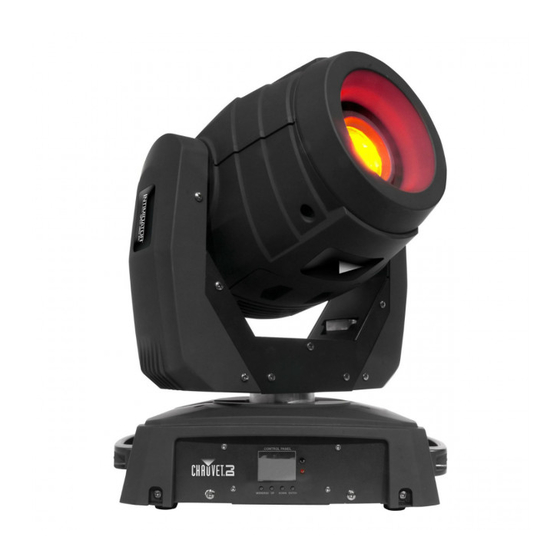

Page 5: Product At A Glance
Keep this User Manual for future use. If you sell the product, give this document to the next owner. Intimidator Spot 355 IRC User Manual Rev. 1 Page 5 of 25... -
Page 6: Introduction
NTRODUCTION Product Overview Gobo Access Door Yoke LCD Display IR Sensor Indicator LED Front Panel View Menu Buttons DMX In/Out Power Out Power In Back Panel View Fuse-Holder Page 6 of 25 Intimidator Spot 355 IRC User Manual Rev. 1... -
Page 7: Product Dimensions
13.39 in 340 mm 12.44 in 316 mm 8.74 in 222 mm 3.78 in 96 mm 9.76 in 248 mm 10.55 in 268 mm 15.43 in 392 mm Intimidator Spot 355 IRC User Manual Rev. 1 Page 7 of 25... -
Page 8: Setup
Product Other products You can power link up to 4 Intimidator Spot 355 IRC units on 120 VAC or up to 7 Intimidator Spot 355 IRC units on 230 VAC. The power linking diagram shown above corresponds to the North American... -
Page 9: Mounting
Mounting Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The Intimidator Spot 355 IRC may be mounted in any position; however, make sure adequate ventilation is provided around the product. · Rigging Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming purposes. -
Page 10: Operation
Displays the software version Running Mode: XXXXX Displays the current running mode Sys Info DmxAddress: XXX Displays the current DMX address Temperature: XXX Displays the LED temperature in Celsius Page 10 of 25 Intimidator Spot 355 IRC User Manual Rev. 1... -
Page 11: Configuration (Dmx)
DMX mode uses. If you choose a starting address that is too high, you could restrict the access to some of the product’s channels. The Intimidator Spot 355 IRC uses up to 14 DMX channels in its 14-channel DMX mode, which defines the highest configurable address to 499. -
Page 12: Dmx Assignments
Cycle effect with increasing speed 192ó255 Reverse cycle effect with increasing speed 000ó063 Index 064ó147 Rotate (slow to fast) Gobo Rotation 148ó231 Reverse rotate (slow to fast) 232ó255 Bounce Page 12 of 25 Intimidator Spot 355 IRC User Manual Rev. 1... -
Page 13: Dmx14Ch (Cont.)
007ó013 Yellow 014ó020 Pink 021ó027 Green 028ó034 Color Wheel 035ó041 Light Blue 042ó048 Kelly Green 049ó055 Orange 056ó063 Dark Blue 064ó070 White + Yellow 071ó077 Yellow + Pink Intimidator Spot 355 IRC User Manual Rev. 1 Page 13 of 25... -
Page 14: Dmx8Ch (Cont.)
Prism effects Focus 000ó255 Motorized focus (big to small) 000ó003 Closed 004ó007 Open 008ó076 Strobe (slow to fast) Shutter 077ó145 Pulse 146ó215 Random open and close 216ó255 Open Page 14 of 25 Intimidator Spot 355 IRC User Manual Rev. 1... -
Page 15: Configuration (Standalone)
Use <UP> or <DOWN> to choose Setup. Press <ENTER>. Use <UP> or <DOWN> to select Totem Mode. Press <ENTER>. Use <UP> or <DOWN> to choose OFF, DOWN, or UP. Press <ENTER>. Intimidator Spot 355 IRC User Manual Rev. 1 Page 15 of 25... -
Page 16: Manual Test Mode
Manual Test Mode To test or control any function of the Intimidator Spot 355 IRC through the LCD display menu, follow the instructions below: Press <MENU>. Use <UP> or <DOWN> to choose Run Mode. Press <ENTER>. Use <UP> or <DOWN> to select Manual. -
Page 17: Display
The Reset option will restart the product, but does not change any settings. Using the Factory Set option will clear out all customized settings and return the settings to the factory defaults To reset the software on the Intimidator Spot 355 IRC, do the following: Press <MENU>. -
Page 18: Master/Slave Mode
When the Intimidator Spot LED 350 is the master and the Intimidator Spot 355 IRC is connected as a slave, the Intimidator Spot 355 IRC must be set to DMX mode with a starting address of 001. DO NOT set the Intimidator Spot 355 IRC in Slave mode when an Intimidator Spot LED 350 is the master. -
Page 19: Ir Mode
<0>–<9> - Activates specific Auto modes. Can be used as a shortcut for the combination of the <AUTO> button and the <+> and <-> buttons. · <UV> or <P> - Adjusts the focus. Intimidator Spot 355 IRC User Manual Rev. 1 Page 19 of 25... -
Page 20: Zero Adjust Mode
Zero Adjust The Intimidator Spot 355 IRC contains a passcode-protected mode that allows you to calibrate and adjust several of the product’s operating parameters. Mode To access this mode, do the following: Press and hold <MENU> for at least 10 seconds. -
Page 21: Changing Gobos
Changing To change the gobos in the Intimidator Spot 355 IRC, do not remove the gobo wheel. Simply: Gobos Disconnect product from power outlet. Place the product on a flat, level surface with the front facing up. Access the gobo plate by removing the cover on the moving head. By hand, gently push downward on the cover, in the direction of the debossed arrowhead on the cover. -
Page 22: Technical Information
Gently polish the glass/transparent surfaces until they are free of haze and lint. Always dry the glass/transparent surfaces carefully after cleaning them. Do not spin the cooling fans using compressed air because you could damage them. Page 22 of 25 Intimidator Spot 355 IRC User Manual Rev. 1... -
Page 23: Technical Specifications
104 °F (40 °C) Fan-cooled I/O Connectors Connector Type Channel Range 3-pin XLR Sockets 8 or 14 Ordering Product Name Item Code UPC Number Intimidator Spot 355 IRC 08011153 781462215019 Intimidator Spot 355 IRC User Manual Rev. 1 Page 23 of 25... -
Page 24: Returns
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Page 24 of 25... -
Page 25: Contact Us
Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact your dealer. Follow their instructions to request support or to return a product. Visit our website for contact details. Intimidator Spot 355 IRC User Manual Rev. 1 Page 25 of 25...
