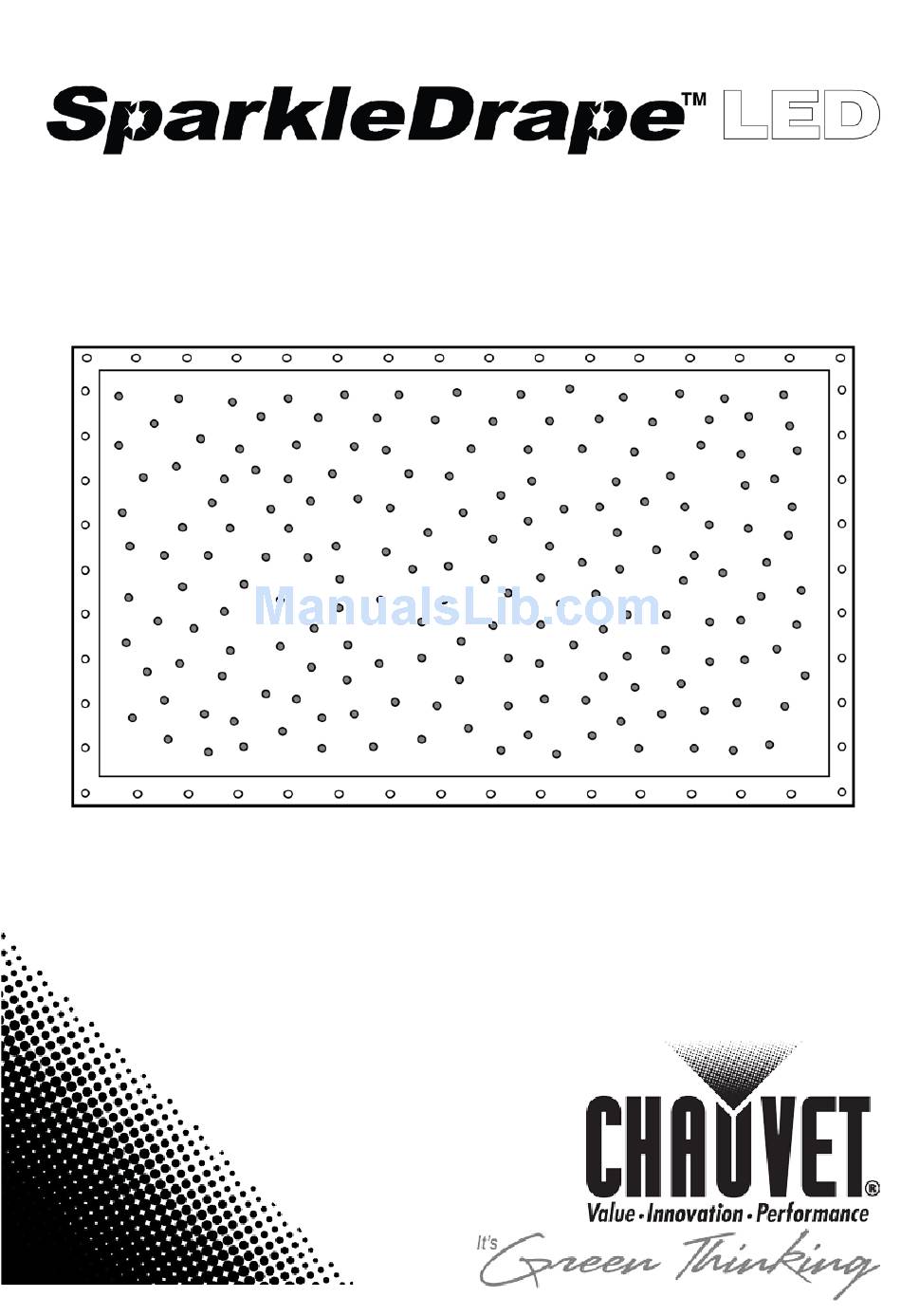

- Page 1 Quick Reference Guide...
- Page 2 SparkleDrape™ LED QRG About this The SparkleDrape™ LED Quick Reference Guide (QRG) only contains the product’s connection and mounting information, as well as the menu options Guide and the DMX values. · This Quick Reference Guide DOES NOT replace the product’s User Manual, which you can download from the CHAUVET®...
- Page 3 LEDs, 17 eye-catching programs, Description and support for 8 channels of DMX. The SparkleDrape™ LED also comes equipped with a sound activation mode and the ability to choose and run your favorite program without a DMX-512 console.
- Page 4 DMX serial connection. If you are not familiar with the DMX standard, please download the DMX Primer document from www.chauvetlighting.com. The SparkleDrape™ LED uses a regular DMX data connection for its 8- Connection channel personality. Download the SparkleDrape™ LED User Manual and refer to the Setup...
- Page 5 SparkleDrape™ LED QRG Mounting Before mounting this product, read the Safety Notes at the beginning of this Guide and in the product’s User Manual. The mounting instructions are provided in the Setup chapter of the User Manual. Grommets for easy truss mounting...
-
Page 6: Menu Options
SparkleDrape™ LED QRG Programming For details on how to program this product, please refer to the product’s User Manual. Control Panel Button Function Description <MENU> Exits from the current menu or function Enables the currently displayed menu or sets the currently <ENTER>... -
Page 7: Dmx Values
SparkleDrape™ LED QRG DMX Values 8-CH Channel Function Value Percent/Setting 000 ó 007 No function (default for Ch. 7 functions) Dimmer 008 ó 255 0~100% 000 ó 010 No function Strobe 011 ó 255 Strobe (slow to fast) 000 ó 255 0~100% 000 ó... - Page 8 Outside the US, United Kingdom, or Ireland, contact your distributor of record. Follow their instructions to request support or to return a product. Visit our Web site for contact details. SparkleDrape™ LED QRG – Rev. 03 © Copyright 2011 CHAUVET® All rights reserved Printed in the P.
