Summary of Contents for Chauvet SlimPAR

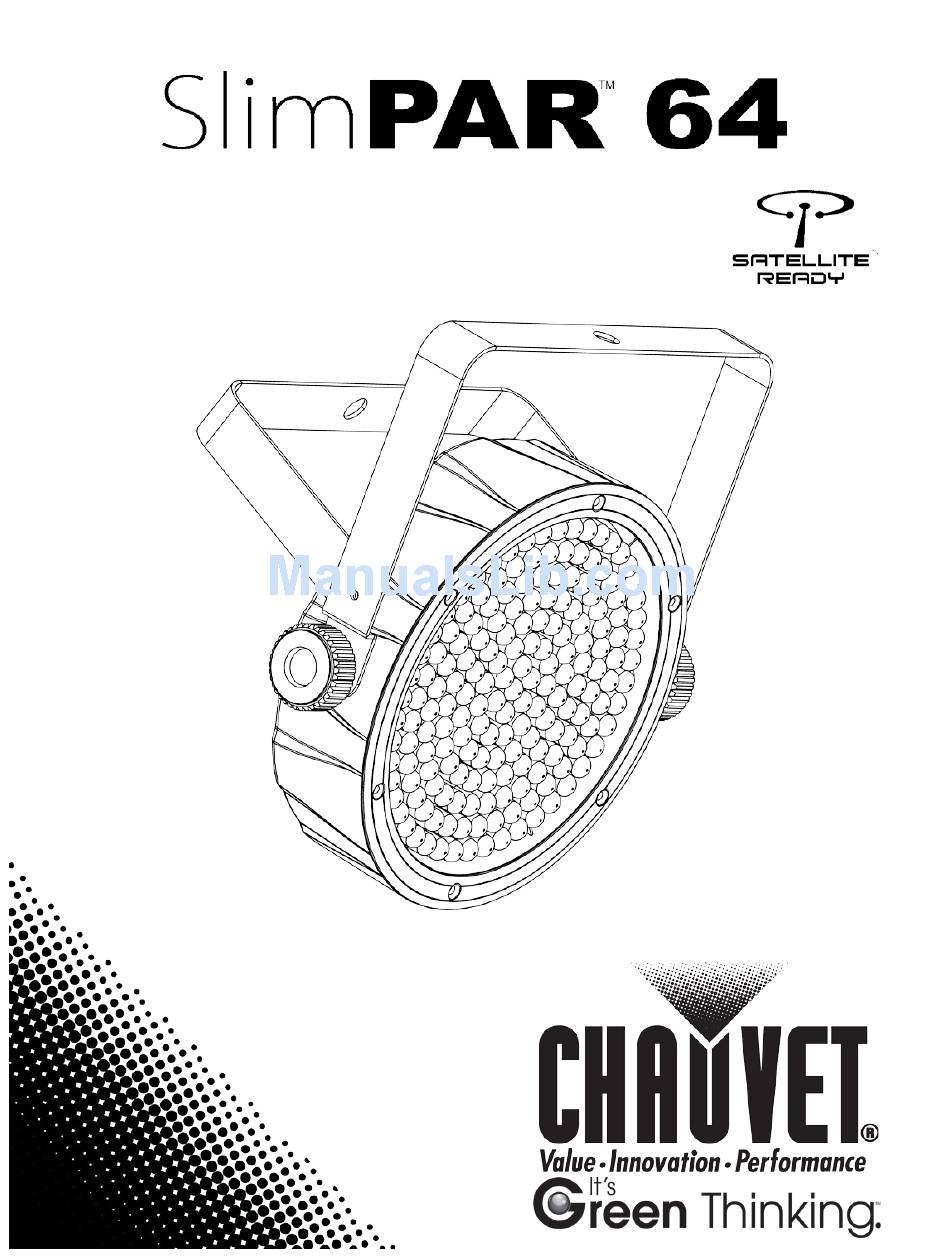

- Page 1 User Manual...
-
Page 2: Table Of Contents
7-CH Mode ......................10 3-CH Mode ......................10 5. Technical Information ..............10 General Maintenance .................. 10 6. Technical Specifications ..............11 Returns ....................... 12 Claims ......................12 Contact Us ....................12 Page 2 of 12 SlimPAR™ 64 User Manual Rev. 5... -
Page 3: Before You Begin
Useful information. The information and specifications contained in this document are subject to change without notice. Document CHAUVET® assumes no responsibility or liability for any errors or omissions that may appear in Information this manual. © Copyright 2013 CHAUVET®. All rights reserved. - Page 4 Never carry this product from the power cord or any moving part. Always use the mounting bracket. · Always avoid direct eye exposure to the light source when this fixture is on. Page 4 of 12 SlimPAR™ 64 User Manual Rev. 5...
-
Page 5: Introduction
2. I NTRODUCTION Product Overview Control Panel LED Display Satellite™ 12 V Input Microphone Sensitivity Adjustment Knob Power In Fuse Holder Power Out Bracket Adjustment Knob SlimPAR™ 64 User Manual Rev. 5 Page 5 of 12... -
Page 6: Setup
Power Linking Diagram Other fixtures You can power link up to 40 SlimPAR™ 64 units on 120 VAC or up to 60 SlimPAR™ 64 units on 230 VAC. The power linking diagram shown above corresponds to the North American version of this product ONLY! If using this product in other markets, you must consult with the local CHAUVET®... -
Page 7: Mounting
Before mounting this product, read and follow the safety recommendations indicated in Mounting the Safety Notes section (page 2 of this manual). The SlimPAR™ 64 may be mounted in any position, provided there is adequate room for Orientation ventilation around it. -
Page 8: Operation
DMX mode uses. If you choose a starting address that is too high, you could restrict the access to some of the fixture’s channels. The SlimPAR™ 64 uses up to seven DMX channels in the 7-CH personality, which defines the highest configurable address to 507. -
Page 9: Configuration (Standalone)
8) Press <ENTER> to save the color. Master/Slave This mode allows a single SlimPAR™ 64 unit (the “master”) to control the actions of one or more SlimPAR™ 64 units (the “slaves”) without the need of a DMX controller. The Mode master unit will be set to operate in either Automatic or Sound-Active mode, while the slave units will be set to operate in Slave Mode. -
Page 10: Dmx Channel Assignments And Values
Softly wipe any dirt or grime to the outside edges of the LED transparent cover. · Gently polish the transparent LED cover until it is free of haze and lint. Always dry the transparent LED cover carefully after cleaning. Page 10 of 12 SlimPAR™ 64 User Manual Rev. 5... -
Page 11: Technical Specifications
Cooling System 104° F (40° C) Convection I/O Connectors Connector Type Channel Range 3- pin XLR Sockets 3, 7 Ordering Product Name Item Code Item Number SlimPAR™ 64 03030271 SLIMPAR64 SlimPAR™ 64 User Manual Rev. 5 Page 11 of 12... -
Page 12: Returns
For other issues such as missing components or parts, damage not related to shipping, or concealed damage, the customer must make claims to CHAUVET® within 7 days of receiving the merchandise. World Headquarters United Kingdom &...
