In the interest of improving internal design, operational function, and/or reliability, Nortel Networks reserves the right to make changes to the products described in this document without notice. Nortel Networks does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
Page 3
(such as images, text, recordings or pictures) and related licensed materials including all whole or partial copies. Nortel Networks grants you a license to use the Software only in the country where you acquired the Software. You obtain no rights other than those granted to you under this License Agreement. You are responsible for the selection of the Software and for the installation of, use of, and results obtained from the Software.
Page 4
The terms and conditions of this License Agreement form the complete and exclusive agreement between Customer and Nortel Networks. This License Agreement is governed by the laws of the country in which Customer acquires the Software. If the Software is acquired in the United States, then this License Agreement is governed by the laws of...
Getting help over the phone from a Nortel Solutions Center 20 Getting help from a specialist by using an Express Routing Code 20 Ethernet Routing Switch 2500 Series hardware Hardware components of the Ethernet Routing Switch 2500 Series 23 Front panel 23 Back panel 29 Network configuration examples 34...
Page 12
Quick Start 312 Configuring system security 314 Rebooting the Ethernet Routing Switch 2500 Series 315 Changing the Ethernet Routing Switch 2500 Series to system defaults 316 Logging out of the management interface 316 Configuring the switch using web-based management Configuring BootP, IP, and gateway settings 319 NN47215-500 (323162-B) 02.02 Standard...
Configuring high speed flow control 327 Downloading switch images 328 Downloading ASCII configuration files 330 Storing and retrieving a switch configuration file from a TFTP server 331 Requirements for storing and retrieving configuration parameters on a TFTP server 333 Enabling and disabling autosave 333 Configuring port communication speed 334...
• Nortel Ethernet Routing Switch 2550T-PWR The term "Ethernet Routing Switch 2500 Series" is used in this document to describe the features common to the switches mentioned above. A switch is referred to by its specific name while describing a feature exclusive to the switch.
Page 18
Indicates command syntax and system output, for example, prompts and system messages. Example: Set Trap Monitor Filters Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
• Nortel Ethernet Routing Switch 2500 Series Release NotesNortel Ethernet Routing Switch 2500 Series Release Notes — Software Release 4.0 (NN47215-400) Documents important changes about the software and hardware that are not covered in other related publications.
The Ethernet Routing Switch 2500 Series provides wire-speed switching for high-performance, low-cost connections to full-duplex, and half-duplex 10/100/1000 Mb/s Ethernet Local Area Networks (LAN). Ethernet Routing Switch 2500 Series software release 4.1 supports the following devices: • Ethernet Routing Switch 2526T •...
Page 24

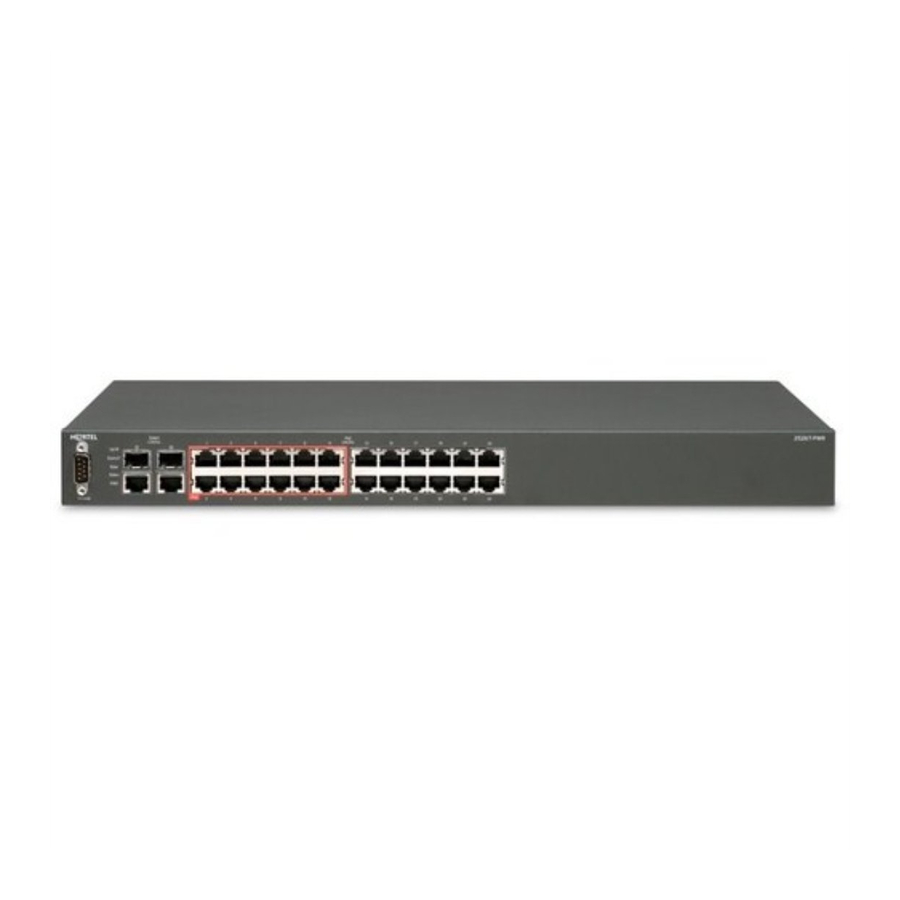

24 Ethernet Routing Switch 2500 Series hardware Figure 1 Ethernet Routing Switch 2550T-PWR The following graphics display the front panel configuration on the Ethernet Routing Switch 2526T, 2526T-PWR, 2550T, and 2550T-PWR. "Components on the Ethernet Routing Switch 2500 front panel" (page describes the components on the front panel.
Hardware components of the Ethernet Routing Switch 2500 Series 25 Figure 3 Ethernet Routing Switch 2550T front panel Figure 4 Ethernet Routing Switch 2526T-PWR front panel Figure 5 Ethernet Routing Switch 2550T-PWR front panel Table 1 Components on the Ethernet Routing Switch 2500 front panel...
The Console port is a DB-9, RS-232-D male serial port connector. You can use this connector to connect a management station, console, or terminal to the Ethernet Routing Switch 2500 Series by using a straight-through DB-9 to DB-9 standard serial port cable. You must use a VT100/ANSI-compatible terminal (for cursor control and to activate cursor and functions keys) to use the Console port.
Hardware components of the Ethernet Routing Switch 2500 Series 27 The 10BASE-T/100BASE-TX switch ports also support half- and full-duplex mode operation. The 10BASE-T/100BASE-TX RJ-45 switch ports can connect to 10 Mb/s or 100 Mb/s Ethernet segments or nodes. Use only Category 5 copper Unshielded Twisted Pair (UTP) cable connections when connecting 10BASE-T/100BASE-TX ports.
Page 28
28 Ethernet Routing Switch 2500 Series hardware Figure 6 LED display panel Table 2 Ethernet Routing Switch 2500 Series LED descriptions Label Type Color Up/28 or Rear port Green Up/52 status Down/27 Rear port Green Down/51 status Status Switch Green...
Amber Back panel The back panel of the Ethernet Routing Switch 2500 Series is shown in Figure 7 " Ethernet Routing Switch 2500 Series back panel" (page Table 3 "Components on the Ethernet Routing Switch 2500 Series back panel"...
Cooling fans are located on one side of the Ethernet Routing Switch 2500 Series to provide cooling for the internal components. When you install the switch, be sure to allow enough space on both sides of the switch for adequate ventilation.
Page 32
32 Ethernet Routing Switch 2500 Series hardware Attention: Lisez ceci immédiatement. Examinez ce cordon d’alimentation pour déterminer s’il dispose de la fiche appropriée et s’il est bien agréé pour utilisation sur votre installation électrique. Débarrassez-vous en immédiatement s’il ne convient pas à l’utilisation sur le secteur électrique en usage dans votre pays et procurez-vous un cordon...
• "Medium sized office wiring closet switch application" (page 36) Small office desktop switch application Figure 8 "Ethernet Routing Switch 2500 Series used as a desktop switch" (page 35) shows the Ethernet Routing Switch 2500 Series used as a desktop switch in a small office environment. The desktop workstations and servers are connected directly to the switch ports.
Figure 8 Ethernet Routing Switch 2500 Series used as a desktop switch Branch office workgroup switch application Figure 9 "Ethernet Routing Switch 2500 Series used as a workgroup switch" (page 36) a workgroup switch in an enterprise branch office environment. Desktop workstations and servers are connected directly to the switch ports.
Medium sized office wiring closet switch application Figure 10 "Configuring power workgroups and a wiring closet switch" (page shows the Ethernet Routing Switch 2500 series used as a wiring closet switch in a medium to large enterprise office environment. Desktop workstations, IP Phones, and WLAN APs are connected directly to the switch ports.
32Gbps for a stack of eight units. A stack of Ethernet Routing Switch 2500 series switches can also consist of a mix of stack pre-enabled units as well as non pre-enabled units. The non pre-enabled units in a stack must meet the following requirements before they are added into a stack configuration:...
License Certificate with a License Authorization Code (LAC) that enables a specific number of stacking licenses for one or multiple ERS 2500 series switches. Each ERS 2500 series switch requires one license file to unlock stacking functionality. A single license file can contain up to 1000 switch MAC addresses for installation on multiple switches.
Page 41
Once a valid license file is downloaded on to an Nortel Ethernet Routing Switch 2500 Series switch, you can configure the operational mode of rear ports to Stacking Mode. Although the rear ports are set to Stacking Mode, a reboot of the switch is required to fully enable the stacking operation.
Page 44
Ethernet Routing Switch 2500 Series license files, a properly configured Trivial File Transfer Protocol (TFTP) server must be present in your network, and the Ethernet Routing Switch 2500 Series must have an IP address. To download a license file, use the following procedure:...
This provides uninterrupted connectivity of up to 400 user ports in a virtual switch managed as a single unit. All ERS 2500 series switches must be running software release 4.1 before being connected in a stack configuration. To set up a stack, do the following:...
46 Nortel Ethernet Routing Switch 2500 Series stacking Configuring the operational mode on rear ports using the CLI You can use the following commands to configure the operational mode of rear ports into Stacking or Standalone Mode: • "rear-ports mode command" (page 46) •...
"Rear Ports Mode tab" (page 252) Rear ports and stacking The rear panel view of a Nortel Ethernet Routing Switch 2500 series switch consists of two RJ-45 1000BaseT ports and a Unit Select switch. In Stacking Mode, the two rear ports become the Cascade Down and Cascade Up ports for connecting switch units in a stack configuration.
Page 48
Nortel Ethernet Routing Switch 2500 series switches use tested and certified Category 5E UTP cables as stack cables. All Nortel branded ERS 2500 series stack cables are for use with these switches. However, Cat 5E stack cable connections of up to 100 meters is possible between each ERS 2500 switch but not officially supported.
Stack MAC address When a switch participates in a stack configuration, a stack MAC address is automatically assigned during stack initialization. The stack MAC address is the base unit MAC address plus 1. If another unit in the stack is assigned as the base unit, the new stack MAC address is the MAC address of the new base unit plus 1.
50 Nortel Ethernet Routing Switch 2500 Series stacking Many network management software packages assume a cascade down (stack down) configuration, Nortel recommends the usage of this configuration. Cascade down stack configuration In a cascade up (stack up) configuration, the base unit is physically located as the top unit in the stack.
A RS-232 communications cable can be attached to the console port of any switch in the stack to establish a console connection. • A software upgrade can be performed on the stack from any switch using the console interface, a Telnet session, the web-based management interface, or any SNMP-based management software.
Redundant cascade stacking The Nortel Ethernet Routing Switch 2500 Series allows a stack of up to 8 units into a dual-path cascade stack. If any single unit fails or if a cable is accidently disconnected, other units in the stack remain operational without interruption.
Redundant cascade stacking Removing a stack unit If a unit is removed from the stack, the following switch configuration settings revert to those configured before the unit became a member of the stack: • IP address • Console, Web, Telnet, and SNMP passwords •...
The new unit cannot automatically resume operation as the base unit even with the Unit Select switch set to Base. To restore the stack to its original running state with the new unit set to Base using the Unit Select switch, the switch stack must be reset.
AUR is intended for a stack configuration of two or more units. In a two-unit stack configuration, if a unit fails, the remaining unit becomes a standalone switch. AUR loads the configuration of the failed unit in the replacement of ERS 2500 Series unit if the failed unit was a non-Base Unit.
56 Nortel Ethernet Routing Switch 2500 Series stacking CFG mirror image process The CFG mirror image process is triggered by specific events. Power Cycle After a power cycle, all the CFG images in a stack are mirrored. Figure 15 "CFG mirror process in stack" (page 56) images in a three-unit stack after the stack is powered on.
57), after adding unit 4 to the stack, the Figure 17 "CFG mirror images after 58)). Another copy of the INACTIVE CFG 4 mirror Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Auto Unit Replacement 57...
58 Nortel Ethernet Routing Switch 2500 Series stacking Figure 17 CFG mirror images after removing unit 4 Removing a BU When a BU is removed, the TEMP-BU assumes the role of the BU. Because all the CFG mirror images of the NBUs reside in the removed BU, the TEMP-BU mirrors all the CFG image of the NBUs in the stack.
60 Nortel Ethernet Routing Switch 2500 Series stacking Restore a CFG image to a new unit happens only if the following conditions are met. • The AUR feature is enabled. • There is at least one INACTIVE CFG mirror image in the stack.
62 Nortel Ethernet Routing Switch 2500 Series stacking There are no parameters or variables for the show stack auto-unit replacement command. stack auto-unit-replacement enable command The stack auto-unit-replacement enable command enables AUR on the switch. The syntax for this command is:...
Switch management features Configuration and switch management The Ethernet Routing Switch 2500 Series that is shipped directly from the factory is ready to operate in any 10BASE-T or 100BASE-TX standard network. You must assign an IP address to the switch. You can set both addresses by using the Console port or BootP, which resides on the switch.
Web-based management interface" (page • Any generic SNMP-based network management software. You can use any generic SNMP-based network management software to configure and manage an Ethernet Routing Switch 2500 Series. Console port settings The efault settings for the Console port are: •...
RO is "userpasswd" and for RW is "securepasswd". For more information about this and other advanced security features supported on the Ethernet Routing Switch 2500 Series, see Nortel Ethernet Routing Switch 2500 Series Security — Configuration and Management (NN47215-505).
68 System configuration software features For information about the security features on the switch, see Nortel Ethernet Routing Switch 2500 Series Security — Configuration and Management (NN47215-505). Autosave feature By default, every 60 seconds the Ethernet Routing Switch checks whether a configuration change has occurred, or if a log message is written to...
Setting local time zone The SNTP uses Universal Coordinated Time (UTC) for all time synchronizations so it is not affected by different time zones. For the switch to report the correct time for your local time zone and daylight savings time, you must use the following commands: •...
CLI" (page BootP automatic IP configuration/MAC address The Ethernet Routing Switch 2500 Series has a unique 48-bit hardware address, or MAC address, that is printed on a label on the back panel. You can use this MAC address when you configure the network BootP server to recognize the Ethernet Routing Switch 2500 Series BootP requests.
• BootP or Last Address BootP or Default IP The Ethernet Routing Switch 2500 Series operates in the BootP or Default IP mode (the default mode) as follows: • After the switch is reset or power cycled, if the switch has a configured IP address other than 0.0.0.0 or the default IP address, then the switch...
Flash memory storage Switch software image storage The Ethernet Routing Switch 2500 Series uses flash memory to store the switch software image. The flash memory lets you update the software image with a newer version without changing the switch hardware (see "Upgrading software"...
Configuration File Download/Upload The Configuration Management feature lets you store and retrieve the configuration parameters of an Ethernet Routing Switch 2500 Series to a TFTP server. This feature supports two different methods for managing system configuration files: • Binary configuration file management •...
Autotopology You can enable the Optivity* Autotopology* protocol on the Ethernet Routing Switch 2500 Series using the CLI. For more information about Autotopology, go to the Nortel support site: www.nortel.com/support (The product family for Optivity and Autotopology is Data and Internet.) Link Layer Discovery Protocol (IEEE 802.1ab)
Figure 22 How LLDP works 1. The Ethernet Routing Switch and router advertise chassis or port IDs and system descriptions to each other. 2. The devices store the information about each other in local MIB databases, accessible using SNMP. 3. A network management system retrieves the data stored by each device and builds a network topology map.
2500 Series reverts to half-duplex mode. When autonegotiation-capable devices are attached to the Ethernet Routing Switch 2500 Series, the ports negotiate down from 100 Mb/s speed and full-duplex mode until the attached device acknowledges a supported speed and duplex mode.
The high speed flow control feature lets you control traffic and avoid congestion on the gigabit full-duplex link. If the receive port buffer becomes full, the Ethernet Routing Switch 2500 Series issues a flow-control signal to the device at the other end of the link to suspend transmission. When the receive buffer is no longer full, the switch issues a signal to resume the transmission.
The Rate Limiting feature lets you configure the threshold limits for broadcast and multicast packets ingressing on a port for a given time interval. The Ethernet Routing Switch 2500 Series drops any packets received above the threshold value if the traffic ingressing on the port exceeds the threshold.
CLI Basics You can manage the Ethernet Routing Switch 2500 Series with the following management tools: • Device Manager (GUI) • Web-based management system • Command Line Interface (CLI) The Ethernet Routing Switch 2500 Series Command Line Interface (CLI) is a management tool that provides methods for configuring, managing, and...
The User EXEC mode is the default mode; it is also referred to as exec. This command mode is the initial mode of access on powering-up the Ethernet Routing Switch 2500 Series. In this command mode, the user can access only a subset of the total CLI commands; however, the commands in this mode are available while the user is in any of the other four modes.
CLI commands and where they are explained. The initial command mode in CLI depends on your access level when you logged into the Ethernet Routing Switch 2500 Series: • With no password protection, you can enter the CLI in userExec mode, and use the enable command to move to the privExec command mode.
Port numbering in Standalone Mode In a Standalone Mode, the port number variable is an integer between 1 and 52 for Ethernet Routing Switch 2550 and 1 to 28 for Ethernet Routing Switch 2526. You can use the <portlist> variable in the following formats: •...
86 CLI Basics You can also use the unit/port convention with a standalone Ethernet Routing Switch 2500 Series as long as the unit number is 1. Accessing CLI You access the CLI using Telnet or through a direct connection to the switch from a terminal or personal computer (PC).
The > sign at the end of the name of the switch indicates that the default CLI mode is User EXEC mode. See (page authorized to use). Setting the system username and password You can set usernames and passwords for system access through the CLI, Telnet, and web-based management.
Function Start of line Back 1 character Abort command Delete the character indicated by the cursor End of line Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 for an for an alphabetical list of...
Change character at cursor to lowercase Move back 1 word Delete 1 word to the right Move 1 word forward Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Basic navigation 89 shows the output from the...
The reload command provides you with a configuration rollback mechanism to prevent loss of connectivity to a switch, typically for remote configurations. The reload command lets you temporarily disable the autosave feature for a specified time period (1 to 60 minutes), allowing you to make a number of configuration changes on remote switches without...
94 CLI Basics If you make an error when performing configurations in Step 2 that results in the loss of switch connectivity (for example, an error in the IP address mask, MLT configuration, or VLAN trunking), the reload command provides you with a safeguard: when the reload timer expires, the switch reboots to the last saved configuration, and connectivity is re-established.
Shutdown has blocked the flash. You can disable switch ports that are trunk members, if you choose to disable them one by one. If you choose to disable all ports of the unit or stack, the changes cannot have effect on the ports belonging to MLTs.
<1-80> Any configurations or login performed on the switch after the shutdown command is initiated are not saved to NVRAM and are lost after the reset. The shutdown command is executed in the Privileged EXEC command mode.
Figure 25 show sys-info command output To change the system contact, name, or location, see the snmp-server command (see Nortel Ethernet Routing Switch 2500 Series Security — Configuration and Management (NN47215-505)). show tech command The show tech command displays detailed system information. The...
The value for <pattern> must be a sequence of 1 to 6 bytes in hex, separated by dashes. for example: show mac-address-table port 1/1-5 address include 00-0E-45-23 Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
The default mac-address-table aging-time command sets the time that the switch retains unseen MAC addresses to 300 seconds. The syntax for the default mac-address-table aging-time command default mac-address aging-time The default mac-address-table aging-time command is executed in the Global Configuration command mode.
Getting Started with Device Manager The Java Device Manager (JDM) software is a Graphical User Interface (GUI) that lets you manage the switch. JDM (also referred to as Device Manager) provides options found in other management tools such as management of VLANs and MultiLink Trunks, and displaying and printing of statistics in graph format.
(recommended for those with limited disk space). Select Help to install only the online help. Select Custom installation to customize the features prior to installation. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Installing JDM on Windows 107...
(recommended for those with limited disk space). Select Help to install only the online help. Select Custom installation to customize the features prior to installation. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Installing JDM on UNIX or Linux 115...
In a UNIX environment, verify that the Device Manager installation directory is in your search path; then enter: ./JDM The initial Device Manager window appears. ATTENTION Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Starting Device Manager 119...
Length of each retry of each polling waiting period. When you access the device through a slow link, you may want to increase the timeout interval and then change the Retransmission Strategy to superlinear. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
SNMPv3 security criteria if this feature is enabled. You can modify this field only when configuring the Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
Device > Open Last by SNMPv3, and select an IP address from the list. Click the folder icon in the Device Manager window. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Opening a device 123...
*******).The entry is case-sensitive. Use default When selected, the Device Manager uses community the default community string. Set the strings in default community strings in Device > properties Properties. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
Field SNMPv3 Not all information is required for connection to a switch. If the v3 Enabled check box is not selected, only a Device Name, Read Community, and Write Community value are needed. If the v3 Enabled check box is not selected, only a Device Name, Read Community, and Write Community value are needed.
Opens online Help topics for Device Manager and provides a legend for the port colors in the device view. describes the toolbar buttons. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Device Manager window 127...
Selecting objects The types of objects contained in the device view are: • A standalone switch (called a unit in the menus and dialog boxes) • A port (including the SFP GBIC port) Figure 34 "Objects in the device view" (page 129) the device view.
However, the device view does not show blinking activity of the LEDs. For a full description of the LEDs for the Ethernet Routing Switch 2500 Series, see The ports on the device view are color coded to show port status.
In addition, the Help menu provides a legend that identifies the port colors and their meanings, as shown in The additional colors displayed in the Device Manager legend are not applicable to the Ethernet Routing Swith 2500 Series. Figure 36 Color port legend...
Administratively brings a port up. Administratively shuts down a port. The color of the port changes to red in the device view. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 describes the...
Exports information to a file you specify. You can then import this file into a text editor or spreadsheet for further analysis. ATTENTION Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Editing objects 133...
For information about the statistics tracked for the switch and ports, see "Statistics for single and multiple objects" (page 137) Ethernet Routing Switch 2500 Series Performance Management — System Monitoring (NN47215-502). This section describes the types of statistics and graphs available, the graph dialog boxes, and the procedure for creating a graph.
The average for the counter over the last polling interval. 135), Figure 40 "Area graph" (page 136), and Figure 42 "Pie graph" (page 137) Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Figure 136),...
Working with statistics and graphs 139 From the shortcut menu for the object, choose Graph. From the main menu, choose Graph > Chassis or Graph > Port. —End— Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
Log Scale Line Chart Area Chart Bar Chart Pie Chart Telnet session From Device Manager, you can initiate a Telnet session to the switch you are currently accessing. To Telnet to a switch: → Do one of the following: •...
The SSH connection is established only when the device is SSH capable and enabled. For more information on SSH connections, see Nortel Ethernet Routing Switch 2500 Series Security — Configuration and Management (NN47215-505). Opening the web-based management home page From the Device Manager, you can access the web-based management home page.
Web-based management home page Trap log You can configure an Ethernet Routing Switch 2500 Series to send SNMP generic traps. When the Device Manager is running, any traps received are recorded in the trap log. You set the maximum number of entries in the trap log using the Properties dialog box default number of trap log entries is 500.
(NMS), one that supports only SNMP V1 traps, you can specify the traps to be sent in V1 format. For more information about traps and trap receivers, see Nortel Ethernet Routing Switch 2500 Series Security — Configuration and Management (NN47215-505). Online Help Online Help in Device Manager is context-sensitive.
The Web pages of the web-based management interface may load at different speeds depending on the Web browser you use. In order to use the Ethernet Routing Switch 2500 Series web-based management functionality, such as downloading software, you must connect your TFTP server to an Ethernet Routing Switch 2500 Series.
MAC Address Security IGMP VLAN Spanning Tree Multilink Trunk Link Aggregation ADAC System Information Quick Start Security Logout Reset Reset to Default Help Release Notes Manuals Upgrade Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
This icon is linked to an action, for example, logout, reset, or reset to system defaults. Clicking on the Nortel logo opens the corporate home page in a new Web browser. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 shows the page displayed...
150 Using the Web-based management interface Figure 48 Console page The Console Stack Password Setting section is active only when the switch is in the stack mode. A page is composed of one or more of the following elements: •...
Text within a table that is underlined and highlighted in blue and is a hyperlink to a related management page. ATTENTION —End— Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Viewing stack information 151 ATTENTION Figure 49 152).
For more information about stack numbering, "Changing stack numbering" (page The description of the device or its subcomponent. The SFP GBICs connected to the switch. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 describes the fields on the...
The factory set description of the sub-component/GBIC. The factory set description of the sub-component/GBIC. The firmware version of the Ethernet Routing Switch 2500 Series. The version of the running software. The date of manufacture of the board in ASCII format.
Choose a new number to assign to your selected policy switch. If you leave the field blank, the system automatically selects the next available number. —End— Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Identifying unit numbers 155 ATTENTION 156).
The switch provides power discovery, power management, and statistics on power use on each port and each switch basis. You can use the Ethernet Routing Switch 2500 Series to provide power to network appliances, such as IP telephones, wireless access points, and video devices.
158 Power over Ethernet for the Ethernet Routing Switch 2526T-PWR and 2550T-PWR • "Editing and viewing switch PoE configurations using Device Manager" (page 172) Diagnosing and correcting PoE problems This section discusses some common problems in using the PoE features of the Ethernet Routing Switch 2500-PWR.
You must ensure that this setting is the correct one for the IP appliance you use with the switch. Please note this setting applies to the entire switch, not port-by-port. So, you must ensure that this setting is configured correctly for all the IP appliances on a specified switch.
Configuring PoE port parameters using the CLI You can configure power parameters for each port on the Ethernet Routing Switch 2500 PWR Series using the CLI. You enable the power and set the power limit and power priority on each port. This section covers the following topics: •...
Enter the port numbers on which you want to enable power. The default value is enabled. If you omit this parameter, the system uses the port entered with the interface FastEthernet command. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 ATTENTION...
162 Power over Ethernet for the Ethernet Routing Switch 2526T-PWR and 2550T-PWR Table 37 "poe poe-shutdown command parameters and variables" (page 162) describes the parameters and variables for the poe poe-shutdown command. Table 37 poe poe-shutdown command parameters and variables...
The default setting is low. When two ports have the same priority and one must be shut down, the port with the higher port number is shut down first. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
164 Power over Ethernet for the Ethernet Routing Switch 2526T-PWR and 2550T-PWR Table 39 poe poe-limit command parameters and variables Parameters and variables <3-16> ports Displaying PoE configuration using the CLI You display the status for the PoE configuration on the Ethernet Routing Switch 2500-PWR using the following CLI commands: •...
166 Power over Ethernet for the Ethernet Routing Switch 2526T-PWR and 2550T-PWR Table 40 show poe-port-status command parameters and variables Parameters and variables port <portlist> Figure 54 "show poe-port-status command output" (page 166) sample output from the show poe-port-status command.
Description Enter the ports for which you want to display the power measurements. If you omit this parameter, the system displays all ports. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 ATTENTION...
168 Power over Ethernet for the Ethernet Routing Switch 2526T-PWR and 2550T-PWR • "Displaying and configuring power management for the ports" (page 170) Displaying and configuring power management for the switch To display and configure power settings for the entire switch, use the...
802.3af and legacy The default is 802.3af. Ensure that the power detection method you choose for the Ethernet Routing Switch 2500 Series matches that used by the IP devices you are powering. Power Source This display-only field displays the current power supply for the switch: Present •...
170 Power over Ethernet for the Ethernet Routing Switch 2526T-PWR and 2550T-PWR Displaying and configuring power management for the ports To configure power management settings for each port, use the following procedure: Step Action From the main menu, choose Configuration > PoE Management >...
This parameter is valid only while a device is being powered. Limit (Watt) Sets the maximum amount of power supplied to that port. The range for Ethernet Routing Switch 2500 Series is 3W to 16W. The default value is 16W. Priority...
Manager You can use Device Manager to view and edit the Power over Ethernet (PoE) parameters that apply to the whole switch. You can also use Device Manager to set PoE parameters on individual ports. One PoE-related tab that is not described in this section is the Power Supply tab.
Lets you set a percentage of the total power usage of the switch above which the system sends a trap. You must enable the traps (NotificationControlEnable) to receive a power usage trap. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 describes the PoE...
174 Power over Ethernet for the Ethernet Routing Switch 2526T-PWR and 2550T-PWR Item Notification ControlEnable PowerDevice DetectType Device Manager display for PoE ports The Device Manager displays PoE ports differently than non-PoE port. ERS 2550T-PWR with PoE ports The port coloring scheme for the data aspect is the same for PoE ports as for all other ports.
ATTENTION Double-click the selected port. From the shortcut menu, choose Edit. From the Device Manager main menu, choose Edit > Port. On the toolbar, click Edit. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
System configuration using the CLI In the Ethernet Routing Switch 2500 Series, the Command Line Interface (CLI) commands lets you display and modify the switch configuration while the switch is operating. This chapter includes information about general switch maintenance, such as setting up access parameters, upgrading the software, and setting the speed.
The no ip address command clears the IP address and subnet mask. This command sets the IP address and subnet mask for a switch to all zeros (0). The syntax for the no ip address command is: no ip address The no ip address command is executed in the Global Configuration...
Displays the IP address of the default gateway. Displays the current IP address. Specifies current IP address of the switch. Displays DNS configuration. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 describes displays a sample output...
Configuring the switch IP address, subnet mask and default gateway 183 Pinging To ensure that the Ethernet Routing Switch 2500 Series has connectivity to the network, ping a device you know is connected to this network. ping command The ping command tests the network connection to another network device.
The syntax for the restore factory-default command is: restore factory-default [ -y | force] where the -y or force parameter instructs the switch not to prompt for confirmation. If the -y or force parameter is not included in the command,...
The ping command tests the network connection to another network device. The command sends an Internet Control Message Protocol (ICMP) packet from the switch to the target device. The local IP address must be set before issuing the ping command.
<A.B.C.D or Hostname> If the device receives the packet, it sends a ping reply. When the switch receives the reply, it displays a message indicating that the specified IP address is being used. If no reply is received, a message indicates that the address is not responding.
The configure network command lets you load and execute a script immediately and to configure parameters to automatically download a configuration file when you reboot the switch. The syntax for the configure network command is: configure network [load-on-boot {disable|use-bootp|use-config}] [filename <WORD>] [address...
Specifies the TFTP server from which to load the file. Enter the IP address in dotted-decimal notation. ATTENTION If you omit this parameter and do not specify BootP, the system uses the configured address. ATTENTION Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 shows the...
ASCII Configuration Generator The primary goal of the ASCII Configuration Generator (ACG) is to provide the users of the Ethernet Routing Switch 2500 Series with a tool that lets them easily modify configuration of a particular switch or stack. ACG generates an ASCII configuration file which reproduces the behavior of the current binary configuration file.
Description Signifies the IP address of the TFTP server. Denotes the filename to store configuration commands on the TFTP server. ATTENTION Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 shows the...
Sets the width of the terminal displaying characters; default 79. Description Displays general Console settings. Displays CLI mode. Displays CLI user names and passwords. Displays password types. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 displays the output from...
196 System configuration using the CLI Setting boot parameters You can reboot the switch and configure BootP. The topics covered in this section are: • "boot command" (page 196) • "ip bootp server command" (page 196) • "no ip bootp server command" (page 197) •...
You can display the IP address of the TFTP server, assign an IP address you want to use for a TFTP server, copy a configuration file to the TFTP server, or copy a configuration file from the TFTP server to the switch to use to configure the switch. This section covers: •...
Figure 66 show tftp-server command output tftp-server command The tftp-server command assigns the address for the switch to use for TFTP services. The syntax of the tftp-server command is: tftp-server <XXX.XXX.XXX.XXX> The tftp-server command is executed in the Global Configuration command mode.
Specifies filename that you want to copy the configuration file onto the TFTP server. Enter the name you want the configuration file to have on the TFTP server. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Customizing your system 199...
Customizing the opening banner You can customize the banner that appears when you connect to the Ethernet Routing Switch 2500 Series. You can customize the text that reads NORTEL. However you cannot customize the second line that reads Enter [Ctrl]+y to begin.
LINE. Description Displays default banner Displays custom banner Displays static, custom or disabled status if parameter is not entered. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Customizing your system 201 describes the...
Figure 67 show arp-table command output Displaying interfaces You can view the status of all interfaces on the switch, including MultiLink Trunk membership, link status, autonegotiation, and speed. This section contains information about the following: •...
Description Displays gbic details. Displays the interface information for specific ports Displays the interface names. Displays information about STP and EAP. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Displaying interfaces 203 displays a...
The save config command has no parameters or variables. Enabling and disabling autosave The Ethernet Routing Switch 2500 Series performs a check every 60 seconds to detect changes in the configuration file or a new log message in the nonvolatile storage. If any of these two events occurs, the switch automatically saves its configuration and the nonvolatile log to flash...
Enter the IP address of the primary NTP server. describes the parameters and variables for the sntp Description Enter the IP address of the secondary NTP server. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
Enter the NTP server you want to clear: • primary—the IP address for the primary NTP server • secondary—the IP address for the secondary NTP server ATTENTION Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
Setting local time zone SNTP uses Universal Coordinated Time (UTC) for all time synchronizations so it is not affected by different time zones. In order for the switch report the correct time for your local time zone and daylight savings time, you must use the following commands: •...
(Range: Up to 4 characters) Hours difference from UTC. (Valid Range: –12 to +12) Optional minutes difference from UTC. (Range: 0–59) Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Setting local time zone 213...
• hh:mm: time in military format, in hours and minutes <day> <month> parameters can also be entered in order: <month> <day>. Number of minutes to add during summer time (Range: -840 to 840). Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 ATTENTION...
Sets the delay for re-initialization attempt if the adminStatus is disabled. Sets the minimum delay between successive LLDP frame transmissions. Sets the interval between successive transmissions of LLDP notifications. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 describes...
Sets reinitialize delay to the default value (2). Sets transmission delay to the default value (2). Sets notification interval to the default value (5). Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Configuring LLDP using the CLI 219...
Description Specifies the ports affected by the command. describes the parameters and variables for the default lldp Description Specifies the ports affected by the command. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
System capabilities TLV System description TLV System name TLV Description Specifies the ports affected by the command. Local management address TLV Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Configuring LLDP using the CLI 221...
System capabilities TLV (default value is false: not included) System description TLV (default value is false: not included) System name TLV (default value is false: not included) Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
Enables LLDPU receive only. Enables LLDPU transmit and receive. Enables LLDPU transmit only. Description Specifies the ports affected by the command. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Configuring LLDP using the CLI 223...
Specifies the ports affected by the command. Description Displays local LLDP system data. Displays LLDP management data. Displays 802.1ab tlv in pdu. Displays LLDP statistics. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 displays...
Routing Switch 2500 Series software image, a properly configured Trivial File Transfer Protocol (TFTP) server must be present in your network, and the Ethernet Routing Switch 2500 Series must have an IP address. To learn how to configure the switch IP address, see IP addresses"...
"download command" (page 230) download command The download command upgrades the software for the Ethernet Routing Switch 2500 Series. You can upgrade both the software image and the diagnostics image. The system resets after downloading a new image. The syntax for the download command is: download [address <ip>] {image <image-name>|image-if-newer...
Figure 87 "shutdown port command output" (page 234) output from the shutdown [line <portlist>] command. You can disable switch ports that are trunk members, if you choose to disable them one by one. If you choose to disable all ports of the unit or stack, the changes can have effect on the ports belonging to MLTs.
If you omit this parameter, the system uses the port number you specified in the interface command. Description Specifies the port numbers to name. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Naming ports 235...
Specifies the port numbers to clear of names. If you omit this parameter, the system uses the port number you specified in the interface command. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 ATTENTION...
Description Specifies the port numbers to configure the speed. Enter the port numbers you want to configure. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Setting port speed 237...
Enter the port numbers you want to set. If you omit this parameter, the system uses the port number you specified in the interface command. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
If you omit this parameter, the system uses the port number you specified in the interface command. Sets duplex to: • full—full-duplex mode • half—half-duplex mode • auto—autonegotiation ATTENTION Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Setting port speed 239 describes ATTENTION...
Parameters and variables port <portlist> Enabling flow control If you use a Gigabit Ethernet with the Ethernet Routing Switch 2500 Series, you control traffic on this port using the flowcontrol command. This section covers the following commands: • "flowcontrol command" (page 240) •...
• auto—sets the port to automatically determine the flow control mode (default) • disable—disables flow control on the port Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Enabling flow control 241 ATTENTION...
Specifies the port numbers to default to auto flow control. If you omit this parameter, the system uses the port number you specified in the interface command. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 ATTENTION...
(fixed) speed and duplex value. When auto-negotiation is enabled, the advertisement made by the switch is a constant value based upon all speed and duplex modes supported by the hardware. When auto-negotiating, the switch selects the highest common operating mode supported between it and its link partner.
Enabling Custom Autonegotiation Advertisements (CANA) 245 describes the parameters and variables for the show Description Enter ports for which you want the current autonegotiation advertisements displayed. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
The no auto-negotiation-advertisements command clears all advertisements for the switch. This command is used for testing. The syntax for the no auto-negotiation-advertisements command is: no auto-negotiation-advertisements [port <portlist>] The use of this command affects traffic and brings down the link.
Specifies the hardware version number of the switch. Specifies the serial number of the switch. Specifies the base number of ports. Specifies the total number of ports. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
You cannot set the Enabled field for both multicast and broadcast TrafficeType to False at the same time. This is illegal configuration. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Viewing Unit information 251...
Select Standalone or Stacking Mode from the radio buttons to configure the operational mode of the rear ports. A switch reboot is required to the configured operational mode to take effect. The following table describes the Rear Port Mode tab items.
Viewing switch IP information You can view the switch IP information using the IP dialog box. To open the IP dialog box, use the following procedure: → From the Device Manager main menu, choose Edit > IP. The Edit IP dialog box appears with the Globals tab displayed.
Maximum number of seconds that received fragments are held while they are awaiting reassembly by the switch. Default value is 60. —End— Description The device IP address. The subnet mask address. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
IP fragmented datagrams received on this interface. —End— Description The unit and port number. The unique hardware address of the device. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Viewing switch IP information 255...
The limit on the total number of TCP connections that the entity can support. In entities where the maximum number of connections is dynamic, this object contains the value -1. —End— Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
The remote IP address for this TCP connection. The remote port number for this TCP connection. The state of this TCP connection. —End— Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Viewing switch IP information 257...
0.0.0.0 is used. The local port number for this UDP listener. —End— From the Device Manager main menu, choose Edit > Chassis. —End— Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
Click to enable or disable the auto-unit-replacement feature. The transport protocol(s) to use after the next boot of the agent. The current transport protocol(s) that the agent supports. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
The transport protocol last used to load the image and configuration information on the switch. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Editing the chassis configuration 261...
In a stack configuration, Reset only resets the base unit. The operational state of the switch. Type the physical location of the switch. The relative position of the switch. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 ATTENTION...
An example value is: 4th flr wiring closet in blg A. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Editing the chassis configuration 263 "Edit Chassis...
The allowable (and meaningful) values are determined by the component type. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 ATTENTION...
The number of base ports of the component or subcomponent. The number of ports of the component or subcomponent. The IP address of the component or subcomponent. —End— Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Editing the chassis configuration 265...
There is a reset in progress. • testing: System is doing a self test. • warning: System is operating at a warning level. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Editing the chassis configuration 267...
System is operating at error level. • fatalErr: A fatal error stopped operation. • notConfig: A module needs to be configured. The allowable values are determined by the component type. —End— Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
An error stopped the fan operation • notConfig: Fan needs to be configured. The allowable values are determined by the component type. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Editing the chassis configuration 269...
If not used, then the value is 0.0.0.0. Name of the configuration file currently associated with the interface. When not used, the value is a zero length string. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
• inProgress—the operation is in progress • success—the operation succeeds • fail—the operation failed Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Working with configuration files 273...
• inProgress—the operation is in progress • success—the operation succeeded • fail—the operation failed —End— Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Working with configuration files 275...
Specifies the number of times the switch failed to synchronize with the secondary server address, Specifies the switch’s current Coordinated Universal Time (UTC). ATTENTION Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Working with SNTP 277...
The maximum number of entries in the NMM topology table. The current number of entries in the NMM topology table. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
The current state of the sender of the topology message. The choices are: • topChanged—Topology information has recently changed. • heartbeat—Topology information is unchanged. • new—The sending agent is in a new state. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
An NMS must periodically check the value of lldpStatsRemTableLastChangeTime to detect any missed lldpRemTablesChange notification-events, for example, due to throttling or transmission loss. If notification Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
If the failure is the result of a lack of resources, the lldpStatsRemTablesDrops counter is incremented once. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
(aged out) from all related tables. Partial aging, similar to deletion case, is not allowed, and thus, does not change the value of this counter. —End— Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
LLDP frames on this port. If the port receives remote systems information which is stored in other tables before AdminStatus is disabled, the information ages out. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
• sysName: System Name TLV • sysDesc: System Description TLV • sysCap: System Capabilities TLV The Local Management tab controls Management Address TLV transmission. —End— Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 ATTENTION...
LLDP agent in the sending system, or that LLDPDU validation problems exist with the local LLDP agent in the receiving system. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
(aged out) from all related tables on a particular port. Partial aging is not allowed, and thus, does not change the value of this counter. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
The type of port identifier encoding used in the associated PortId object. • interfaceAlias • portComponent • macAddress • networkAddress • interfaceName • agentCircuitId • local. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
IETF RFC 2863, the PortDesc object has the same value as the ifDescr object. —End— Description The type of management address identifier encoding used in the associated Addr object. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
Identifies the ports on which the local system management address TLVs are transmitted in the LLPDUs. —End— Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
The type of encoding used to identify the remote system chassis: • chassisComponent • interfaceAlias • portComponent • macAddress • networkAddress • interfaceName • local. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
The type of encoding used to identify the remote port. • interfaceAlias • portComponent • macAddress • networkAddress • interfaceName • agentCircuitId • local Remote port ID. Remote port description. —End— Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
The value used to identify the type of hardware component or protocol entity associated with the management address advertised by the remote system agent. —End— Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
The value extracted from the type field of the unknown TLV. The value extracted from the value field of the unknown TLV. —End— Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
(OUI), as defined in IEEE 802-2001, is a 24 bit (three octets) globally unique assigned number referenced by various standards, of the information received from the remote system. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
The string value used to identify the organizationally defined information of the remote system. The encoding for this object is the same as that defined for SnmpAdminString TC. —End— Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
Double-click on the selected port. From the Device Manager main menu, choose Edit > Port. From the shortcut menu, choose Edit. From the toolbar, click Edit. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
Specifies whether linkUp/linkDown traps should be generated for this interface. Indicates whether this port is enabled for autonegotiation or not. The current administrative duplex mode of the port (half or full). Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
From the shortcut menu, choose Edit. From the Device Manager main menu, choose Edit > Port. From the shortcut menu, choose Edit. From the toolbar, click Edit. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
If the current state was entered prior to the last reinitialization of the local network management subsystem, the value is zero. Specifies whether linkUp/linkDown traps should be generated for this interface Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
Only one shared port may be active at a time. Specifies the physical port components that are active for a shared port. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
"Logging out of the management interface" (page 316) Viewing system information You can view an image of the Ethernet Routing Switch 2500 Series, information about the host device and, if provided, the contact person or manager for the switch. The System Information page is also the web-based management interface home page.
Quick Start The Quick Start feature lets the administrator of the Ethernet Routing Switch 2500 Series make the initial setup by consolidating multiple setup pages into a single page. The Quick Start screen allows the administrator to configure the following information: •...
While rebooting, the switch initiates a self-test that comprises various diagnostic routines and subtests. The LEDs display various patterns to indicate that the subtests are in progress. To reboot the Ethernet Routing Switch 2500 Series without making changes (since your last Submit request): Step Action From the main menu, choose Administration >...
During the process of changing to default settings, the switch initiates a self-test that comprises various diagnostic routines and subtests. The LEDs display various patterns to indicate that the subtests are in progress. To change the Ethernet Routing Switch 2500 Series to system defaults: Step Action From the main menu, choose Administration >...
BootP process, change the BootP request mode to any of the three following modes: BootP or Default IP, BootP Always, or to BootP or Last Address. XXX.XXX.XXX.XXX XXX.XXX.XXX.XXX Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Description memory, each time the switch boots.
The factory set description of the hardware and software versions. The character string that the vendor created to uniquely identify this device. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Modifying system settings 323...
Click Submit. Configuring switch port status You can use the Port Management page to configure a specific switch port or all switch ports to autonegotiate for the highest available speed of the connected station or you can set the speed for selected switch ports.
Lets you manually configure any port to support a specific Ethernet speed and duplex setting. The default setting is 10 Mbs/Half when autonegotiation is disabled and 1000 Mb/s full-duplex for gigabit ports only. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 ATTENTION...
Configuring high speed flow control You can view the High Speed Flow Control parameters for Ethernet Routing Switch 2500 Series in this page. To configure high speed flow control, use the following procedure: Step Action From the main menu, choose Configuration > High Speed Flow Control.
Series software image, a properly configured Trivial File Transfer Protocol (TFTP) server must be present in your network, and the Ethernet Routing Switch 2500 Series must have an IP address. To learn how to configure the switch IP address, see...
1..30 XXX.XXX.XXX.XXX Software Image Diagnostics Software Image If Newer Download without reset —End— Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Downloading switch images 329 Description The version of the current running software. The local version of the software in the flash memory.
Downloading ASCII configuration files The ASCII Config Download feature lets you upload an ASCII configuration file from a personal computer to the Ethernet Routing Switch 2500 Series. In the current implementation, you require a TFTP server to upload an ASCII configuration file to the Ethernet Routing Switch 2500 Series.
To store a switch configuration, you must set up the file on your TFTP server and set the filename read/write permission to enabled. To download the Ethernet Routing Switch 2500 Series configuration file, a properly configured TFTP server must be present in your network, and the Ethernet Routing Switch 2500 Series must have an IP address.
If you choose Yes, the download process begins immediately and, when completed, causes the switch to reset with the new configuration parameters. Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
The Configuration File feature can only be used to copy standalone switch configuration parameters to other standalone switches. • A configuration file obtained from a standalone switch can only be used to configure other standalone switches that have the same firmware revision and model type as the donor standalone switch.
(in packets/second). If the configured threshold exceeds on a port, the switch drops extra packets received. No SNMP trap or syslog is generated in case of congestion.
The port number that corresponds to the selected switch or stack. Select the type of packet: Multicast, Broadcast, or Both. Configure the threshold limit for the selected type of packet. —End— Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
Diagnosing and correcting problems Before you execute the problem-solving steps described in this section, cycle the power to the Ethernet Routing Switch 2500 Series (disconnect and then reconnect the AC power cord); then verify that the switch follows the normal power-up sequence.
Normal power-up sequence In a normal power-up sequence, the LEDs appear as follows: 1. After power is applied to the switch, the Pwr (Power) LED turns on within 5 seconds. 2. The switch initiates a self-test, during which the port LEDs display various patterns to indicate the progress of the self-test.
40 C (104 F). Do not place the switch in areas where it can be exposed to direct sunlight or near warm air exhausts or heaters. "Port connection problems" (page Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 ATTENTION 339).
• If the autonegotiation feature is not present or not enabled at the connected station, the Ethernet Routing Switch 2500 Series may not be able to determine the correct duplex modes. In both situations, the Ethernet Routing Switch 2500 Series "autosenses"...
Signal Carrier detect (not used) Transmit data (TXD) Receive data (RXD) Data terminal ready (not used) Signal ground (GND) Not used Request to send (not used) Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
Reset Count increases and is equal to the number of times the switch restarted from the last flash memory erase.) Power Cycle Zero-length string Zero-length string Zero-length string Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
1 to 6 (depending on configuration status) Blank field Normal Basic Disabled Trunk #1 to Trunk #6 Rx and Tx Disabled Zero-length string Zero-length string 0 pps Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Appendix B Default settings 345...
1 minute 15 minutes First field: 0.0.0.0 (no IP address assigned) Remaining nine fields: 255.255.255.255 First field: 0.0.0.0 (no IP address assigned) Remaining nine fields: 255.255.255.255 Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007...
(no IP address assigned) Zero-length string 0.0.0.0 (no IP address assigned) Zero-length string 0.0.0.0 Passed Passed Disabled Stacking Mode Standalone Mode Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Appendix B Default settings 349...
"no banner command" (page 202) "no clock summer-time" (page 214) "no clock time-zone" (page 213) "no command" (page 90) Nortel Ethernet Routing Switch 2500 Series Security — Configuration and Management (NN47215-505) "no autotopology command" (page 216) "no ip address command" (page 179) "no ip bootp server command"...
Series Configuration — Quality of Service (NN47215-504) Nortel Ethernet Routing Switch 2500 Series Configuration — Quality of Service (NN47215-504) Nortel Ethernet Routing Switch 2500 Series Security — Configuration and Management (NN47215-505) Nortel Ethernet Routing Switch 2500 Series Security — Configuration and Management (NN47215-505) "rate-limit command"...
[<portlist>] show spanning-tree rstp port statistics [<portlist>] Nortel Ethernet Routing Switch 2500 Series show spanning-tree rstp port status [<portlist>] show spanning-tree rstp statistics show spanning-tree rstp status...
2526T 2550T Maximum 0.8 A Maximum 96 W 327 Btu/h maximum Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration 4.1 19 November 2007 Storage specification -40 to 70 C (-40 to 158 F) 5 to 95% maximum relative...
Ethernet port management 77 Ethernet Routing Switch 2500 front panel 23 exit command 92 Export Data button 133, 138 external power source 169 Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration NN47215-500 (323162-B) 02.02 Standard 4.1 19 November 2007 Index 381...
NmmMaxNum field 280 no auto-negotiation-advertisements command 247 no autosave enable command 207 no autotopology command 216 no banner command 202 Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration NN47215-500 (323162-B) 02.02 Standard 4.1 19 November 2007 Index 383...
324 port color legend 131 port communication speed, configuring 334 port configurations PoE 170 port connections, troubleshooting 339 Port field 281, 309 Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration NN47215-500 (323162-B) 02.02 Standard 4.1 19 November 2007...
field 260 system default settings, resetting to 316 System Description field 152, 323 system information 96, 97 System Information page 311 Nortel Ethernet Routing Switch 2500 Series Overview — System Configuration NN47215-500 (323162-B) 02.02 Standard 4.1 19 November 2007 Index 387...
Sourced in Canada, India, and the United States of America The information in this document is subject to change without notice. Nortel Networks reserves the right to make changes in design or components as progress in engineering and manufacturing may warrant.
Need help?
Do you have a question about the 2500 Series and is the answer not in the manual?
Questions and answers
