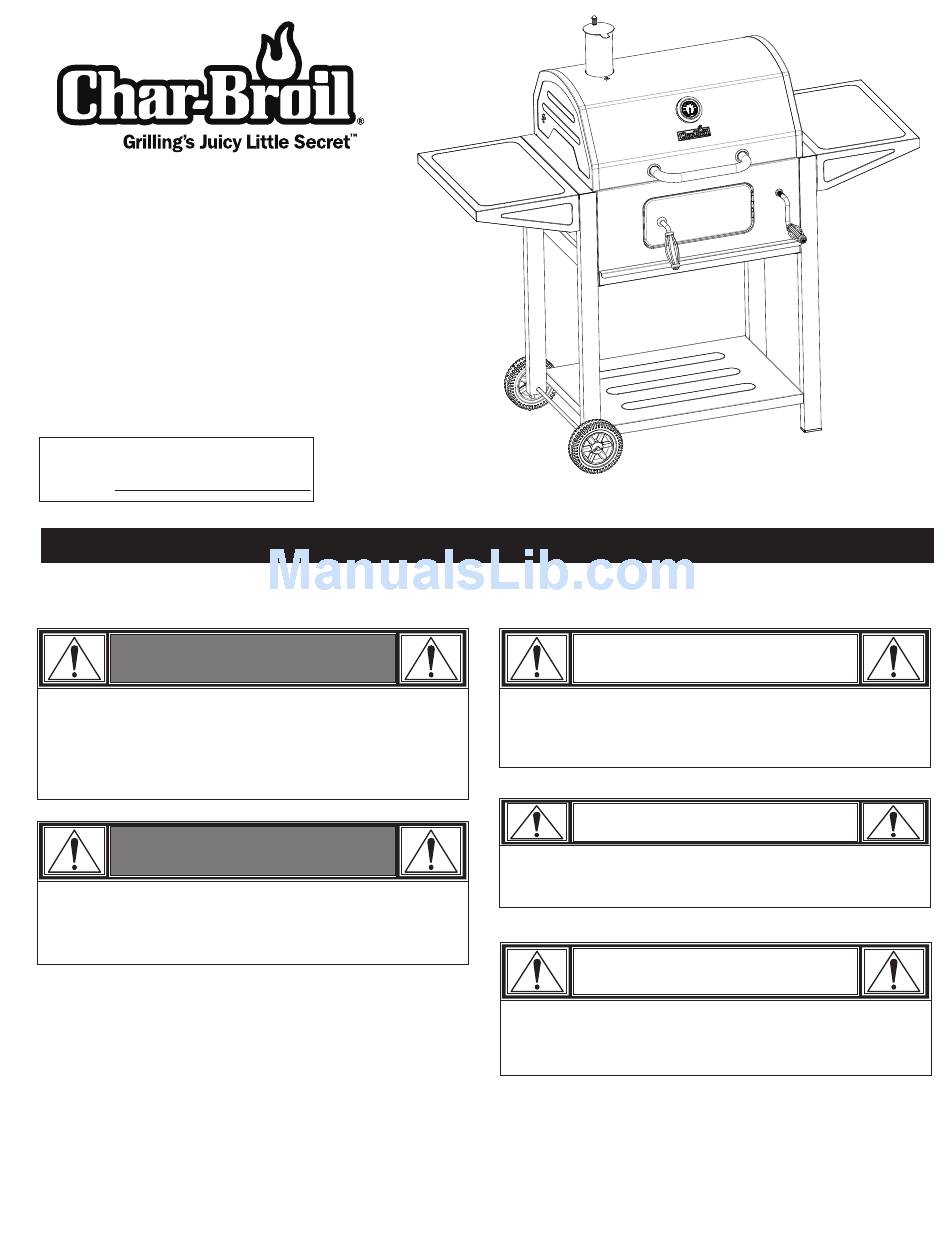

Charcoal Grill 590

Product Guide
Model 13301866
Tools needed for assembly:
Phillips Screwdriver
Adjustable Wrench
IMPORTANT: Fill out the product record information below.
Date Purchased
WARNING
CARBON MONOXIDE HAZARD
Burning charcoal inside can kill you. It gives off carbon
monoxide, which has no odor. NEVER burn charcoal
inside homes, vehicles, or tents.
WARNING
Failure to follow all manufacturer's instructions could
result in serious personal injury and/or property
damage.
INSTALLER/ASSEMBLER:
Leave this manual with consumer.
CONSUMER:
Keep this manual for future reference.
FOR OUTDOOR USE ONLY
© 2013 Char-Broil, LLC
CAUTION
Read and follow all safety statements, assembly
instructions, and use and care directions before
attempting to assemble and cook.
CAUTION
Some parts may contain sharp edges! Wear
protective gloves if necessary.
CAUTION
THIS UNIT IS HEAVY! DO NOT attempt to assemble
without a helper.
• Columbus, GA 31902 •
Printed in China
42805001 - 10/16/12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 13301866 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Char-Broil 13301866

Summary of Contents for Char-Broil 13301866

  • Page 1: Product Record Information

    INSTALLER/ASSEMBLER: THIS UNIT IS HEAVY! DO NOT attempt to assemble Leave this manual with consumer. without a helper. CONSUMER: Keep this manual for future reference. © 2013 Char-Broil, LLC • Columbus, GA 31902 • Printed in China 42805001 - 10/16/12...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARNING Product Record Information ......1 FAILURE TO READ AND FOLLOW INSTRUCTIONS FOR Safety Symbols.

  • Page 3: Preparing To Use Your Grill

    Re-season your grates frequently, particularly when new. If rust occurs, it is an indication that the grates have not been seasoned enough or the seasoning has been burned off. Clean with a heavy brush like Char-Broil’s Brush Hawg. Reapply vegetable shortening and heat as indicated above to re-season the grates.

  • Page 4: Cooking Tips

    COOKING TIPS Building Your Fire Stack charcoal briquettes or wood into a pyramid-shaped pile on top of the charcoal grate. We recommend using 2 pounds (approximately 30 briquettes) to start your fire, adding more as needed. If using lighter fluid, saturate the charcoal briquettes with lighter fluid and let it soak in for approximately 5 minutes.
  • Page 5 Direct and Indirect Grilling Direct Grilling - For most grilling, the ignited coals are spread in a single layer under the food. This is called direct grilling and is appropriate for relatively quick-cooking items such as hamburgers, steaks and most seafood. The single layer of coals emits even, steady heat, whether the grill lid is open or closed, and represents the way most people grill.

  • Page 6: Limited Warranty

    2. The service calls at home, unless local regulations specify otherwise in which case local regulations will override the one described here. In markets where there is no distributor or an authorized reseller Char-Broil consumers bear these costs themselves. 3. Repairs when your product is used for other than normal, single-family household or residential use.

  • Page 7: Parts List

    PARTS LIST Key Qty Description LID ASSEMBLY UPPER HINGE, F/ LID LOWER HINGE, F/ LID BUMPER, F/ LID LID HANDLE HANDLE SEAT LOGO PLATE TEMPERATURE GAUGE, W/ BEZEL SWING-AWAY GRATE COOKING GRATE AIR DAMPER LEFT LEG, SHORT END CAP, F/ LEG RIGHT LEG, LONG BOTTOM SHELF AXLE...

  • Page 8: Parts Diagram

    PARTS DIAGRAM Page 8...

  • Page 9: Assembly

    ASSEMBLY STEP 1 Attach front and rear panels to end panels using 8 1/4-20x1/2” machine screws and 1/4-20 flange nuts. 1/4-20x1/2" MACHINE SCREW 1/4-20 FLANGE NUT 1/4-20x1/2’’ Rear Panel Machine Screw Qty.8 1/4-20 Flange Nut Qty.8 Front Panel (With door) STEP 2 Attach damper to the outside of exch end panel with 1/4-20x1/2”...
  • Page 10 STEP 3 Attach short legs (with holes for axle) to left end firebox assembly as shown with 4 1/4-20x1/2” machine screws. Attach long legs (with no axle holes) to right end of firebox assembly as shown with 2 1/4-20x1/2” machine screws. 1/4-20x1/2"...
  • Page 11 STEP 5 Insert 1 hitch pin into hole in axle. Place 1 wheel over axle and then insert through holes in ends of legs. Place other wheel over axle and secure with hitch pin. Hitch Pin Qty.2 HITCH PIN CLIP STEP 6 Install charcoal door handle by placing bezel over handle.
  • Page 12 STEP 7 A - Insert pivot rod assembly into slots in the right and left charcoal pan adjustment assemblies. IMPORTANT: Note orientation as shown. B - Position pivot assembly and charcoal pan adjustment assemblies on charcoal pan. Insert pivot pin, 2 each side.
  • Page 13 STEP 9 Screw crankshaft handle assy into crankshaft bushing as shown and secure with hitch pin clip. Hitch Pin Qty.1 HITCH PIN CLIP STEP 10 Slide ash drawer into grill under firebox. Page 13...
  • Page 14 STEP 11 Attach lower hinges to back of firebox using (4) 1/4-20x1 5/8” machine screws, 1/4” flat washesr, and 1/4” lock washers. FLAT WASHER LOCK WASHER 1/4-20x1-5/8’’ Machine Screw Qty.4 1/4-20x1 5/8" MACHINE SCREW 1/4'’ Flat Washer Qty.4 1/4'’ Lock Washer Qty.4 STEP 12 Attach left side shelf with (4) 1/4-20x1/2”...
  • Page 15 Attach upper hinges to lid with (4) 1/4-20x1 5/8” machine screws, flat washers, lock washers and 1/4- STEP 13 20 flange nuts. Attach handle and bezels to lid with (2) 1/4-20x1/2” machine screws. 1/4-20x1/2" 1/4-20x1/2’’ MACHINE SCREW Machine Screw 1/4-20 FLANGE NUT Qty.2 LOCK WASHER FLAT WASHER...
  • Page 16 STEP 15 Attach smokestack damper by placing over stud on smokestack. Then place spring over stud and secure with 1/4- 20 cap nut. Attach temperature indicator with wing nut removed for indicator. SPRING Spring 5/16 CAP NUT Qty.1 STEP 16 Place lid on top of grill.
  • Page 17 STEP 17 Insert straight wire of swingaway grid into one side of lid and then into the other side. Insert angled wire into holes in firebox. Secure with (2) hitch pin clips into holes in straight wire located outside of lid end caps.

  • Page 18: Hardware List

    HARDWARE LIST Hardware is shown actual size. You may have spare hardware after assembly is complete. Name Picture 17 pcs 1/4-20 FLANGE NUT 1/4-20x1/2" MACHINE 34 pcs SCREW 4 pcs 1/4-20x1/2" HEX BOLT 1/4-20x1 5/8" MACHINE 8 pcs SCREW 1 pc 5/16 CAP NUT 1 pc SPRING...
  • Page 19 Page 19...
  • Page 20 Authorized Distributors List If you have a question or need help during assembly, call: Chile Colombia ZAPFSA Bar BQ Center Ltda Calle 12 # 30-126 OFC 102 Av. Las Condes 7633 Edificio Blux Las Condes, Santiago, CHILE Medellin-Colombia Tlf. 562 245 4878 Tlf 574-448-0451 / 316-4860 Correo: bbq@barbecuecenter.cl Fax 574-268-7130...
