INSTALLER/CONSUMER
SAFETY INFORMATION
PLEASE READ THIS MANUAL
BEFORE INSTALLING AND
USING APPLIANCE
WARNING!
IF THE INFORMATION IN THIS
MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE OR
EXPLOSION MAY RESULT
CAUSING PROPERTY
DAMAGE, PERSONAL INJURY
OR LOSS OF LIFE.
FOR YOUR SAFETY
Installation and service must
be performed by a qualified
installer, service agency or
the gas supplier.
WHAT TO DO IF YOU SMELL
GAS:
•
Do not try to light any
appliance.
•
Do not touch any electric
switch; do not use any phone
in your building.
•
Immediately call your gas
supplier from your neighbor's
phone. Follow the gas
suppliers instructions.
•
If you cannot reach your gas
supplier call the fire
department.
DO NOT STORE
OR USE GASOLINE OR
OTHER FLAMMABLE VAPORS
AND LIQUIDS IN THE VICINITY
OF THIS OR ANY OTHER
APPLIANCE.
INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER

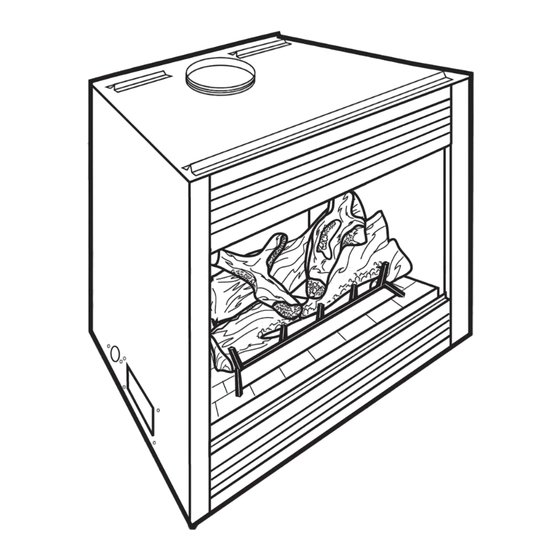

Decorative Gas Appliance
Models: NV360
NV580
Homeowner's Installation and
Operating Manual
Vermont Castings, Majestic Products
410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777
www.majesticproducts.com • www.vermontcastings.com
3565
C E RT I F I E D
20003565 12/02 Rev. 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Majestic NV360
Summary of Contents for Majestic NV360
-
Page 1: Safety Information
OF THIS OR ANY OTHER C E RT I F I E D APPLIANCE. Vermont Castings, Majestic Products 410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777 www.majesticproducts.com • www.vermontcastings.com INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER... -
Page 2: Table Of Contents
Vermont Castings Majestic Products NV360/580 Series Table of Contents Thank you and Congratulations on your purchase of a Vermont Castings, Majestic Products fireplace. PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING THE APPLIANCE IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible fire hazard and will void the warranty. -
Page 3: Installation & Operating Instructions
6. Control compartments, burners and air passages in It is not unusual for your Vermont Castings Majestic this fireplace should be kept clean and free of dust Products Company gas fireplace to give off some and lint. Make sure the gas valve and pilot light are odor the first time it is burned. -
Page 4: Fireplace Dimensions
Vermont Castings Majestic Products NV360/580 Series Fireplace Dimensions Rough Opening Depth Recessed Nailing Flange T - Rough Opening Width Rough Opening Height Outside Air Gas Line Access Electrical Access 3565a Fig. 1 Fireplace specifications and framing dimensions. Ref. NV360 NV580 41”... -
Page 5: Clearance To Combustibles
Vermont Castings Majestic Products NV360/580 Series Clearance to Combustibles Appliances Top .......... 0” (0mm) Bottom ........0” (0mm) Side ......... 0” (0mm) Back ......... 0” (0mm) Perpendicular Sidewall .... 0” (0mm) Top of unit to ceiling ....36” (914mm) Front of unit to combustibles ... 36” (914mm) -
Page 6: Framing & Finishing
Vermont Castings Majestic Products NV360/580 Series Framing and Finishing Gas Inlet & Manifold Pressures Natural Check fireplace to make sure it is lev- Minimum Inlet Pressure 5.5” w.c. 11.0” w.c. elled and properly positioned. Maximum Inlet Pressure 14.0” w.c. 14.0” w.c. -
Page 7: Remote Switch Installation
Thermopile ing this procedure. The EB-1 electrical junction box has been supplied standard on the NV360/580 models to allow for the easy installation of an optional fan kit. To connect the EB-1 box to the house electrical supply, follow the steps below: 1. -
Page 8: Install The Venting System, Flashing And Termination
Install the Venting System, Flashing INSIDE ELECTRICAL BOX and Termination NOTE: The NV360 uses a 6” B-vent system. The NV580 uses an 8” B-vent system (refer to Accessories, Page 25, for adapter). Refer to venting installation instructions provided by the B-vent manufacturer. -
Page 9: Venting Runs
Vermont Castings Majestic Products NV360/580 Series Venting Runs Horizontal Run (in feet) 9 10 11 12 = Acceptable venting configuration = Unacceptable venting configuration A: Vertical installations up to 40 feet (12m) in height. Up to an 8 ft. horizontal vent run can be... -
Page 10: Operating Instructions
Vermont Castings Majestic Products NV360/580 Series Operating Instructions Glass Information Glass Frame Only glass approved for use in Majestic Fireplaces products may be used for replacement. Fireplace Front • The use of any non-approved replacement glass will void all product warranties. -
Page 11: Ember Material Placement
Fig. 13 Flame adjustment knob for Honeywell valve. Ember Material Turn counterclockwise Turn clockwise to increase to decrease Log Front flame height Left flame height Lava Rock HV116 LG119 Fig. 14 Flame adjustment knob for SIT 820 valve. Fig. 12 NV360 log and ember placement. 20003565... -
Page 12: Flame Characteristics
Vermont Castings Majestic Products NV360/580 Series Test Chimney Draw Flame Characteristics A "Chimney Draw" test must be made before the It is important to periodically perform a installation is complete. visual check of the pilot and the burner 1. Close all doors and windows in the home and start flames. -
Page 13: Lighting & Operating Instructions
Vermont Castings Majestic Products NV360/580 Series Lighting And Operating Instructions FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. -
Page 14: Vent Safety Switch
Vermont Castings Majestic Products NV360/580 Series Vent Safety Switch Electrical Connection This fireplace incorporates the use of a Vent Safety The sensor is wired in series between the wall mounted Shut-off Switch. The sensor and wiring are factory “ON/OFF” switch and the Electronic Ignition Module installed and should not be removed or altered during (Fig. -
Page 15: Troubleshooting
Vermont Castings Majestic Products NV360/580 Series Troubleshooting Honeywell VS8421 Remove glass door before service work START CHECK • Supply Line Hooked Up Gas Supply On • Shut off Valve Open • Lockout Has Engaged. Wait 60 Seconds And Try Again. - Page 16 Vermont Castings Majestic Products NV360/580 Series Troubleshooting the Gas Control System SIT NOVA 820 MILLIVOLT VALVE Note: Before trouble shooting the gas control system, be sure external gas shut off is in the “ON” position. WARNING: BEFORE DOING ANY GAS CONTROL SERVICE WORK, REMOVE GLASS FRONT.
-
Page 17: Fuel Conversion Procedure
Replace shutter retaining screw. For conversion to Honeywell Valve Only Natural Gas adjust new air shutters so slots are This conversion is for the NV360/580 equipped with a covered. For conversion to Propane Gas, adjust new Honeywell valve only. Before proceeding, turn control air shutters so slots are open. -
Page 18: Replacement Of Ceramic Hearth Panels
Vermont Castings Majestic Products NV360/580 Series 13. Remove pilot hood by lifting up. (Fig. 26) Replacement of Ceramic Hearth Panels 14. Remove pilot orifice with allen wrench. (Fig. 27) 15. Install LP pilot orifice. 1. Turn unit OFF. NOTE: Be sure unit is cool. -
Page 19: Replacement Parts
Vermont Castings Majestic Products NV360/580 Series Maintenance Burner and Burner Compartment To obtain proper operation, it is imperative that the pilot and burner’s flame characteristics are steady, not lifting It is important to keep the burner and the burner or floating. - Page 20 DV580 DV360 21a-d 34a/b 23 a/b 24 a/b 3565 Vermont Castings, Majestic Products reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. NV360/580 Ref. Description NV360 NV580 Log Set...
- Page 21 Vermont Castings Majestic Products NV360/580 Series NV360/580 (continued) Ref. Description NV360 NV580 Ceramic tile (single) 57803 57803 Manifold Assembly 10000765 10000765 Ceramic Hearth Panel (Left) 20002274 20002322 Ceramic Hearth Panel (Right) 20002275 20002323 Ceramic Panel (Rear) 20002273 20002319 10a. Ceramic Panel (Left Side)
-
Page 22: Optional Accessories
Vermont Castings Majestic Products NV360/580 Series Optional Accessories Available Method A Fan Kits Route the 6’ (1.8m) lead fitted to the unit to a con- FK12 Fan Assembly veniently located wall socket. Method B 1. Open lower louvre. If the EB1 receptacle box (Pt. #ZA1200) was cor- 2. - Page 23 Vermont Castings Majestic Products NV360/580 Series Remote Controls Optional remote control units are available to control Rear Ceramic Panel different functions of the appliance. Back of Firebox Model Function/s Controlled MRC1 “ON/OFF” MRC2 “ON/OFF” and Temperature MRC3 “ON/OFF” and Temperature control...
-
Page 24: Limited Lifetime Warranty
LIMITED LIFETIME WARRANTY PRODUCT COVERED BY THIS WARRANTY All Vermont Castings gas stoves, gas inserts, and gas fireplaces, and all Majestic or Northern Flame brand gas fireplaces equipped with an Insta-Flame Ceramic Burner, or standard steel tube burner. BASIC WARRANTY •...
