Underwriter's Laboratories Report No. MH6018
DO NOT DISCARD THIS MANUAL: Retain for future use.

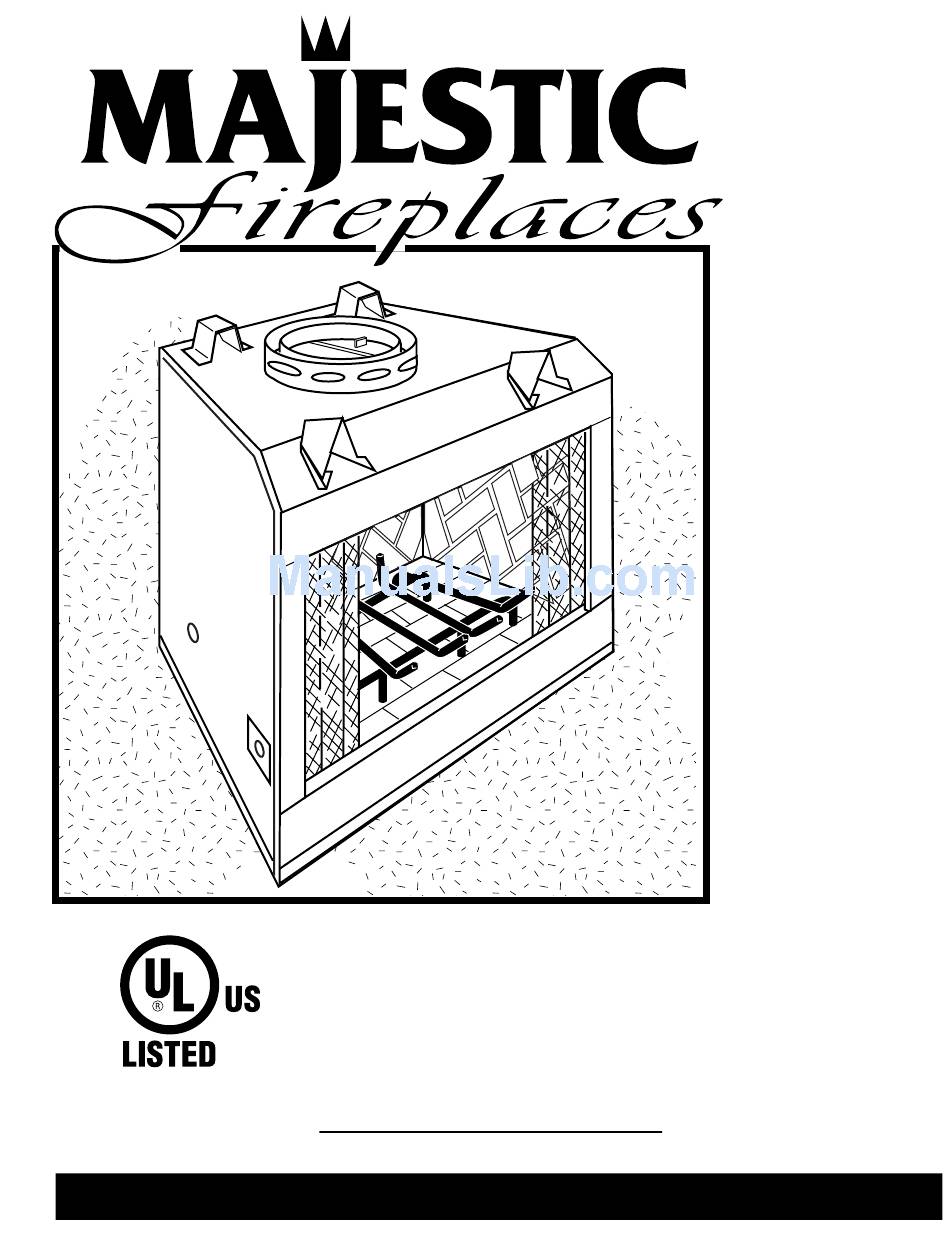

SHR Series
Woodburning Fireplace
Homeowner's Installation & Operating Manual
CFM Specialty Home Products
410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777
www.majesticproducts.com • www.vermontcastings.com
™
For Models:
SHR36
SHR42A
SHR48
SHR52
20001384 7/04 Rev. 13
Advertisement
Table of Contents
Related Manuals for Majestic SHR36
Summary of Contents for Majestic SHR36
-
Page 1: Woodburning Fireplace
™ For Models: SHR36 SHR42A SHR48 SHR52 SHR Series Woodburning Fireplace Homeowner's Installation & Operating Manual Underwriter's Laboratories Report No. MH6018 CFM Specialty Home Products 410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777 www.majesticproducts.com • www.vermontcastings.com DO NOT DISCARD THIS MANUAL: Retain for future use. -
Page 2: Table Of Contents
(except for chase flashings as detailed in the Chimney Top installation instructions). SHR36 / SHR42A / SHR48 / SHR52 Listed • Installation other than as instructed by CFM Specialty Home Products;... -
Page 3: Specifications And Framing
(914mm) 13³⁄₄" 7⁷⁄₁₆" (349mm) 7³⁄₄" (189mm) (197mm) 14¹⁄₂" Gas Line Access 46¹⁄₄" (1175mm) (368mm) FP526A Fig. 1 SHR36 Series specifications and framing. SHR42A Series Woodburning Fireplace 32¹⁄₂" (826mm) ³⁄₄" (19mm) Rough Opening Depth 13³⁄₈" Dia. 65¹⁄₈" (1654mm) 10¹⁄₂" (340mm) (267mm) 29¹⁄₄"... - Page 4 SHR Series Woodburning Fireplace SHR48 Series Woodburning Fireplace 41" (1041mm) ³⁄₄" (19mm) Rough Opening Depth 13³⁄₈" Dia. 10³⁄₈" 66³⁄₈" (1686mm) (340mm) (264mm) 26³⁄₄" (680mm) 11" Dia. ³⁄₄" ³⁄₄" (279mm) Rough Opening Width 59³⁄₄" (1518mm) Rough Opening Height ³⁄₄" 12¹⁄₂" (318mm) 28¹⁄₂"...
-
Page 5: Parts Identification
SHR Series Woodburning Fireplaces Chase Installation Insulation methods shown are optional for cold climate, not a requirement for unit operation. Termination Cap Storm Collar Pan Flashing Batt Insulation (cut out around firestop) Draftstop Firestop Ceiling Level Ledge Bracket Surround Damper Control Gas Line Knockout Gas Line Access (both sides) -
Page 6: Chimney Requirements
74¹⁄₄" 134¹⁄₂" the hearth to the chimney exit. 0 1 1 2 2 78" 140³⁄₄" E. A chimney support (Model 11CS) is SHR36 SHR42A SHR48 SHR52 0 0 3 1 2 81" 146" required every 6 feet of angled run of Max.:... -
Page 7: Planning Information
SHR Series Woodburning Fireplaces Planning Information Preplanning an installation is very important to ensure The Ten Foot Rule safety and to save time and money. An installer must predetermine where a fireplace will be set and how the Major U.S. building codes specify a minimum chimney chimney system will be run. -
Page 8: Installation
If you need help in determining fireplace location or how then be installed above sheeting material to assure the chimney system should be run, contact your the space around the fireplace is totally protected. Majestic Fireplaces dealer for assistance. (Fig. 5) Insulating Fireplace CAUTION: WHEN INSTALLING A FIREPLACE IN AN INSULATED ENCLOSURE, BE SURE ALL REQUIRED AIR SPACES ARE MAINTAINED. - Page 9 SHR Series Woodburning Fireplaces Rear Firebrick Brick Retainer Hard, Flat Surface Side Firebrick Front Notch FP1234 Fig. 11 SHR52 Firebrick installation. 3. Slide the rear firebrick back into the left corner behind the end of the left firebrick. Push both panels Insulation back as far as possible into the left side and corner.
- Page 10 SHR Series Woodburning Fireplace CAUTION: REPORT TO YOUR DEALER ANY PARTS Chimney Centerline DAMAGED IN SHIPMENT, SPECIFICALLY CHECK THE END CONNECTION OF CHIMNEY SECTIONS Actual Centerpoint AND ELBOWS. 11¹⁄₈" NOTE: SHR Series Fireplaces must use CFM Corpora- tion model 11CF, 11 inch, 2 wall chimney systems. The installation procedure described in this manual applies only to the 11CF system, chimney components may not be mixed.
- Page 11 SHR Series Woodburning Fireplaces The inside dimension of the frame must be the same as the hole size selected from Figure 11 in order to provide the required 2 inches of air space between the outside diameter of the chimney and the edges of the framed ceiling hole.
- Page 12 SHR Series Woodburning Fireplace Installing the Chimney System Pipe Section Start by attaching the first chimney section to the collar on top of the fireplace. Pipe Install the pipe as pictured in Figure 18. When you get a good lock, you will hear the pipe clearly snap Lance together.
- Page 13 SHR Series Woodburning Fireplaces Firestop spacers are not available for, nor are they Cut and Frame Roof Hole required on, vertical walls. Size of roof hole varies with the type of chimney The chimney components (CF11) used on the SHR termination installed.
- Page 14 SHR Series Woodburning Fireplace Installing Top Housing or Termination Air Space Clearances Combustible framing material MUST NOT Follow the installation instructions provided with the penetrate AIR SPACE (shaded areas) chimney termination you have selected. Installing Chimney in a Chase Refer to Page 5, Figure 4 for an illustration of a typical 2"...
- Page 15 SHR Series Woodburning Fireplaces Mantel Clearance - Mantel Clearance - No Noncombustible Facing Material with Noncombustibel Facing Material Combustible 12" 12" Mantel and Trim (305mm) (305mm) Combustible Mantel Finished Wall Finished Wall Max. Max. and Trim Header Header 1¹⁄₂" 1¹⁄₂" Ledge Bracket Ledge Bracket 12"...
- Page 16 SHR Series Woodburning Fireplace Stud Finished Wall 2 x 4 Finished Noncombustible Header Decorative Facing Covered Wall CAUTION: Do Not Screen Rail Place Finishing Must be Sealed with Ledge Bracket Material Beyond Noncombustible These Edges or Material Cover Air Inlets Hearth Surround FP1167...
- Page 17 SHR Series Woodburning Fireplaces The top of insulation must be covered with a noncom- Side Wall Protection bustible decorative covering or a piece of .018” mini- Adjacent combustible side walls that are within dimen- mum sheet metal, to protect hearth extension material. sions shown in Figure 29 of fireplace opening must be (Fig.
- Page 18 Insulation must overlap Floor Minimum height and width is 40" x 40". ¹⁄₂" minimum Value "R": ** Dimension/degree of angle will vary depending on thickness of noncombustible surround facing. SHR36 20" 12" 35° 42° 18" 14" 8" 16"...
- Page 19 SHR Series Woodburning Fireplaces pipe. Material should be inserted from outside of the Wall Covering 2 x 4 Header - fireplace and packed tightly to totally seal between the Do Not Notch at pipe and tube. Ledge Brackets Fig. 22 or 23 Note: Gas pipe should not come in contact with any wood structures until it has reached a point at least Hearth Extension...
-
Page 20: Replacement Parts
1384 CFM Specialty Home Products reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. SHR36/42A/48/52 Woodburning Fireplace For units FH30RO, GH40RO, HH30RO, IH10RO Item/Model Number SHR36 SHR42A SHR48 SHR52 1. -
Page 21: Accessories
Accessories The following accessories for this appliance are available from your local Majestic Fireplaces distributor. Should you need additional information beyond what your distributor can furnish, contact: CFM Specialty Home Products, 410 Admiral Blvd., Mississauga, Ontario, Canada L5T 2N6 Attn: Technical Services. - Page 22 SHR Series Woodburning Fireplace Accessory Description Model No. Contemporary Flashing Required for contemporary top termination 8-6-12 on the roof to prevent rain entry. (0 to 6/12 pitch) 8-12-12 (6/12 to 12/12 pitch) Contemporary Chase Top Termina- Used to terminate chimney at the top of a SLTCF11 tion chase.
- Page 23 (4)CFM Specialty Home Products shall not be liable for installed, CFM Specialty Home Products, at its option, will repair damage from any smoking of a MAJESTIC FIREPLACES Pre- or replace any defective part without charge. Engineered Fireplace System related to environmental geo-...
- Page 24 CFM Specialty Home Products 410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777 www.majesticproducts.com • www.vermontcastings.com © CFM Specialty Home Products...
