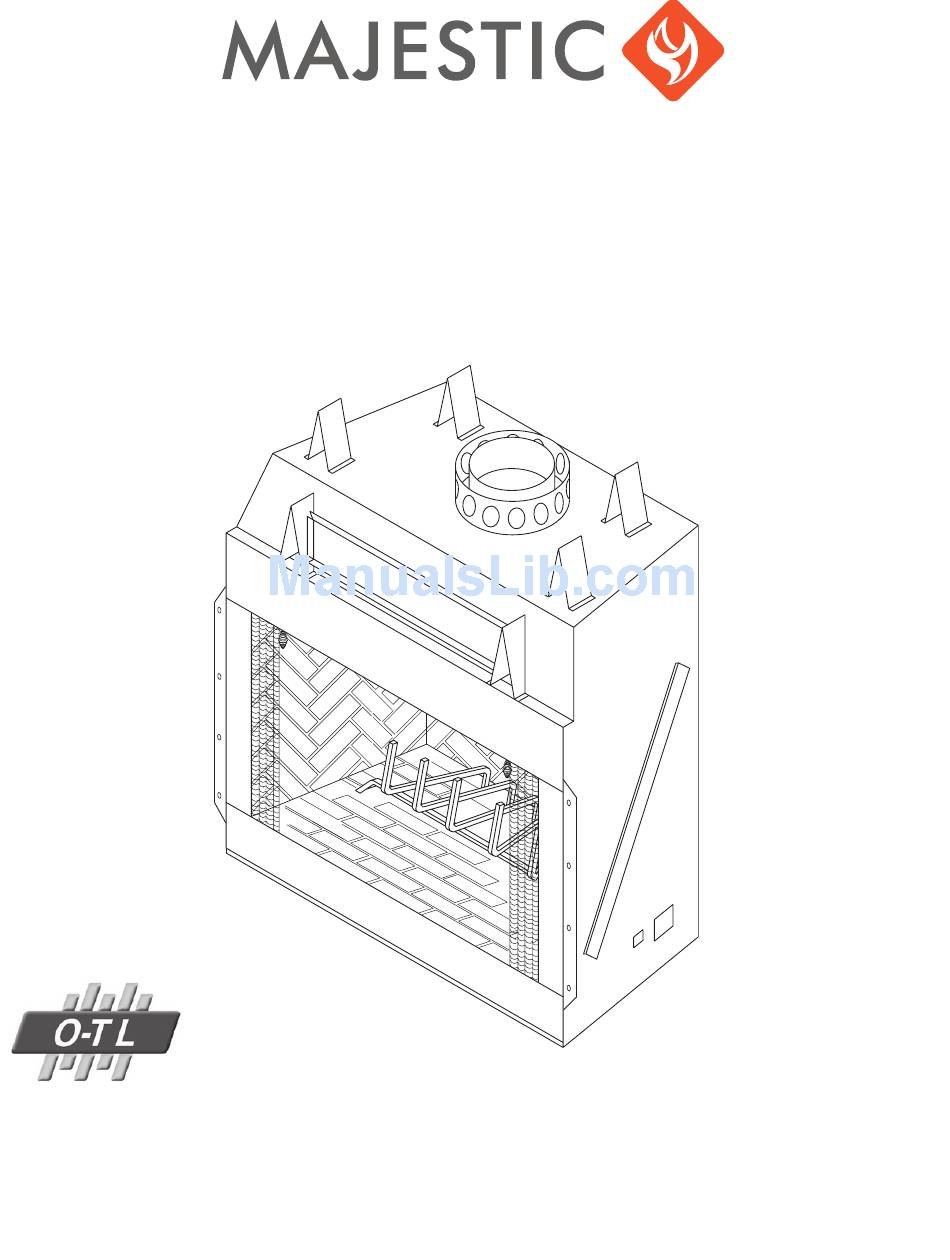

- Page 1 SB6000 M ODEL ESIDENTIAL IREPLACE NSTALLATION PERATION AND AINTENANCE ANUAL OMNI-T “L” S HIS FIREPLACE IS LISTED BY ABORATORIES FOR USE WITH ERIES CHIMNEY SYSTEM COMPONENTS 53D9027. Rev 2 9/08...
-
Page 2: Table Of Contents
ONGRATULATIONS You have chosen the finest wood burning fireplace available. Your fireplace has been designed for years of heating and viewing enjoyment. Please take time to read this entire manual before installing or operating your fireplace. ABLE OF ONTENTS Listing and Code Approvals......................1 Important Information........................2 Operation Guidelines........................3 Clearances ...... -
Page 3: Important Information
MPORTANT NFORMATION 1. Read these instructions entirely before beginning any part of the installation. Save these instructions for any future repairs. 2. Use these instructions as a guide during the installation of the fireplace. 3. Be sure these instructions become the property of and are reviewed by all future users of this fireplace to encourage proper operation and maintenance. -
Page 4: Operation Guidelines
PERATION UIDELINES When a AK4 combustion air assembly and a combustion air duct are attached to the connecting point on the left or right side of the fireplace, combustion air may enter the firebox through a dampered opening behind the left or right side brick. -
Page 5: Clearances
L48 (4' PIPE) FIRESTOP MODEL LF-FS-2 MAINTAIN 2" MIN. AIR SPACE (REQUIRES 17x17 FRAMING) BETWEEN CHIMNEY AND COMBUSTIBLES 60" FIREPLACE MODEL SB6000 58" FLEXIBLE DUCT TYPE FP-4-U COMBUSTION AIR CAUTION: ASSEMBLY DO NOT RESTRICT SIDE AIR INLET VENTS WITH SURROUND... - Page 6 LEARANCES IGURE 38 1/2 11" I.D. FLUE 13" O.D. OUTER PIPE 28 1/2 17 1/2 4 1/2 4 1/2 GAS LINE 66 1/2 OPENING OUTSIDE AIR OPENING 9 1/2 13 1/4 IGURE "L" SERIES CHIMNEY SECTIONS 52 LINEAR GAIN 70 LINEAR GAIN 34 LINEAR GAIN 52 5/8 34 5/8...
-
Page 7: Fireplace Location
IREPLACE OCATION CAUTION: Do not install fireplace over carpeting. This fireplace does not weigh more than large pieces of furniture and can normally be located near a load bearing wall without requiring additional foundations or supports. If however, the fireplace is to be trimmed with a heavy stone or brick facing and hearth extension, be sure the supporting structure is adequate. -
Page 8: Installation Preparation
NSTALLATION REPARATION Survey the planned location for the fireplace for overhead plumbing or electrical wires, etc., that might complicate the installation or endanger persons installing or cleaning the chimney. Avoid a location where the chimney cap will be near abrupt changes in the roof shape, nearby wall or embankments, under or near trees or above the roof of a single story wing of a two story building as shown by Figure 8. - Page 9 NSTALLATION REPARATION IGURE SINGLE STORY INSTALLATION WITH ATTIC SPACE LC CHIMNEY CAP FLUE OUTLET HEIGHT 3 FT. MIN. OR 2' ABOVE STORM COLLAR ANY POINT WITHIN 10' FLASHING (612 OR 1212) ATTIC SPACE SEE TABLE 1 FOR ROOF OPENING SIZE FIRESTOP SPACER LF-FS-2 (2"...
-
Page 10: Floor Protection
12" 12" which is needed to protect the insulation. Follow 20" instructions provided with the fireplace for all other SCREENED specifications and directions for proper installation OPENING of the fireplace and hearth extension. 74" SB6000 MINIMUM HEARTH EXTENSION DIMENSIONS 53D9027... - Page 11 LOOR ROTECTION The ability of insulating material to retard the transfer of heat may be expressed as either Thermal Conductance (C), Thermal Conductivity (K), or Thermal Resistance (R). The mathematical relationship of these values and the formulas for converting one value to another is as follows: C=K divided by the material thickness2 IGURE (Example C = .43 divided by 1/2 (.50)
-
Page 12: Fireplace Components
IREPLACE OMPONENTS IGURE AK4 COMBUSTION AIR ASSEMBLY LCL TELESCOPING CHIMNEY CAP WSB60 CHIMNEY CAP GLASS DOORS SB6000 H2074 HEARTH EXTENSION CHIMNEY SUPPORT LE30 30 ˚ ELBOW SET LF-FS-2 FIRESTOP SPACER 612-1212 CHIMNEY SECTIONS LCLF FLAT WASHER FLASHING 36" x 72" (13-1/2" DIA. HOLE) -
Page 13: Fireplace Installation
Before beginning the installation, be sure you have the proper parts in sufficient quantity. Refer to Figure 27 for proper identification of parts. Do not substitute parts. Use only parts listed for use with the Model SB6000 fireplace. IREPLACE NSTALLATION 1. -
Page 14: Chimney Installation
HIMNEY NSTALLATION IGURE 24" MIN. 36" 24" MIN. 36" NOTE: FLUE OUTLET SHOULD BE TWO FEET ABOVE ALL PORTIONS OF THE BUILDING WITHIN TEN FEET AS SHOWN IN THE ILLUSTRATION. THE CHIMNEY MUST NOT EXTEND MORE THAN 90 INCHES ABOVE THE ROOF WITHOUT ADDITIONAL SUPPORT. 1. - Page 15 HIMNEY NSTALLATION TABLE 1 MINIMUM REQUIRED ROOF OPENING IGURE MINIMUM FRAMED OPENING ACTUAL "L" SERIES CENTER POINT DOUBLEWALL CHIMNEY ROOF PITCH CENTERLINE OF CHIMNEY 0/12 17" x 17" 1 12 17" x 17" 1/8" 17" x 17" 1/4" 2/12 17" x 17" 1/2" 3 12 17"...
-
Page 16: Chimney Offset Installation
HIMNEY FFSET NSTALLATION LBOW NSTALLATION The following are important points that should be observed when installing elbows on the fireplace: 1. The support straps of all elbows not installed directly on top of the fireplace should be nailed securely to the surrounding structure. - Page 17 HIMNEY FFSET AND NSTALLATION CONTINUE CHIMNEY TO PROPER HEIGHT AND IGURE INSTALL ROUND CHIMNEY CAP OR CHIMNEY HOUSING STORM COLLAR FLASHING ROOF LF-FS-30 22 1/16 FIRESTOP SPACER AS REQUIRED FASTEN SUPPORT STRAPS SECURELY 2" MIN. AIR SPACE CLEARANCE TO NOTE: COMBUSTIBLES WITH 7 1/4 TWO ELBOWS MAY BE USED...
-
Page 18: Chimney Cap Installation
HIMNEY NSTALLATION LC C ODEL HIMNEY : The proper height as previously explained is important to assure proper draft and safety. The PECIAL chimney cap extends the flue outlet four inches above the top of the last section of chimney. This should be kept in mind when determining the proper height for the chimney. - Page 19 HIMNEY EIGHT AND FFSET HARTS CHIMNEY SECTIONS WITH ELBOW OFFSETS INTERMEDIATE SECTIONS HEIGHT CHIMNEY SECTIONS TOTAL IN. ELBOW (INCHES) 1-1/2' OFFSET 1" 1-1/2' 4 1/2 26 1/2 31 3/4 15 1/2 18 1/2 41 1/4 47 1/4 50 3/4 57 3/4 30 1/2 67 3/4 33 1/2...
-
Page 20: Chimney Cap Chase Installation
HIMNEY HASE NSTALLATION The preinstalled chimney sections should be no more than 13 inches below the top of the chase. The installation should be planned so that either a two-foot or three-foot chimney section will be used for the top section. This is necessary to ensure complete engagement of the inlet air telescope and chimney cap into the top section. -
Page 21: Outside Combustion Air Precautions And Recommendations
& R UTSIDE OMBUSTION RECAUTIONS ECOMMENDATIONS : The use of outside air for combustion is optional unless required by building codes. It is only necessary to supply outside combustion air to one side of the fireplace. Use the model AK4 combustion air kit. IGURE SECURING OUTSIDE AIR STARTING COLLAR TO FIREPLACE INSULATION RING... - Page 22 & R UTSIDE OMBUSTION RECAUTIONS ECOMMENDATIONS UTSIDE OMBUSTION ECOMMENDATIONS CONTINUED 1. Extremely long runs and numerous turns in the duct leading from the fireplace to the combustion air assembly should be avoided. These conditions will increase the resistance to the free flow of air through the duct. Refer to Figures 1, 22, and 23 for methods of installing the outside air for combustion assemblies.
-
Page 23: Combustion Air Assembly
OMBUSTION SSEMBLY AK-4 C ODEL OMBUSTION SSEMBLY 1. Remove the cover plate from the 4-inch outlet opening location on the left or right outside of the fireplace. DO NOT remove the cover if the outside air will not be connected. 2. -
Page 24: Gas Appliance Installation
PPLIANCE NSTALLATION Improper installation or operation of a gas appliance in this fireplace can allow unburned gas to leak ARNING out which will cause a fire or explosion hazard, or the release of poisonous carbon monoxide into the dwelling which can cause serious injury or death to its inhabitants. To reduce these risks to a minimum, the following important notices and instructions should be read and followed carefully. - Page 25 PPLIANCE NSTALLATION 7. Pack the insulation removed in step 4 around the pipe to prevent air flowing through the tube either into or out of the firebox. 8. Be sure the gas is turned off at the appliance, then turn the gas on at the cut off valve and test the gas line connections for leaks with soapy water solution or a liquid leak detector.
-
Page 26: Trim And Door Installation
RIM AND NSTALLATION INSTALLATION OF NON-COMBUSTIBLE FACING MATERIALS TO THE FRONT FACE OF THE FIREPL ACE COMBUSTIBLE FRAMING NON-COMBUSTIBLE MEMBERS FACING MATERIAL FACING MATERIAL USE ONLY NON-COMBUSTIBLE TO TOP OF SPACERS. MATERIALS BELOW TOP OF SPACERS. WARNING: FIREPLACE THE SPACE BETWEEN THE FACE FACE OF THE FIREPLACE AND THE NON-COMBUSTIBLE... -
Page 27: Fireplace Operation
IREPLACE PERATION : If a decorative gas appliance is used in the fireplace the fireplace damper must be fixed in an open ARNING position. (See additional operation information in section titled “Operation Guidelines”.) DVANTAGES OF A URNING IREPLACE These are the practical, ecological advantages of wood as a fuel. Also to be considered is the aesthetic appeal. - Page 28 IREPLACE PERATION You’ll need a minimum of three logs, preferably four, to make a good fire. Add kindling and new logs as needed to rekindle a dying fire. New logs should be added at the rear grate after raking the coals toward the front. .
-
Page 29: Maintenance And Safety
AINTENANCE AND AFETY TORAGE Wood can be dried sufficiently for burning within a few weeks if protected form rain in a low humidity area. It is far better to cut wood and allow it to dry for a year. In all cases, the wood should be stacked so that both ends of the sticks are exposed to the air and protected from rain. - Page 30 AINTENANCE AND AFETY IREPLACE AINTENANCE At the end of each heating season or when the fireplace will not be in use for an extended time, the ashes should be removed and the hearth area should be swept as clean as is practical. The slow absorption of moisture into the ashes over a long period of time could cause a condition which would be corrosive to the metal fireplace parts.
- Page 31 AINTENANCE AND AFETY 18. Do store your fuel supply at a distance equal to or greater than the spacing recommended for combustible materials from the fireplace. 19. Do build fires of moderate intensity in the fireplace for the first three fires to allow materials to adjust and cure before being subjected to the intense heat of a large fire.
-
Page 32: Repair Parts Diagram And List
Model number of your Appliance, Part Name, Part Number, and Quantity of parts needed. Technical Service Department 149 Cleveland Drive Paris, KY 40361 SB6000 PART NAME (NOUN FIRST) QTY. PART NO. ROD DAMPER... - Page 33 OTES 53D9027...
-
Page 34: Warranty
IMITED ARRANTY FACTORY-BUILT FIREPLACE AND COMPONENTS (except blowers) What is Covered and For How Long • Five-Year Coverage - For five years from the date this fireplace and components are first purchased for use, MHSC will, at its option, repair or replace any defective part of this fireplace or components, or refund to you a sum not to exceed the factory retail price in effect at the time of purchase. - Page 35 ATTENTION APPLIANCE INSTALLER PLEASE RETURN THESE OPERATING AND INSTALLATION INSTRUCTIONS TO THE APPLIANCE FOR CONSUMER USE.
- Page 36 MHSC 149 Cleveland Drive • Paris, Kentucky 40361 www.mhsc.com SEPTEMBER 2008 53D9027 • Rev. 2...
