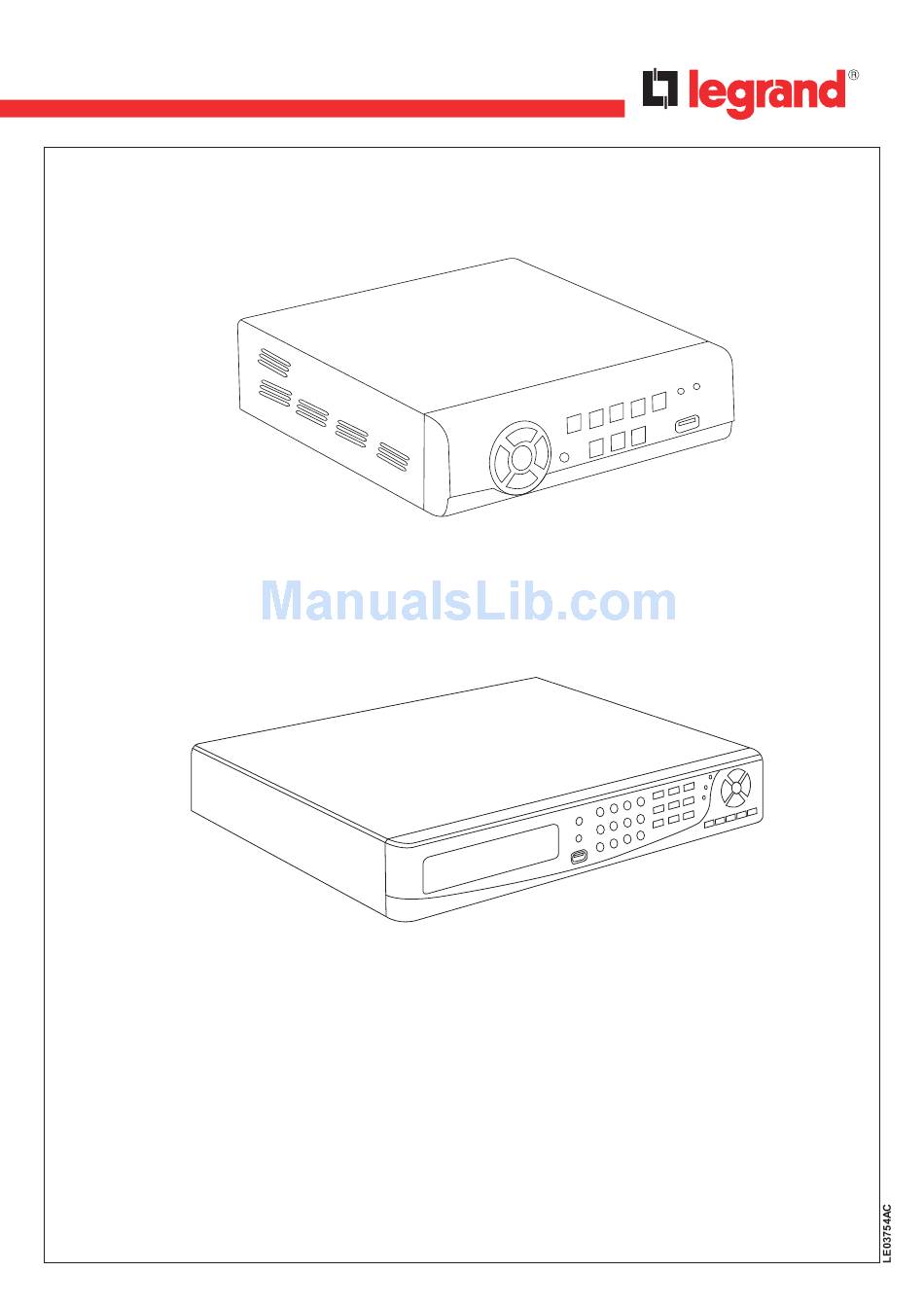

LAN recorder for 4/8/16 cameras
4 305 53 / 54 / 55
USER MANUAL
4 305 53
4 305 54
4 305 55

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4 305 53 and is the answer not in the manual?

Questions and answers

Related Manuals for LEGRAND 4 305 53

Summary of Contents for LEGRAND 4 305 53

  • Page 1 • LAN recorder for 4/8/16 cameras 4 305 53 / 54 / 55 4 305 53 4 305 54 4 305 55 USER MANUAL...

  • Page 2: Table Of Contents

    CONTENTS CONTENTS OF THE PACKAGING ................3 CONTROLS AND LOCATIONS ..................4 4 305 53 FRONT PANEL ........................ 4 4 305 53 REAR PANEL ........................6 4 305 54 / 4 305 55 FRONT PANEL ....................7 4 305 54 / 4 305 55 REAR PANEL ....................8 CONNECTING A MOTORISED DOME CAMERA, AN ALARM OUTPUT OR A SENSOR ..

  • Page 3: Contents Of The Packaging

    Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand.

  • Page 4: Controls And Locations

    2. CONTROLS AND LOCATIONS 2.1 4 305 53 FRONT PANEL Control Description Exits the menu screen and the various functions. ESC/BACKUP Accesses the backup menu. Accesses the search screen menu. Use the up/down keys to move SEARCH around the menu.
  • Page 5 In direct view mode, keys 13 - 14 - 15 and 16 are used to set up the PIP screens and to enable the sound on the camera:...

  • Page 6: 305 53 Rear Panel

    2.2 4 305 53 REAR PANEL 1 VIDEO INPUT 4 RS485/RELAY/ 5 NETWORK 2 VGA OUTPUT 3 AUDIO INPUT SENSOR CONNECTION 9 USB 6 POWER SUPPLY RS485D- 9-13, 21-25 8 AUDIO OUTPUT Relay1_CM RS485 D+ RELAY1_ND SENSOR2 RELAY1_NC SENSOR4 SENSOR1...

  • Page 7: 305 54 /4 305 55 Front Panel

    2.3 4 305 54 /4 305 55 FRONT PANEL Control Description CD/DVD recorder location Function not available. IR SENSOR IR sensor for signals from the remote control. EJECT Function not available. The USB 2.0 port can be used to connect a USB mouse or a USB USB 2.0 storage device.

  • Page 8: 305 54 / 4 305 55 Rear Panel

    4 305 54 / 4 305 55 REAR PANEL 8-channel recorder 3 NETWORK CONNECTION 1 CAMERA 1-8 4 VGA OUTPUT 2 AUDIO INPUT 5 POWER SUPPLY 8 USB 9 RS485/RELAY/ OUTPUT SENSOR 7 AUDIO OUTPUT 6 VIDEO/SPOT OUTPUT 16-channel recorder 1 CAMERA 1-16 D E-SATA 6 VIDEO/SPOT OUTPUT...

  • Page 9: Connecting A Motorised Dome Camera, An Alarm Output Or A Sensor

    2.5 CONNECTING A MOTORISED DOME CAMERA, AN ALARM OUTPUT OR A SENSOR Sub DB25 connector   COLOUR 4 305 53 4 305 54 4 305 55 COLOUR 4 305 53 4 305 54 4 305 55 BROWN RS 485_B- RS 485_D+...
  • Page 10 Connection for a PTZ camera Connecting a device to the relay output (example: relay 1NC) Connecting a device to the sensor input (example: sensor 1)

  • Page 11: Remote Control

    2.6 REMOTE CONTROL Note: The remote control model may differ from that shown. 12 13 Description of the keys on the remote control 2 STATUS Displays the DIAGNOSTIC menu. 3 REC Starts/stops recording. 4 MUTE Disables the direct audio signal. Enables/disables “picture in picture”...
  • Page 12 Accesses the search menu. C SEARCH Use the direction keys to move around in the menu and press the “ENTER” key to access the required item. Starts playback of the last recording. D PLAY Use the full screen mode to display the recorded video with the image per frame you have set in the “Record Setup”...

  • Page 13: Control Via The Mouse

    2.7 CONTROL VIA THE MOUSE Direct View mode Display one camera Move the mouse over the required camera, then double-click the left button. Switch from display of one camera to Double-click the left button. display of several cameras Mouse – Menu mode Access to Menu setup Right-click.
  • Page 14 Mouse – Tips and hints for using the Graphical User Interface (GUI) Recording in progress. Direct sound is enabled. Direct sound is disabled. Motion detected on the camera. Sensor triggered on the camera. Loss of video signal detected on the camera. USB peripheral detected.

  • Page 15: Playback Mode

    2.8 PLAYBACK MODE Right-click on the screen and select the arrow as shown below. The control panel (see image below) appears in the bottom right-hand corner of the screen. You can move the panel anywhere on the screen by dragging it with the mouse. The recorded videos are displayed on the screen in 4, 9 or 16 channels display mode.

  • Page 16: Ptz Mode

    2.9 PTZ MODE In direct view mode the PTZ icon [ ] appears at the top of the screen. PTZ – Controls on the remote control Move the camera upwards. Move the camera downwards. Move the camera to the left. Move the camera to the right.
  • Page 17 PTZ – Quick function icons Exits PTZ mode and return to direct view mode. Preset position No. (1 to 128). Goes to preset position N. Memorises the location of the camera in position N. Not available. Not available. Not available. Not available.
  • Page 18 PTZ – advanced controls “Focus -” key Goes to submenus and confirms setting changes. “Focus +” key Exits the menu and/or cancels the action. arrows For moving around in the menus and modifying a setting.

  • Page 19: Standard Operation And Menu Setup

    STANDARD OPERATION AND MENU SETUP 3.1 MAIN MENU To enter the main menu, right-click then click on the icon indicated by the cursor below. To access the main menu and set up the recorder, use the “Admin” account and the default password "123456". Virtual keyboard Main menu - Using the virtual keyboard Switches from upper case to lower case and vice versa.

  • Page 20: Recording Setup

    3.2 RECORD SETUP Parameter Description HDD Full Select “Stop” to stop recording or “Overwrite” to re-use the hard disk when it is full. [Stop] stops the recording. [Overwrite] enables the oldest data on the hard disk to be overwritten and recording to continue. Can be set independently for each camera.
  • Page 21 96 120 144 192 216 240 288 360 384 432 456 552 576 672 720 744 912 1104 1416 1488 2112 2208 2832 hours 4 CH DVR: 4 305 53 No. of days No. of days Total FPS with HDD rec:...
  • Page 22 DVR 8 CH: 4 305 54 No. of days No. of days Total FPS with 25 Total FPS with Quality Resolution recording: recording: fps*/cam 12 fps*/cam 500 GB 500 GB 25 fps*/cam 12 fps*/cam D1: 720 x 576 Highest HD1: 720 x 288 CIF: 360 x 288 D1: 720 x 576 High...

  • Page 23: Event Setup

    3.3 EVENT SETUP Parameter Description Motion Setup Sets up motion detection. Sensor Setup Sets up the sensor inputs. Motion Setup Item Description Alarm Duration Sets the alarm duration (1 - 60 seconds). (seconds) Check the box to enable the "pop-up" function for all cameras: when motion is detected on a camera, Motion Pop-up it is automatically shown in full screen.
  • Page 24 Motion Area Setup The motion detection area is made up of 22 x 15 cells. During initialisation, the motion detection area takes up the entire screen. The red area corresponds to the non-detected area. The detected area is transparent. The area is shown in purple in the event of network connection.

  • Page 25: Schedule Setup

    3.4 SCHEDULE SETUP As well as manually controlled recording, recording times can be set weekly to always record at set times, when movement is detected or a sensor is triggered. When a recording type is selected (Normal, Motion or Sensor) and a time period is selected using the mouse, the setup appears in green on the schedule.
  • Page 26 Holiday Setup As public holidays vary from country to country and from region to region, their dates must be set up (maximum: 50). Note: Recording priority: if a recording is scheduled, manual control cannot stop the recording.

  • Page 27: Camera Setup

    3.5 CAMERA SETUP Parameter Description Can be set independently for each channel. Sharpness Set from 0 to 15 (default: 1). Mask Check or uncheck this box to enable or disable direct view of the camera. Brightness Drag the white bar or press to adjust the brightness of the camera from 1 to 255.

  • Page 28: Account Setup

    3.6 ACCOUNT SETUP The “Account Setup” menu is used to set up passwords for users and assign them rights. This menu is also used to change the admin password, which is "123456" by default. Parameter Description Check this box to enable the user account (4 user accounts maximum). Sets up each user's password.

  • Page 29: Network Setup

    3.7 NETWORK SETUP The recorder manages the ADSL, DHCP and LAN connections. Parameter Description ADSL, DHCP , LAN Enables the type of network connection: ADSL, DHCP , LAN. HTTP Setup Sets up the HTTP protocol for remote access to the recorder. DDNS Setup Enables/disables and sets up the DDNS function.
  • Page 30 LAN (local area network) If you select network connection via LAN, the following information is required. Parameter Description IP Address Enter the IP address provided by the manager of your LAN. Subnet Mask Enter the IP address of the subnet mask. Gateway Enter the IP address of the gateway.
  • Page 31 HTTP setup Item Description Enable Check this box to enable the HTTP server. Users can access the recorder remotely via the network if the HTTP function is enabled. Port Enter a valid port number between 1 and 65000. Default: 80. Quality and number of frames per second for network transmission.
  • Page 32 E-mail setup An e-mail notification can be sent if an event occurs (loss of video signal, detection of a movement and triggering of a sensor). Parameter Description Enable E-mail Notification Check/uncheck this box to enable/disable the e-mail notification function. SMTP Server Sets up the name of the SMTP server.

  • Page 33: Ptz And Rs-485 Setup

    3.8 PTZ AND RS-485 SETUP The recorder enables users to control a motorised camera. To enable the PTZ function, the RS485 cable must be connected to the RS-485 port on the recorder (see section 2.5, Connection for a PTZ camera). Parameter Description Enable PTZ...

  • Page 34: System Setup

    3.9 SYSTEM SETUP Parameter Description DVR Name The name of the recorder will be shown when users connect remotely. DVR Location The location of the recorder will be shown when users connect remotely. Language Click or press to select the language of the screen display. Remote control Leave set at 1.
  • Page 35 Display settings: displaying information contained in the OSD Item Description Sets the time (in seconds) for which each camera is displayed in automatic (sequential) Auto-Seq Interval (seconds) mode using Show OSD Check this box to display the selected information on the screen. Show DVR Status Shows the illustration of the recorder and the recording status.
  • Page 36 Changing the date and time Users can adjust the date and time on the recorder. Selecting the time zone When setting the time zone, users can change the time zone and enable the daylight saving time function according to where the recorder is being used.
  • Page 37 Setting the time via the Internet Synchronises the time on the recorder with an Internet server. Parameter Description Automatically Synchronize Check this box to enable the automatic time synchronisation function. The recorder will synchronise the time automatically at reinitialisation or 24 hours after reinitialisation. Update Now The date and time on the recorder will correspond to those on the Internet server immediately.
  • Page 38 Display setting Description Adjusts the display resolution to the monitor being used. VGA resolution (1024 x 768, 1280 x 1024, 800 x 600). Brightness Adjusts the brightness from 0 to 255. Contrast Adjusts the contrast from 0 to 255. Situation Adjusts the saturation from 0 to 255.

  • Page 39: Utilities Setup

    3.10 UTILITIES SETUP Parameter Description Accesses the hard disk initialisation menu. Stop recording before accessing this menu. Access the menu. The system displays all the data (model/volume) concerning the hard disk HDD Initialization installed in the recorder. Select the hard disk to be formatted, then press "Start". Hard disk initialisation is complete when the status shows "Done".

  • Page 40: Diagnostics

    3.11 DIAGNOSTICS Parameter Description Version Current version of recorder software. IP connection address of the recorder. In the event of disconnection from the network, the IP Address message "NETWORK DISCONNECT" appears on the screen. MAC address of the DVR. Volume Capacity of the hard disk.

  • Page 41: Searching And Backing Up

    4. SEARCHING AND BACKING UP Use the “Search” button on the front panel or the remote control or right-click on the screen and select the magnifying glass tool in the menu below: 4.1 SEARCH Parameter Description Event Search Choose this menu to access the event search. Time search Choose this menu to access the time search.
  • Page 42 Parameter Description Criteria Defines the event search criteria. Page Accesses the events pages. Date/Time Date/time at which the event occurred. Type of event, defined as follows: Video loss Loss of video signal. Motion Detection of a movement. Sensor Detection on a sensor. Remote Login A user logs in to the network.
  • Page 43 Time search Used to search for a specific time in the recorded data in order to play back. The date on which a recording was made is shown by a square. The system starts playback according to the selected date. Click on "year" and "month" to display a calendar. Select a date with recordings.

  • Page 44: Backup

    4.2 BACKUP Exporting recordings The user can back up any data recorded within a defined period. To do this, connect a USB peripheral to the recorder. Use the “ESC/BACKUP” button on the front panel or right-click on the screen and select the disk icon in the menu. The backup file is saved in IRF format and can be read by the drive supplied with the DVR and also included when files are backed up.

  • Page 45: Playing Exports On A Computer

    4.3 PLAYING ExPORTS ON A COMPUTER Click on the executable file to start the Player. A message is displayed, confirm by clicking on "Run". 1- Click on "Open". Windows Explorer opens 2- Find and double-click on a recording in .IRF format...
  • Page 46 The recordings are displayed in the different windows. Display functions The player offers numerous types of display: 1, 4, 9, 16, etc. Playback functions Play/Pause. Stop. Fast forward and rewind. Bar for scrolling through the video. Creates snapshots. Creates a directory called “Snapshot” which will contain all the snapshots in the chosen location on the computer.

  • Page 47: Converting Irf Files To Avi Files

    4.4 CONVERTING IRF FILES TO AVI FILES The “Irftool” utility, which is provided on the CD-ROM, converts IRF files to AVI format. You can then view the recordings on any player. Open the CD, go the the "Player" directory and select the "IRF Tool 20101005.exe" file Run “Irftool.exe”...

  • Page 48: Remote Connection

    5. REMOTE CONNECTION Downloading and running ActiveX must be enabled in the Internet Explorer options for remote connection. 5.1 SOFTWARE INSTALLATION AND SETUP Step 1: Enter the IP address of the recorder in Internet Explorer. Step 2: A window appears. The default user name and password are “admin” and “123456” respectively. For other user account and password settings, please refer to section 3.6 "Account Setup".
  • Page 49 Step 4: You are now connected to the DVR Remote control via the network The only difference is in the “Network” toolbar at the bottom right of the screen. Icon Description High Quality Video (HQ) Low Quality Video (LQ) *See page 31 “HTTP Setup” Full screen mode Record the sequence direct Snapshot...

  • Page 50: Operation Of The Software

    5.2 OPERATION OF THE SOFTWARE The recorder's remote control interface is user-friendly and has the same functions as the local interface. Remote recording Recordings can be saved locally on the computer. It is also possible to take snapshots on the PC from video images. Locking Click on the Lock icon to lock remote functions.

  • Page 51: Mobile Application

    6. MOBILE APPLICATION You can monitor all the recorder's cameras remotely from your mobile. The required mobile application is on the CD supplied with the DVR or as a free download. It runs on the Android, iPhone and Windows Mobile 5.0 (or later version) operating systems. Setting up a connection with a box For a Wi-fi connection within your LAN, use the private IP address of the DVR that you have set up, which usually starts with “192...”.
  • Page 52 Install the "BuboBubo" application: click on the "Install" button     BuboBubo is installed. Step 2: Set up the "Bubo Bubo" application Start Bubo Bubo. By default "BuboBubo" displays one registered "dvr1". This "dvr1" does not have any settings and must be modified. Click on the "Edit"...
  • Page 53 Set up the connection settings (name, IP address, port, connection account, password) and save them. Selects the encoding format. Saves the settings.   Clears all the fields.     Cancels the action and returns to the previous page.   Deletes the recorder.  ...
  • Page 54 Step 3: Use the application   Back to the list of recorders. Displays the cameras for a selection.   Displays 4 cameras (only works with JPEG format).     Switches from format to format and vice versa.   Controls a motorised camera. To switch from 1 camera view to 4 camera view, move your thumb and index finger apart towards the edge of the screen (identical movement to enlarging the image).
  • Page 55 Landscape view, turn the mobile 90°: In this view, by default the menu bar is not visible. Click on the screen to make it appear or disappear.       PTZ control   If the camera is motorised and the PTZ and RS-485 parameters are operational in the recorder, the key appears by dragging the fingers to the left on the toolbar.

  • Page 56: Installation And Operation On Iphone/Ipad

    6.2 INSTALLATION AND OPERATION ON IPHONE/IPAD System setup Mobile operating system: IPhone OS 4.0. (3G iPhone not supported) Mobile with GPRS, 3G or Wi-fi internet access. An iTunes account is necessary. Installing the mobile application Follow the procedure below to use your mobile and connect remotely to the recorder.
  • Page 57 This software is available as a free download, right-click on "FREE" to start the download.   Click on the "INSTALL" button to start the installation process.   Wait for the process to finish. The iPhone generates a new "Bubo Bubo" application. Step 2: Set up the "Bubo Bubo"...
  • Page 58 The first time you use the application, enter and save the information concerning the recorder. Press then enter the name of the DVR/IP/Port/user name/password, then click on "Save" to save the information concerning the   recorder.   To modify the recorder information, press " "...
  • Page 59 Connect a recorder Several recorder setups can be saved in the "BuboBubo” application. To connect and display the image, click on a recorder.     The network status affects the connection time. When connection is successful, the direct view of the DVR appears. Step 3: Use the application Select a camera: Single display...
  • Page 60 Quad display     - In quad display, double-click on the screen to return to single camera display. - In quad display, drag your finger over the screen towards the left to display the next four cameras. - Drag towards the right to display the previous four cameras. PTZ control  ...
  • Page 61 Setting up a "Preset"   Calling a "Preset"   Finger movements on the screen: Zoom in/out – Move the fingers together to zoom in and apart to zoom out. Pan/Tilt – To control PTZ movements (viewing direction) touch the screen and scroll on the image. The yellow circle indicates the point of origin.
  • Page 62 Landscape mode:   In PTZ mode, a PTZ icon can be seen in the top right-hand corner.   Relay control     The connection to the alarm outputs on the DVR can be controlled. Each relay can be controlled separately.

  • Page 63: Installation And Operation With Windows Mobile

    6.3 INSTALLATION AND OPERATION WITH WINDOWS MOBILE An application is available for the Windows Mobile operating system. It uses H.264 compression which enables audio and video signals to be transferred to your mobile. System setup: Mobile operating system: Windows Mobile 5.0 (or later version). Mobile with Internet access: GPRS, 3G, Wi-Fi, etc.
  • Page 64 Operation Once installation is complete, access the “Start” menu on your mobile to activate the "H264Pocket" icon. This application enables you to connect remotely and view the images on the recorder. Click on "OK" to display the menu. See the table below for the setup. Parameter Function Description...

  • Page 65: Specifications

    7. SPECIFICATIONS Model no. 4 305 53 4 305 54 4 305 55 NTSC/PAL System Switch Input 4 channels, BNC 8 channels, BNC 16 channels, BNC Spot output 1 channel, BNC Output 1280 x 1024 1024 x 768 800 x 600...
