SiBE041012_A

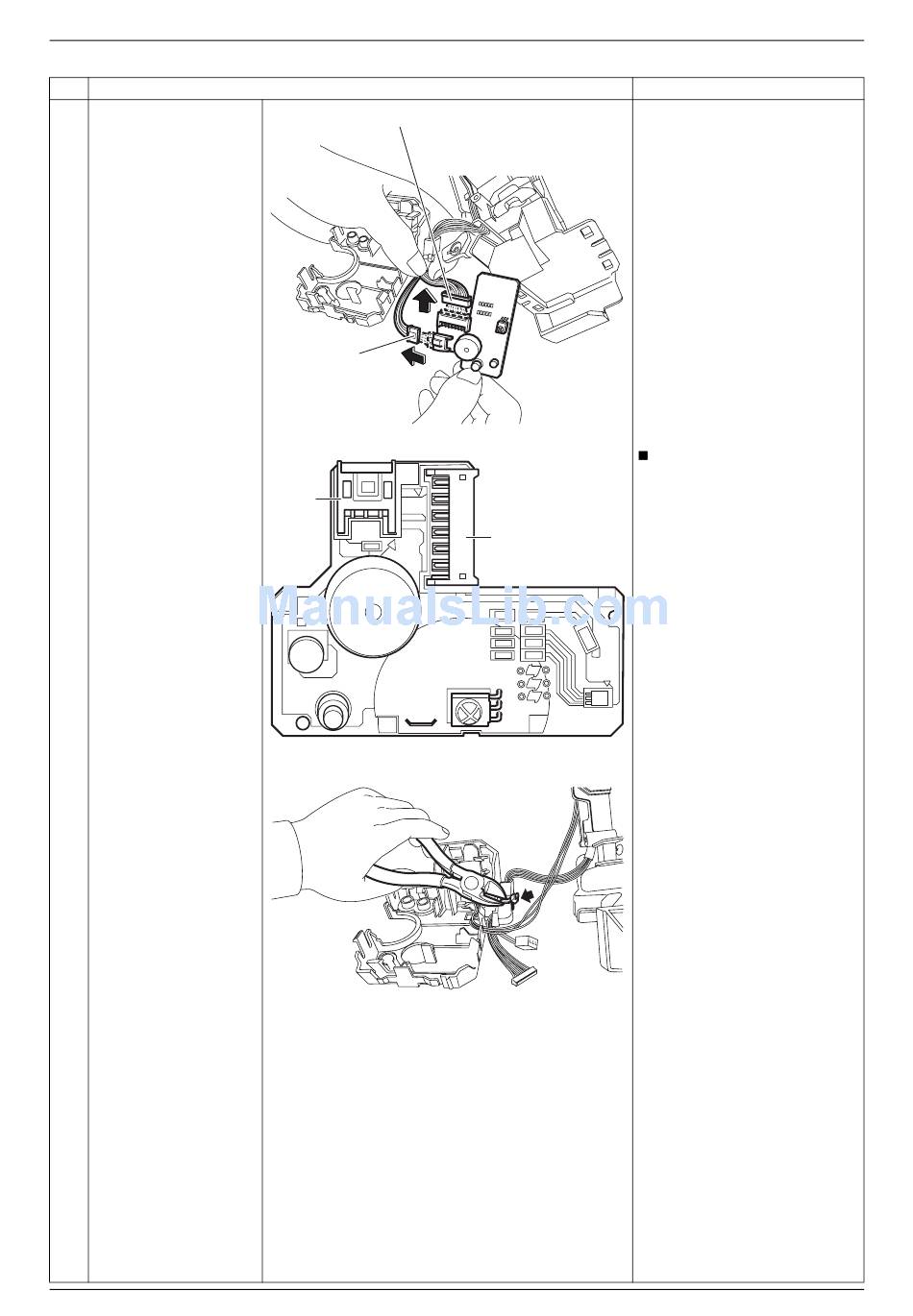

Step
4
Disconnect the
connectors for the
control PCB [S51] and
for the room
temperature thermistor
[S52].
5
Cut the clamp.
Removal Procedure
Procedure
[S51]
[S52]
[S52]
(R12122)
Refer to page 13 for detail.
[S51]: control PCB
[S52]: room temperature
[S51]
(R12123)
(R12124)
Indoor Unit
Points
thermistor
152
