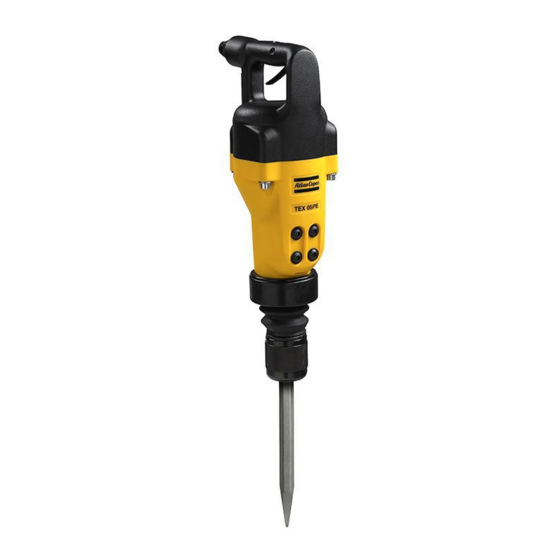

- Page 1 05PE, 09PE, 12PE Safety and operating instructions Handheld pneumatic pick hammers © 2010 Atlas Copco Construction Tools AB | No. 9800 0812 01c | 2010-01-01 Original instructions...
-
Page 3: Table Of Contents
Noise and vibration declaration statement........18 © 2010 Atlas Copco Construction Tools AB | No. 9800 0812 01c | 2010-01-01... - Page 4 EC Declaration of Conformity (EC Directive 2006/42/EC)......20 © 2010 Atlas Copco Construction Tools AB | No. 9800 0812 01c | 2010-01-01...
-
Page 5: Introduction
Safety and operating instructions Introduction Thank you for choosing a product from Atlas Copco. Since 1873, we have been committed to finding new and better ways of fulfilling our customers' needs. Through the years, we have developed innovative and ergonomic product designs that have helped customers improve and rationalize their daily work. -
Page 6: Safety Instructions
Respiratory protection when appropriate ● ● Protective gloves Proper protective boots ● Appropriate work overall or similar clothing (not ● loose-fitting) that covers your arms and legs. © 2010 Atlas Copco Construction Tools AB | No. 9800 0812 01c | 2010-01-01 Original instructions... -
Page 7: Operation, Precautions
Never use the machine near flammable materials, ► fumes or dust. ► Make sure that there are no undetected sources of gas or explosives. © 2010 Atlas Copco Construction Tools AB | No. 9800 0812 01c | 2010-01-01 Original instructions... - Page 8 Keep the workplace free from foreign objects. ► recommended in the operating and safety ► Ensure that the work piece is securely fixed. instructions © 2010 Atlas Copco Construction Tools AB | No. 9800 0812 01c | 2010-01-01 Original instructions...
- Page 9 Before resuming the work, find and remove the cause of the increased vibrations. ► Never grab, hold or touch the inserted tool when using the machine. © 2010 Atlas Copco Construction Tools AB | No. 9800 0812 01c | 2010-01-01 Original instructions...
-
Page 10: Maintenance, Precautions
Storage, precautions ♦ Keep the machine and tools in a safe place, out of the reach of children and locked up. © 2010 Atlas Copco Construction Tools AB | No. 9800 0812 01c | 2010-01-01 Original instructions... -
Page 11: Overview
If it takes more than 10 seconds a larger ● pneumatic hammer should be selected. TEX 09PE, TEX 12PE Handle Trigger Tool retainer Air inlet Silencer/Machine body Cylinder © 2010 Atlas Copco Construction Tools AB | No. 9800 0812 01c | 2010-01-01 Original instructions... -
Page 12: Labels
Methods to prevent freezing Ice formation in the silencer can occur when the ambient air temperature is 0–10°C (32-50 °F) and the relative humidity is high. © 2010 Atlas Copco Construction Tools AB | No. 9800 0812 01c | 2010-01-01 Original instructions... -
Page 13: Connecting A Water Separator
Before inserting a tool, lubricate the tool shank ♦ NOTICE Never cool a hot insertion tool in water, it with grease. can result in brittleness and early failure. © 2010 Atlas Copco Construction Tools AB | No. 9800 0812 01c | 2010-01-01 Original instructions... -
Page 14: Operation
Learn how the machine is switched off in the event of an emergency. Stop the machine immediately in all cases of ► power supply interruption. © 2010 Atlas Copco Construction Tools AB | No. 9800 0812 01c | 2010-01-01 Original instructions... -
Page 15: Breaking
♦ For major service of the machine, contact your nearest authorised workshop. © 2010 Atlas Copco Construction Tools AB | No. 9800 0812 01c | 2010-01-01 Original instructions... -
Page 16: Tightening Torques
See “Installation”. ♦ If there is a risk of freezing, check that the machine's exhaust ports are not blocked. © 2010 Atlas Copco Construction Tools AB | No. 9800 0812 01c | 2010-01-01 Original instructions... -
Page 17: Storage
© 2010 Atlas Copco Construction Tools AB | No. 9800 0812 01c | 2010-01-01 Original instructions... -
Page 18: Technical Data
We, Atlas Copco Construction Tools AB, cannot be held liable for the consequences of using the declared values, instead of values reflecting the actual exposure, in an individual risk assessment in a work place situation over which we have no control. -
Page 19: Noise And Vibration Data
TEX 05PE Values valid for vertical use TEX 09PE 3.6-4.2 Values valid for vertical use TEX 12PE 3.6–4.0 Values valid for vertical use © 2010 Atlas Copco Construction Tools AB | No. 9800 0812 01c | 2010-01-01 Original instructions... -
Page 20: Ec Declaration Of Conformity
EC Declaration of Conformity EC Declaration of Conformity (EC Directive 2006/42/EC) We, Atlas Copco Construction Tools AB, hereby declare that the machines listed below conform to the provisions of EC Directive 2006/42/EC (Machinery Directive) and 2000/14/EC (Noise Directive), and the harmonised standards mentioned below. - Page 24 Any unauthorized use or copying of the contents or any part thereof is prohibited. This applies in particular to trademarks, model denominations, part numbers, and drawings. www.atlascopco.com...
