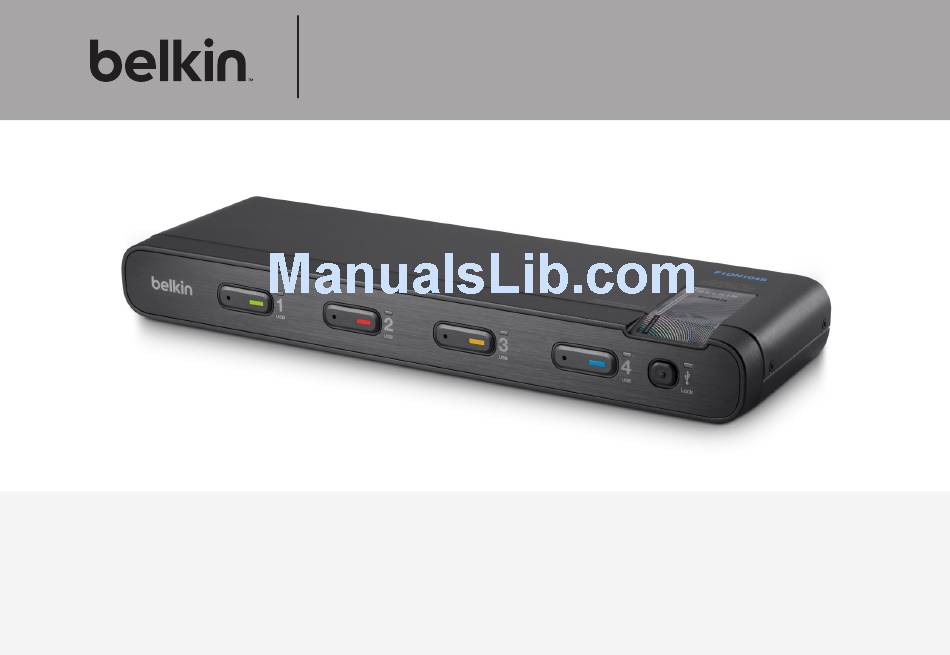

Advanced Secure USB Switch

User Manual

F1DN104S – Advanced Secure 4-Port USB Switch
Document Number 8820-01349 Rev. B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F1DN104S and is the answer not in the manual?

Questions and answers

Summary of Contents for Belkin F1DN104S

  • Page 1: User Manual

    Advanced Secure USB Switch User Manual F1DN104S – Advanced Secure 4-Port USB Switch Document Number 8820-01349 Rev. B...
  • Page 2: Table Of Contents

    USB Switch Configuration Samples ......22 Belkin Advanced Secure USB Switch Features ....10 Specifications .
  • Page 3: Introduction

    Any attempt to open the enclosure may activate the anti-tamper system and render the unit permanently inoperable. If the unit’s enclosure appears disrupted or if all the channel LEDs are on (RED), please call Belkin Technical Support at (800) 282-2355. Belkin ®...
  • Page 4: Safety Precautions

    Secure USB Switch: the model supplied by the manufacturer or an approved equivalent provided by Belkin or an authorized service provider. The use of • Before cleaning, disconnect the product from DC power. improper power source will void product warranty.
  • Page 5: Overview

    Computers routed to the end user. The Belkin Secure USB Switch provides the ability to assign a specific type of USB device only to some of the computers connected to it, Password Protect switch settings providing a more exact and secure USB device policy.
  • Page 6: Operational Features

    Table of Contents operational features easy-to-use, Password Protected Programing software The Belkin Advanced Secure USB Switch was designed for today’s IT environment with the user in mind. A summary of some of the features (for administrators) incorporated into the product is listed below: Administrators can program the Switch using its easy-to-use, built-in application.
  • Page 7: Equipment Requirements

    Table of Contents equipment requirements Cables Belkin highly recommends the use of Belkin Cable Kits for your product to help ensure superior security and performance. These cables offer the highest quality possible and optimal data transmission. One cable is required per connected computer.
  • Page 8: Computers

    The Belkin Advanced Secure USB Switch is compatible with computers, thin-clients, servers and laptops running on, but not limited to, the It is possible to chain the USB Switch to Belkin Advance Secure KVM following OS platforms: Switch via Belkin Desktop Controller Unit.
  • Page 9: Belkin ® Advanced Secure Usb Switch User Manual

    SECTIONS Table of Contents active anti-Tampering system Belkin Advanced Secure USB Switch is equipped with an always-on E-Lock USB Brackets active anti-tampering system. If mechanical intrusion is detected by this system, the product will be permanently disabled and the LEDs...
  • Page 10 SECTIONS Table of Contents f1dn104s front Panel features 12345678 IMPorTanT noTICe: If for any reason the tamper-evident seal is missing, appears disrupted, or looks Port Selector Color Chip Lock LED different than the Lock Button LED Indicator Tamper-Evident Label...
  • Page 11 SECTIONS Table of Contents f1dn104s back Panel features DCU Port Device USB Jack Admin Configuration Port Device Status LED Host DPP USB Cable Jack DC Power Jack Belkin ® Advanced Secure USB Switch User Manual baCK To Table of ConTenTs >...
  • Page 12: Specifications

    SECTIONS Table of Contents specifications Part no . F1DN104S enclosure Heavy-duty extruded aluminum enclosure with metal faceplate Power requirements 12V DC, 1A (maximum) power adapter with center-pin-positive polarity aC Input 100 to 240VAC no . of secure Channels operating Temp 32°...
  • Page 13: Installation

    If the packaging seal looks Connect each computer with a USB cable (Belkin F3U133 series cable, suspicious, contact Belkin Technical Support and do not use the product. sold separately). For additional details on cables see page 6. The USB After removing the packaging seal, please inspect packaging contents cable can be connected to any free USB port on the computer.
  • Page 14: Defining The Usb Device Policies

    • Sub-class • Protocol • VID, PID • Serial Number Once configured, the policy is loaded onto the Belkin Advanced Secure USB Switch. You can save a USB device policy on one Secure USB Switch and load it on another.
  • Page 15 InsTallaTIon SECTIONS Table of Contents The USB Device Configuration Utility supports the following operating step 2 – Connect the belkin advanced secure usb switch to the systems: management PC • WinXP or greater The management PC can be any external laptop or desktop running WinXP or greater.
  • Page 16 The black list rules will always supersede the white list rules. note: For examples on how to configure the Secure USB Switch, please refer to Appendix A on page 22 Belkin ® Advanced Secure USB Switch User Manual baCK To Table of ConTenTs >...
  • Page 17 3. Right-click attributes and select from the drop-down list if you want to add to the white list or black list. 4. Repeat the above steps for every USB device. Belkin ® Advanced Secure USB Switch User Manual baCK To Table of ConTenTs >...
  • Page 18 It is impossible to view the configuration currently loaded on the Secure USB Switch. You can Open a previously saved configuration, edit it and load it to the switch. Belkin ® Advanced Secure USB Switch User Manual baCK To Table of ConTenTs >...
  • Page 19: Additional Options And Settings

    You can get information regarding the USB connection status by clicking device information dialog: device > Information Connection Status at the bottom left corner of the application window. Belkin ® Advanced Secure USB Switch User Manual baCK To Table of ConTenTs >...
  • Page 20: Saving, Opening And Loading Preset Configurations

    3. Connect an Advanced Secure USB Switch to the administrator PC, To change a password: as described in Step 2- Connect the Belkin Advanced Secure USB Switch to the Management PC on page 14. 5. From the Command Bar, select Device, then select Change Password.
  • Page 21: Operation

    Connect the USB device you wish to share between the computers, to connect Belkin Secure Desktop Controller Unit (DCU) to control the the usb device port on the back of the Belkin Advanced Secure USB Advanced Secure USB Switch remotely. The DCU also synchronizes Switch.
  • Page 22 Green – OK note: Device Connected and in Program mode LED behavior will supersede all other normal working modes (except tampering and self test fail) Belkin ® Advanced Secure USB Switch User Manual baCK To Table of ConTenTs >...
  • Page 23: Usb Switch Configuration Samples

    The attached USB Flash drive will be mapped to PC #2 only. Other USB Flash Drives would not work in the current configuration as they were not approved in the UCU. Belkin ® Advanced Secure USB Switch User Manual baCK To Table of ConTenTs >...
  • Page 24 USB Switch. The mapped USB device will be locked to channel #1 until you will it release by pressing the Lock\ Freeze mode again. Belkin ® Advanced Secure USB Switch User Manual baCK To Table of ConTenTs >...
  • Page 25: Troubleshooting

    If • The connected USB device is blocked. Load a new configuration. power is not available, try another Belkin Advanced Secure USB Switch power supply, or contact Belkin for a replacement.
  • Page 26: Information

    Belkin International, Inc. (“Belkin”) warrants to the original purchaser of f1dn104s to which this declaration relates: this Belkin product that the product shall be free of defects in design, assembly, material, or workmanship. Complies with Part 15 of the FCC Rules. Operation is subject to...
  • Page 27 Table of Contents What is not covered by this warranty? All above warranties are null and void if the Belkin product is not 2. Your Belkin Customer Service Representative will then instruct provided to Belkin for inspection upon Belkin’s request at the sole...
  • Page 28 DIRECT, INDIRECT, CONSEQUENTIAL OR MULTIPLE DAMAGES SUCH AS, BUT NOT LIMITED TO, LOST BUSINESS OR PROFITS ARISING OUT OF THE SALE OR USE OF ANY BELKIN PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. This warranty gives you specific legal rights, and you may also have other rights, which may vary from state to state.
  • Page 29 SECTIONS Table of Contents reporting belkin Product security vulnerability If you are aware of potential security vulnerability with any Belkin Government product, we encourage you to contact us immediately at the following email address: gov_security@belkin .com or our technical support line at: 1-800-282-2355 After your communication is received, Belkin Government personnel will contact you to follow up.
  • Page 30 © 2014 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Mac OS is a trademark of Apple Inc., registered in the U.S. and other countries.
