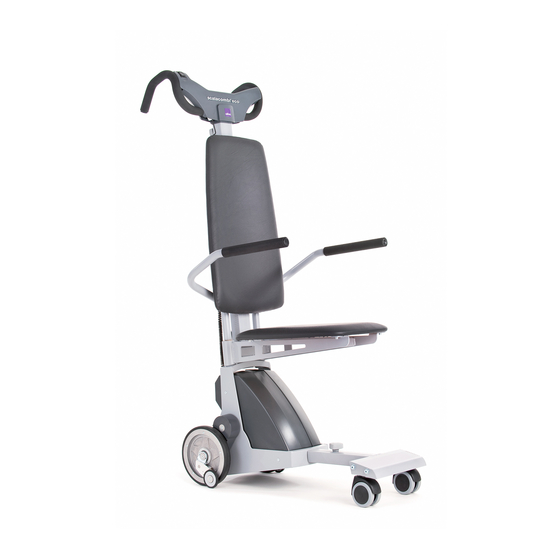

- Page 1 DAMIT TREPPENSTEIGEN EINFACH WIRD. Gebrauchsanweisung User manual GB/US Instructions d’utilisation Istruzioni per l‘uso Manual de instrucciones Instruktionsbok GA S34 Umschlag alle Sprachen.in5 5 07.04.2009 15:38:13...
- Page 2 Montag bis Donnerstag von 8.00 - 18.00 Uhr Freitags von 8.00 - 16.00 Uhr erreichbar unter Telefon ++49 (0)7432 2006-0 Das scalacombi eco ist klassifiziert als Gerät Typ B. 36.0001.4.99.03 Stand: 01.02.2011 GA S34 Umschlag alle Sprachen.in6 6 24.11.2009 10:36:26...
- Page 3 GA S34 Umschlag alle Sprachen.in1 1 07.04.2009 15:38:10...
-
Page 4: Table Of Contents
Contents . Introduction . Important safety instructions – please observe carefully at all times .2 Proper use of the scalacombi .3 Permissible operating conditions/locations of operation .4 Standard scope of delivery .5 Optional accessories .6 Stairs suitable for scalacombi .7 Technical data .8 The main elements at a glance 2. -
Page 5: Introduction
The instruction session is provided by the authorized specialist dealer or by an agent of Ulrich Alber GmbH. The operation of the scalacombi by non-instructed or unqualified persons is expressly prohibited. -
Page 6: Permissible Operating Conditions/Locations Of Operation
We recommend using only original accessories supplied by Ulrich Alber GmbH. The scalacombi is designed in such a way that best performance is achieved when using Alber original accessories. Ulrich Alber GmbH shall not be liable for damage to the product or damage caused by accidents (e.g. fires caused by explosion of the battery pack, leaks, etc.) caused by a malfunction of non-original accessories or spare parts. -
Page 7: Technical Data
.7 Technical data Floor clearance of drive unit: 46 cm Width of drive unit: 36 cm Overall height with attached handlebar: 136 cm Overall width: 52 cm Weight without handlebar: 26 kg Weight with handlebar: 31 kg Max. weight of person: 120 kg Motor voltage: 24 V... -
Page 8: Commissioning
2. Commissioning The scalacombi and all accessories ordered by you are delivered to you by Ulrich Alber GmbH or your specialist dealer. All you need to do is adjust the handlebar to the size of the operating person (see chapter 2.1). -
Page 9: Adjustment Of The Scalacombi
To ensure correct and comfortable handling of the scalacombi, you must adjust the handlebar to approximately the shoulder or chest height of the operator. Normally, this adjustment is made by the specialist dealer or agent of Ulrich Alber GmbH upon delivery of the scalacombi. -
Page 10: Functional Check
If this is not the case and if the malfunction persists after you have removed the object, the stair climber is defective. Contact your spe- cialist dealer or an agent of Ulrich Alber GmbH without delay. Do not operate the scalacombi until a check has been performed success- fully. -
Page 11: Sitting Down On The Seat
2.3 Sitting down on the seat To secure the scalacombi against inadvertent movement during the transfer of a person to the stair climber, move the drive wheels a little backwards away from the pushing position (see diagram to the left) so that the housing is properly placed on the floor. To do this, switch the scalacombi on (see chapter 2.4) and then press the driving switch [17] to its lower position (see chapter 3.1). -
Page 12: Switching On The Scalacombi
2.4 Switching on the scalacombi • To switch on the scalacombi, press the ON/OFF button [8]. • After the stair climber has been switched on, a brief audible signal is generated and the current operating status of the scalacombi is shown on the LED display (see chap- ter 8). -
Page 13: Operation On A Staircase 0
You also had the opportunity to complete your first climb under the supervision of the authorised dealer or agent of Ulrich Alber GmbH. Before transporting a person on the scalacombi, you should, however, read the instructions below and practice the individual steps with the empty stair climber on a staircase. -
Page 14: Climbing Down A Staircase
Never release the handlebar when climbing up a staircase! The person transported on the scalacombi must only exit the climber after it has been placed on a firm surface away from the edge of the top step. 3.2 Climbing down a staircase •... -
Page 15: Climbing A Spiral Staircase
Never release the handlebar when climbing a staircase! The person transported on the scalacombi must only exit the climber after it has been placed on a firm surface away from the edge of the top step. When climbing down a staircase, always push the scalacombi slightly forward. -
Page 16: Halting The Scalacombi While Climbing A Staircase 3
3.5 Halting the scalacombi while climbing a staircase When climbing stairs, do not interrupt the operation of the scalacombi. In other words, keep the driving switch [17] pressed until the scalacombi has fully climbed a step and is automatically switched off. In general, interrupting the operation is only permitted in an emergency situation, for example if the person sitting on the scalacombi requires medical attention. -
Page 17: Automatic Shut-Down 4
5. Automatic shut-down If the scalacombi is not used to climb stairs within 15 minutes after it has been switched on, it is automatically shut down to save energy. The two wheels remain in the posi- tion in which they were when the climber was shut down. When starting the scalacombi again, you might need to move them into pushing position by pressing the driving switch [17]. -
Page 18: Transport And Storage 7. Disassembling And Assembling Individual Components
Alber GmbH or your authorised specialist dealer for proper disposal. • We recommend using only batteries supplied by Ulrich Alber GmbH. The scalacombi is designed in such a way that best performance is achieved when using original batter- ies from Ulrich Alber GmbH. -
Page 19: Instructions For Storage And Transportation 6
Please check whether there are specific regulations regarding the transport of the scala- combi or its components in your jurisdiction and strictly adhere to these regulations. Ulrich Alber GmbH and its agents shall not be liable for any damage resulting from non- compliance with these instructions. -
Page 20: Led Display And Error Messages 7
Serious device fault, scalacombi cannot Contact your specialist dealer or an signal be operated. agent of Ulrich Alber GmbH. Long audible signal The scalacombi has been switched off. After short audible signal: Short audible The scalacombi has been switched on. -
Page 21: Safety And Hazard Information 8
When climbing stairs, the safety and wellbeing of the person being transported on the scalacombi always have priority. Therefore, care- fully read the safety information in this chapter and strictly adhere to the instructions and recommendations given to you by the specialist dealer or agent of Ulrich Alber GmbH during the initial instruction session. •... -
Page 22: Safety And Hazard Warnings Attached To The Scalacombi 9
All maintenance and repair work on the scalacombi must be carried out by Ulrich Alber GmbH or one of its authorised specialist dealers. If you encounter any problems with your scalacombi, contact your specialist dealer. -
Page 23: Reuse
2 Warranty and liability 2. Warranty for defects Ulrich Alber GmbH guarantees that the scalacombi is free of any defects at the time of delivery. The warranty expires 24 months after the date of delivery of the scalacombi. 2.2 Guarantee of durability The guarantee of durability of the scalacombi expires 24 months after the date of transfer of the stair climber to the pur- chaser. -
Page 24: Optional Accessories
3 Optional accessories 3. Headrest To protect the passenger’s hand and neck during stair climbing, we recommend a headrest, which is available as an optional accessory. Its height can be adjusted by sliding the guide up or down. The guide is automatically locked in position. The headrest is available from the authorised specialist dealer, who will also fit it. - Page 25 GA_S34_GB.indd 22 31.01.2011 09:47:56...
