Enterprise WiFi System

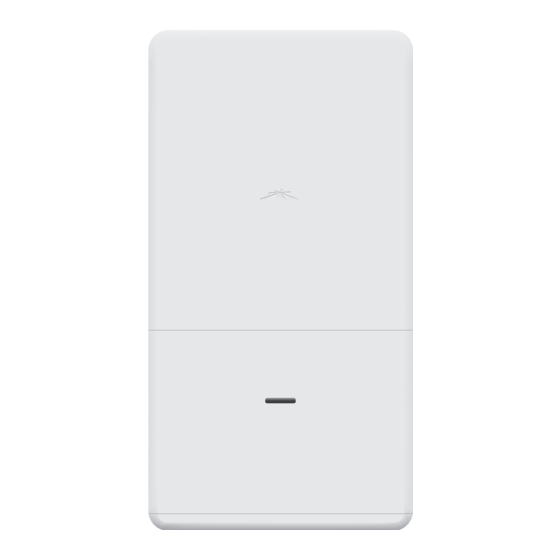

Model: UAP-AC Outdoor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UAP-AC Outdoor and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti UAP-AC Outdoor

Summary of Contents for Ubiquiti UAP-AC Outdoor

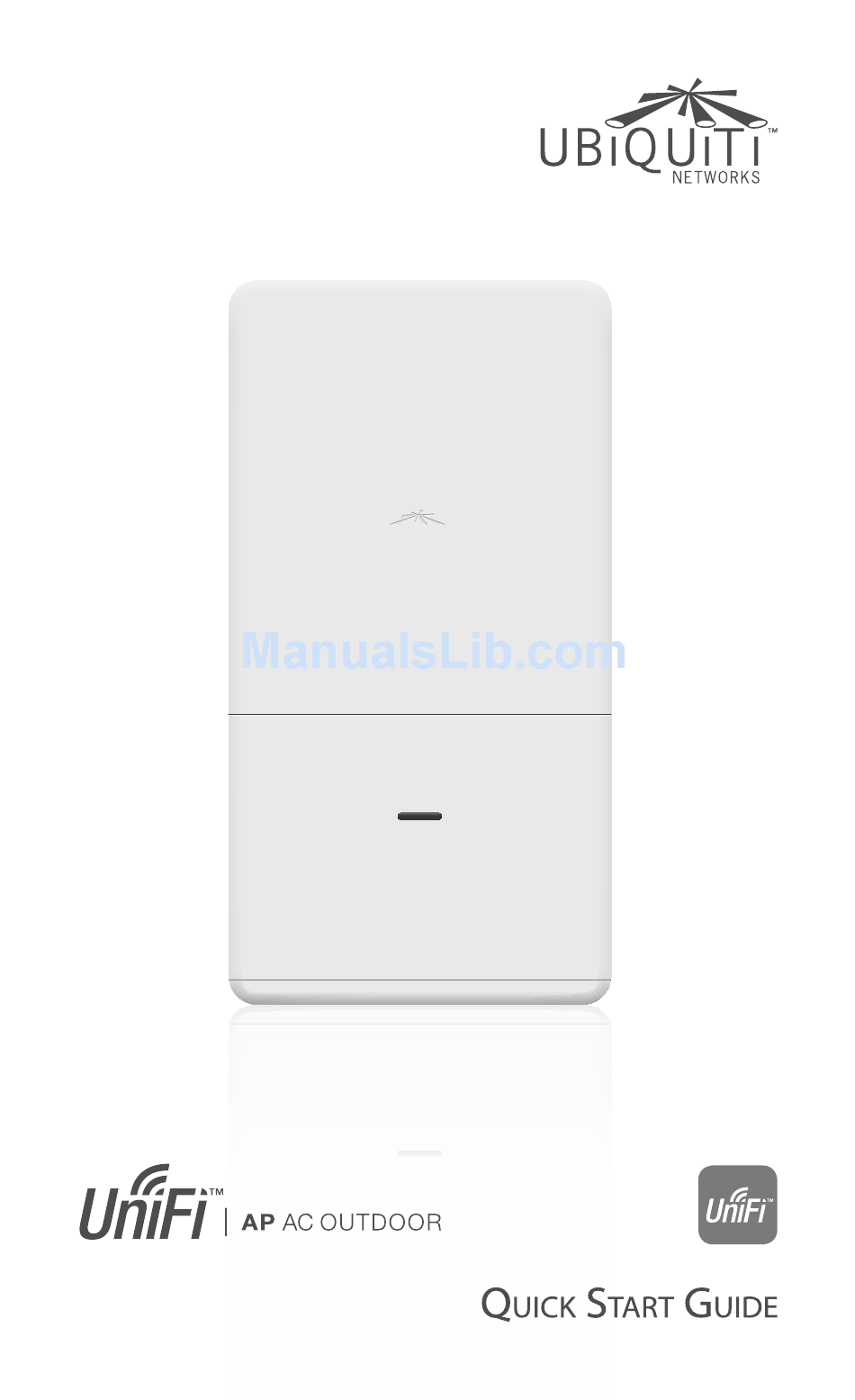

  • Page 1 Enterprise WiFi System Model: UAP-AC Outdoor...

  • Page 2: Installation Requirements

    Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable is designed for outdoor installations. It is the customer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements.

  • Page 3: Package Contents

    Package Contents UniFi AP AC Outdoor Mounting Pole Clamps Bracket (Qty. 2) Carriage Bolts Flange Nuts (M8x120, Qty. 4) (M8, Qty. 4) Enterprise WiFi System Model: UAP-AC-Outdoor PoE GigE Adapter Power Cord Quick Start (48V, 0.5A Gigabit) Guide System Requirements •...

  • Page 4: Network Topology Requirements

    Network Topology Requirements • A DHCP-enabled network for the UniFi AP to obtain an IP address (wireless clients will also obtain IP addresses after deployment) • A management station computer running the UniFi Controller software, located either onsite and connected to the same Layer 2 network, or off-site in a cloud or NOC UAP-Outdoor UAP-AC-Outdoor...

  • Page 5: Hardware Overview

    Hardware Overview LED Color Status Initializing. Flashing White Factory default, waiting to be integrated. Steady White Device is busy; do not touch or unplug it. Alternating This usually indicates that a process such White/Blue as a firmware upgrade is taking place. This is used to locate an AP.
  • Page 6 LAN and DHCP server. Power can be provided by any of the following: • PoE GigE adapter (included) • 48V, 802.3at compliant switch • Ubiquiti Networks TOUGHSwitch PRO, model TS-8-PRO *720-00046-01* 720-00046-01...

  • Page 7: Hardware Installation

    Hardware Installation The recommended mounting of the UniFi AP AC Outdoor is on a pole. Optionally, the UniFi AP may be installed on a wall using additional hardware. Pole Mount 1. Insert two Carriage Bolts into each Pole Clamp and install the Flange Nuts as far down the bolts as necessary to accommodate the pole.
  • Page 8 3. Uniformly hand-tighten each Flange Nut. Ensure the Pole Clamp is evenly clamped around the pole and tighten each Flange Nut to approximately 25 N-m (18 lb-ft). 4. Attach the other Pole Clamp to the pole by sliding the Carriage Bolts around the pole and into the bottom two slots of the Mounting Bracket.
  • Page 9 6. Attach the UniFi AP to the Mounting Bracket: a. Position the UniFi AP with the Mounting Bracket aligned between the mounting tabs on the back of the UniFi AP. b. Slide the UniFi AP downward into the grooves of the Mounting Bracket until the snap pins engage and lock the UniFi AP in place.

  • Page 10: Wall Mount

    Wall Mount To mount the UniFi AP on a wall, securely attach the Mounting Bracket to the wall using four fasteners (not included). Note: The Mounting Bracket must attach directly to a stud or other structurally stable surface. 1. Locate the stud. 2.
  • Page 11 6. Attach the UniFi AP to the Mounting Bracket: a. Position the UniFi AP with the Mounting Bracket aligned between the mounting tabs on the back of the UniFi AP. b. Slide the UniFi AP downward into the grooves of the Mounting Bracket until the snap pins engage and lock the UniFi AP in place.
  • Page 12 Powering the UniFi AP The UniFi AP can be powered by the included PoE GigE Adapter or a compatible PoE switch. 1. Lift the locking tab of the Port Cover and slide the cover down to remove it. RESET MAIN SECONDARY 2.
  • Page 13 Connecting to the PoE GigE Adapter 1. Connect the other end of the Ethernet cable to the Ethernet port labeled POE on the PoE GigE Adapter. 2. Connect an Ethernet cable from your LAN to the Ethernet port labeled LAN on the PoE GigE Adapter. 3.

  • Page 14: Software Installation

    Connect the other end of the Ethernet cable coming from the UniFi AP directly to a PoE port on one of the following: • 48V, 802.3at compliant switch • Ubiquiti Networks TOUGHSwitch PRO, model TS-8-PRO TOUGHSwitch PRO Power Connection Diagram Software Installation Download and install the latest version of the UniFi Controller software at downloads.ubnt.com/unifi and follow the...

  • Page 15: Specifications

    Specifications UAP-AC-Outdoor Dimensions 340 x 180 x 65 mm Weight 1.55 kg (with Wall Mount) 2 kg (with Pole Mount) Networking Interface (2) 10/100/1000 Ethernet Ports Buttons Reset Wi-Fi Standards 802.11 a/b/g/n/ac Power Method PoE+(48V) 802.3at Supported (Supported Voltage Range: 39 to 57VDC) Power Supply 48V, 0.5A PoE Gigabit Adapter (Included) Max.

  • Page 16: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.

  • Page 17: Limited Warranty

    (VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA.

  • Page 18: Limitation Of Liability

    SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING.
  • Page 19 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.

  • Page 20: Industry Canada

    Industry Canada This Class A digital apparatus complies with Canadian ICES-003. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.
  • Page 21 RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
  • Page 22 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.

  • Page 23: Declaration Of Conformity

    UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ [Hungarian] követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í [Icelandic] tilskipun 1999/5/EC.

  • Page 24: Online Resources

    NETWORKS device, è conforme ai requisiti essenziali ed alle altre [Italian] disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski Ar o UBIQUITI NETWORKS deklar , ka UBIQUITI NETWORKS device, atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un citiem ar to saist [Latvian] tajiem noteikumiem.
