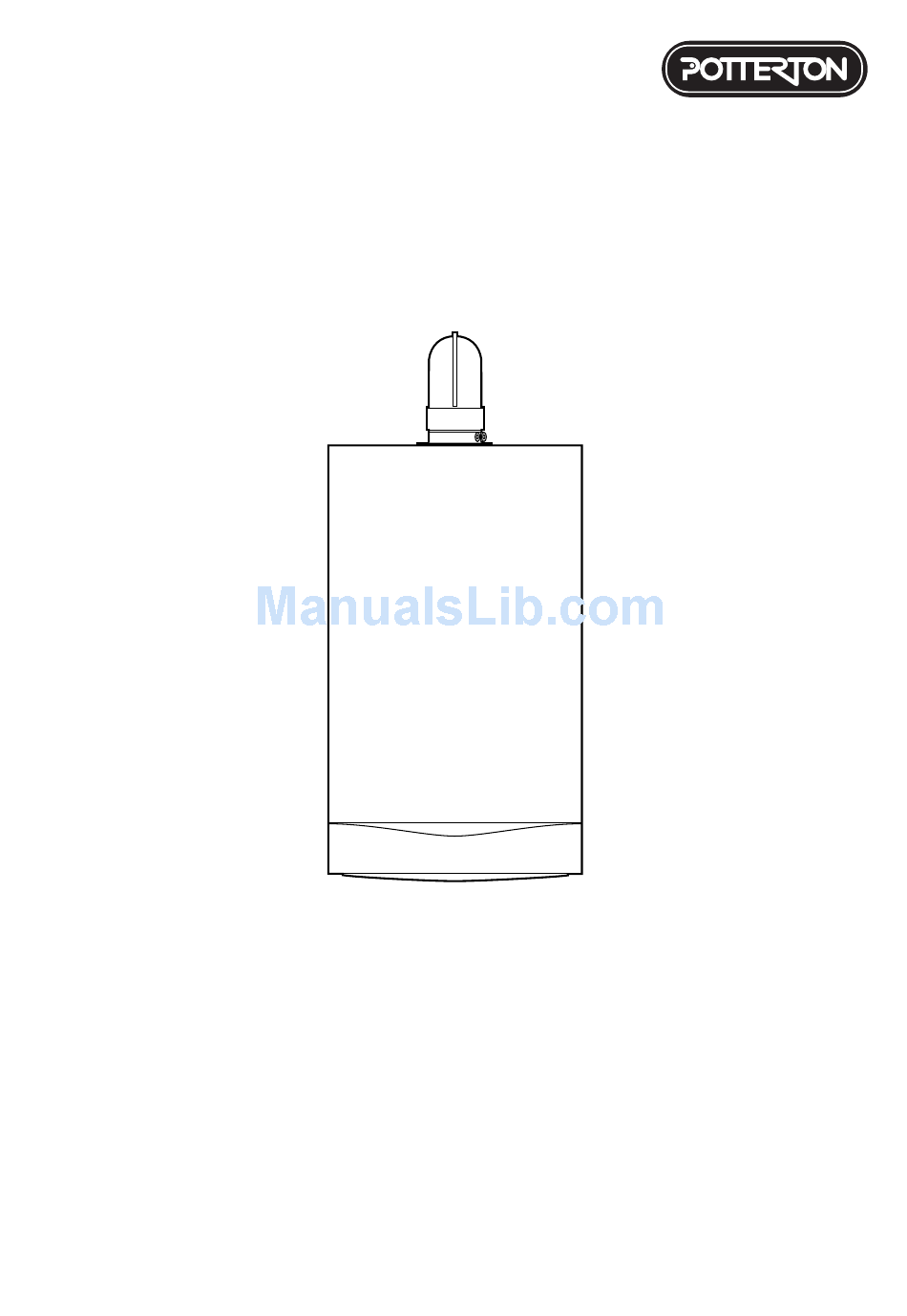

User's Guide
Performa 28

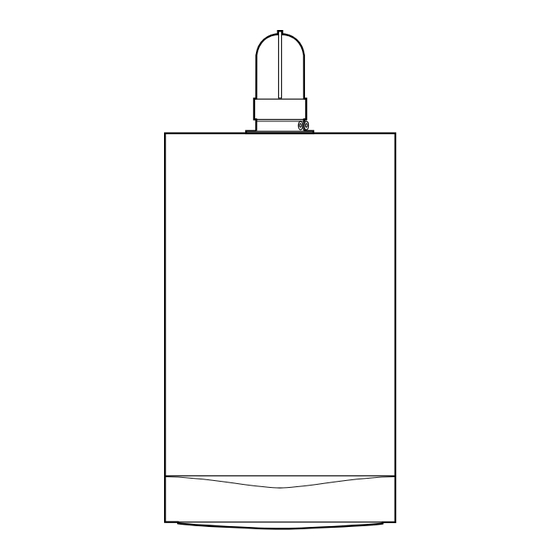

This is a Wall Mounted Combination Boiler Gas Fired Central Heating Unit.
The boiler meets the requirements of Statutory Instrument " The Boiler (Efficiency) Regulations 1993 N
o
3083" and is
deemed to meet the requirements of Directive 92/42/EEC on the energy efficiency requirements for new hot water
boilers fired with liquid or gaseous fuels:-
Type test for purpose of Regulation 5 certified by:
Notified Body 0051.
Product/Production certified by:
Notified Body 0086.
For use in GB/IE only.
Advertisement
Related Manuals for Potterton Performa 28
Summary of Contents for Potterton Performa 28
- Page 1 User’s Guide Performa 28 This is a Wall Mounted Combination Boiler Gas Fired Central Heating Unit. The boiler meets the requirements of Statutory Instrument “ The Boiler (Efficiency) Regulations 1993 N 3083” and is deemed to meet the requirements of Directive 92/42/EEC on the energy efficiency requirements for new hot water...
-
Page 2: Natural Gas
IMPORTANT - Installation, Commissioning, Service & Repair Natural Gas Potterton Performa 28 This appliance must be installed in accordance with the G.C.N 47 393 07 manufacturer’s instructions and the regulations in force. Read the instructions fully before installing or using the appliance. -
Page 3: This Appliance Must Be Earthed
In an Emergency If a water or gas leak occurs or is suspected, the boiler can be isolated at the inlet valves as follows; 1. Turn off the electrical supply and turn the selector switch on the facia box to the Off position. 2. - Page 4 Introduction 1. Your Potterton Performa 28 is a gas fired, room sealed, powered flue combination boiler, providing central heating for your home and mains fed domestic hot water to taps and shower. It is fully automatic and does not have a pilot light.
- Page 5 Operating the Boiler 1. Ensure that the electricity and gas supplies are turned on. Check that the central heating pressure is between 0.5 and 1.0 bar (Fig. 4). 2. Turn the On/Off/Reset selector switch either anti- clockwise from the off position (Fig. 6) to both central heating and domestic hot water or clockwise to domestic hot water only.
- Page 6 Safety Thermostat Fig. 11 1. Your Potterton Performa 28 is fitted with an additional safety device, which shuts down the boiler in the event of the system or the boiler overheating. The safety thermostat neon ( ) will light in this instance (Fig.

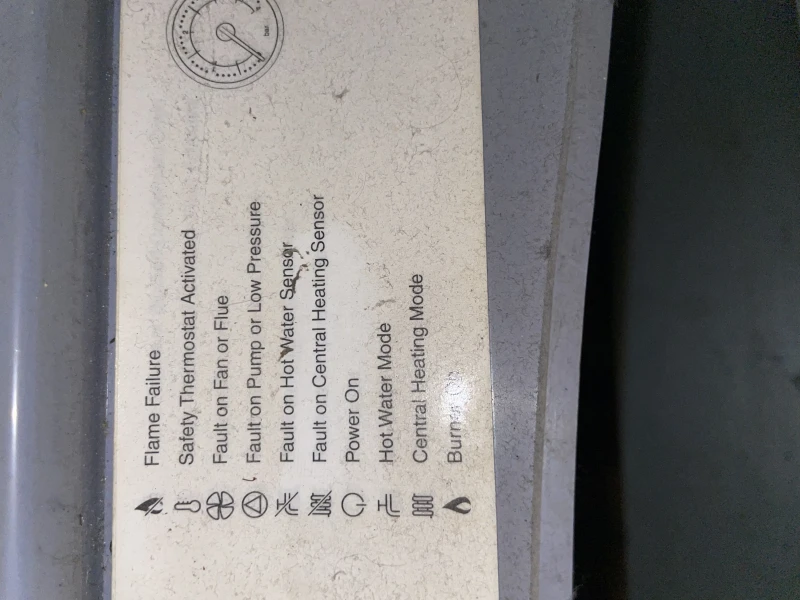

- Page 7 Air Flow Monitor Pump/Low Sensor Fault Pressure Neon 1. The boiler is fitted with an air pressure sensing Neons device. This monitors the flue system. Air Flow Monitor Neon 2. If the neon illuminates ( ) it indicates that the flue or flue terminal is blocked or obstructed in some way, 30°...
- Page 8 Pressure Gauge Central Heating System Pressure 1. The water pressure in the central heating system is indicated by the pressure gauge. 2. With the system cold and the boiler not operating Fig. 15 the pressure should be between 0.5 and 1.0 bar. Normal Pressure (when cold) During operation the pressure should not exceed 2.5 bar, and will normally be between 1.0 and 2.0 (Figs.
- Page 9 Clearances around the Boiler (Figs. 20 & 21) 5mm Min 450mm 5mm Min 1. The minimum clear spaces needed around the boiler measured from the casing are as follows: 200mm Bottom 200mm 200mm Min Both sides - Front (In Operation) 450mm (For Servicing) 2.
- Page 10 1. Any repairs to the boiler will usually be the responsibility of the Installer during the guarantee period after which spare parts may be obtained through approved Potterton stockists if required. 2. Quote the appliance name, model number and where possible the part number when ordering spares.
- Page 11 Legislation Potterton declare that no substances harmful to health are contained in the appliance or used during appliance manufacture. The appliance is suitable only for installation in GB Codes of Practice, most recent version should and IE and should be installed in accordance with...
- Page 12 - Iss. 2 Publication No. 5113938 (03/2005) When contacting Baxi Potterton please have the General Enquiries (GB) following information to hand: 08706 060 780 Tel. Appliance Name Model Number Serial Number Technical (GB) 08706 049 049 A label giving these details is situated on the rear Tel.
