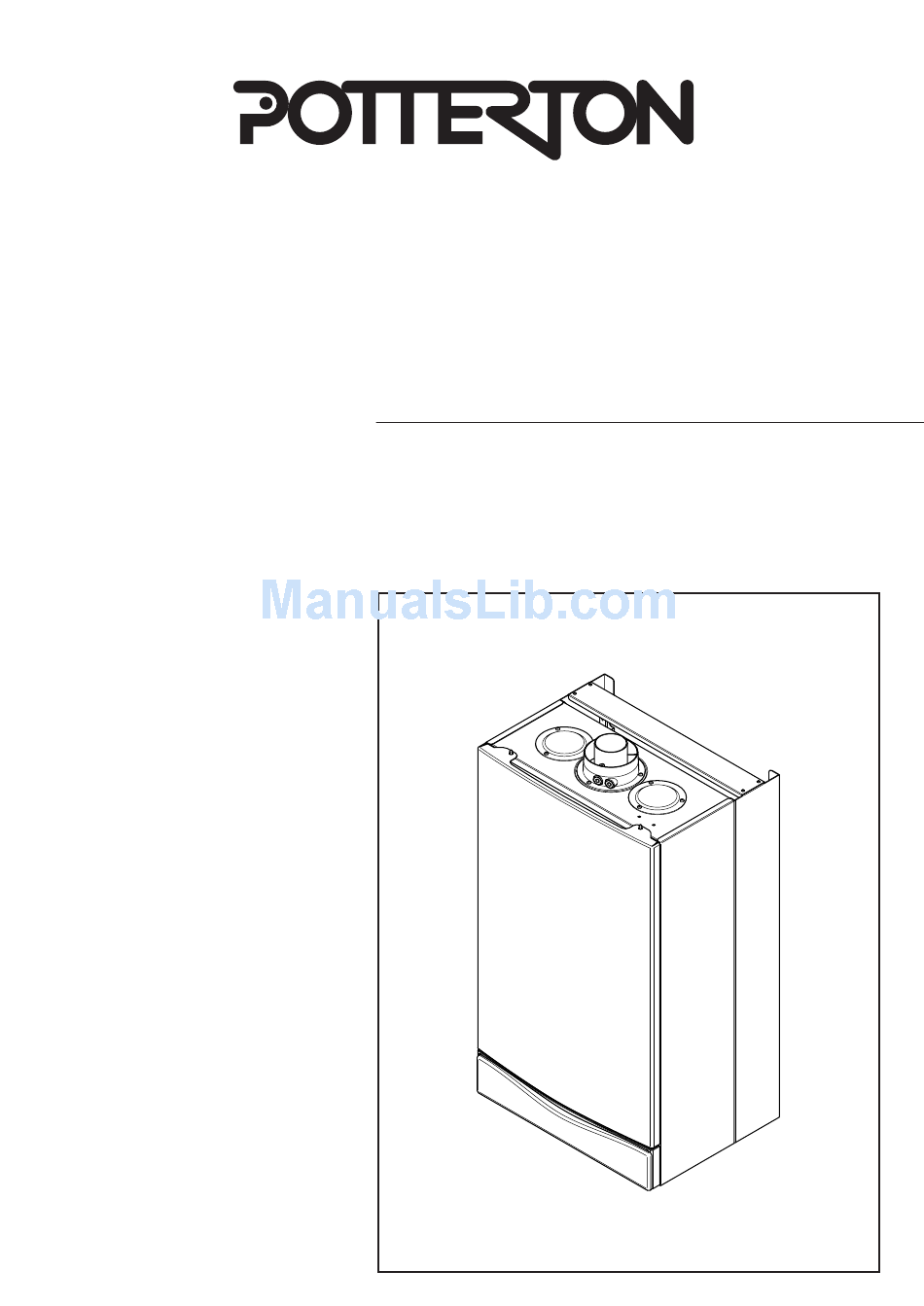

- Page 1 Performa 28 Gas Fired Wall Mounted Combination Boiler User’s Operating Instructions Please keep these instructions safe. Should you move house, please hand them over to the next occupier.
- Page 2 Instrument “ The Boiler (Efficiency) Regulations 1993 N 3083” and is deemed to meet the Your Potterton Performa 28 is requirements of Directive 92/42/EEC on the energy designed and produced to meet all efficiency requirements for new hot water boilers the relevant Standards.
- Page 3 1.0 Warnings “Benchmark” Installation, Commissioning and Service Safe Installation Record Log Book 1. The appliance is suitable for installation only in G.B. and I.E. and should be installed in Please ensure that your installer has completed the Installation accordance with the rules in force. For Ireland and Commissioning sections of the Log Book and hands the Log install in accordance with I.S.813 “I NSTALLATION...

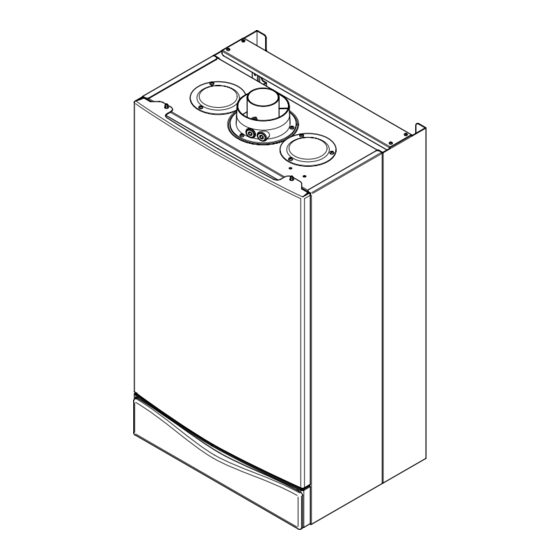

- Page 4 2.0 Introduction Introduction 1. Your Potterton Performa 28 is a gas fired, room sealed, powered flue combination boiler, providing central heating for your home and mains fed domestic hot water to taps and shower. It is fully automatic and does not have a pilot light.
-
Page 5: Operating The Boiler
3.0 Operating the Boiler Operating the Boiler 1. Ensure that the electricity and gas supplies are turned on. Check that the central heating pressure is between 0.5 and 1.0 bar (Fig. 4). 2. Turn the On/Off/Reset selector switch either anti-clockwise from the off position (Fig. 6) to both central heating and domestic hot water or 10 11 clockwise to domestic hot water only. - Page 6 Safety Thermostat Fig. 11 1. Your Potterton Performa 28 is fitted with an additional safety device, which shuts down the boiler in the event of the system or the boiler overheating. The safety thermostat neon ( ) will light in this instance (Fig.
- Page 7 3.0 Operating the Boiler Air Flow Monitor Pump/Low Sensor Fault Pressure Neon Neons 1. The boiler is fitted with an air pressure sensing Air Flow Monitor Neon device. This monitors the flue system. 2. If the neon illuminates ( ) it indicates that 30°...
- Page 8 3.0 Operating the Boiler Pressure Gauge Central Heating System Pressure 1. The water pressure in the central heating system is indicated by the pressure gauge. 2. With the system cold and the boiler not Fig. 15 operating the pressure should be between 0.5 Normal Pressure (when cold) and 1.0 bar.
- Page 9 4.0 Clearances and Check List 5mm Min 450mm 5mm Min Clearances around the Boiler (Figs. 20 & 21) 1. The minimum clear spaces needed around 200mm Min the boiler measured from the casing are as follows: 200mm Bottom 200mm Both sides - Front (In Operation) 450mm...
- Page 10 1. Any repairs to the boiler will usually be the responsibility of the Installer during the guarantee period after which spare parts may be obtained through approved Potterton stockists if required. 2. Quote the appliance name, model number and where possible the part number when ordering spares.
- Page 11 6.0 Notes...
- Page 12 Potterton, Baxi UK Limited, Brownedge Road, Bamber Bridge, Preston, Lancashire. PR5 6SN After Sales Service 08706 096 096 www.baxi.com 922.048.1 Comp N 249108 - Iss 1 - 3/01...
