Potterton Performa 24 User Manual

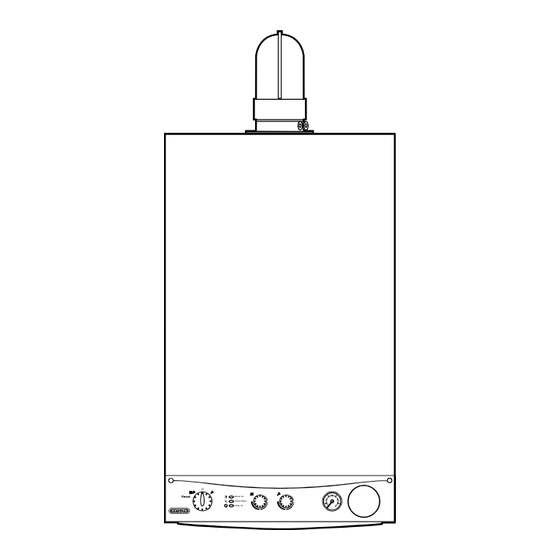

Wall mounted combination boiler gas fired central heating unit.
Hide thumbs Also See for Performa 24:

Advertisement

Table of Contents

See also: Instructions for Installation and Servicing

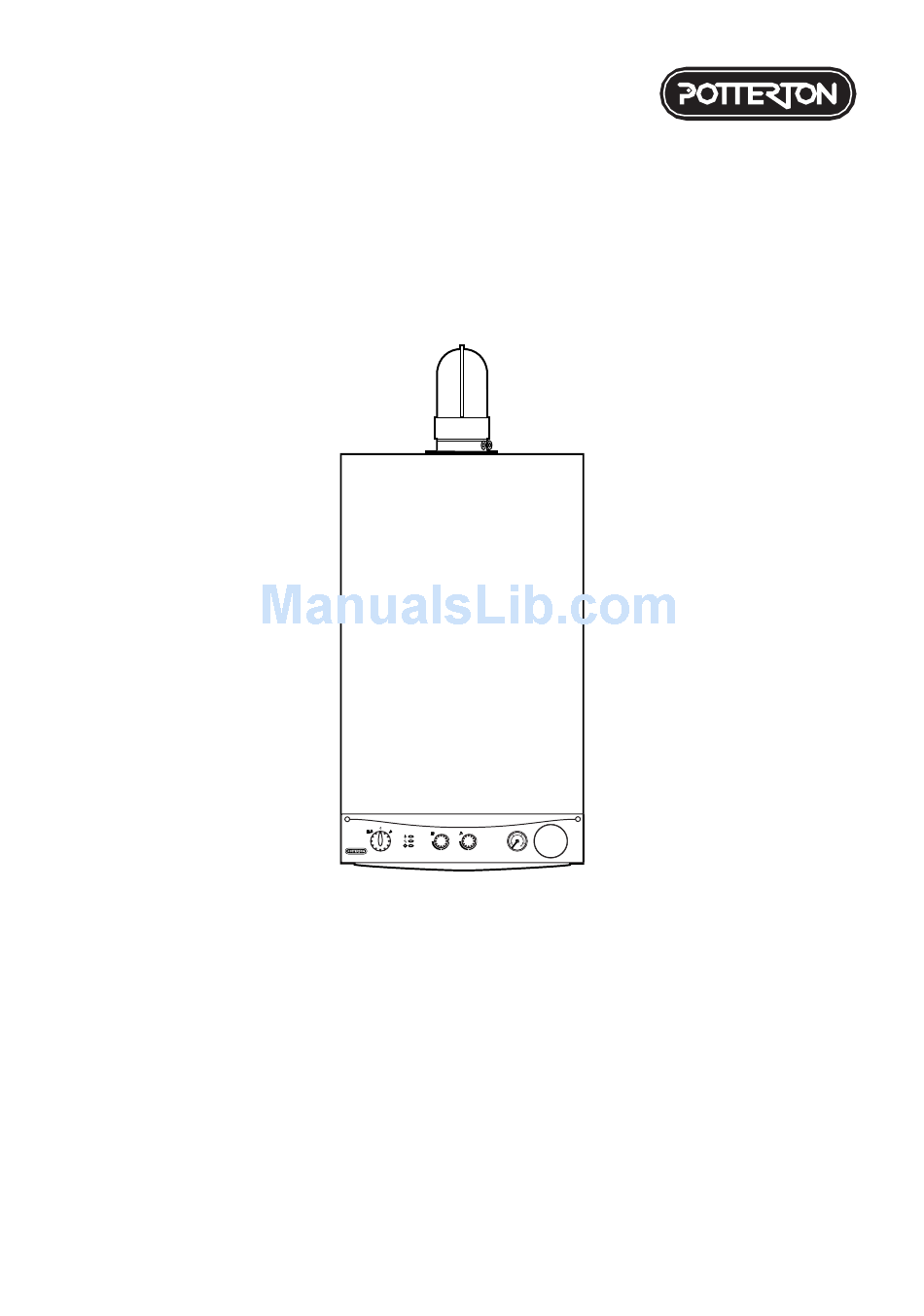

User's Guide
This is a Wall Mounted Combination Boiler Gas Fired Central Heating Unit.
The boiler meets the requirements of Statutory Instrument " The Boiler (Efficiency) Regulations 1993 N
deemed to meet the requirements of Directive 92/42/EEC on the energy efficiency requirements for new hot water
boilers fired with liquid or gaseous fuels:-
Type test for purpose of Regulation 5 certified by:
Notified Body 0086.
Product/Production certified by:
Notified Body 0086.
For use in GB/IE only.
© Baxi Heating UK Ltd 2007
2
Reset
Burner On
Flame Failure
Power On
bar
Performa 24
o
3083" and is
