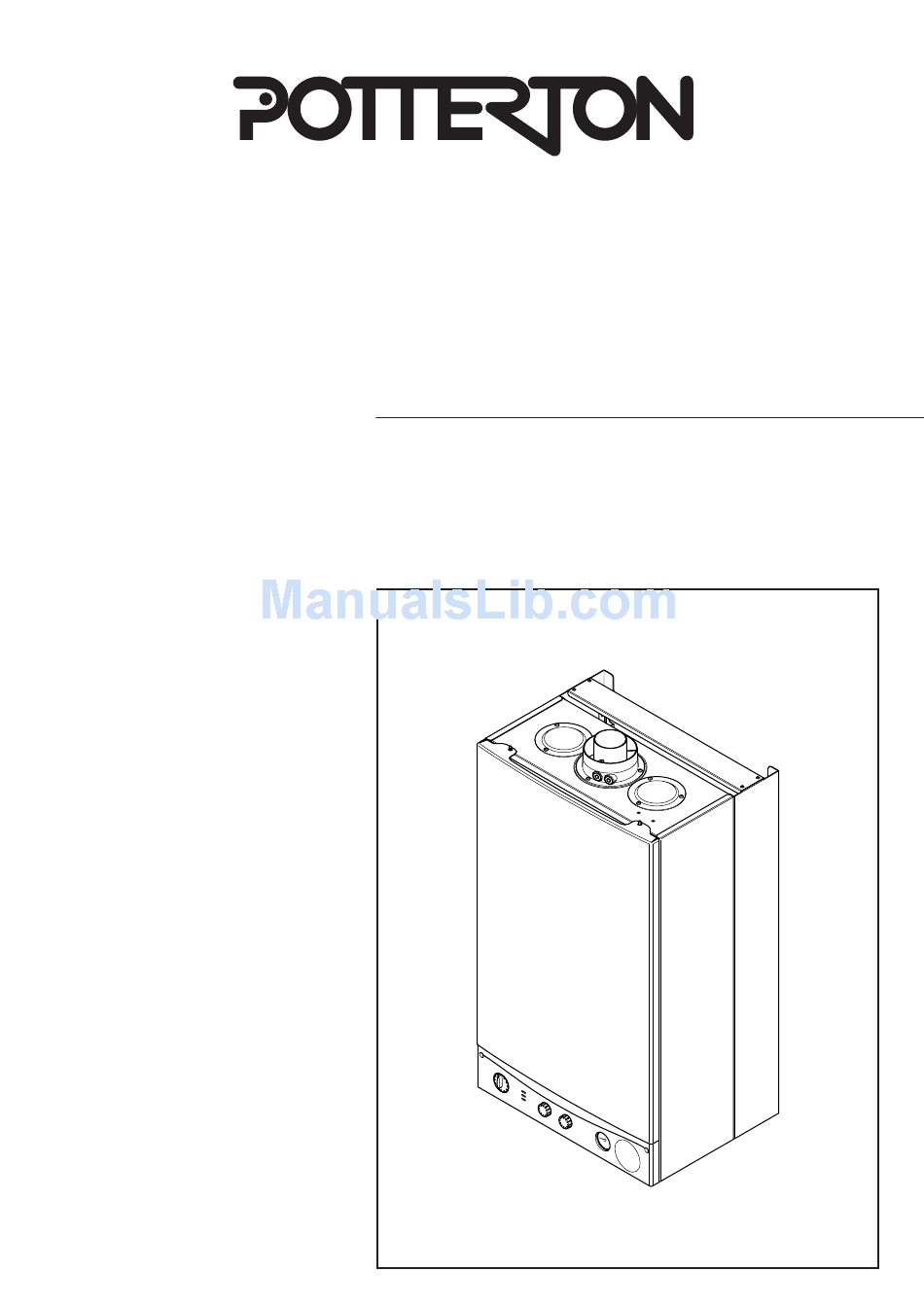

- Page 1 Performa 24 Gas Fired Wall Mounted Combination Boiler User’s Operating Instructions Please keep these instructions safe. Should you move house, please hand them over to the next occupier.
- Page 2 Instrument “ The Boiler (Efficiency) Regulations 1993 N 3083” and is deemed to meet the Your Potterton Performa 24 is requirements of Directive 92/42/EEC on the energy designed and produced to meet all efficiency requirements for new hot water boilers the relevant Standards.
- Page 3 1.0 Warnings “Benchmark” Installation, Commissioning and Service Safe Installation Record Log Book 1. The appliance is suitable for installation only in Please ensure that your installer has completed the Installation and G.B. and I.E. and should be installed in accordance with the rules in force. For Ireland Commissioning sections of the Log Book and hands the Log Book install in accordance with I.S.813 “I NSTALLATION...
-
Page 4: Operating The Boiler
2.0 Operating the Boiler Introduction 1. Your Potterton Performa 24 is a gas fired, room sealed, powered flue combination boiler, providing central heating for your home and mains fed domestic hot water to taps and shower. It is fully automatic and does not have a pilot light. - Page 5 Fig. 9 Domestic Hot Water Temperature Control Safety Thermostat 1. Your Potterton Performa 24 is fitted with an additional safety device, which shuts down the boiler in the event of the system or the boiler overheating. 2. If the device operates, the boiler will shut down.
- Page 6 2.0 Operating the Boiler Pressure Gauge Central Heating System Pressure 1. The water pressure in the central heating system is indicated by the pressure gauge. 2. With the system cold and the boiler not Fig. 12 operating the pressure should be between 0.5 Normal Pressure (when cold) and 1.0 bar.
- Page 7 3.0 Clearances and Check List 450mm 5mm Min 5mm Min Clearances around the Boiler (Figs. 17 & 18) 1. The minimum clear spaces needed around 200mm Min the boiler measured from the casing are as follows: 200mm Bottom 200mm Both sides - Front (In Operation) 450mm...
- Page 8 Fig. 19 lower right hand case panel (Fig 19). Information Label Potterton, Baxi UK Limited, Brownedge Road, Bamber Bridge, Preston, Lancashire. PR5 6SN After Sales Service 08706 096 096 www.baxi.com 922.030.1...
