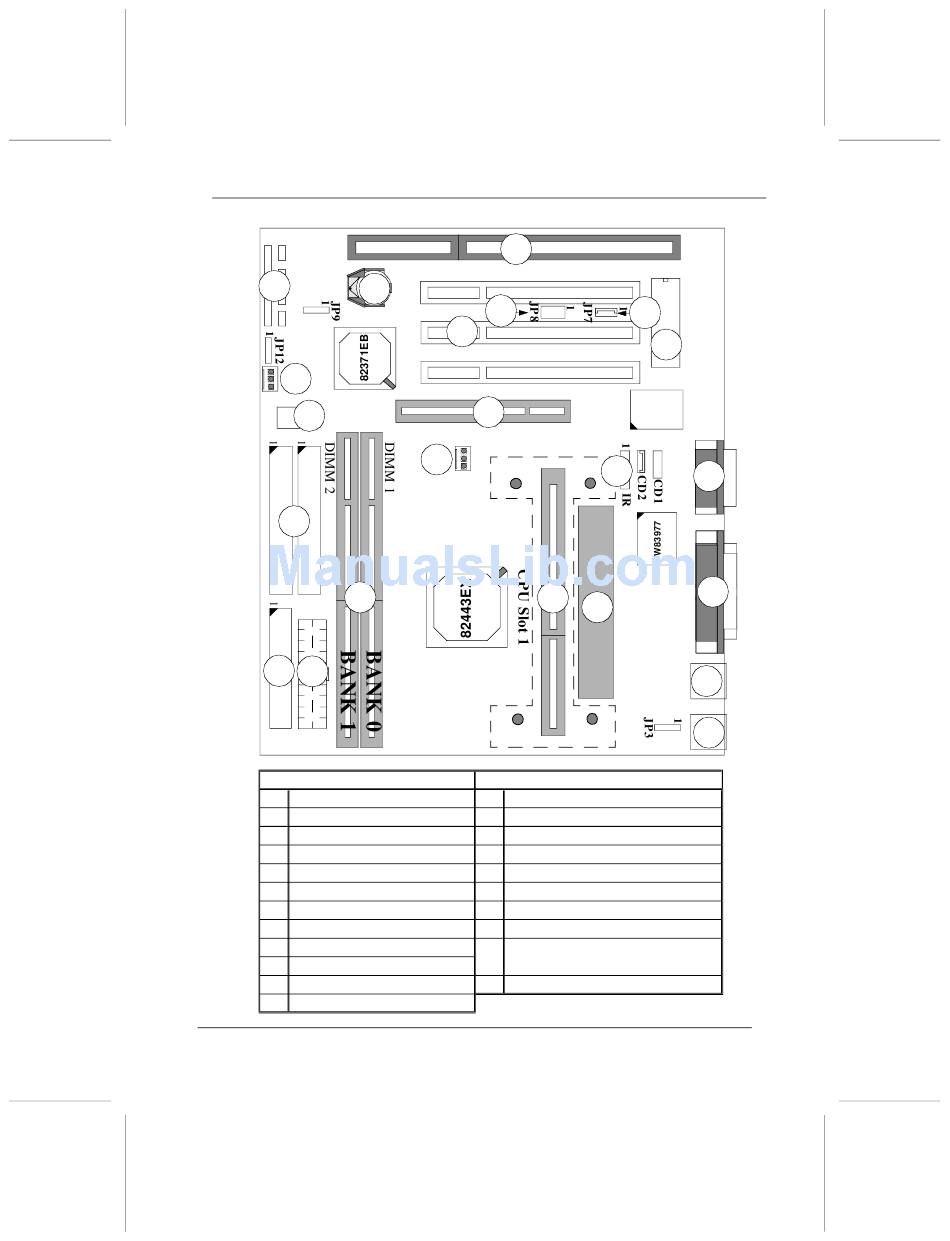

1.3 P6F94 Mainboard Layout

14
15
18
21
6
5
7
10
REFERENCE PAGE
1 CPU Slot1
2 ISA Expansion Slots
3 PCI Expansion Slots
4 AGP Slot
5 DIMM Module Sockets
6 IDE Connectors
7 Floppy Drive Connector
8 Parallel/Serial Port Connector
9 IR Port Header
10 ATX Power Connector
11 PS/2 Keyboard/Mouse Connector
12 Flash BIOS
10
Chapter 1: Introduction
2
20
3
4
17
1
13
REFERENCE PAGE
13 Switching Regulator
14 Front panel Connectors
15 Battery (CR2032 Lithium)
16 Dual USB Connector
17 CPU FAN Connector
18 Secondary FAN Connector
19 Wake On LAN Header
20 Creative Lab SB-Link(JP8)
21 Winbond 83781D PC Health Monitor chip
(Assemble option)
22 GAME/Audio port
P6F94 User's Manual
19
12
ESS
AudioDrive
ES1898
9
22
8
16
11
